Toyota Hilux 2WD

1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

18 part groups · 4 illustrations

Illustrations

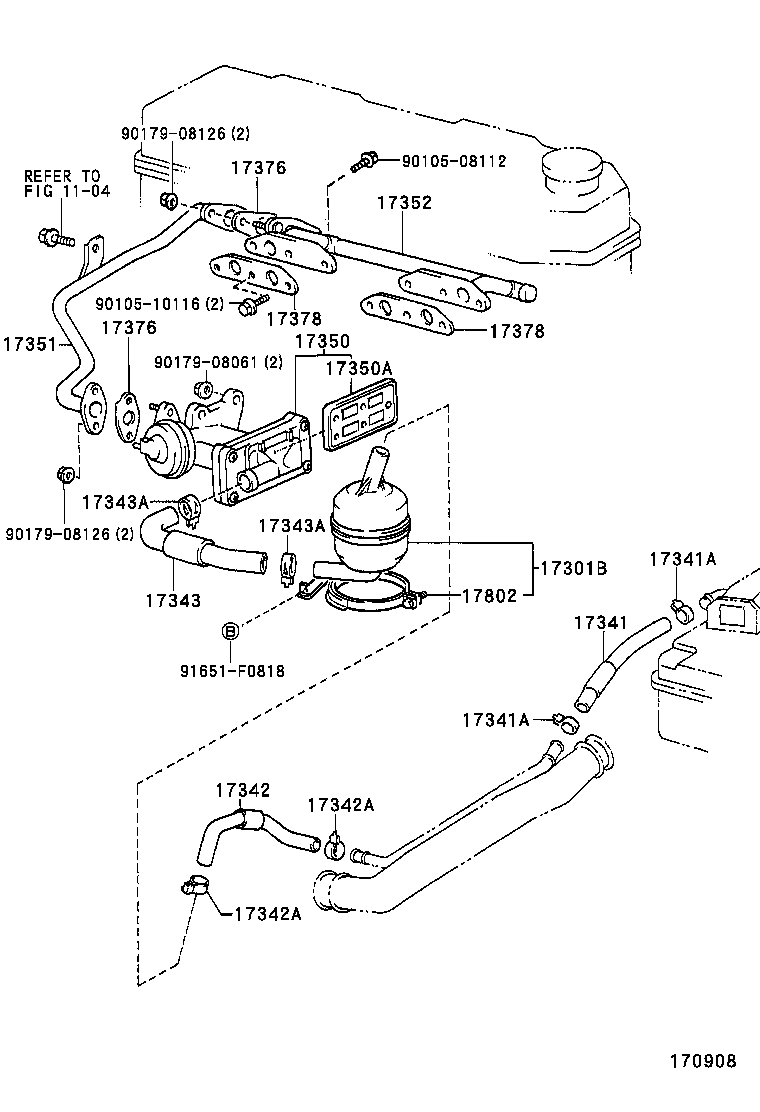

Figure 170907 170907 1988-08 → — Figure 170908 170908 1994-01 → 1994-08 Figure MAA918A MAA918A 1988-08 → — Figure MAH084 MAH084 1994-01 → 1995-04

Part groups

PNCDescription
17301B Silencer Sub-assy, Air Suction
17327 Bracket, Reed Valve
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341A Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342A Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17343A Clamp OR Clip, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17350 Valve Assy, Reed
17350A Valve Sub-assy, Reed
17351 Manifold, Air Injection
17352 Manifold, Air Injection, NO.2
17355 Nozzle, Air Injection
17376 Gasket, Air Tube, NO.1
17377 Gasket, Air Tube, NO.2
17378 Gasket Air Tube, NO.3
17802 Bracket Sub-assy, Resonator
25710 Valve Assy, Air Switching
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
