Toyota Hilux 2WD

1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

36 part groups · 20 illustrations

Illustrations

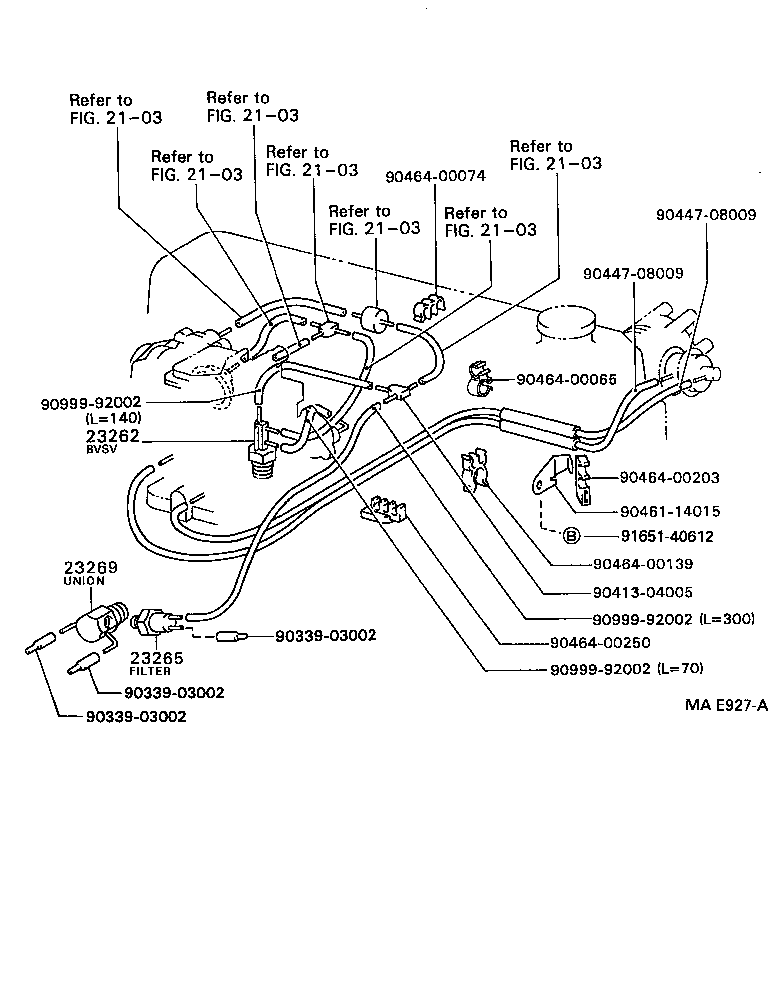

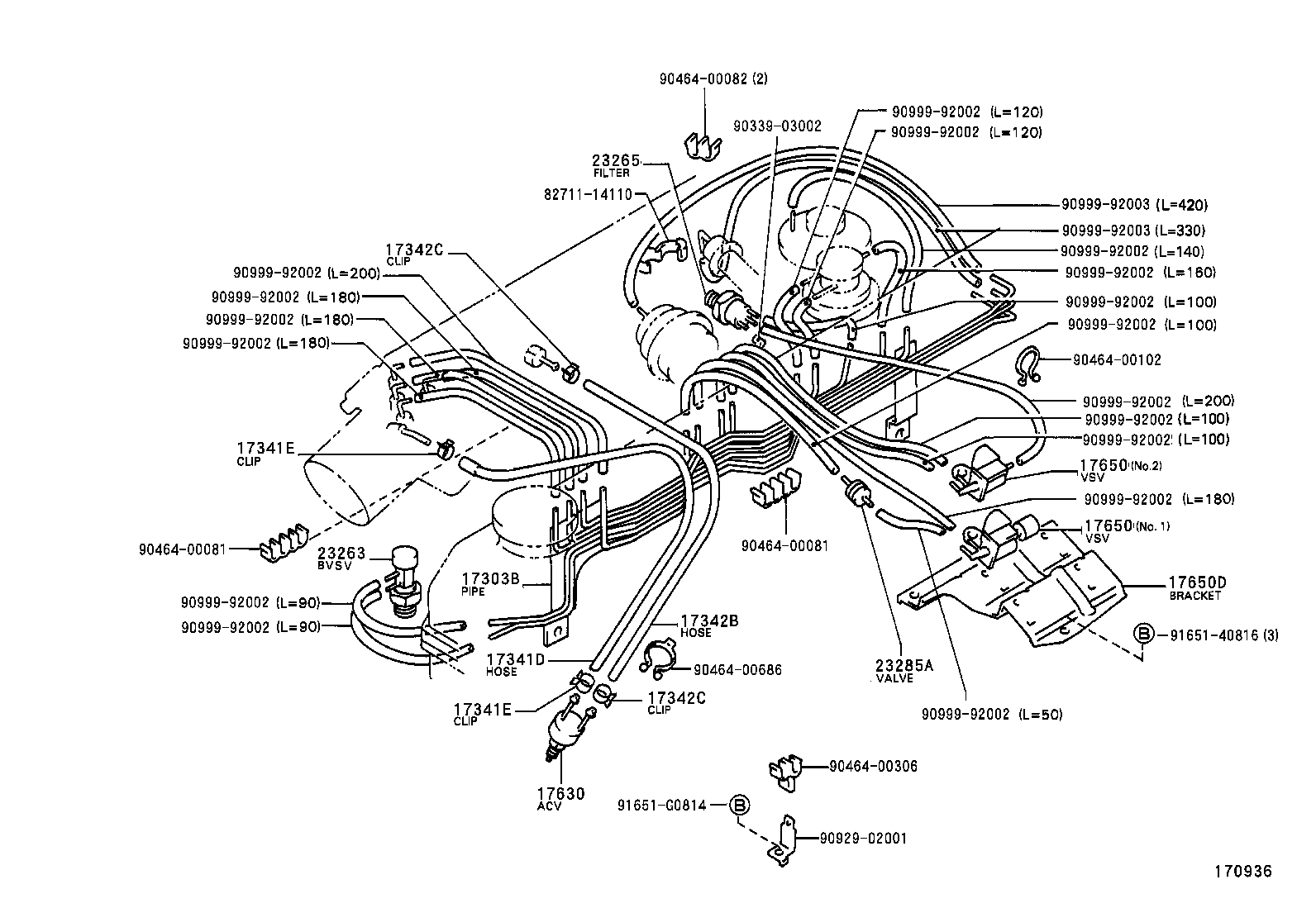

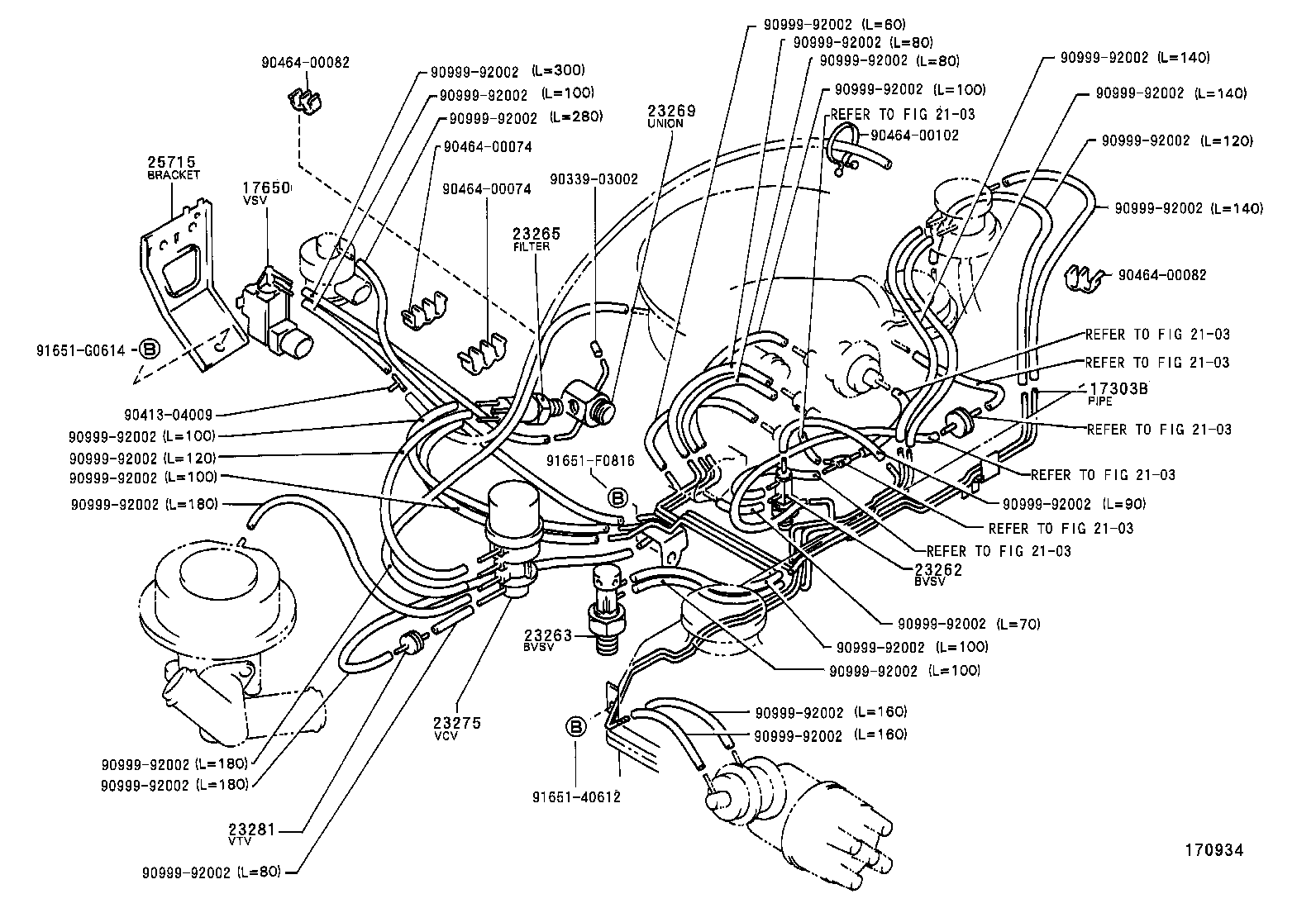

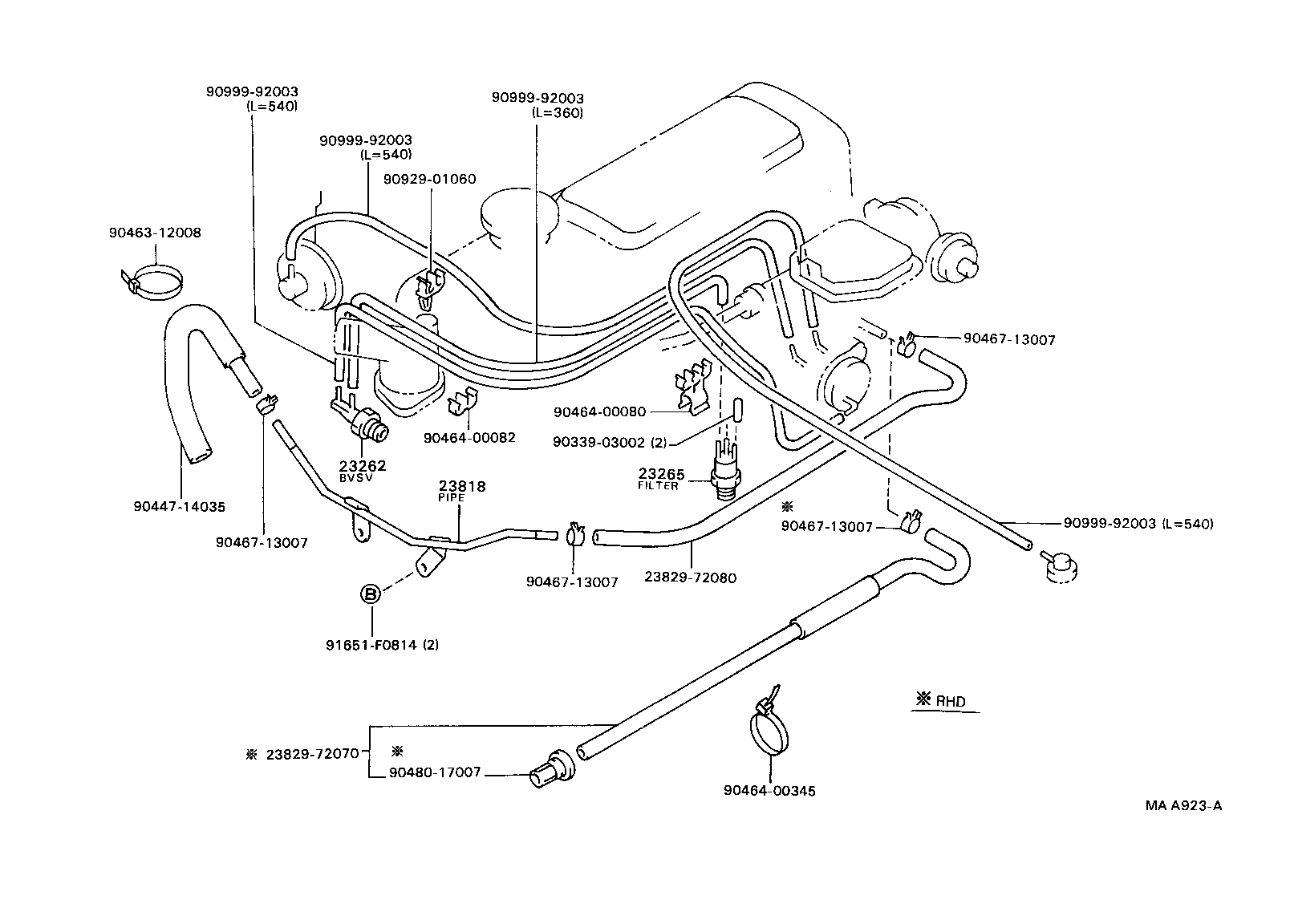

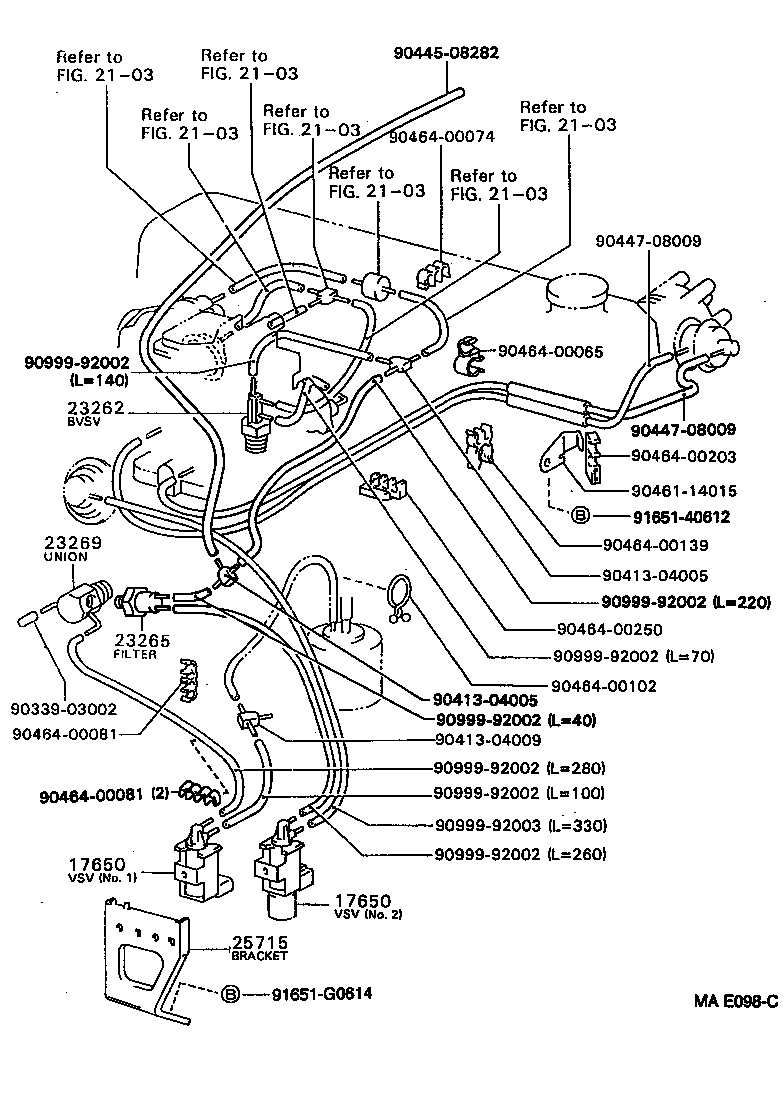

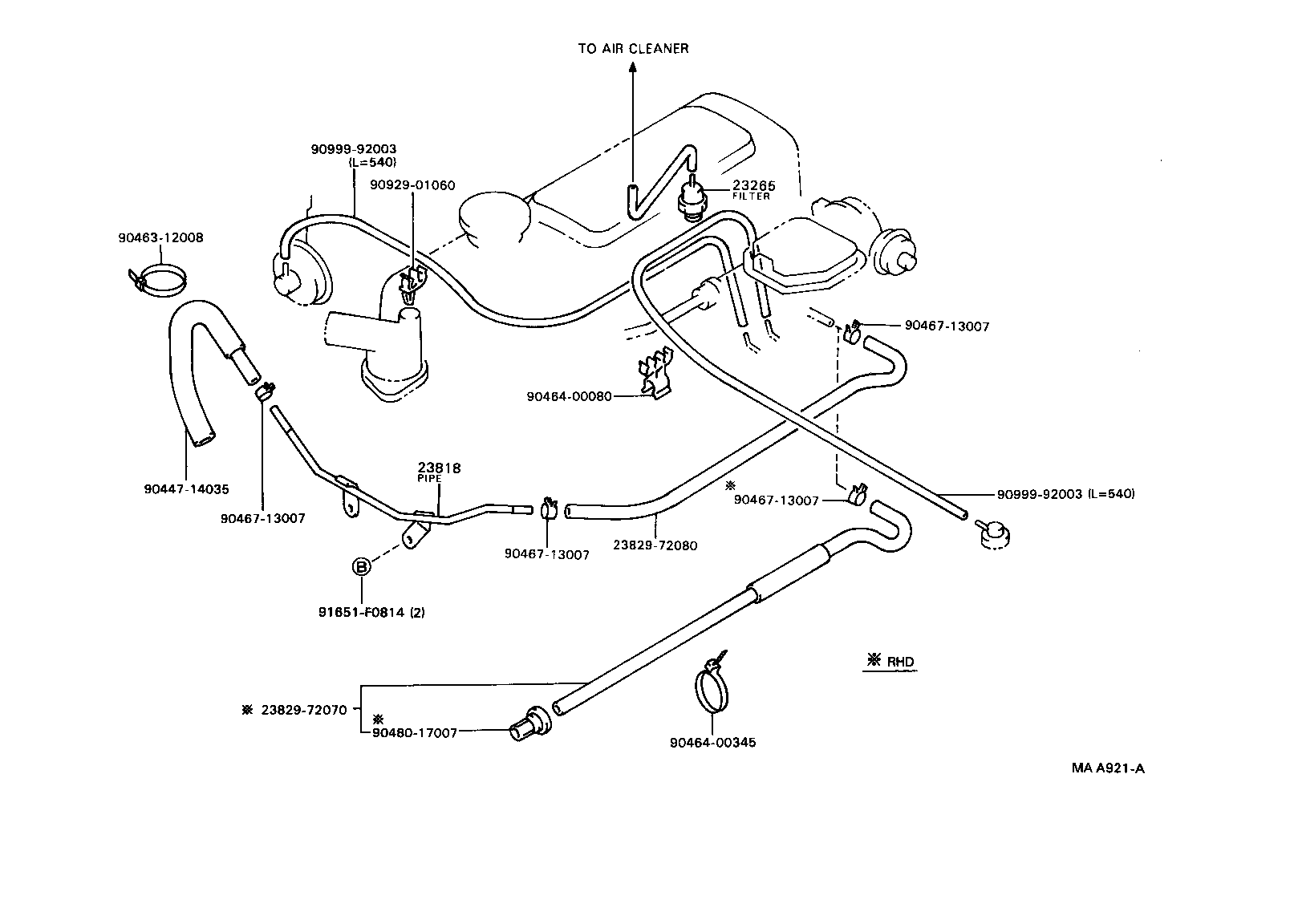

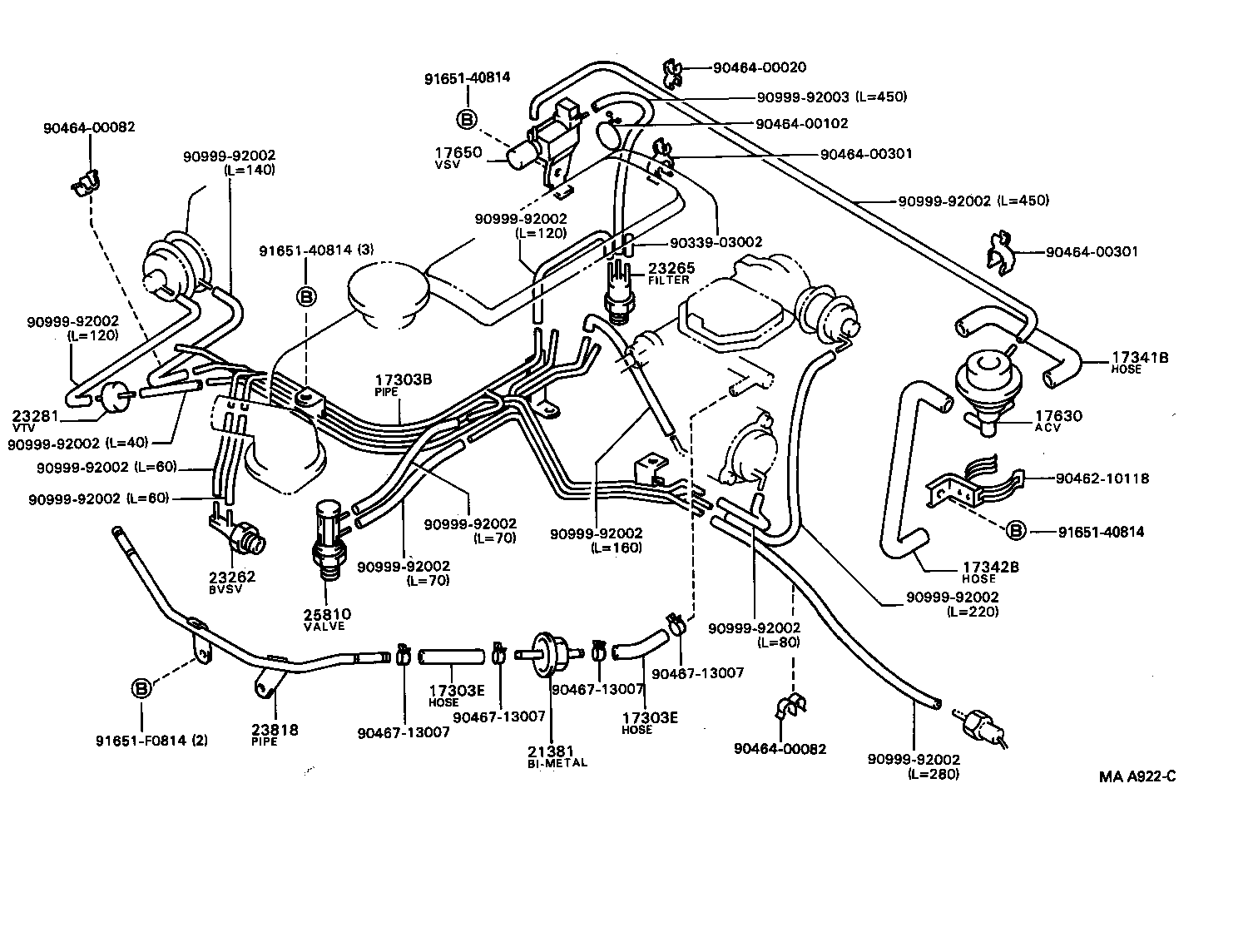

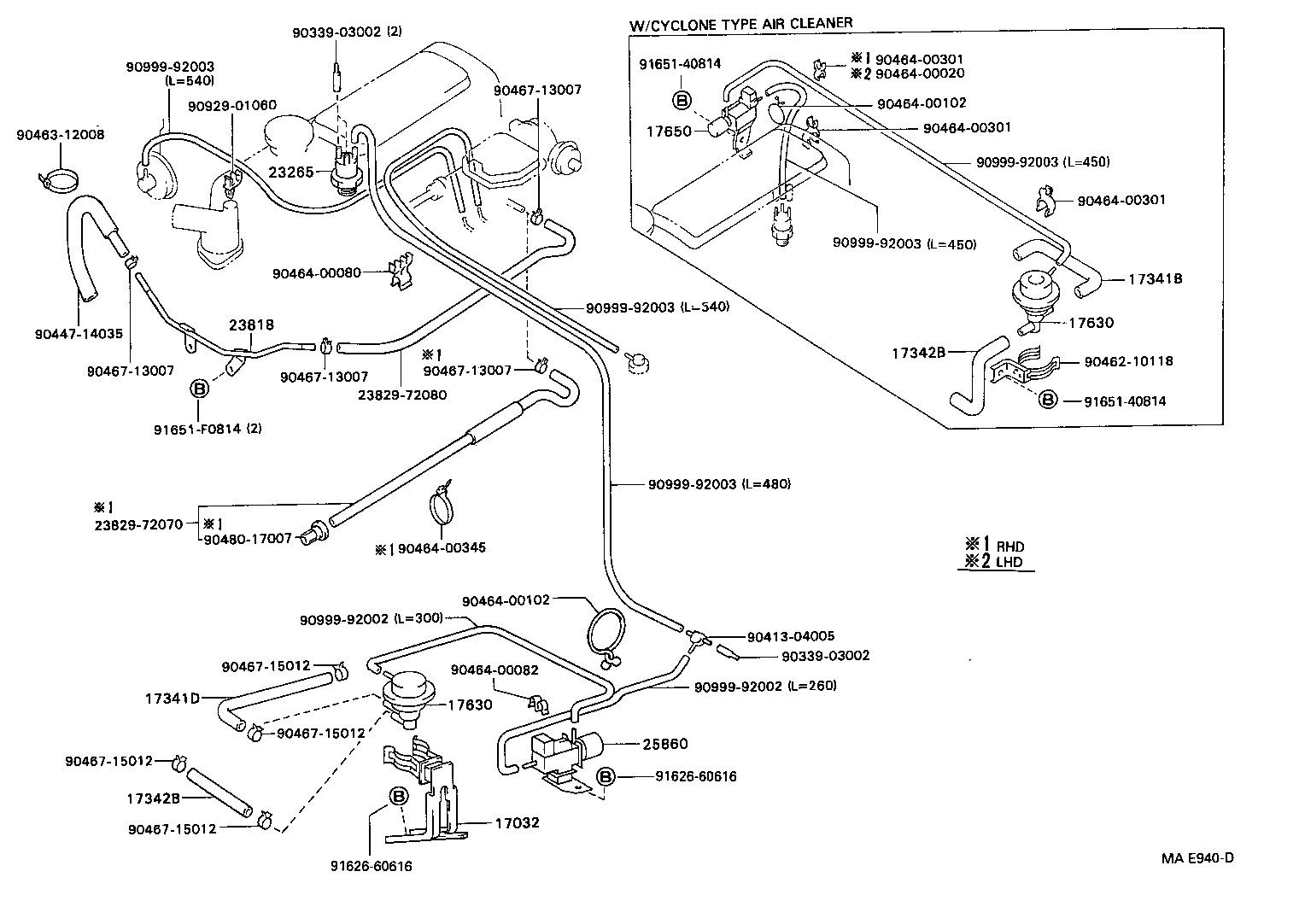

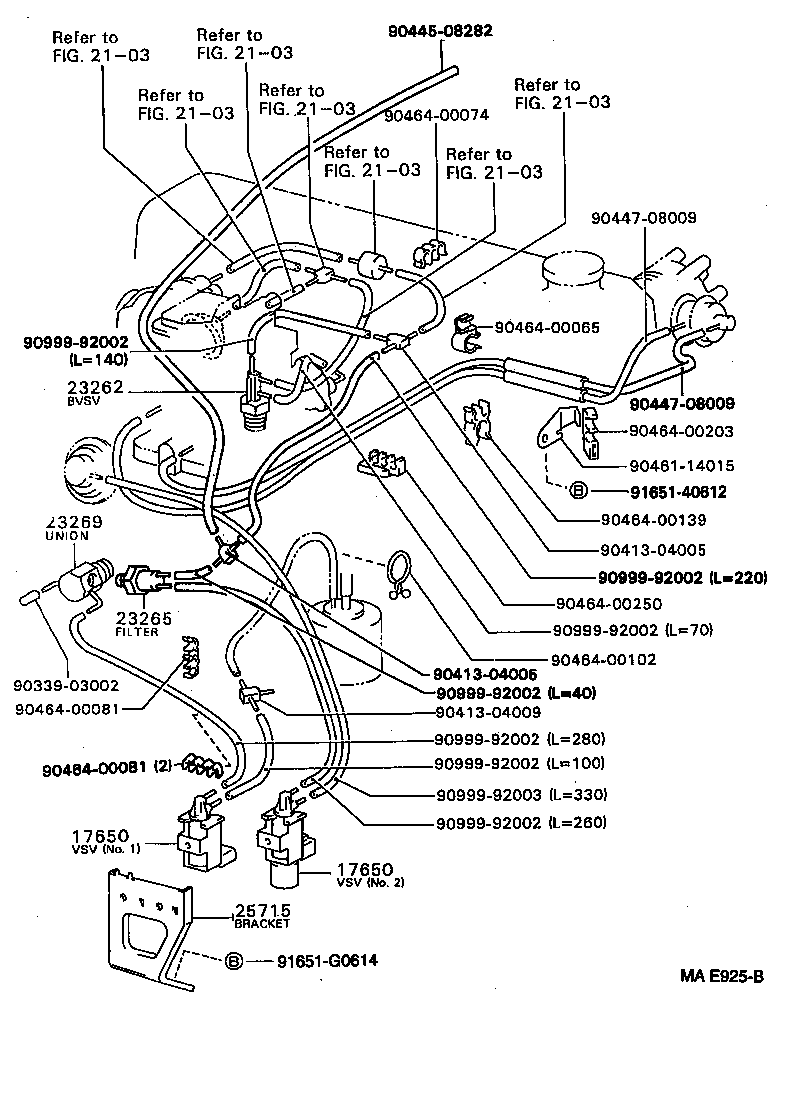

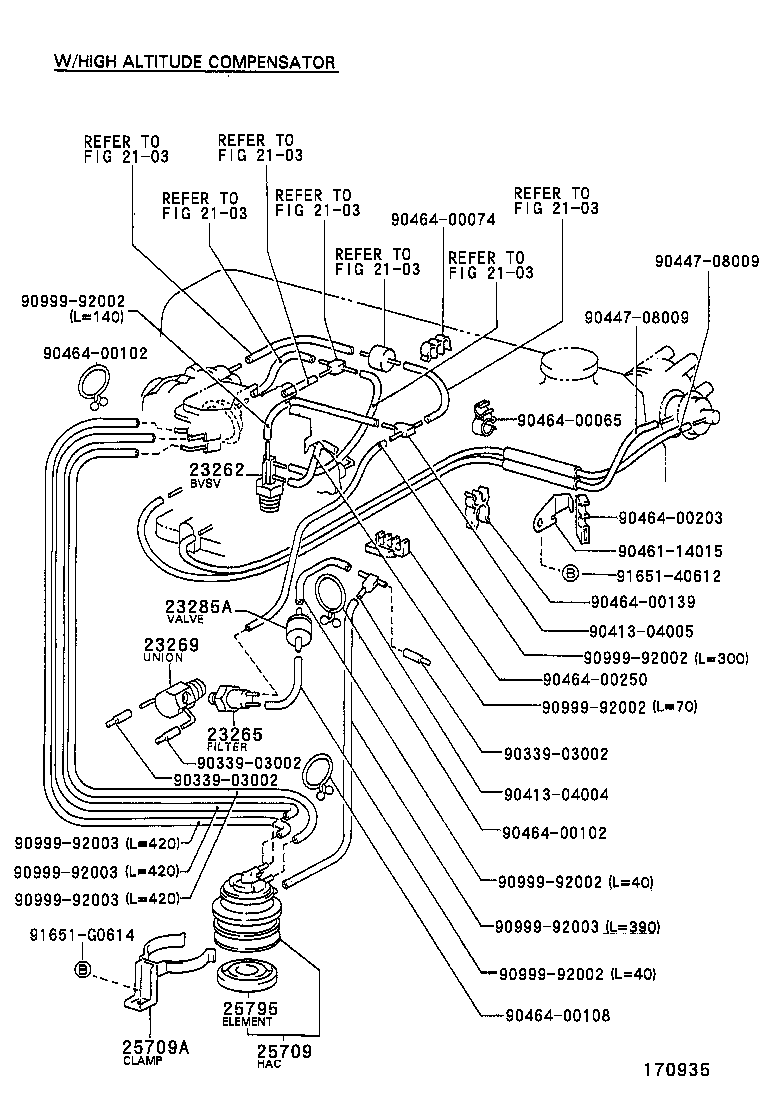

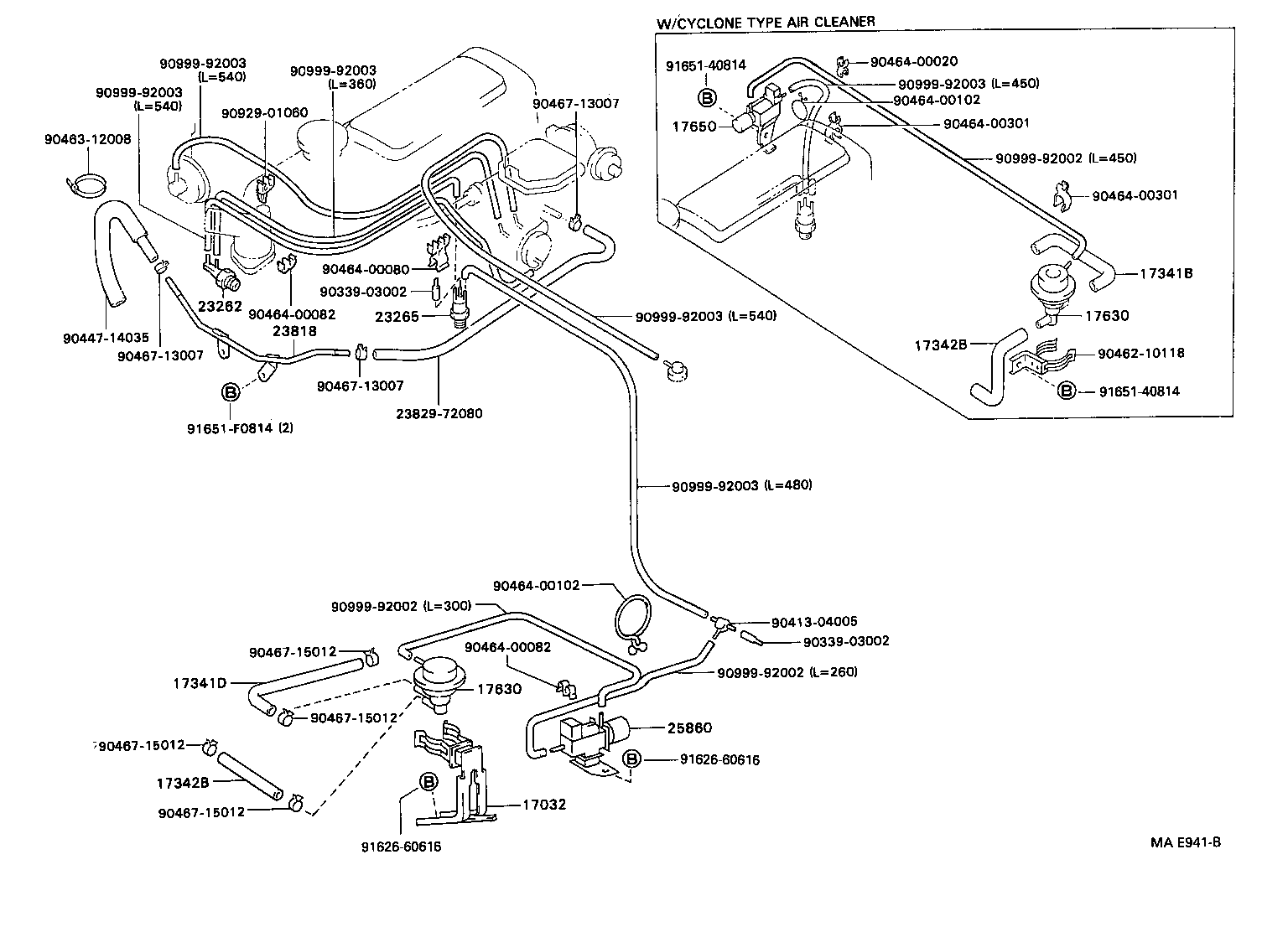

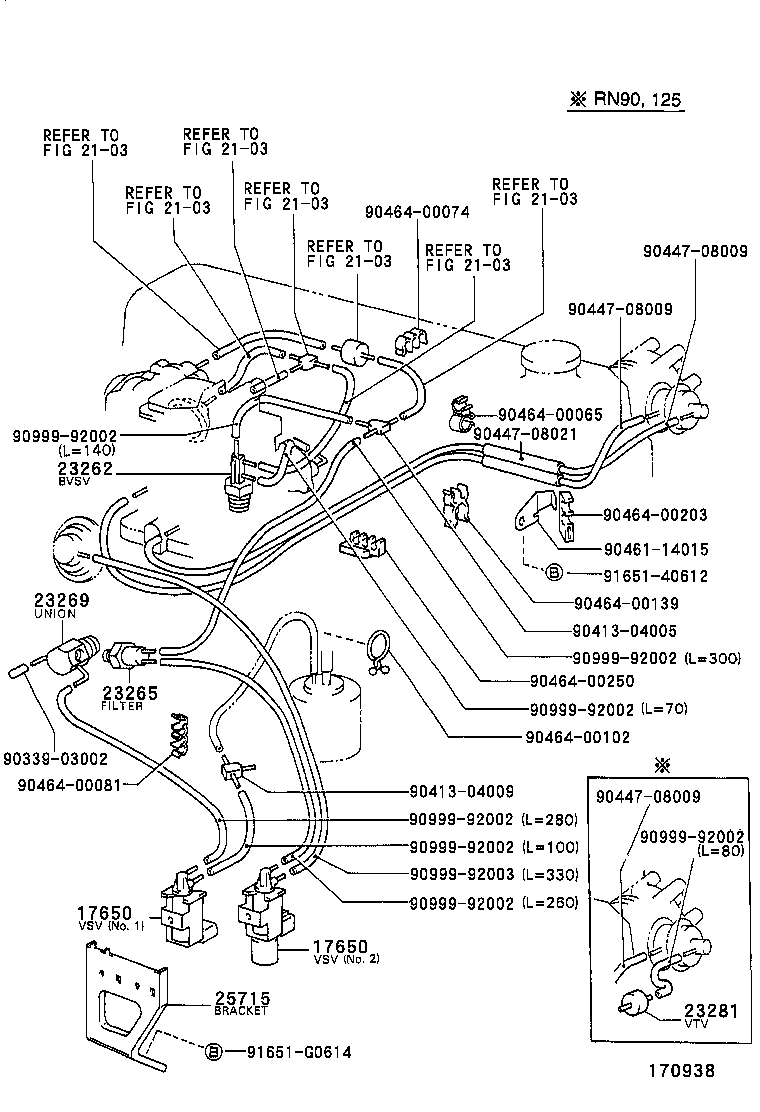

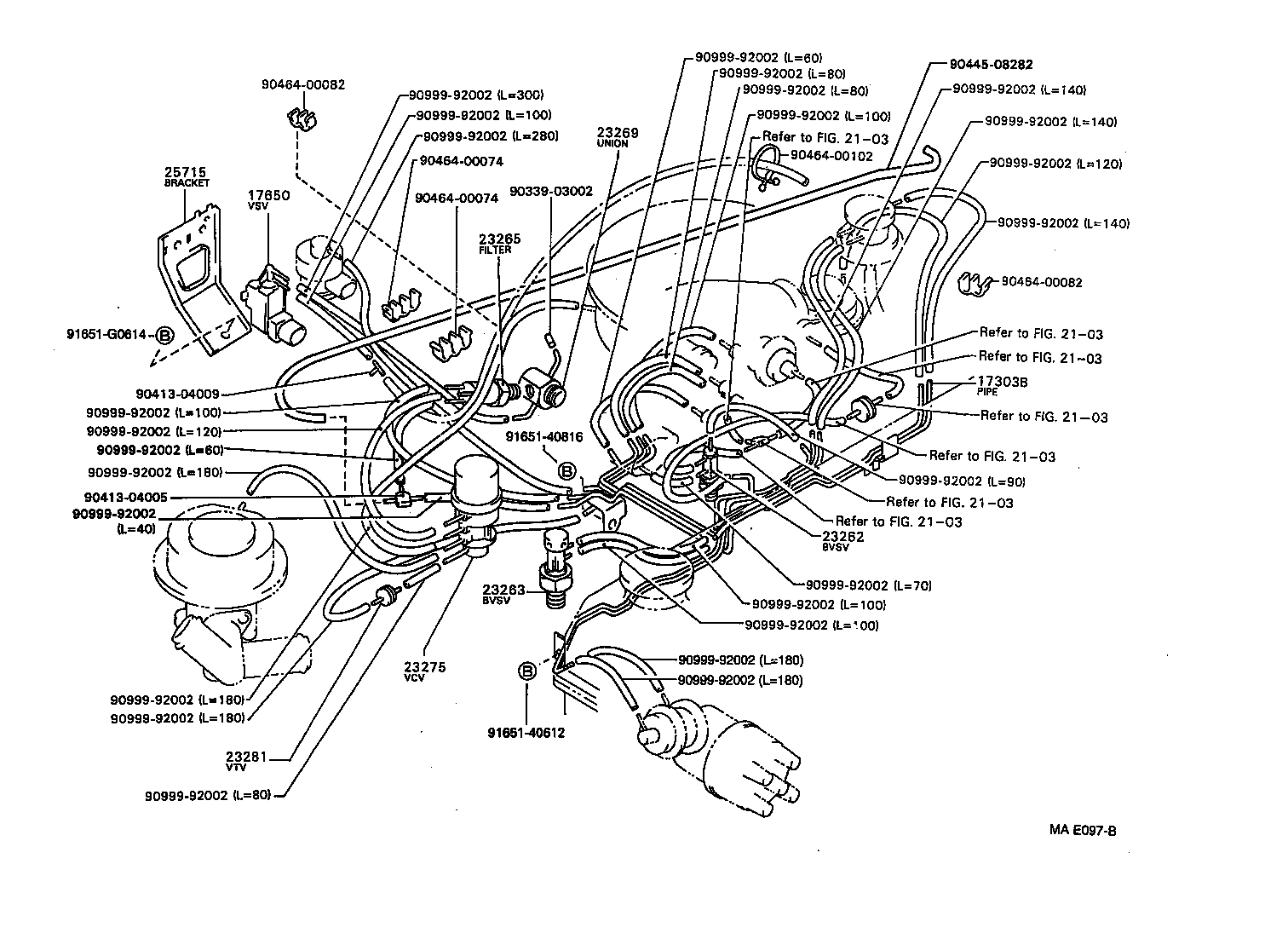

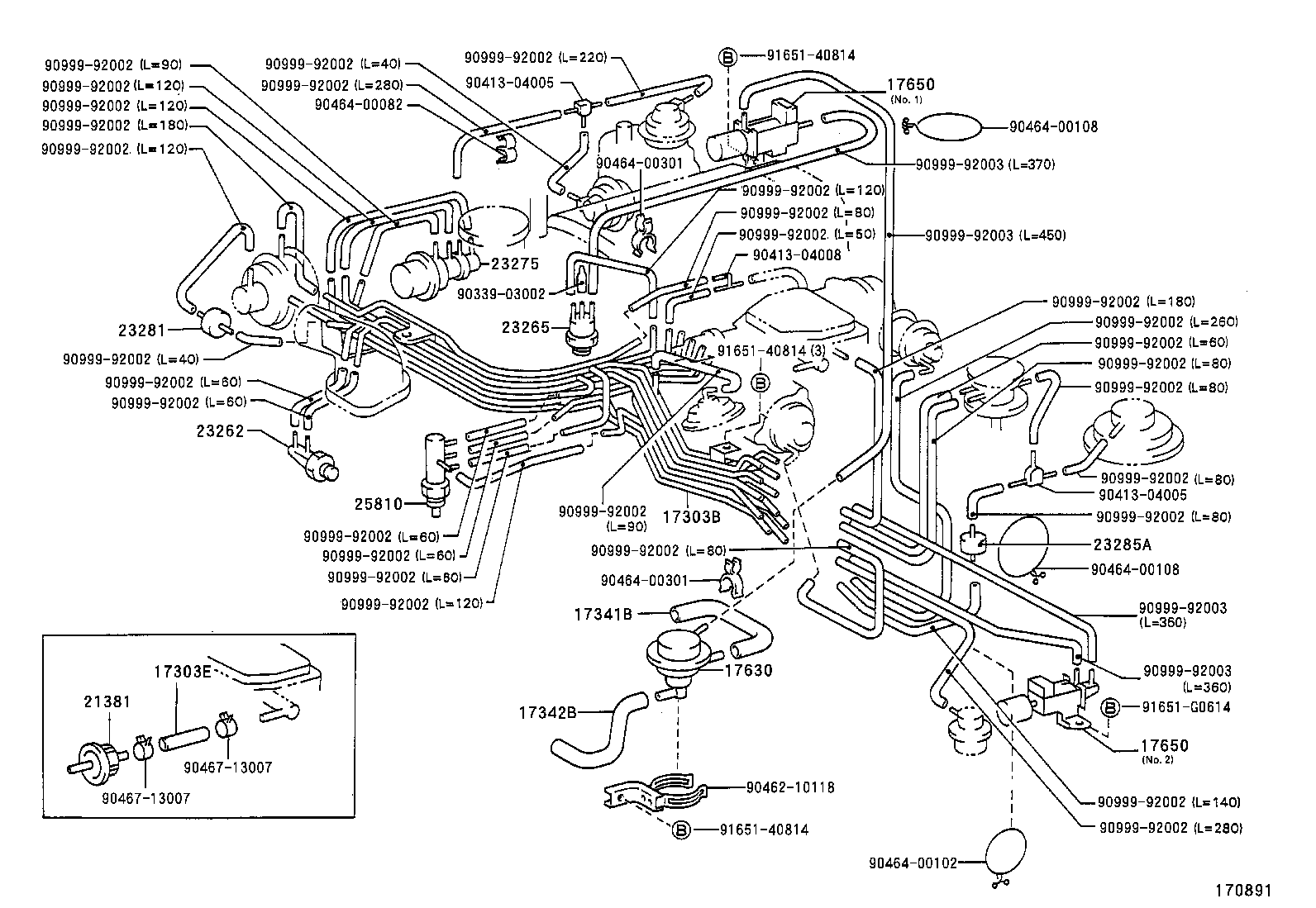

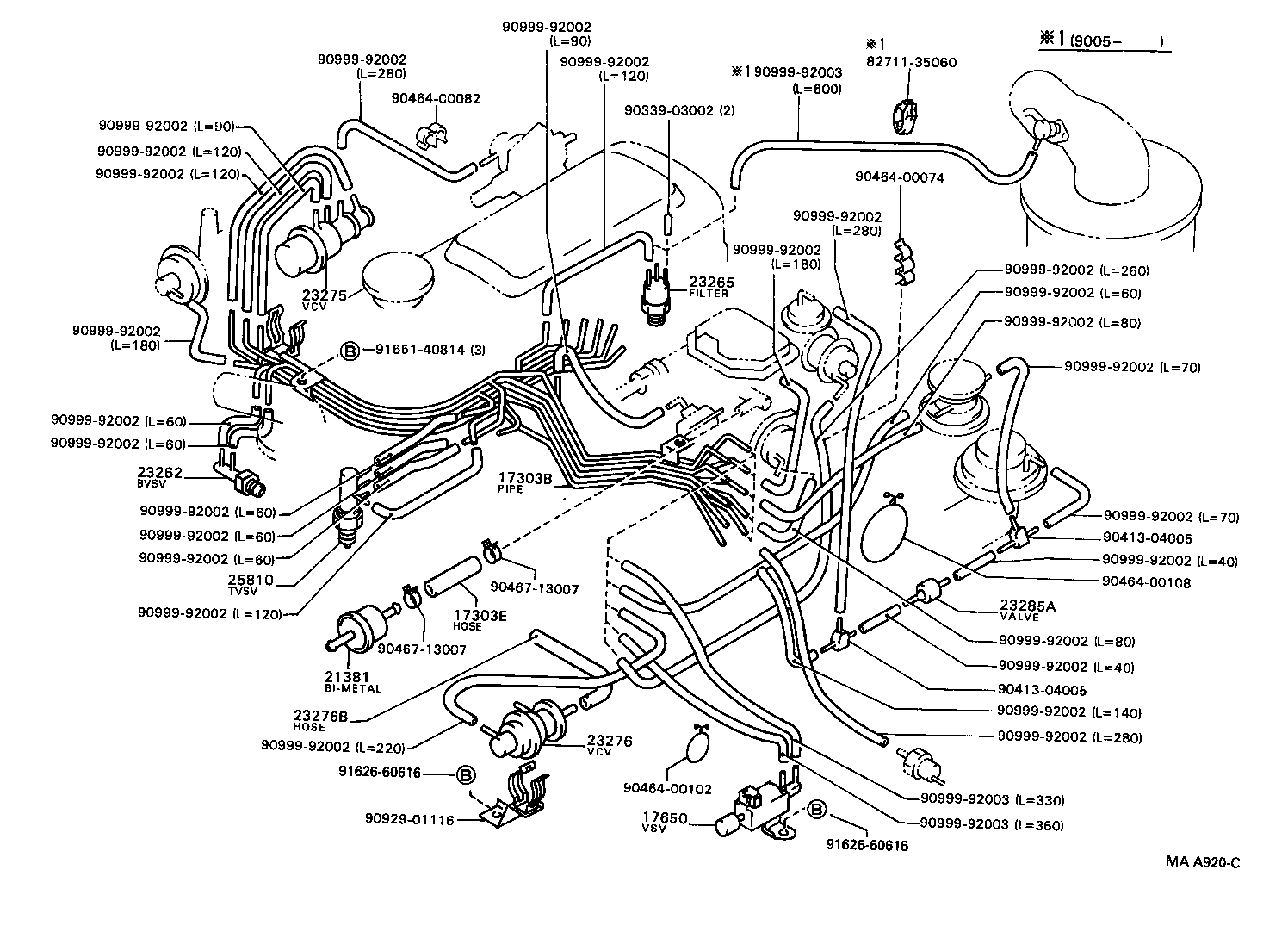

Figure 172897 172897 2001-06 → — Figure 170021 170021 1988-08 → — Figure 170934 170934 1988-08 → 1990-08 Figure MAE097B MAE097B 1990-08 → — Figure MAE098C MAE098C 1990-08 → — Figure 170935 170935 1991-08 → — Figure 170938 170938 1988-08 → — Figure MAE925B MAE925B 1991-08 → — Figure MAE925B MAE925B 1995-08 → — Figure MAE927A MAE927A 1995-05 → — Figure 170936 170936 1994-01 → — Figure 172898A 172898A 2001-05 → — Figure MAA920C MAA920C 1988-08 → — Figure MAA921A MAA921A 1988-08 → 1991-08 Figure MAE940D MAE940D 1991-08 → 1994-01 Figure MAE940D MAE940D 1994-01 → — Figure 170891 170891 1994-01 → 1995-04 Figure MAA922C MAA922C 1988-08 → — Figure MAA923A MAA923A 1988-08 → 1991-08 Figure MAE941B MAE941B 1991-08 → —

Part groups

PNCDescription
17032 Bracket Sub-assy, Air Valve
17303B Pipe Sub-assy, Air, NO.1
17303E Hose, NO.1(FOR AIR PIPE)
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17345D Hose, Air, NO.5
17346B Hose, Air, NO.6
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
21381 Bimetal, Thermostatic
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23269 Union(FOR GAS FILTER)
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23276B Hose(FOR VACUUM CONTROL VALVE)
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
23818 Pipe, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23829A Hose, Fuel Vapor Feed
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25709 Valve Sub-assy, High Altitude Compensator
25709A Clamp(FOR HIGH ALTITUDE COMPENSATOR VALVE)
25715 Bracket, Emission Control Valve
25795 Element, Altitude Compensator Filter
25810 Valve Assy, Bimetal
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
88031R Actuator Set, Idle-up
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
