Toyota Hilux 2WD
1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · United States
Discontinued model
Data version 2005-07
Alternator

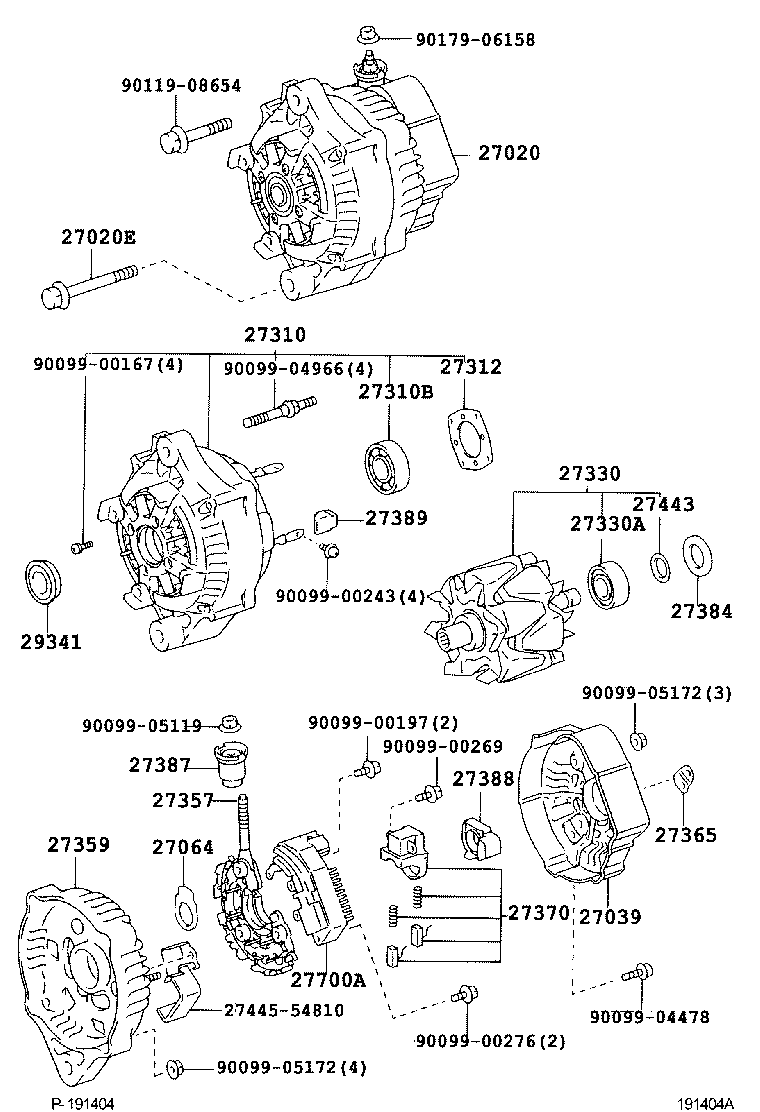

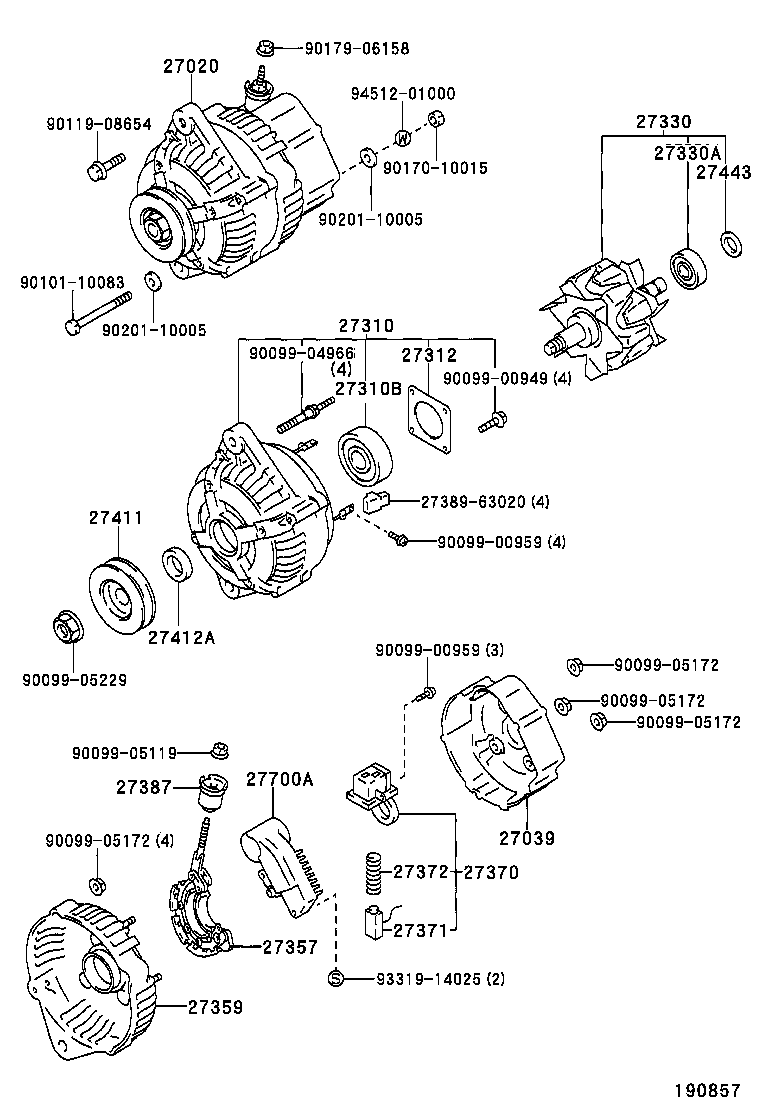

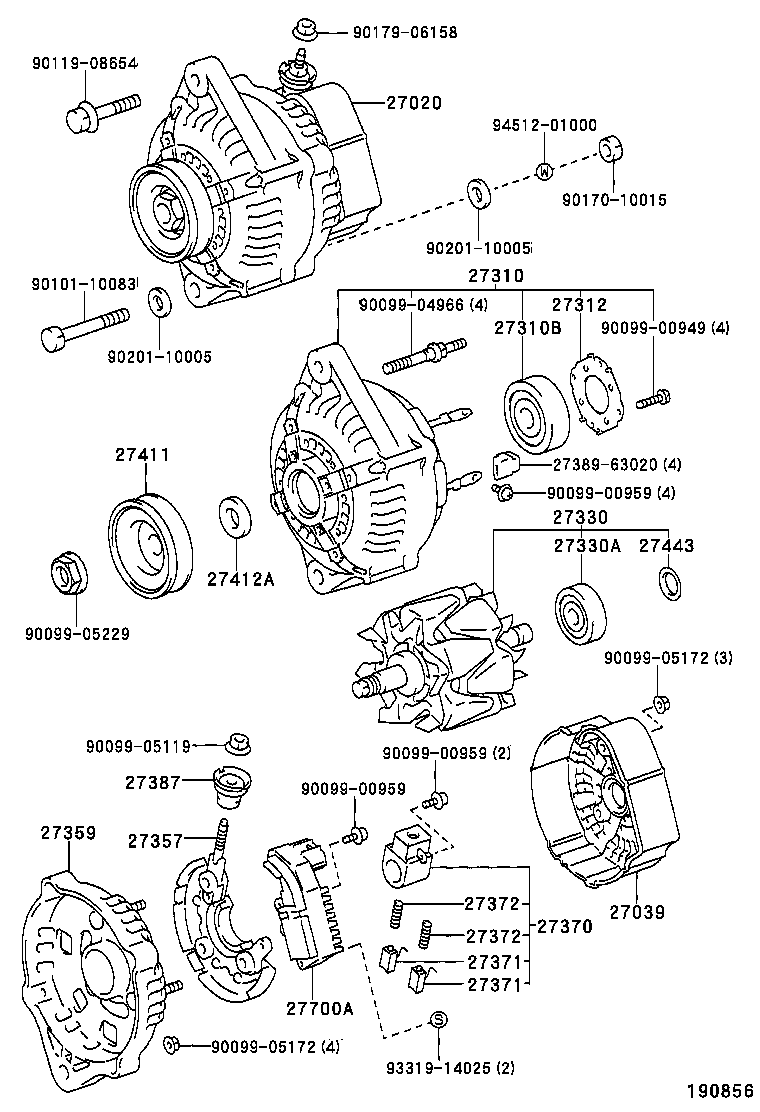

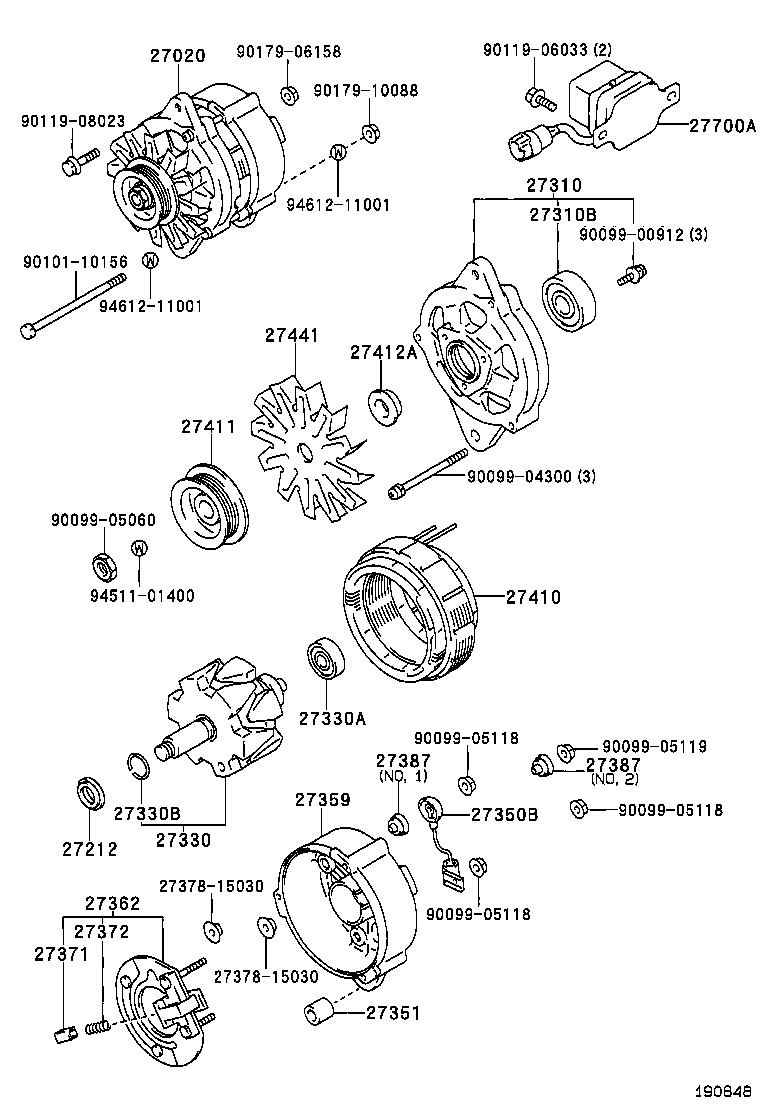

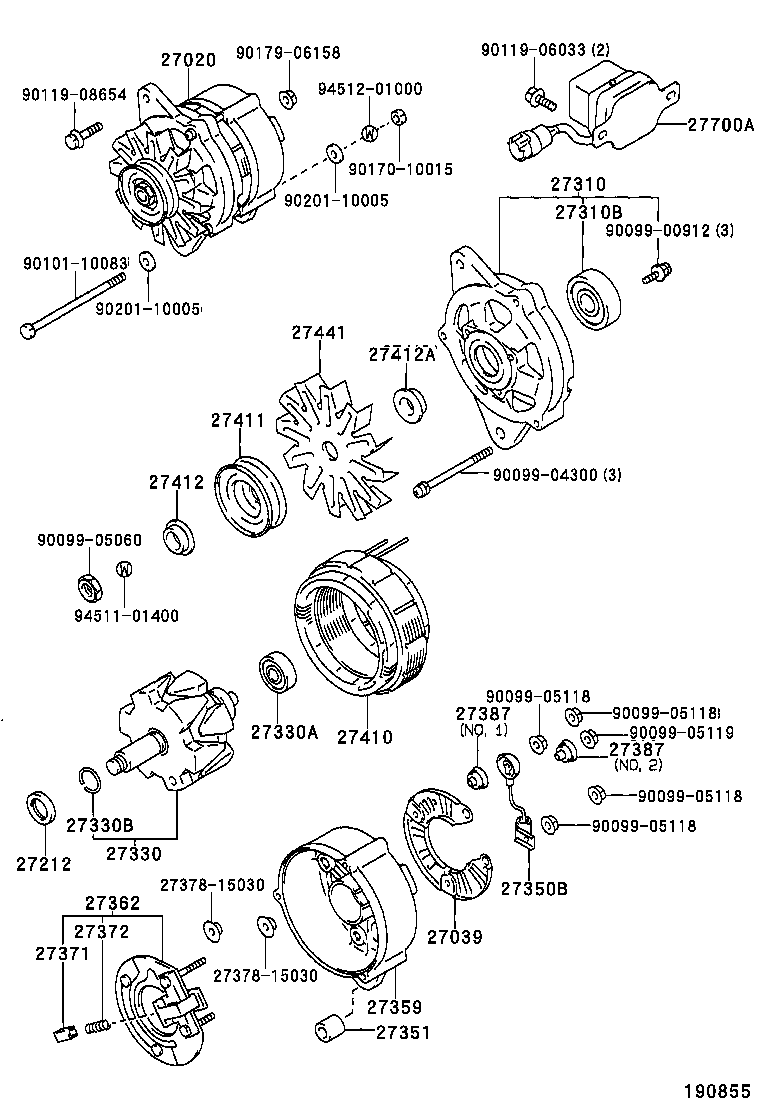

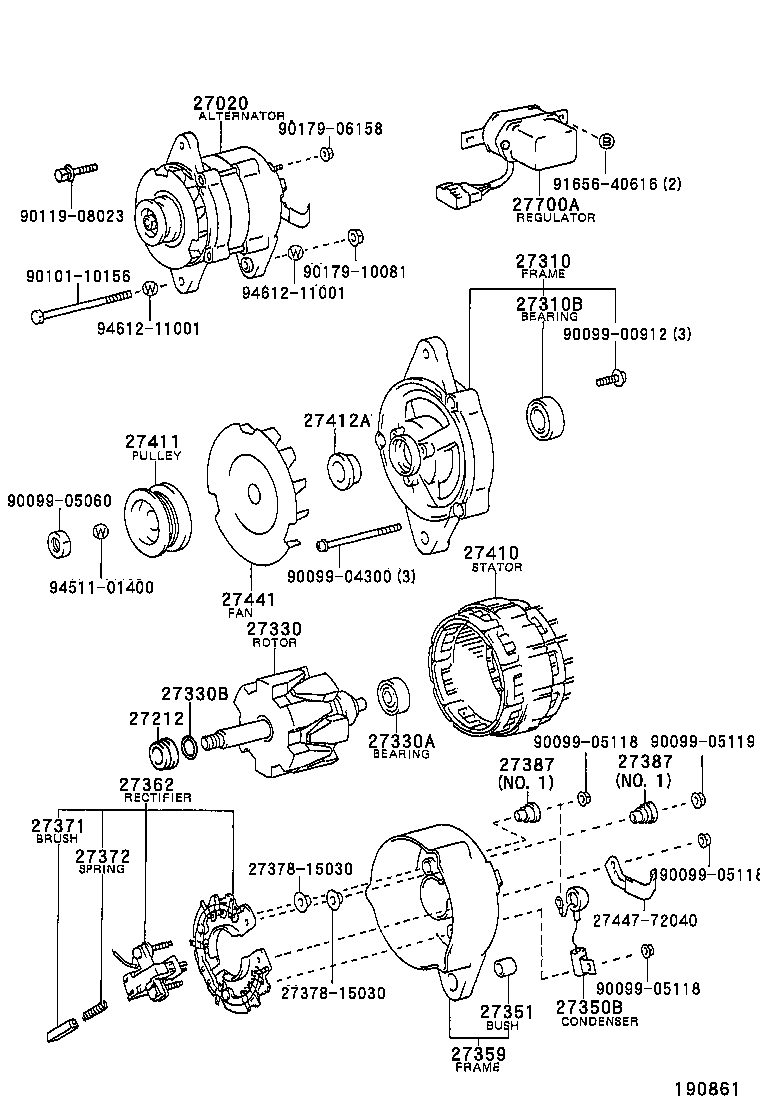

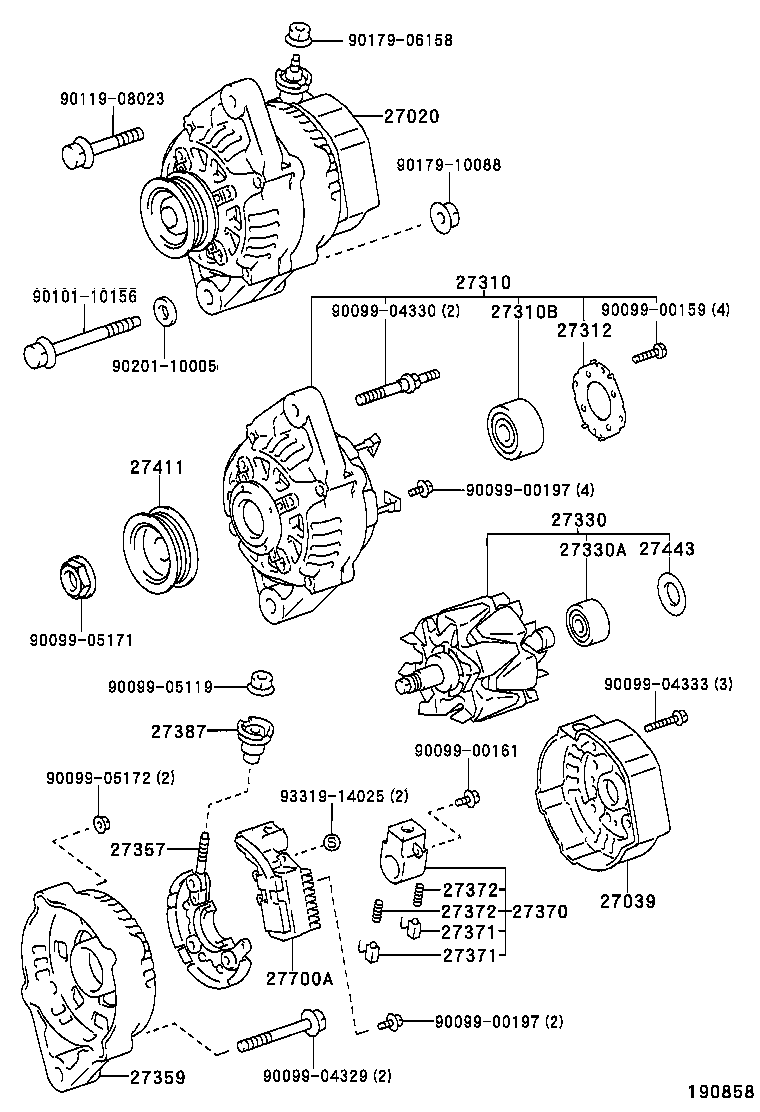

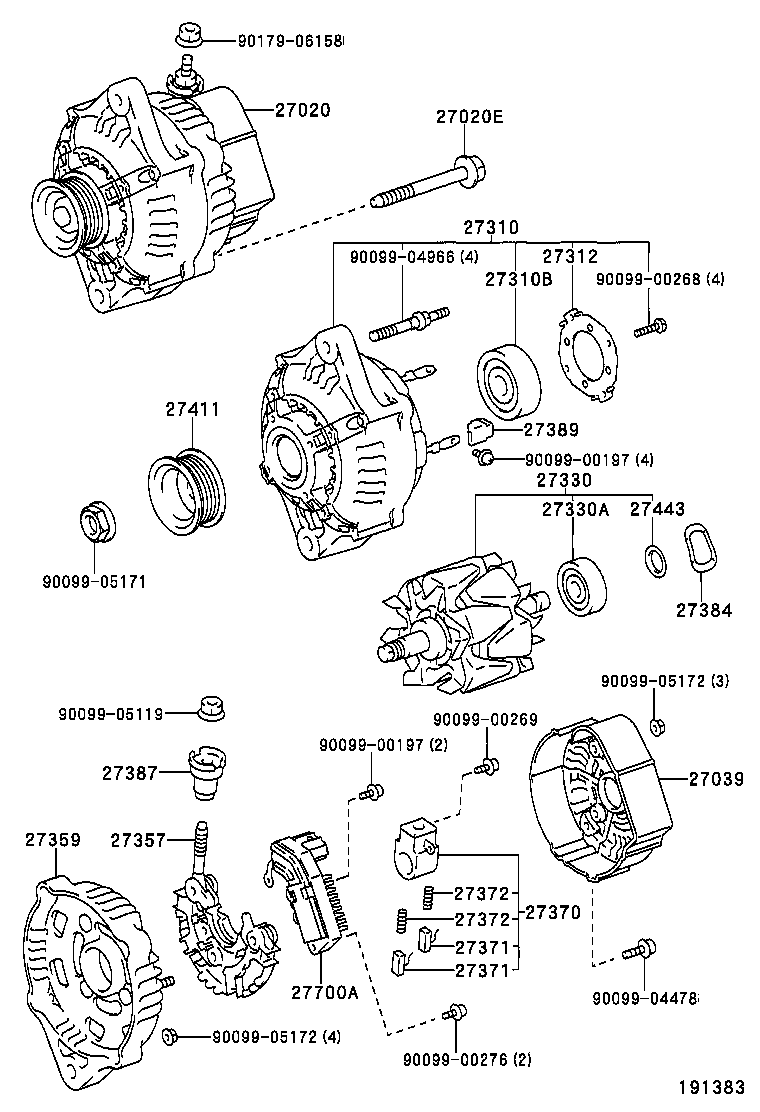

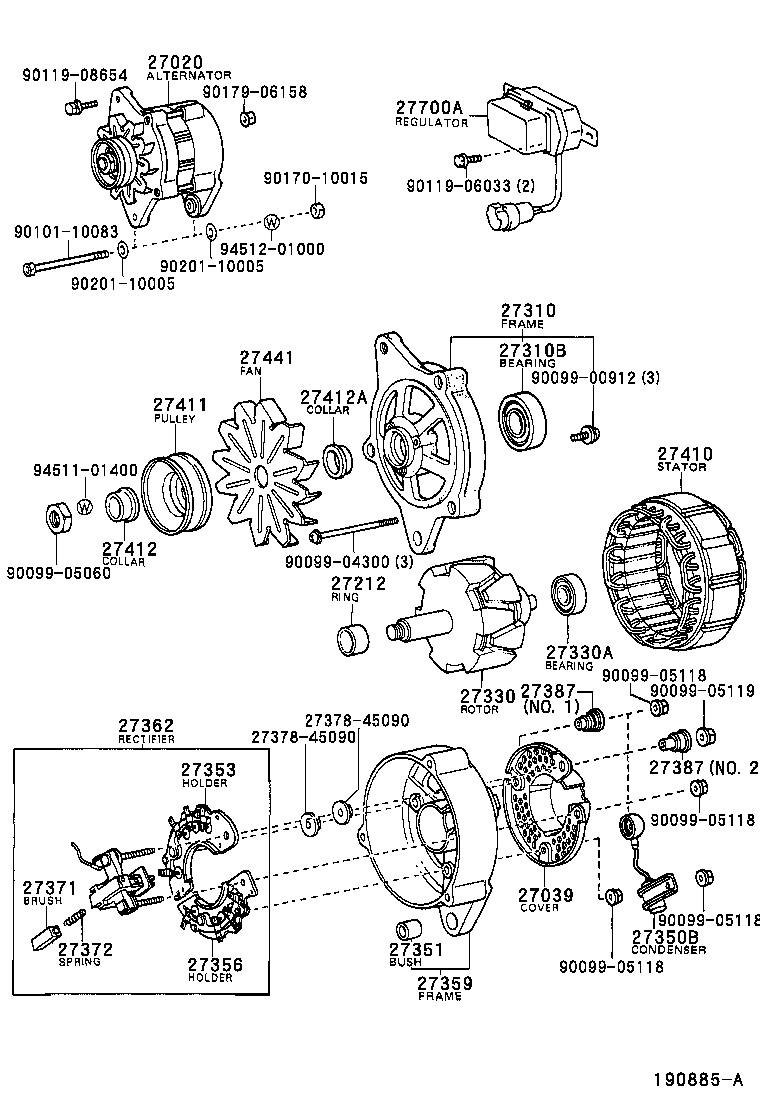

41 part groups · 13 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 27020 | Alternator Assy |
| 27020E | Bolt(FOR ALTERNATOR) |
| 27036 | Terminal Sub-assy, Lead Wire, Alternator |
| 27039 | Cover, Alternator Rear End |
| 27064 | Seal, Alternator Plate |
| 27212 | Ring, Space(FOR ALTERNATOR ROTOR) |
| 27310 | Frame Assy, Drive End, Alternator |
| 27310B | Bearing(FOR ALTERNATOR DRIVE END FRAME) |
| 27310D | Washer, Felt |
| 27312 | Plate, Retainer |
| 27313 | Cover, Alternator Felt, Inner NO.2 |
| 27315 | Cover, Alternator Felt, Inner NO.1 |
| 27330 | Rotor Assy, Alternator |
| 27330A | Bearing(FOR ALTERNATOR ROTOR) |
| 27330B | Ring, Snap(FOR ALTERNATOR ROTOR) |
| 27333 | Collar, Space(FOR ALTERNATOR ROTOR) |
| 27350 | Frame Assy, Rectifier End |
| 27350B | Condenser, Alternator |
| 27351 | Bush(FOR ALTERNATOR RECTIFIER END FRAME) |
| 27353 | Holder, W/Rectifier Positive, Alternator |
| 27356 | Holder, W/Rectifier Negative, Alternator |
| 27357 | Holder, Alternator, W/Rectifier |
| 27359 | Frame, Alternator Rectifier End |
| 27362 | Rectifier Assy, W/Brush |
| 27365 | Plate, Terminal |
| 27370 | Holder Assy, Alternator Brush |
| 27371 | Brush, Alternator |
| 27372 | Spring, Alternator Brush |
| 27384 | Washer |
| 27387 | Insulator, Terminal |
| 27388 | Cover, Alternator Brush |
| 27389 | Insulator, Terminal |
| 27410 | Stator Assy, Alternator |
| 27411 | Pulley, Alternator |
| 27412 | Collar, Spacer(FOR ALTERNATOR PULLEY) |
| 27412A | Collar, Space(FOR ALTERNATOR DRIVE END FRAME) |
| 27441 | Fan, Alternator |
| 27443 | Cover, Alternator Bearing |
| 27700A | Regulator Assy, Generator |
| 29341 | Seal, Alternator Oil |
| 29342A | Packing, Vacuum Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
