Toyota Hilux 2WD
1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · United States
Discontinued model
Data version 2005-07
Fuel Injection System

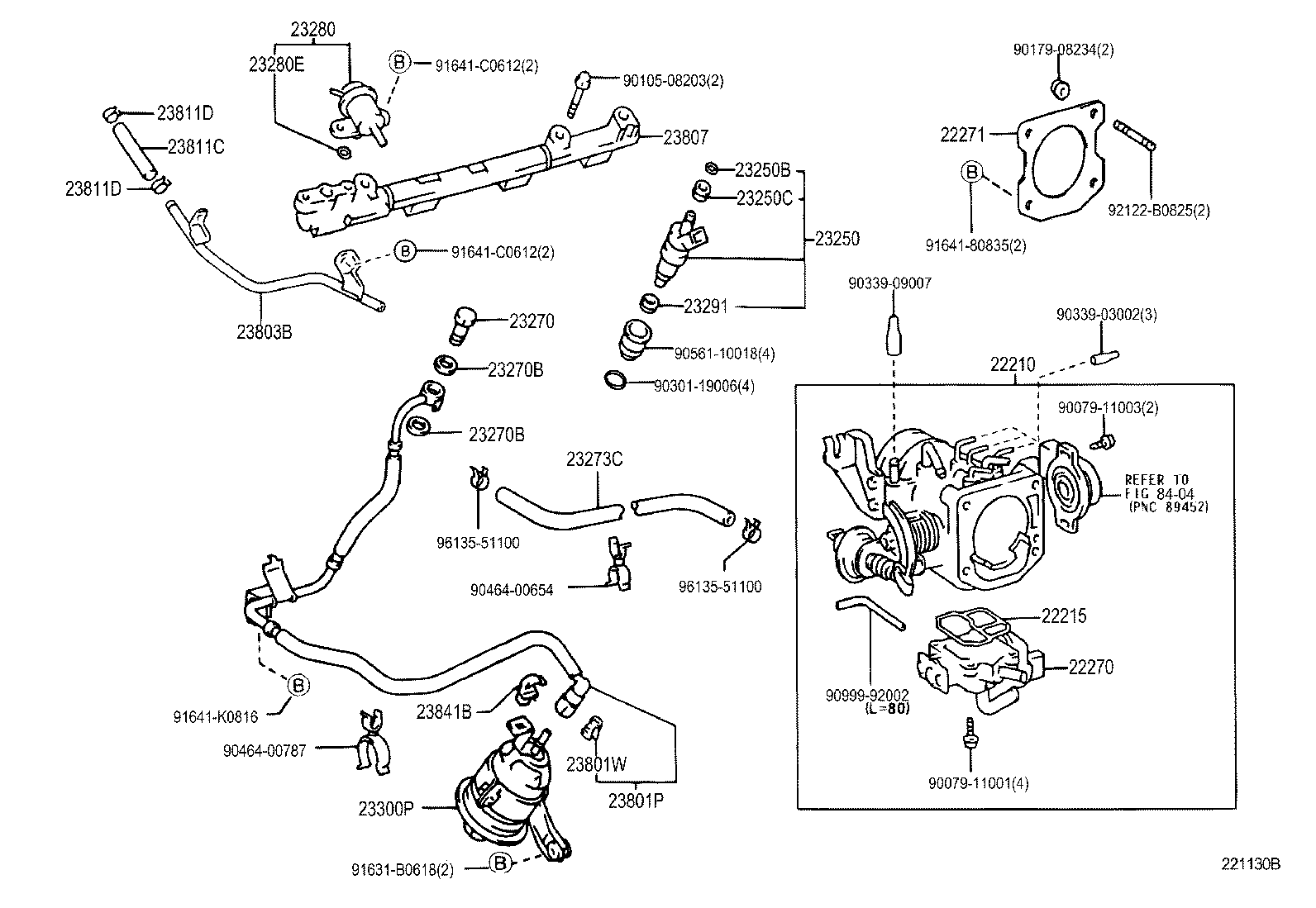

46 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 22203 | Dash Pot Sub-assy(FOR THROTTLE BODY) |
| 22210 | Body Assy, Throttle |
| 22210C | Hose, Water By-pass, NO.1 |
| 22210D | Hose, Water By-pass, NO.2 |
| 22210E | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE, NO.1) |
| 22210F | Clamp OR Clip, Hose (FOR WATER BY-PASS HOSE, NO.2) |
| 22215 | Gasket, Throttle Body Cover |
| 22216 | Screw, Dash Pot Adjusting |
| 22230 | Valve Assy, Auxiliary Air |
| 22270 | Valve Assy, Idle Speed Control(FOR THLOTTLE BODY) |
| 22271 | Gasket, Throttle Body |
| 23091 | Tube Sub-assy, Fuel Pump |
| 23206A | Bracket, Fuel Pump |
| 23206B | Gasket, Fuel Pump Bracket |
| 23217A | Filter, Fuel Pump |
| 23220P | Pump Assy, Fuel |
| 23229 | Clip(FOR FUEL PUMP FILTER) |
| 23233 | Hose, Fuel Pump |
| 23233B | Clip(FOR FUEL PUMP HOSE) |
| 23249 | Rubber, Cushion(FOR FUEL PUMP) |
| 23250 | Injector Assy, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23250C | Grommet(FOR FUEL INJECTOR) |
| 23260 | Injector Assy, Cold Start Fuel |
| 23270 | Damper Assy, Fuel Pressure Pulsation |
| 23270B | Gasket(FOR PULSATION DAMPER HOSE) |
| 23273C | Hose, Fuel, NO.2 |
| 23280 | Regulator Assy, Fuel Pressure |
| 23280E | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23291 | Insulator, Injector Vibration |
| 23293 | Gasket, Cold Start Injector |
| 23300P | Filter, Fuel(FOR EFI) |
| 23300T | Gasket(FOR FUEL FILTER) |
| 23300U | Bolt, Union(FOR FUEL FILTER) |
| 23300V | Hose, Fuel(FOR FUEL INLET) |
| 23300W | Bracket, Fuel Filter |
| 23801P | Pipe Sub-assy, Fuel, NO.1 |
| 23801W | Clip, Fuel Tube Connector |
| 23803B | Pipe Sub-assy, Fuel, NO.3 |
| 23803C | Gasket(NOZZLE LEKAGE PIPE NO.3) |
| 23803D | Bolt, Union(FOR NOZZLE LEKAGE PIPE NO.3) |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23811C | Hose, Fuel(FOR FUEL PIPE TO PRESSURE REGULATOR) |
| 23811D | Clip, Hose(FOR FUEL HOSE) |
| 23841B | Clamp, Fuel Pipe, NO.1(FOR EFI) |
| 23901 | Tube Sub-assy, Fuel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
