Toyota Hilux 2WD
1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · United States
Discontinued model
Data version 2005-07

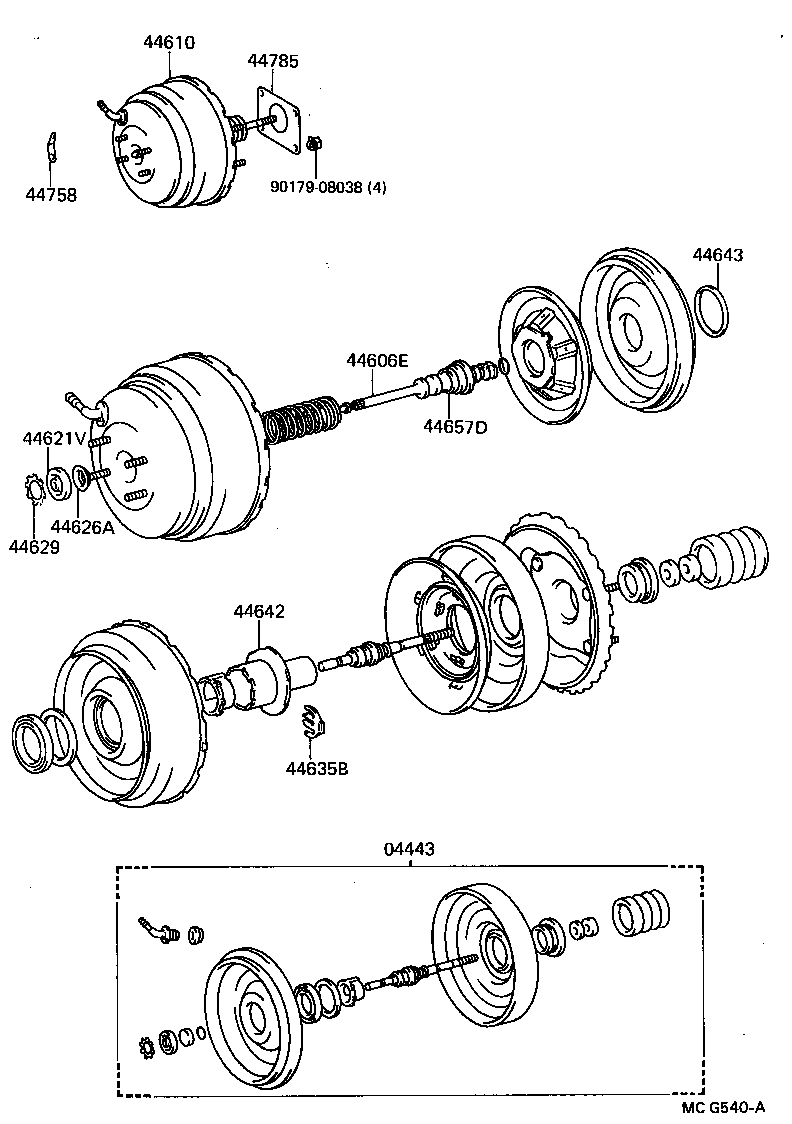

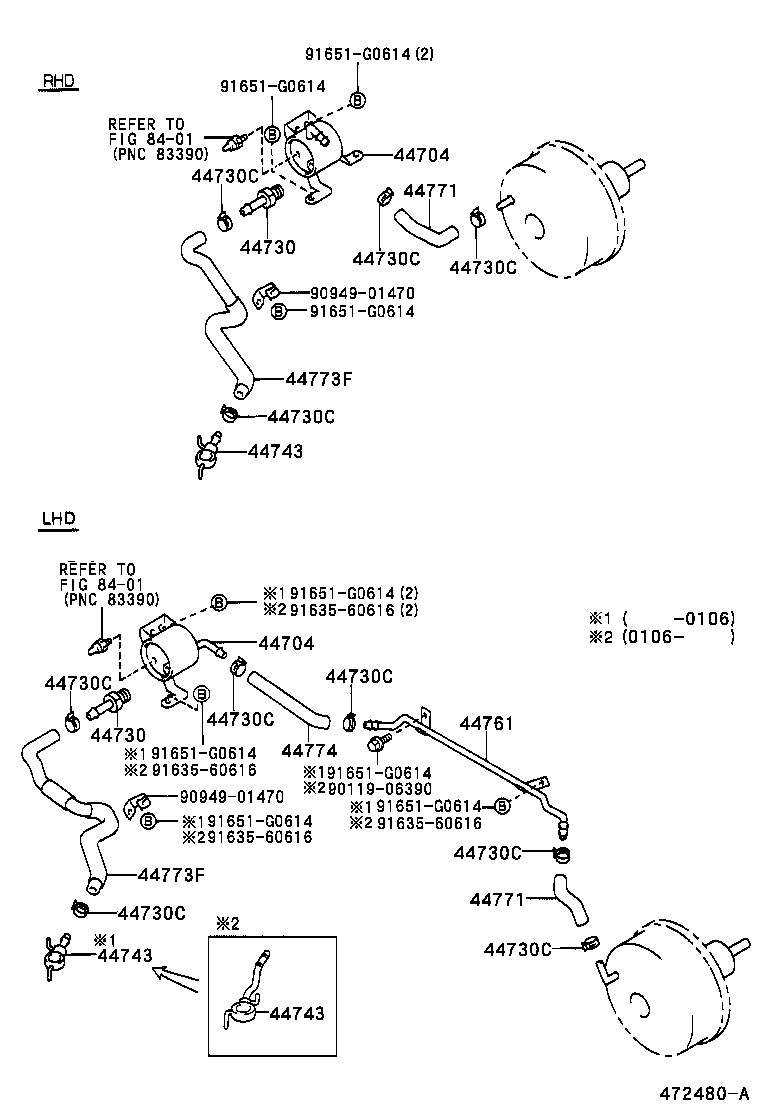

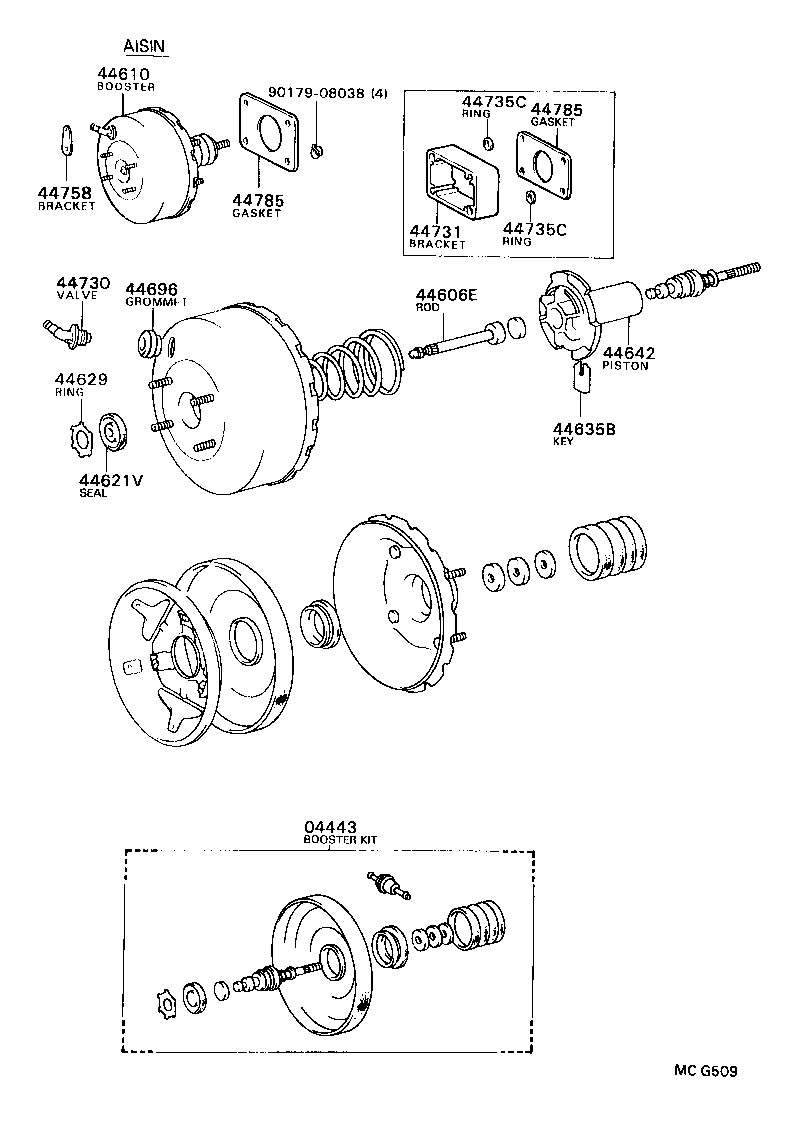

Brake Booster & Vacuum Tube
31 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 04443 | Booster Kit, Brake |
| 44605 | Plate & Seal Sub-assy, Booster |
| 44606E | Rod Sub-assy, Brake Booster Piston |
| 44608 | Push Rod Sub-assy, Booster |
| 44610 | Booster Assy, Brake |
| 44621V | Seal, Booster Body |
| 44626A | Retainer, Booster Body Seal |
| 44629 | Ring, Circular Internal |
| 44633 | Key, Booster Valve Plunger |
| 44635B | Key, Valve Stopper |
| 44637A | Plate, Booster Diaphragm |
| 44642 | Piston, Brake Booster |
| 44643 | Retainer, Diaphragm |
| 44645 | Retainer, Booster Push Rod Seal |
| 44657D | Case, Reaction Disc |
| 44673A | Body, Booster Valve |
| 44696 | Grommet, Check Valve |
| 44704 | Reservoir Sub-assy, Vacuum |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730C | Clip(FOR VACUUM HOSE) |
| 44730F | Union, Vacuum Hose(FOR MANIFOLD SIDE) |
| 44731 | Bracket, Brake Booster, Front |
| 44735C | Ring, Booster Bracket Stopper |
| 44743 | Union(FOR VACUUM PUMP) |
| 44758 | Bracket, Vacuum Check Valve |
| 44761 | Tube, Intake Manifold OR Vacuum Pump TO Connector |
| 44771 | Hose, Vacuum Tube Connector |
| 44772B | Hose, Check Valve TO Brake Booster |
| 44773F | Hose, Union TO Check Valve |
| 44774 | Hose, Union TO Connector Tube |
| 44785 | Gasket, Brake Booster |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
