Toyota Hilux 2WD

1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

8 part groups · 3 illustrations

Illustrations

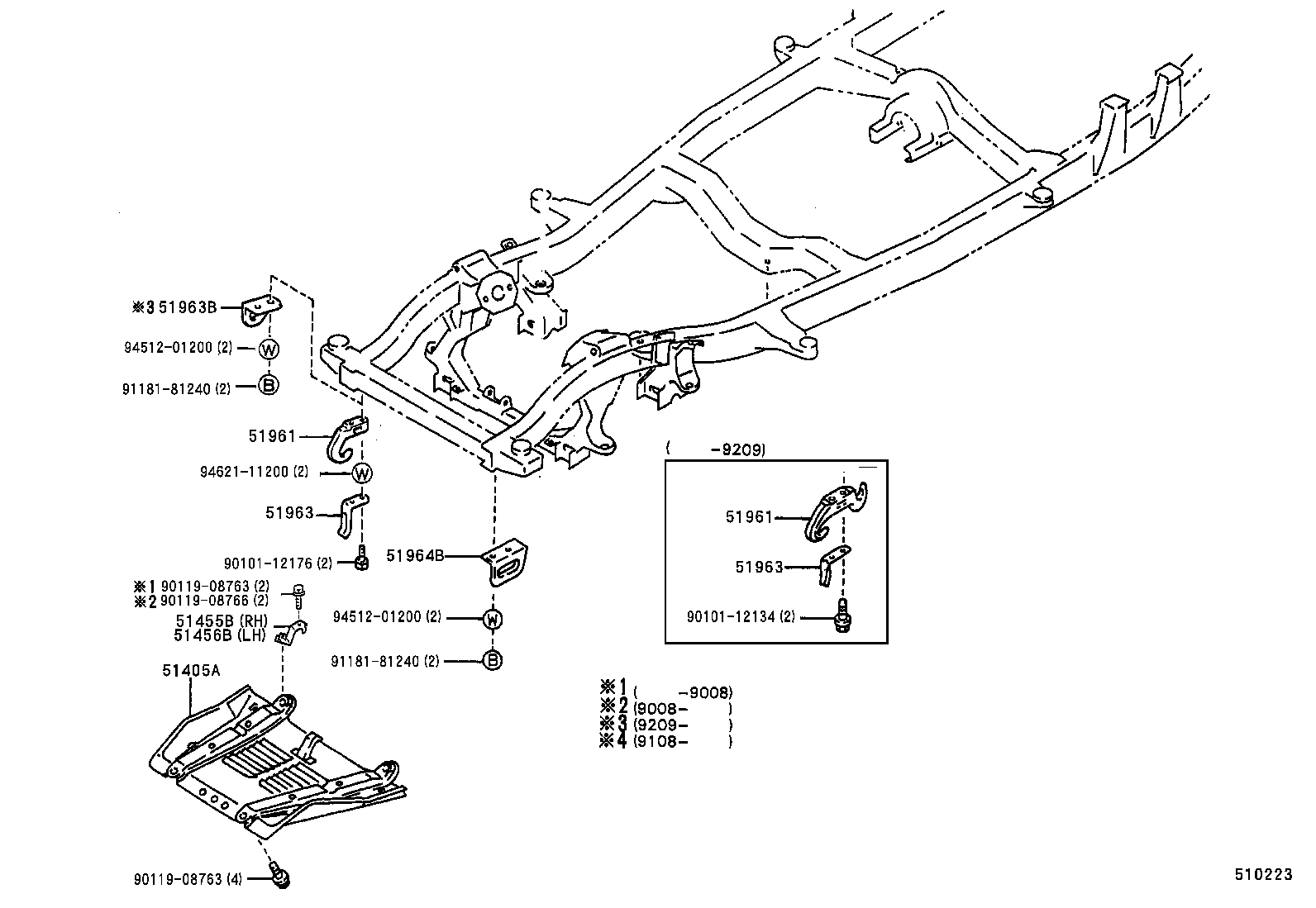

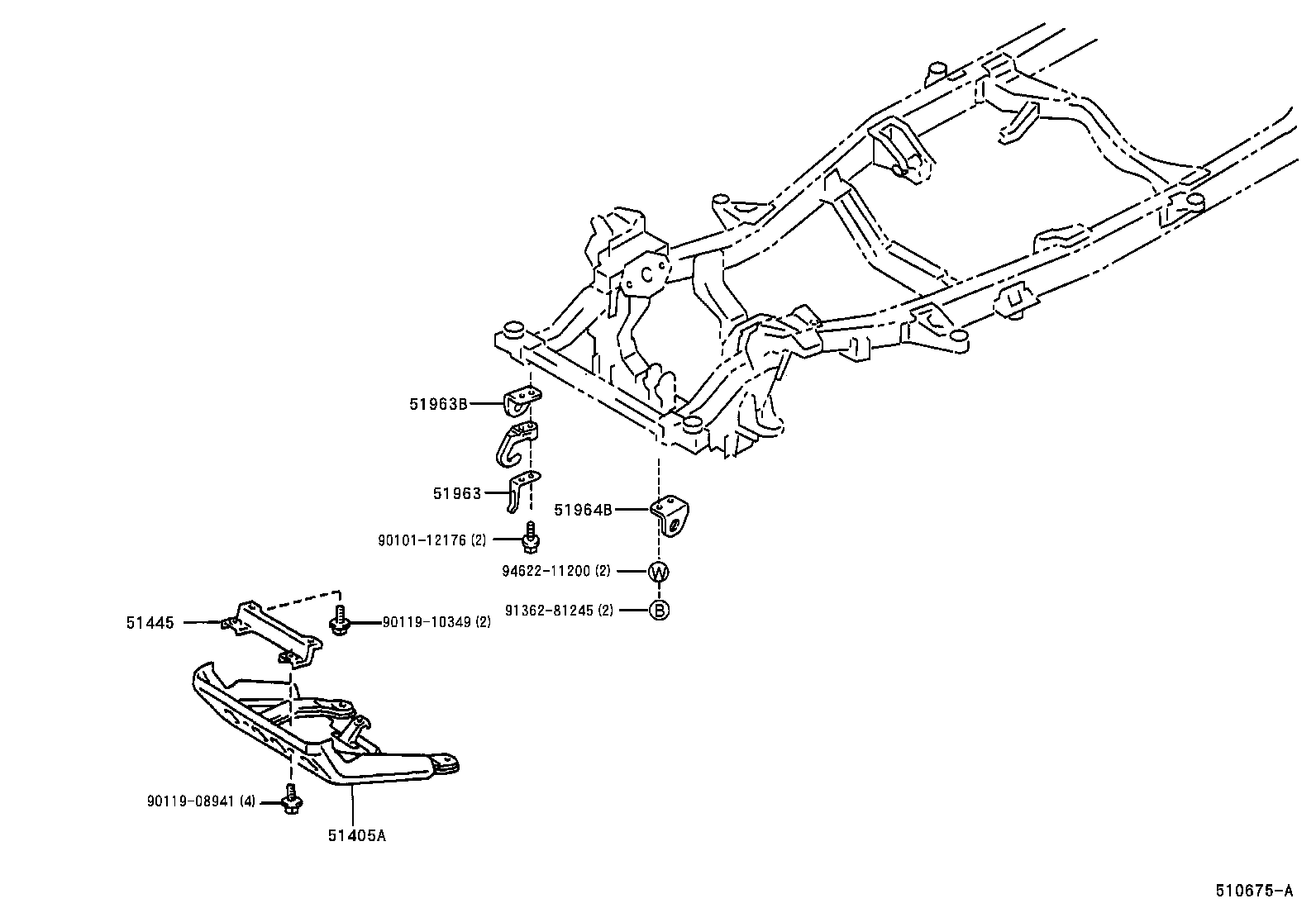

Figure MBP308B MBP308B 1988-08 → 2001-06 Figure 510223 510223 1989-07 → 1993-08 Figure 510675A 510675A 2001-06 → —

Part groups

PNCDescription
51405A Cover Sub-assy, Engine Under, NO.1
51445 Bracket, Engine Under Cover
51455B Bracket, Engine Under Cover, Rear RH
51456B Bracket, Engine Under Cover, Rear LH
51961 Hook, NO.1
51963 Stopper, Hook Wire
51963B Hook, Transport, Front RH
51964B Hook, Transport, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
