Toyota Hilux 2WD

1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cab Mounting & Body Mounting

15 part groups · 2 illustrations

Illustrations

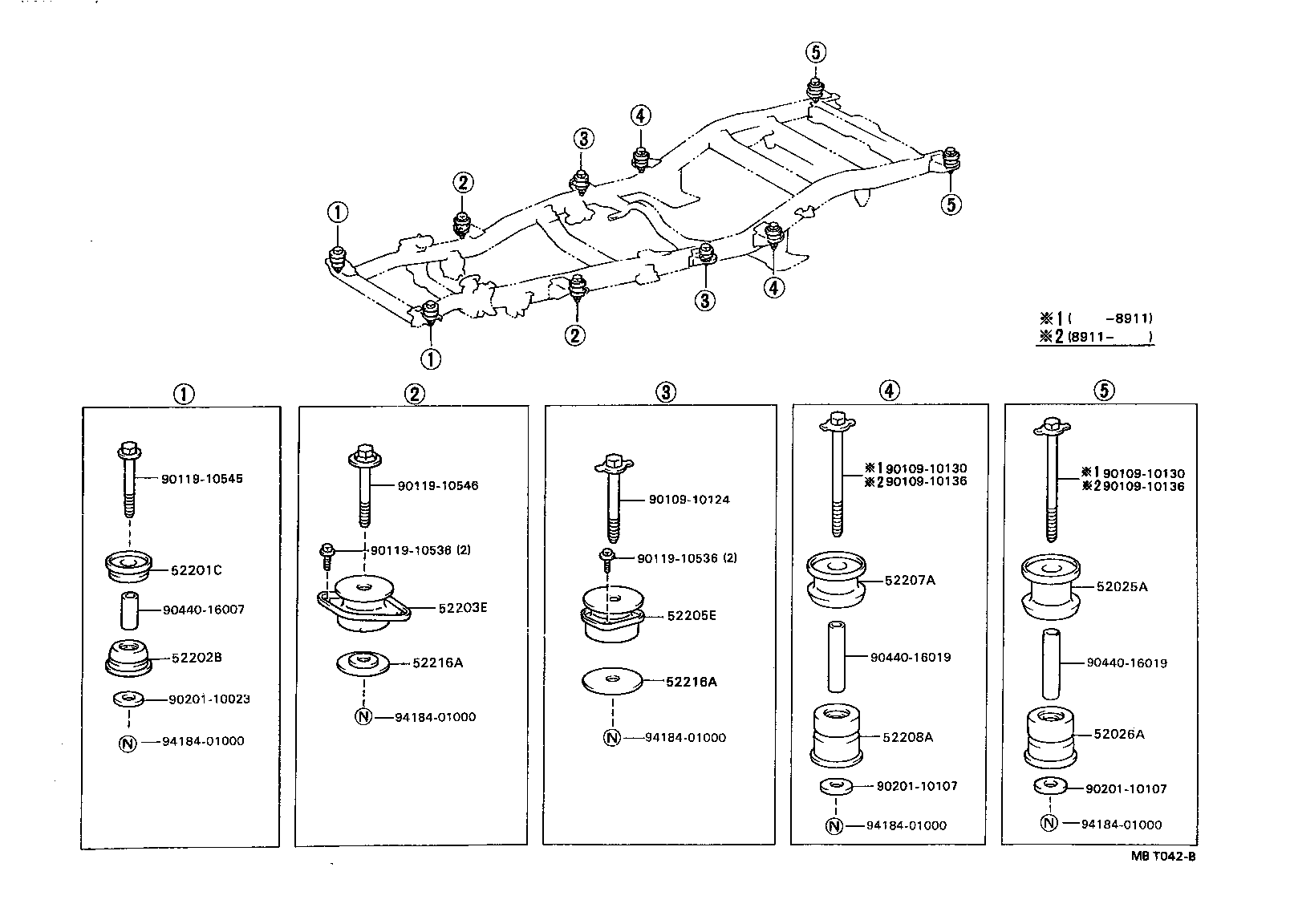

Figure 520716A 520716A 1988-08 → — Figure MBT042B MBT042B 1989-07 → 1993-08

Part groups

PNCDescription
52025A Cushion Sub-assy, Cab Mounting End, Upper
52026A Cushion Sub-assy, Cab Mounting End, Lower
52201C Cushiion Sub-assy, Cab Mounting, NO.1 Upper
52202B Cushiion Sub-assy, Cab Mounting, NO.1 Lower
52203D Cushion Sub-assy, Cab Mounting, NO.2 Upper
52203E Cushion Sub-assy, Cab Mounting, NO.2
52204B Cushion Sub-assy, Cab Mounting, NO.2 Lower
52205D Cushion Sub-assy, Cab Mounting, NO.3 Upper
52205E Cushion Sub-assy, Cab Mounting, NO.3
52205F Cushion Sub-assy, Cab Mounting, NO.4 Upper
52206A Cushion Sub-assy, Cab Mounting, NO.3 Lower
52206B Cushion Sub-assy, Cab Mounting, NO.4 Lower
52207A Cushion Sub-assy, Cab Mounting, NO.4 Upper
52208A Cushion Sub-assy, Cab Mounting, NO.4 Lower
52216A Stopper, Cab Mounting Cushion
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
