Toyota Hilux 2WD

1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

18 part groups · 6 illustrations

Illustrations

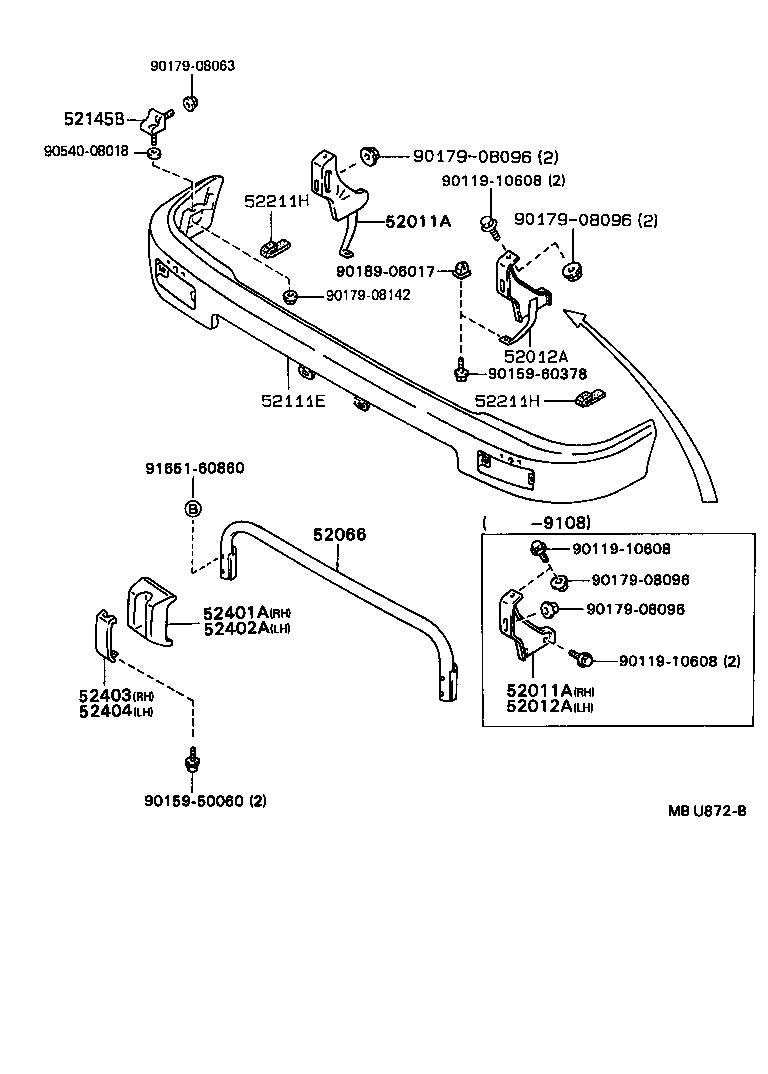

Figure 520238 520238 1988-08 → 1990-08 Figure 520238 520238 1990-08 → 2001-06 Figure 520704 520704 1989-07 → 1993-08 Figure MBU872B MBU872B 1990-08 → 2001-06 Figure MBU872B MBU872B 1995-08 → 2001-06 Figure 520708 520708 2001-06 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52066 Bar Sub-assy, Front Bumper, Center
52111C Bolt, Round Head Square Neck(FOR FRONT BUMPER)
52111E Bar, Front Bumper
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52145B Bracket, Front Bumper Side Mounting
52211H Cushion(FOR FRONT BUMPER ARM)
52401A Guard Sub-assy, Front Bumper, RH
52402A Guard Sub-assy, Front Bumper, LH
52403 Pad Sub-assy, Front Bumper Guard, RH
52404 Pad Sub-assy, Front Bumper Guard, LH
52543 Seal, Front Bumper Side, RH
52544 Seal, Front Bumper Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
