Toyota Hilux 2WD
1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · United States
Discontinued model
Data version 2005-07

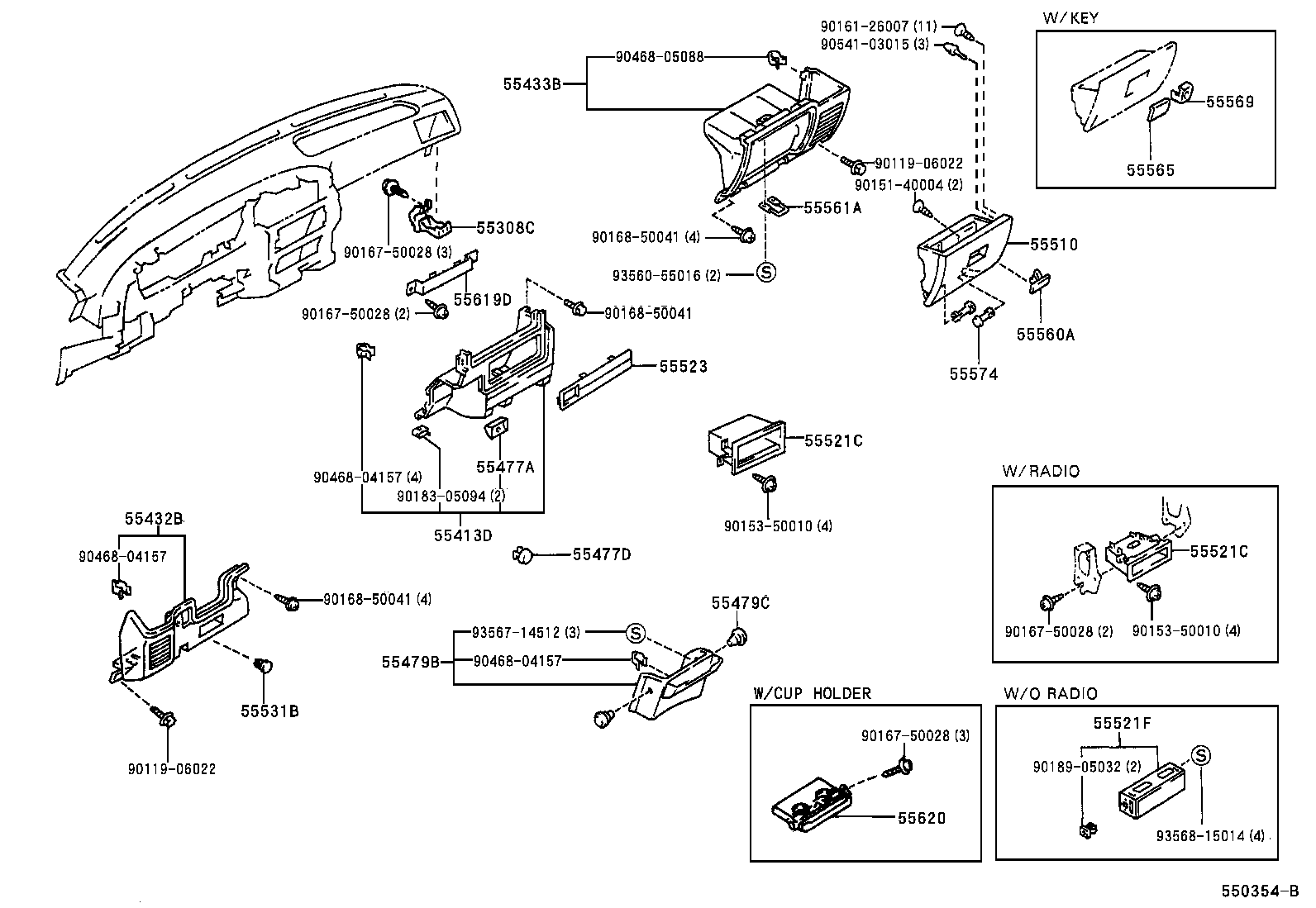

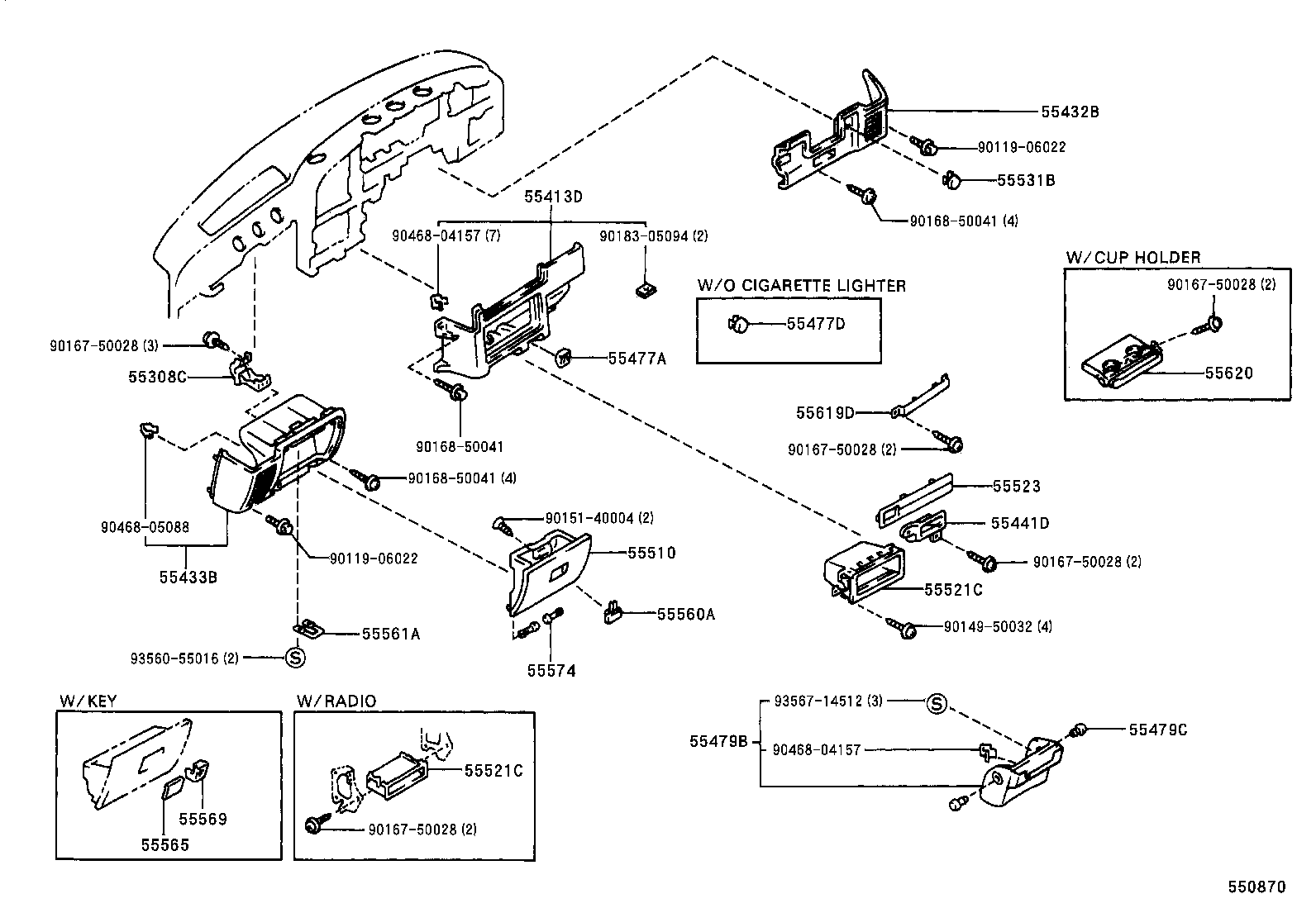

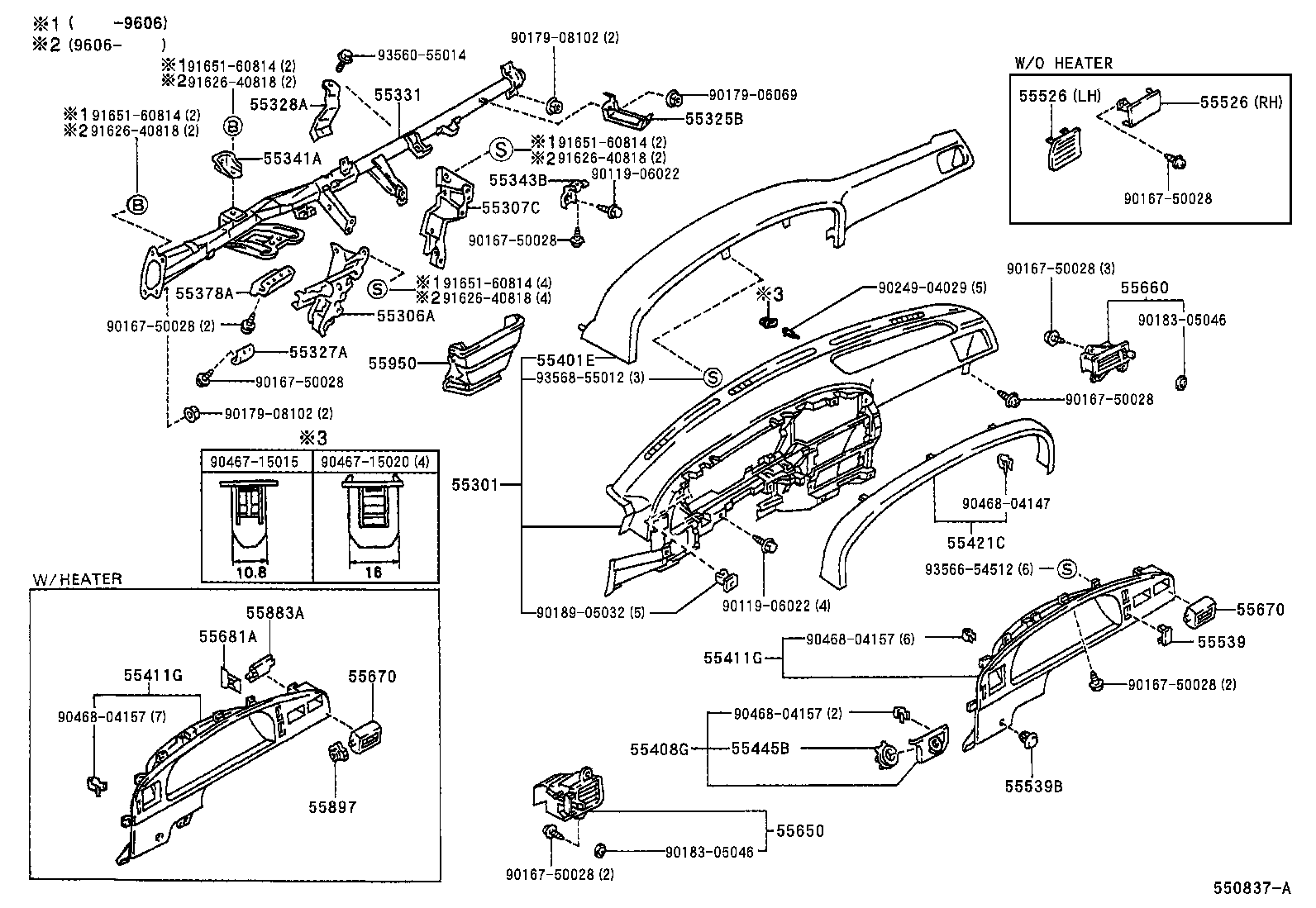

Instrument Panel & Glove Compartment
47 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55325B | Bracket, Instrument Panel, NO.5 |
| 55327A | Stay, Instrument Panel, NO.2 |
| 55328A | Stay, Instrument Panel, NO.3 |
| 55331 | Reinforcement, Instrument Panel |
| 55341A | Brace, Instrument Panel TO Cowl, Upper |
| 55343B | Brace, Instrument Panel TO Cowl, Center |
| 55378A | Bracket, Glove Compartment Door Lock Mounting |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55408G | Bezel Sub-assy, Starter Switch |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55413D | Panel, Instrument Cluster Finish, Center Lower |
| 55421C | Hood, Meter |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55441D | Box, Instrument Panel Coin |
| 55445B | Plate, Instrument Panel Finish |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55477D | Cover, Cigarette Lighter Hole |
| 55479B | Cover, Instrument, Lower Center |
| 55479C | Clip(FOR INSTRUMENT LOWER COVER) |
| 55510 | Door Assy, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55521F | Cover, Stereo Opening, NO.2 |
| 55523 | Cover, Heater Control Opening |
| 55526 | Cover, Instrument Panel Register Opening |
| 55531B | Cover, Choke Knob Hole |
| 55539 | Cover, Spare Switch Hole |
| 55539B | Cover, Spare Switch Hole, NO.2 |
| 55560A | Lock Assy, Glove Compartment Door |
| 55561A | Striker, Glove Compartment Door Lock |
| 55565 | Handle, Glove Compartment Door Lock |
| 55569 | Cover, Glove Compartment Door Lock |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55619D | Cover, Cup Holder Hole |
| 55620 | Holder Assy, Instrument Panel Cup |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55681A | Support, Instrument Panel Register |
| 55883A | Damper, Air |
| 55897 | Knob, Air Damper Control Lever |
| 55905E | Knob Sub-assy, Control |
| 55950 | Nozzle Assy, Defroster |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
