Toyota Hilux 2WD
1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · United States
Discontinued model
Data version 2005-07

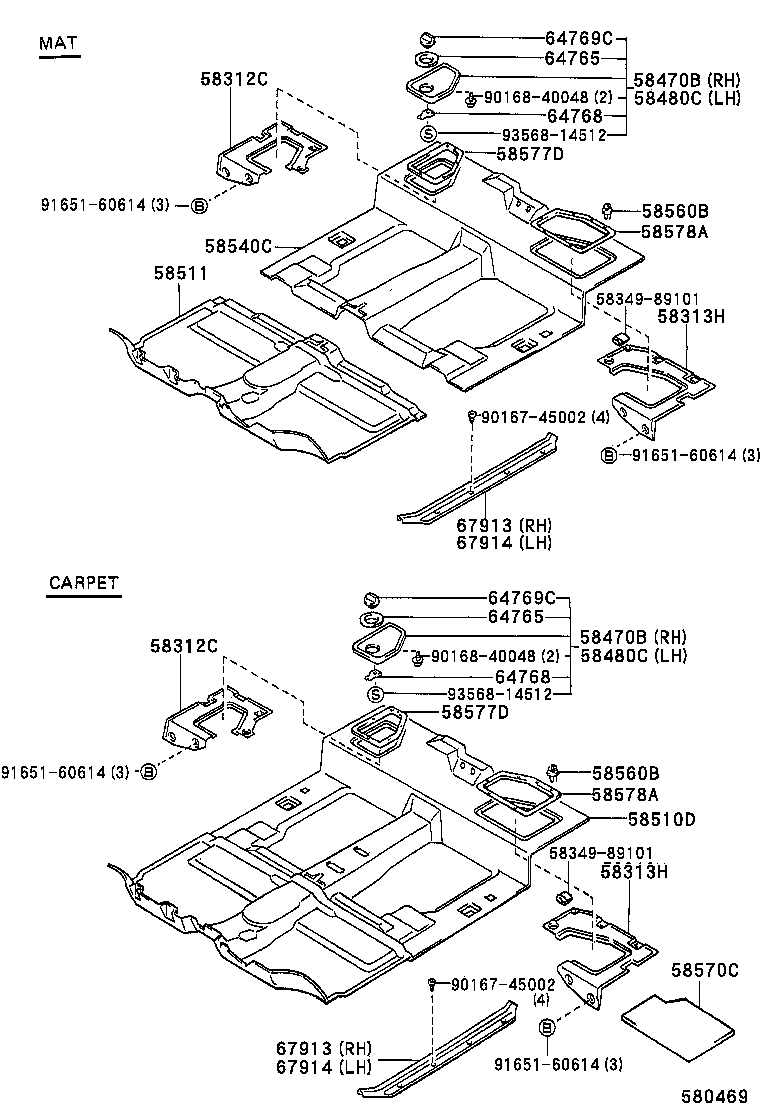

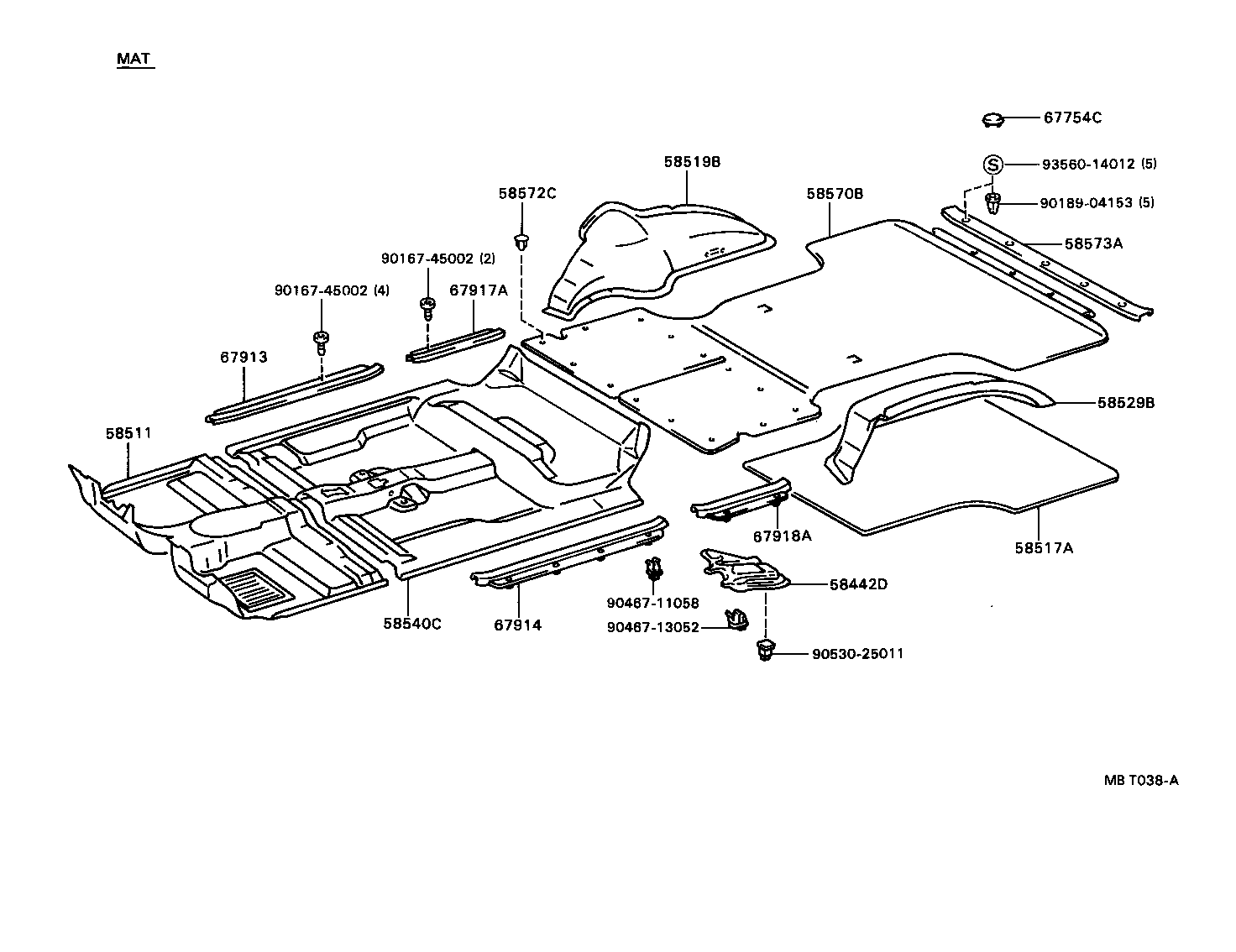

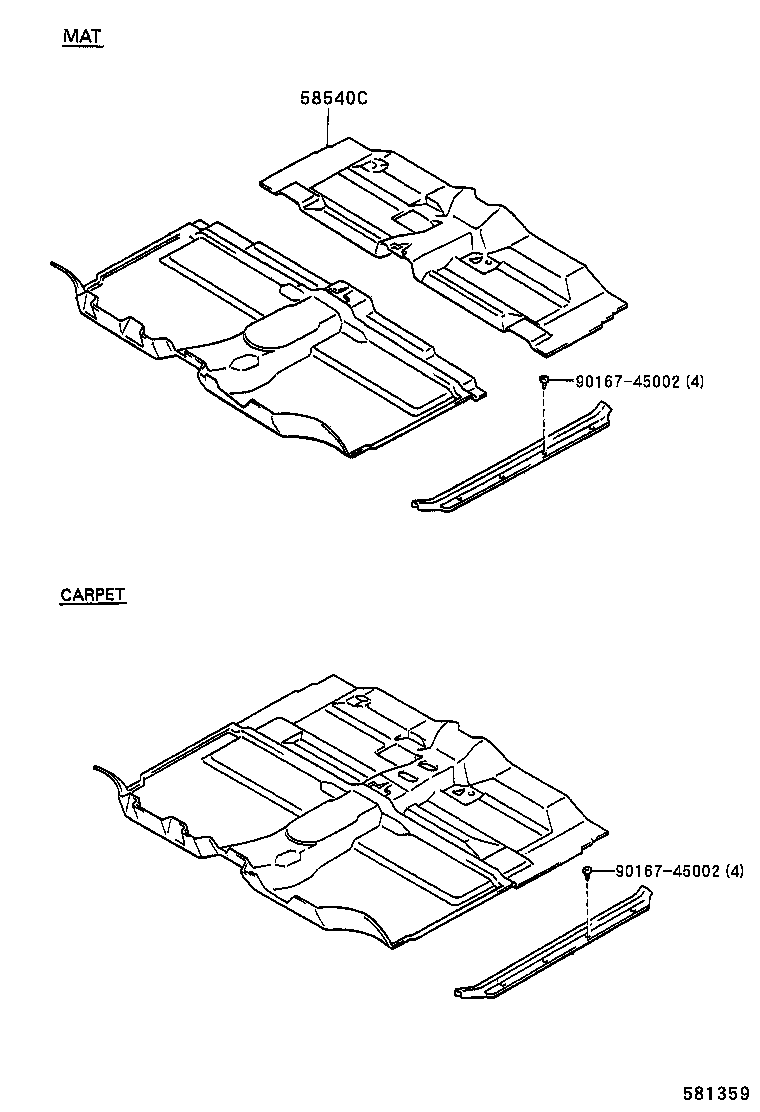

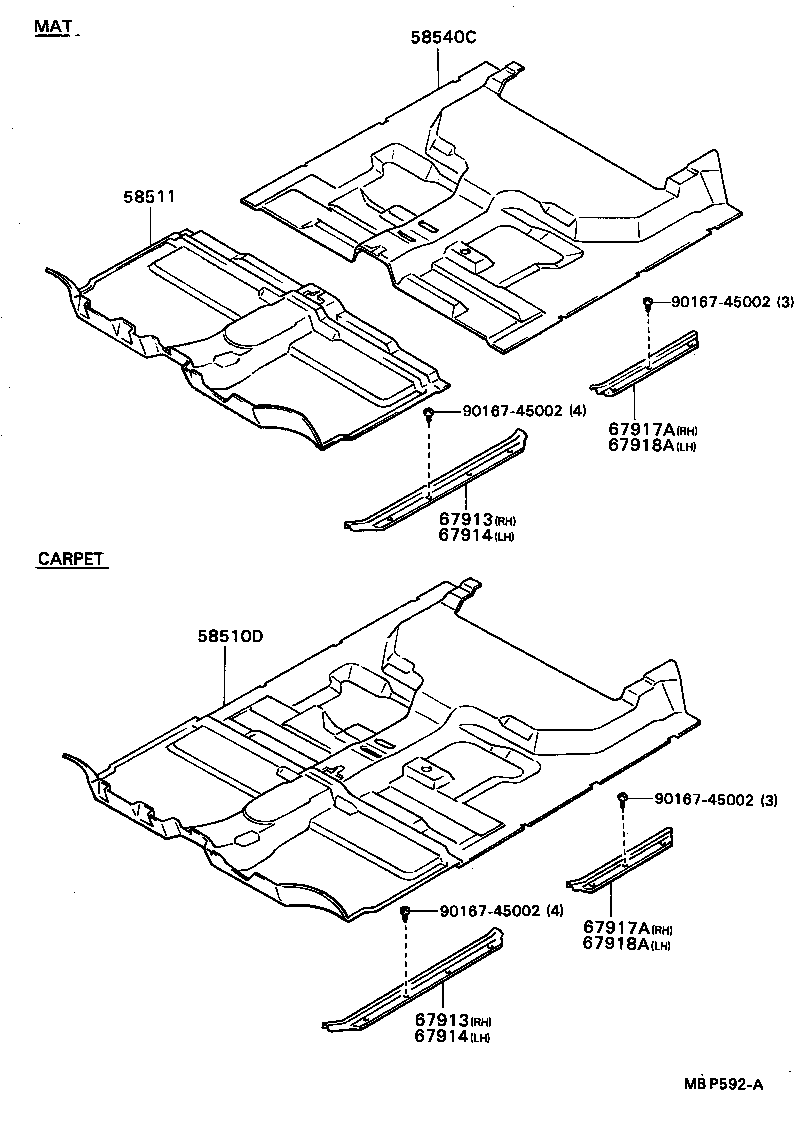

Floor Mat & Silencer Pad
29 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 58312C | Board, Rear Floor |
| 58313H | Board, Rear Floor, NO.2 |
| 58442D | Cover, Jack |
| 58470B | Cover Assy, Seat Floor Service Hole, RH |
| 58480C | Cover Assy, Seat Floor Service Hole, LH |
| 58510D | Carpet Assy, Floor, Front |
| 58511 | Mat, Floor, Front |
| 58513C | Mat, Floor, Front Center |
| 58517A | Mat, Rear Floor, NO.2 |
| 58519B | Mat, Rear Wheel House, RH |
| 58529B | Mat, Rear Wheel House, LH |
| 58540C | Mat Assy, Floor, Rear |
| 58540E | Mat Assy, Floor, Rear RH |
| 58550B | Mat Assy, Floor, Rear LH |
| 58560B | Clip(FOR FLOOR CARPET, REAR) |
| 58570B | Mat Assy, Rear Floor |
| 58570C | Carpet Assy, Rear Floor |
| 58572C | Clip, Rear Floor Mat Set |
| 58573A | Plate, Rear Floor Mat Support |
| 58577D | Plate, Rear Floor Mat Support Side, RH |
| 58578A | Plate, Rear Floor Mat Support Side, LH |
| 64765 | Bezel, Jack Cover, Upper |
| 64768 | Stopper, Jack Cover |
| 64769C | Knob, Jack Cover |
| 67754C | Cover, Rear Floor Plate Hole |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
