Toyota Hilux 2WD

1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

19 part groups · 15 illustrations

Illustrations

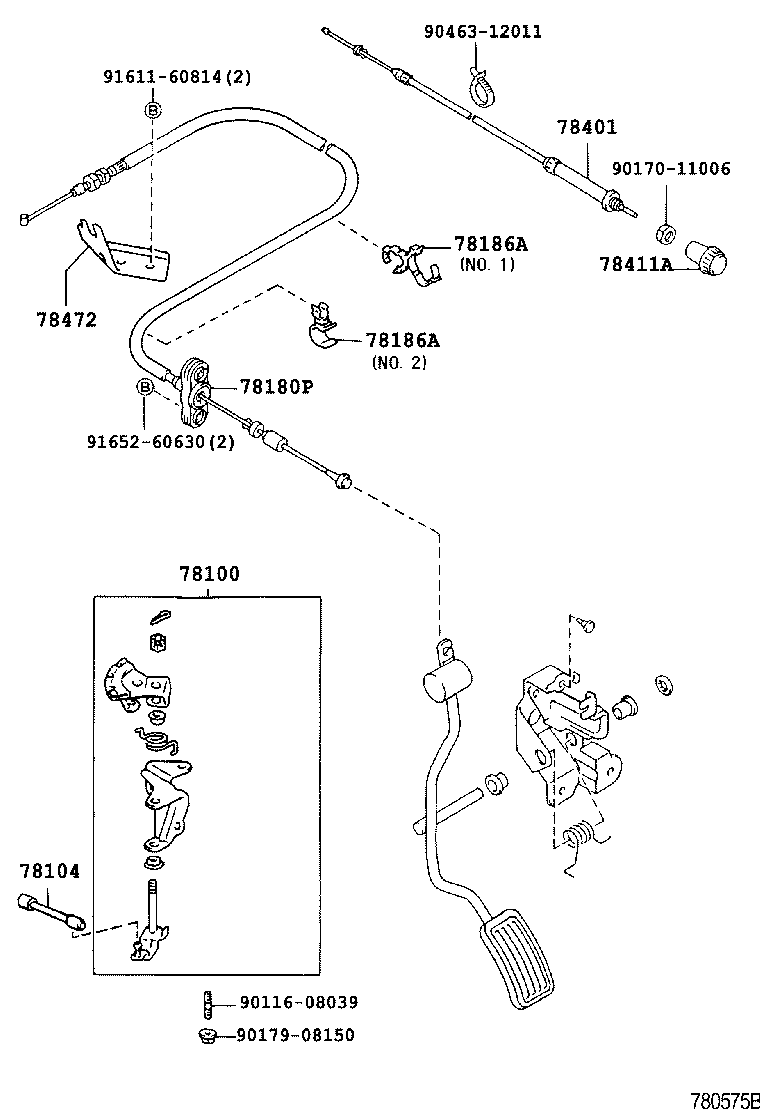

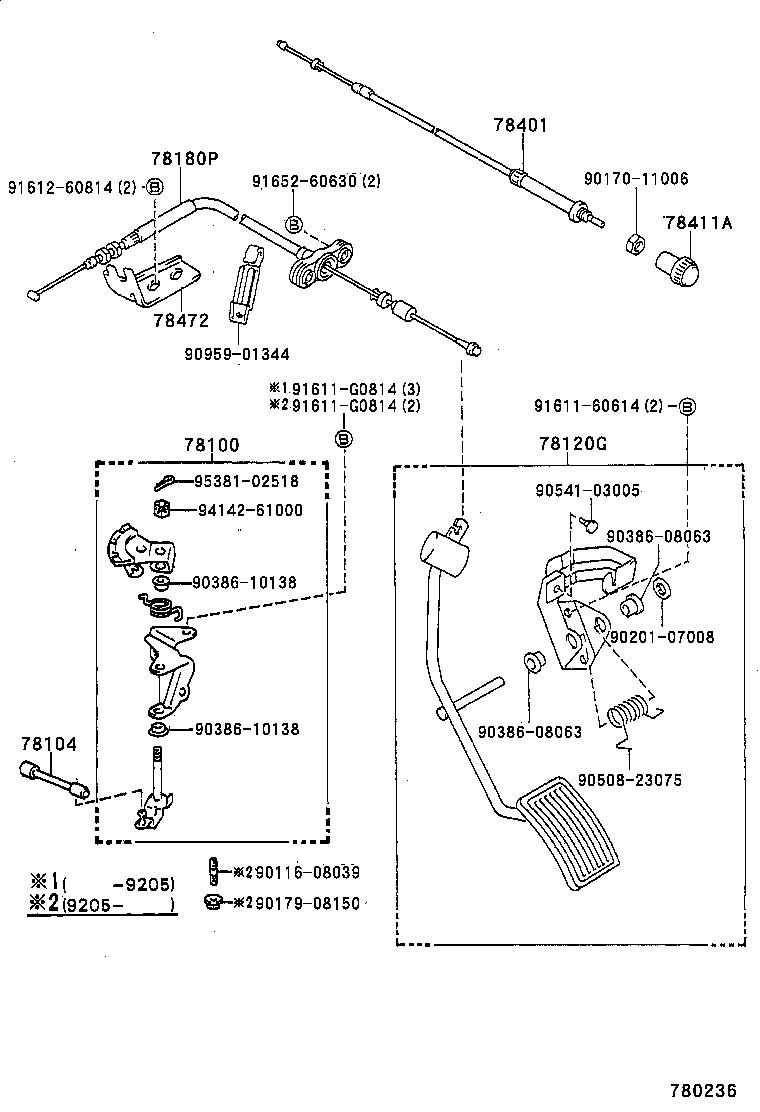

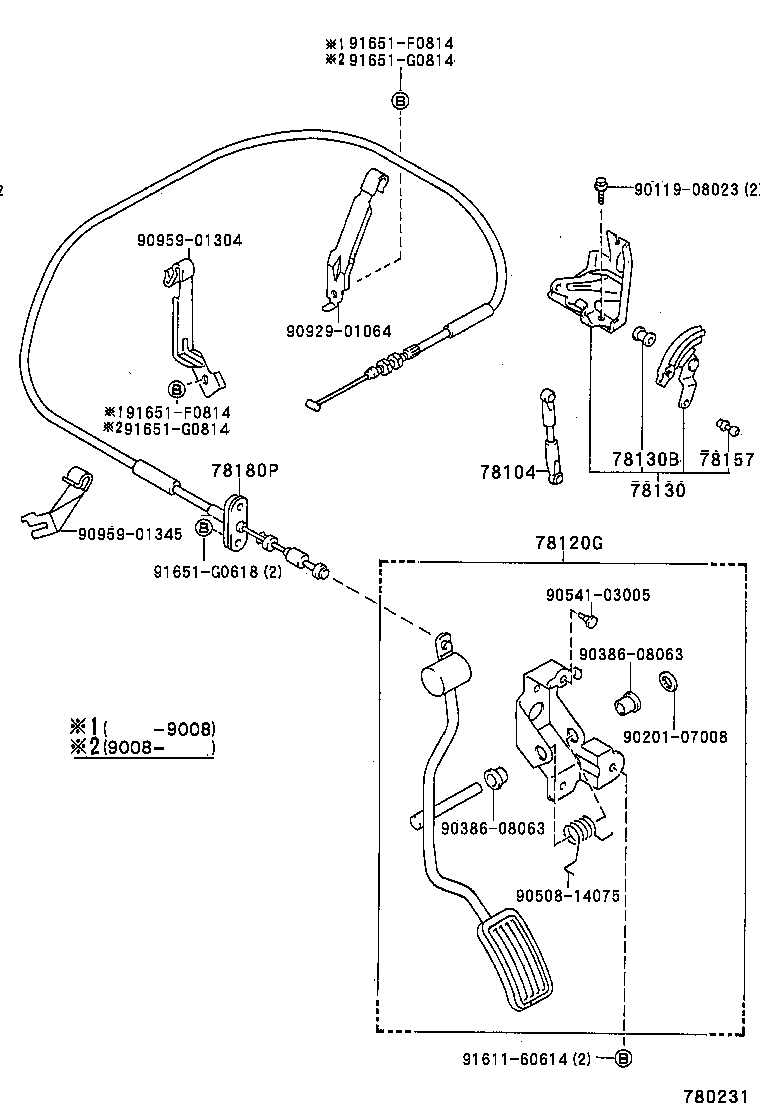

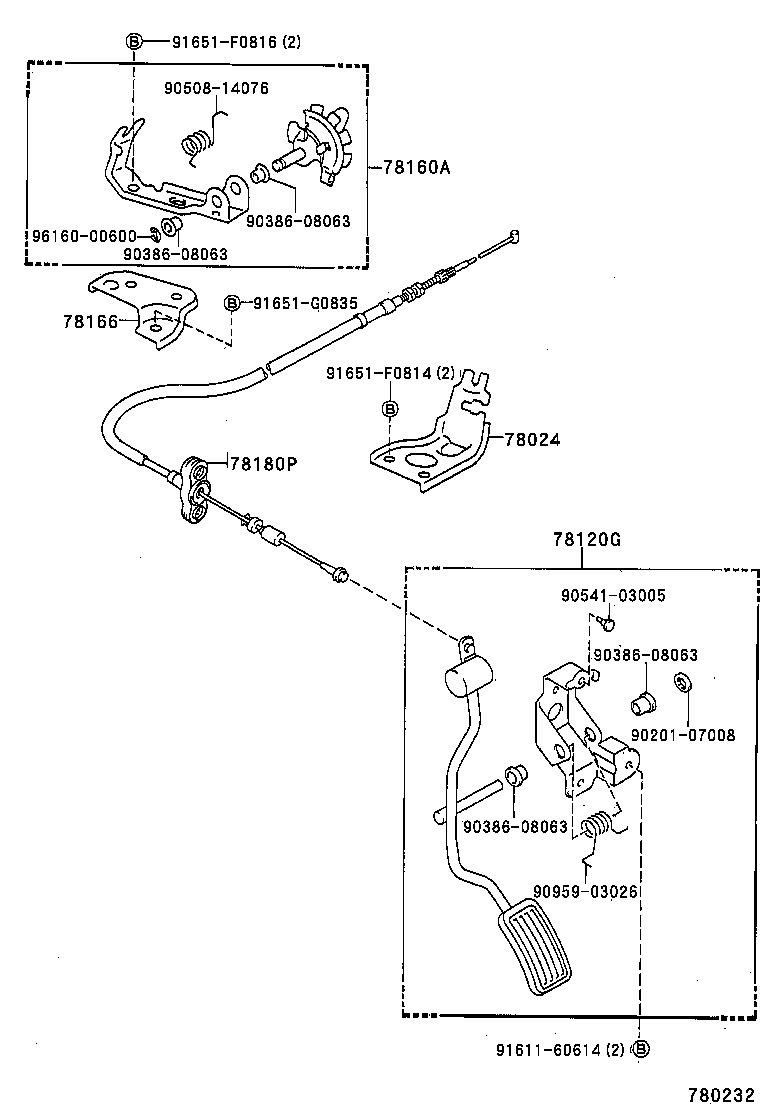

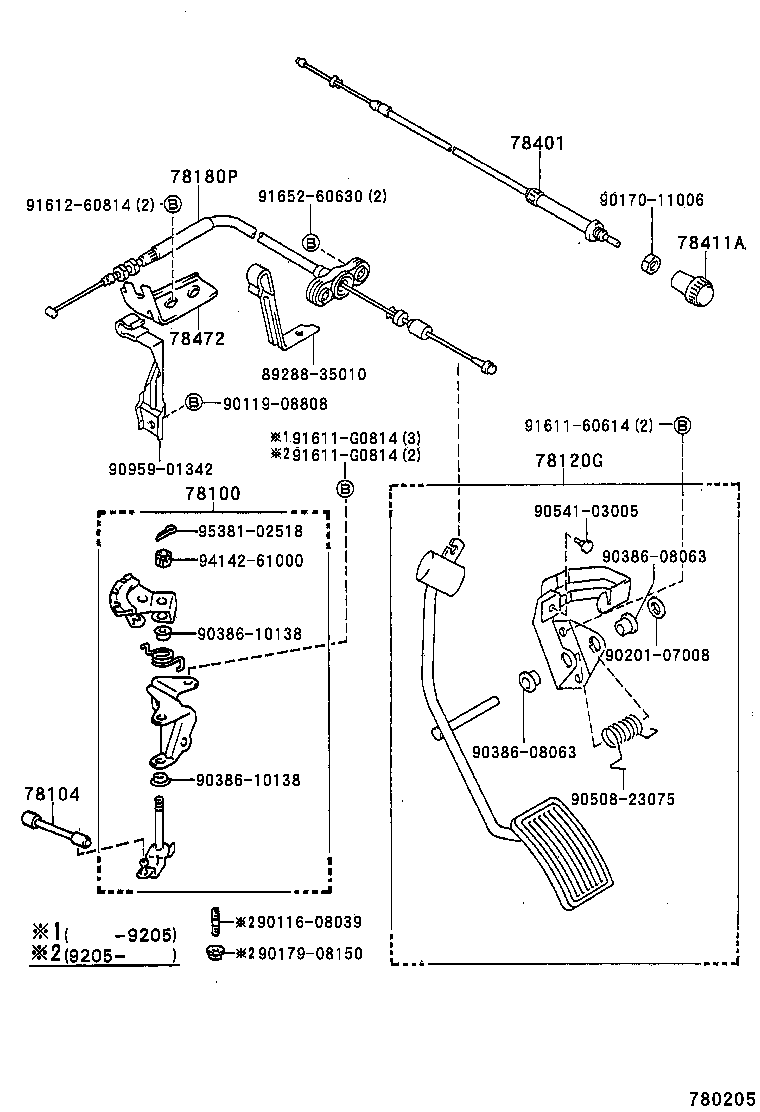

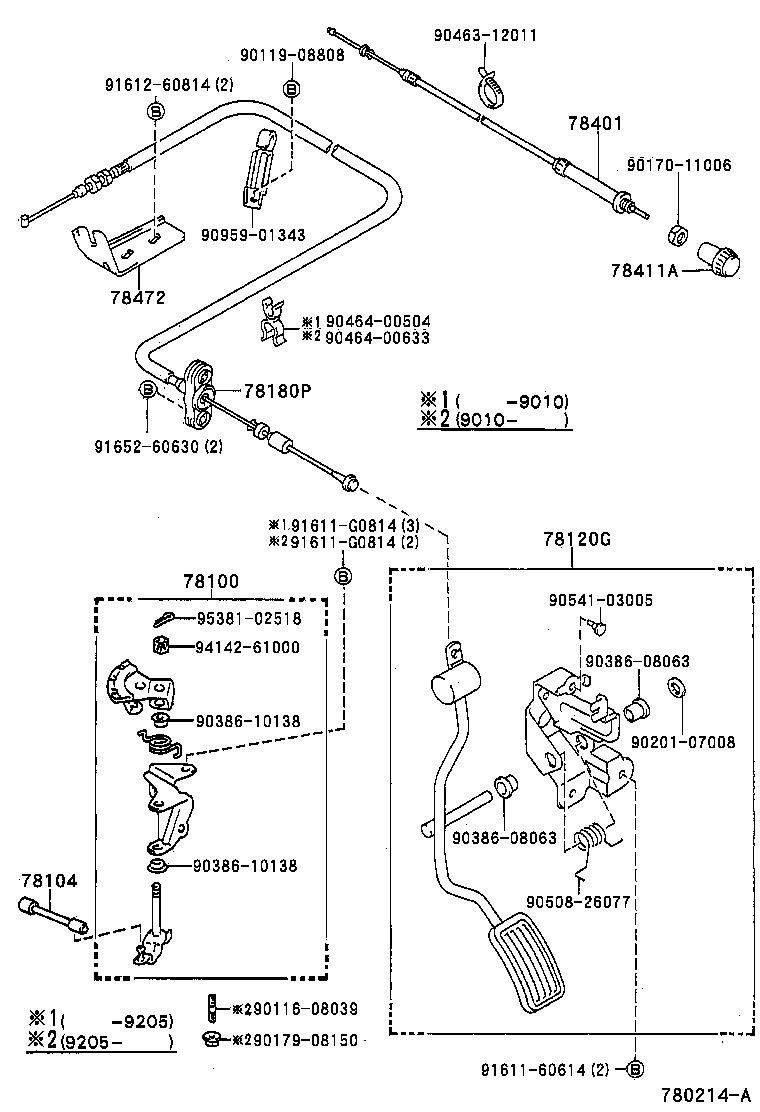

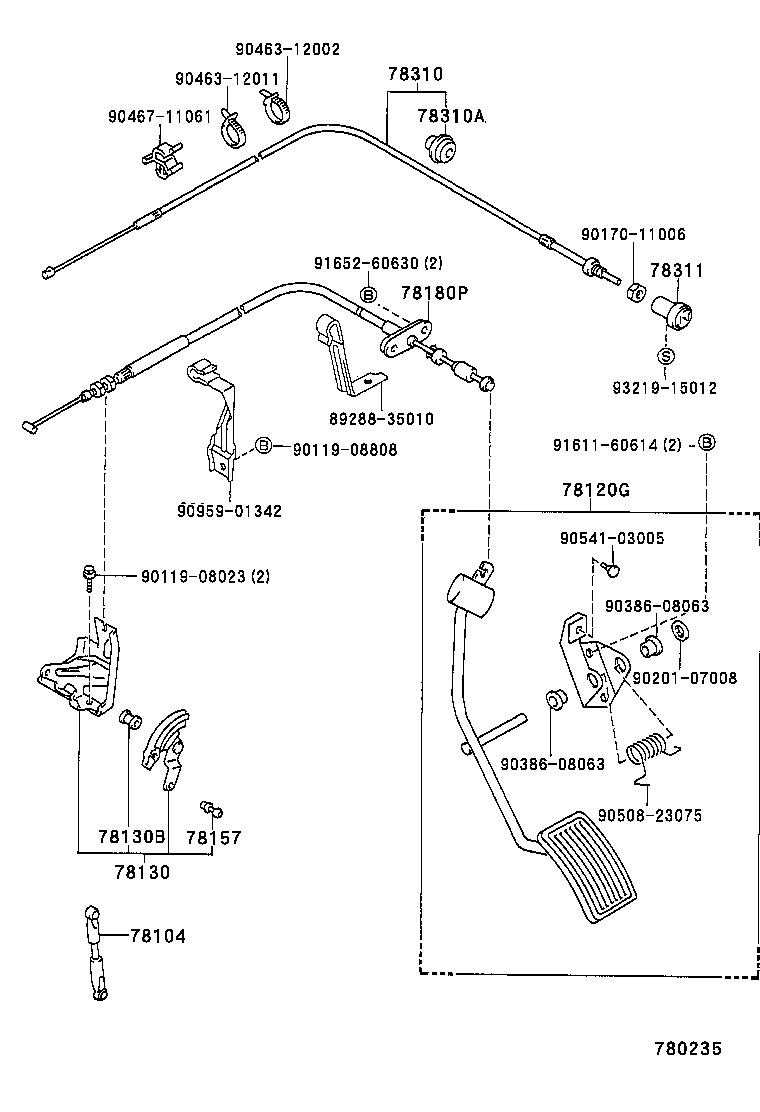

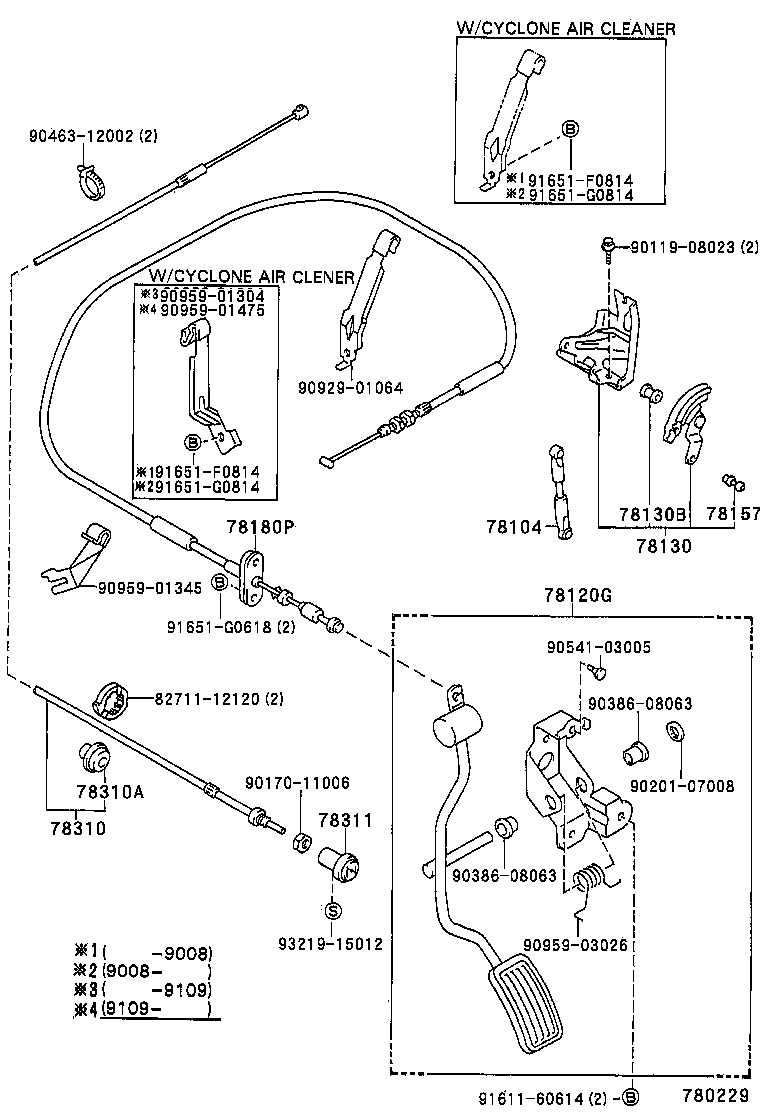

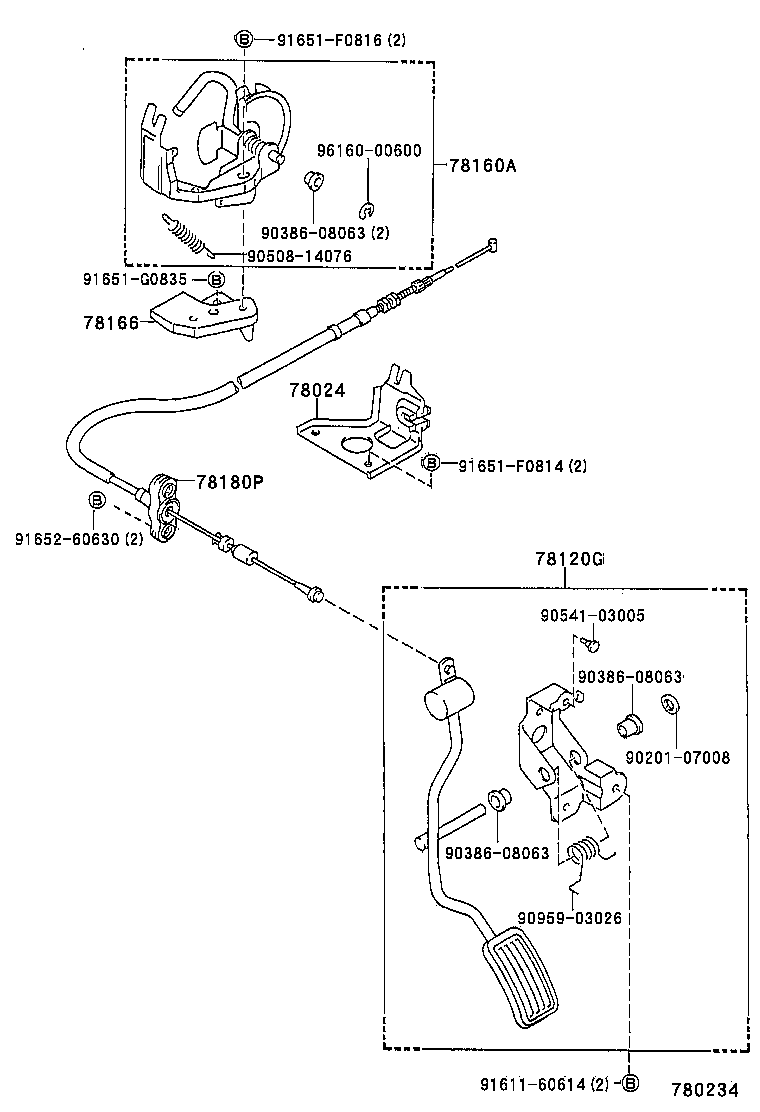

Figure 780228 780228 1988-08 → — Figure 780229 780229 1988-08 → — Figure 780205 780205 1988-08 → — Figure 780214A 780214A 1988-08 → — Figure 780231 780231 1988-08 → — Figure 780232 780232 1988-08 → — Figure 780232 780232 1992-08 → — Figure 780233 780233 1988-08 → — Figure 780216 780216 1988-08 → — Figure 780234 780234 1989-07 → 1993-08 Figure 780235 780235 1989-10 → — Figure 780236 780236 1989-10 → — Figure 780238 780238 1994-01 → — Figure 780575B 780575B 2001-06 → — Figure 780576 780576 2001-06 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78100 Link Assy, Accelerator
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78120G Rod Assy, Accelerator Pedal
78130 Bellcrank Assy, Accelerator
78130B Bush, Accelerator Bellcrank
78157 Ball, Accelerator Joint
78160A Bellcrank Assy, Accel Control W/Bracket
78166 Bracket, Accel Control NO.2 Bellcrank
78180P Cable Assy, Accelerator Control
78184B Bracket, Accelerator Control Cable
78186A Clamp, Accelerator Control Cable, NO.3
78188C Clamp, Accelerator Control Cable, NO.5
78310 Cable Assy, Choke
78310A Grommet, Choke Cable
78311 Knob, Choke Control Cable
78401 Cable Sub-assy, Throttle Control
78411A Knob, Throttle Control Cable
78472 Support, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
