Toyota Hilux 2WD

1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

33 part groups · 15 illustrations

Illustrations

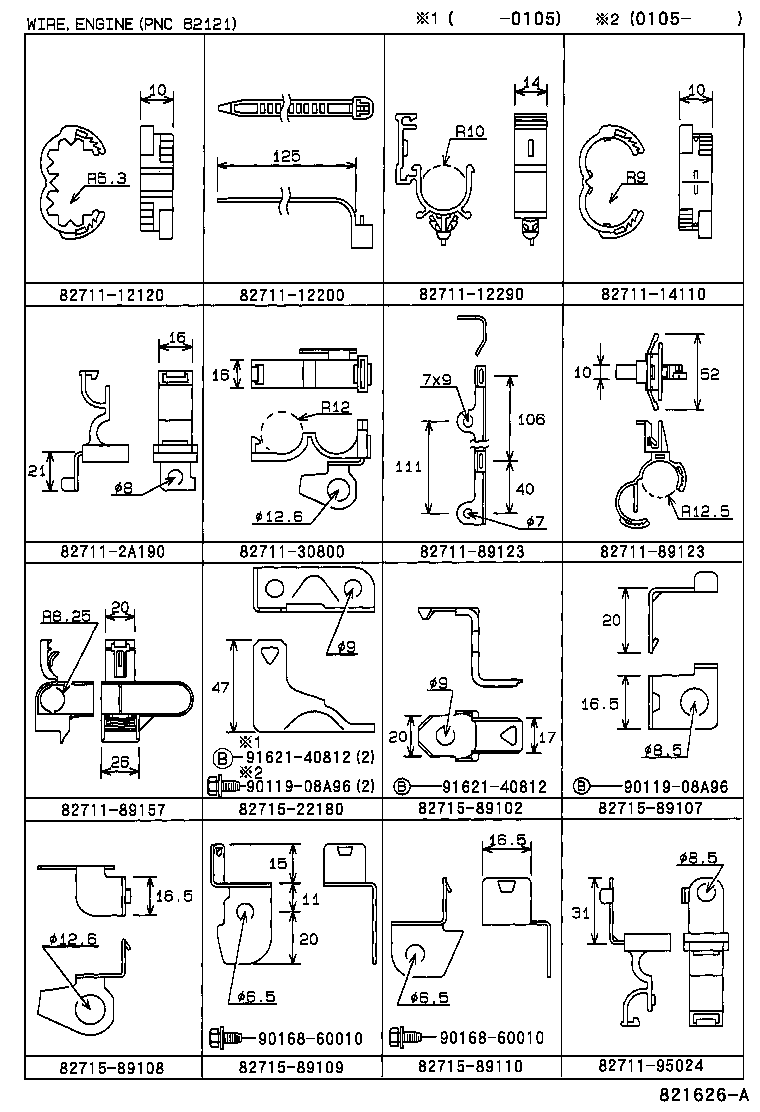

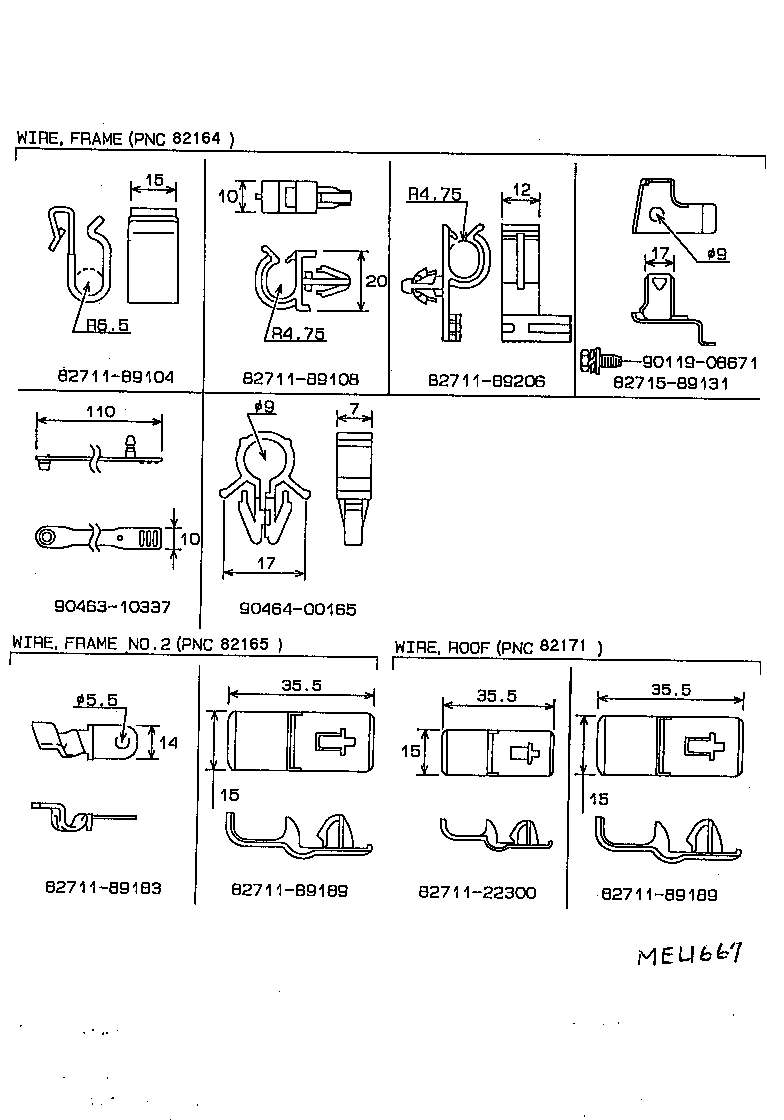

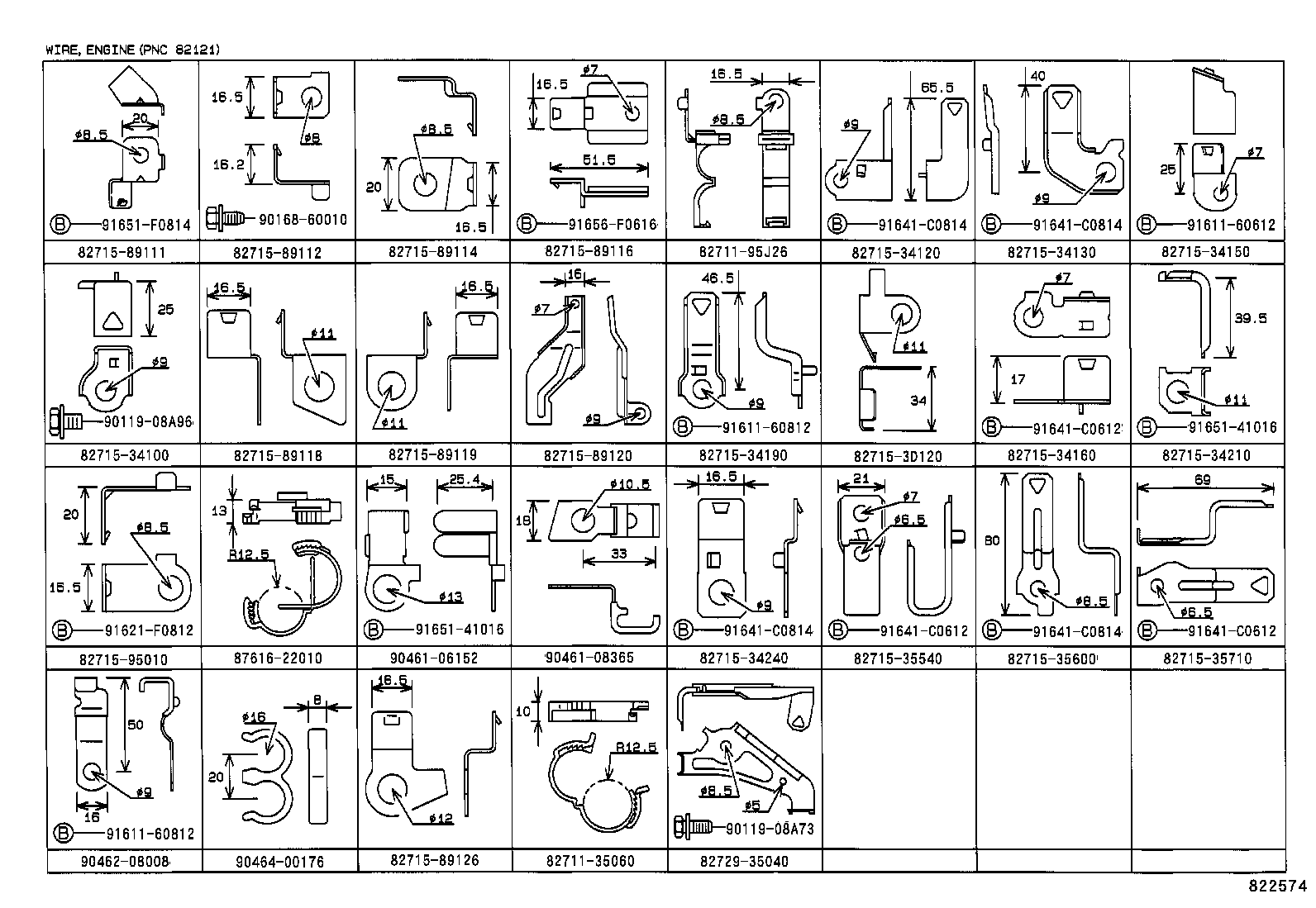

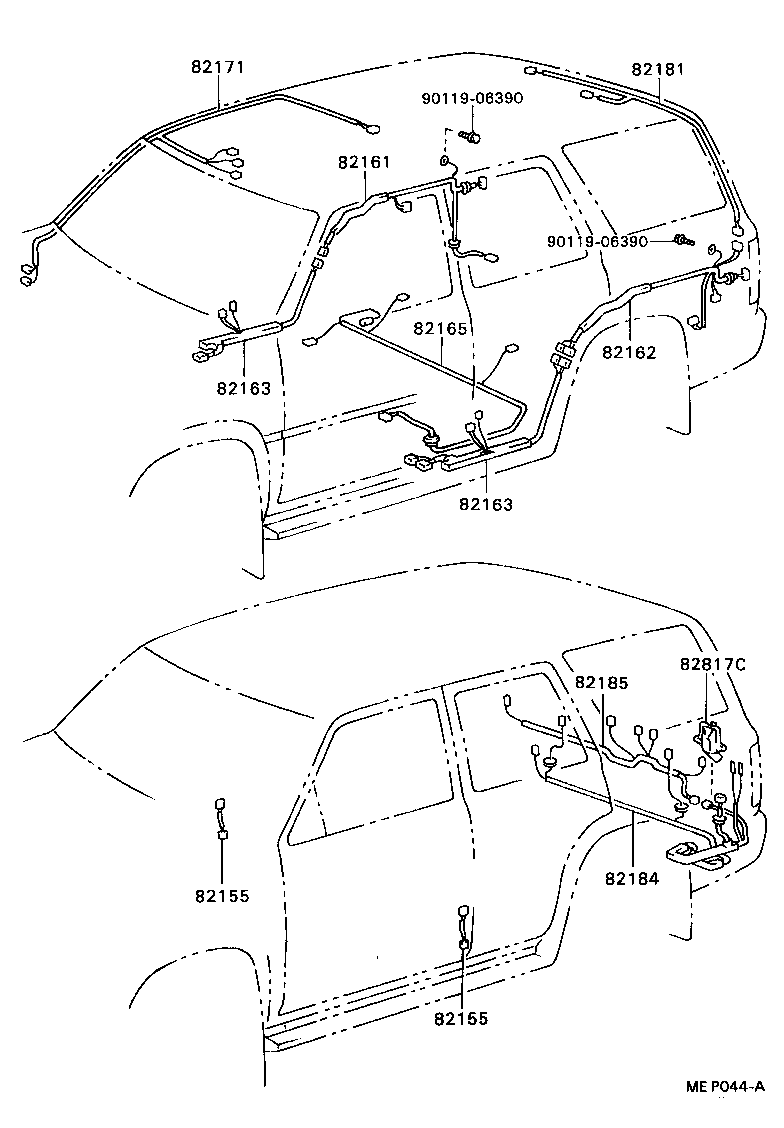

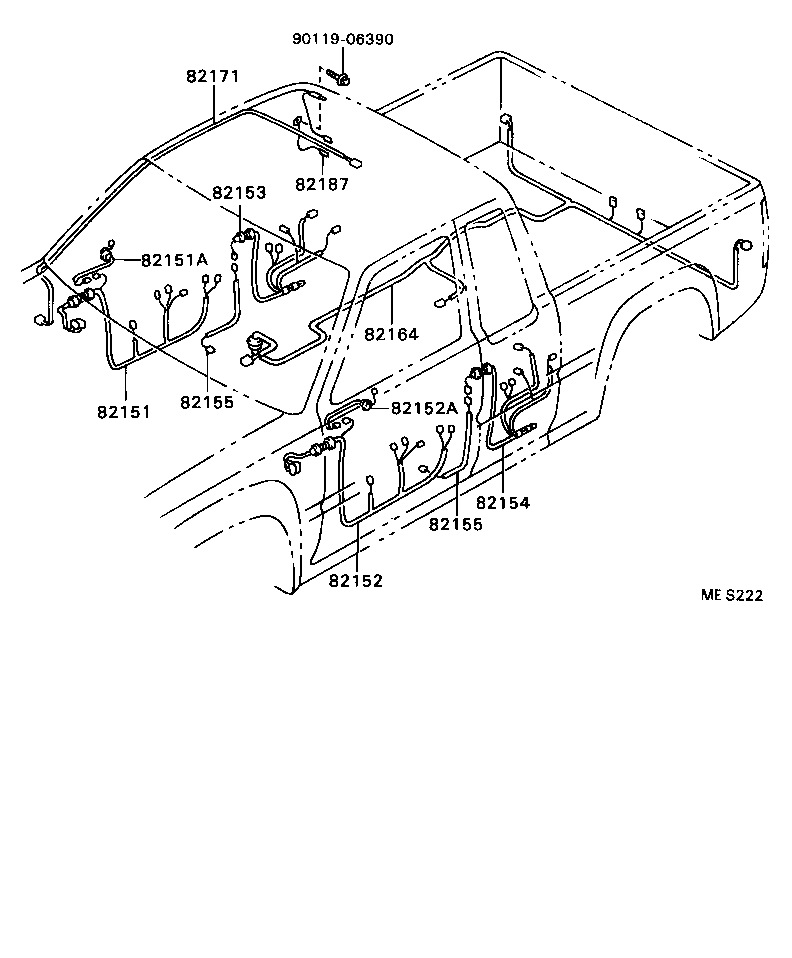

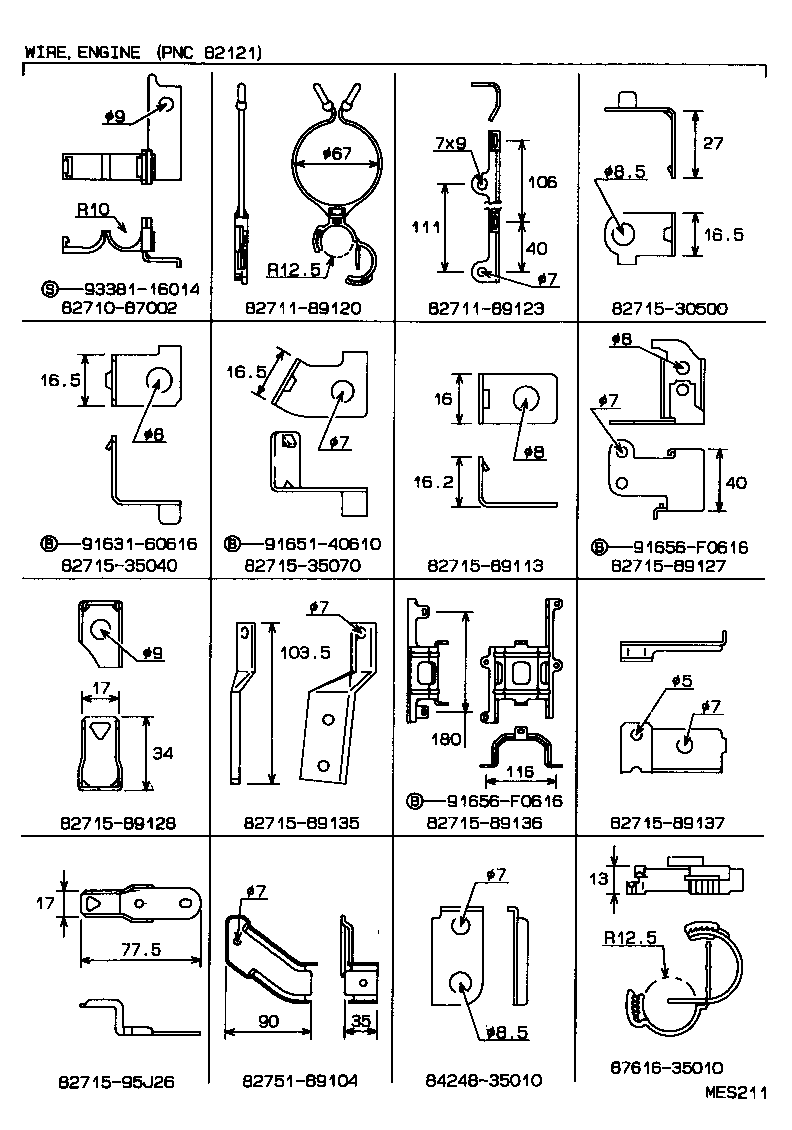

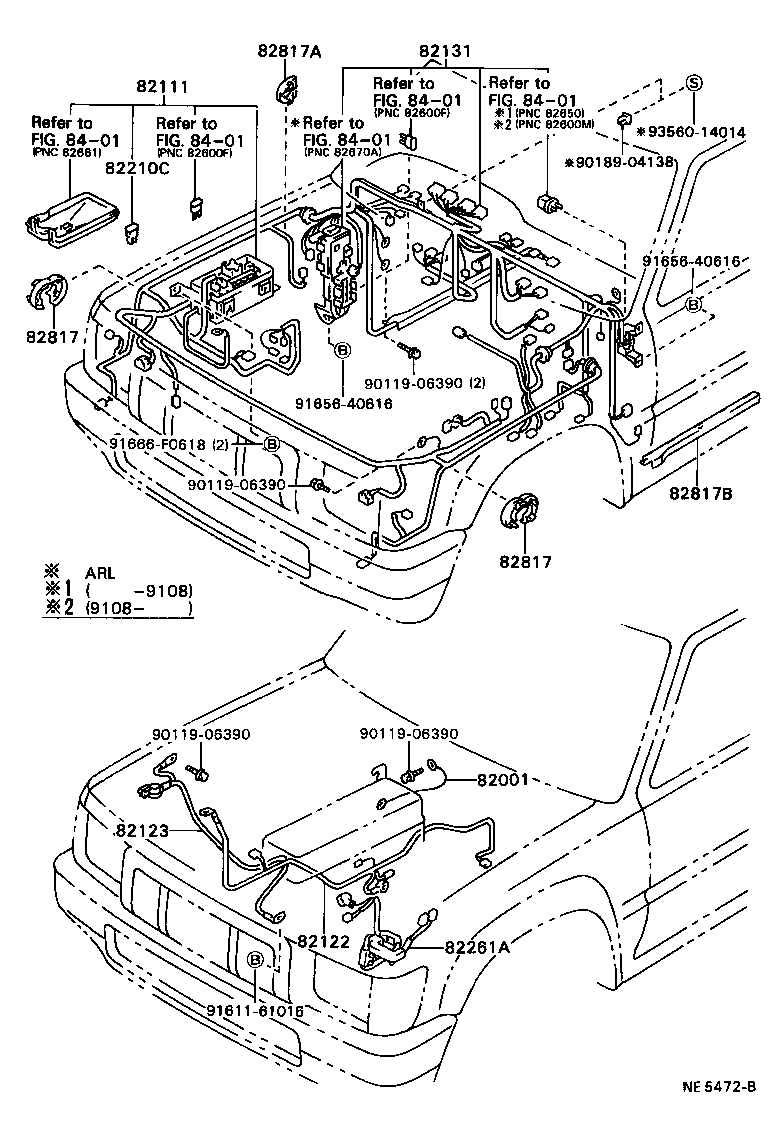

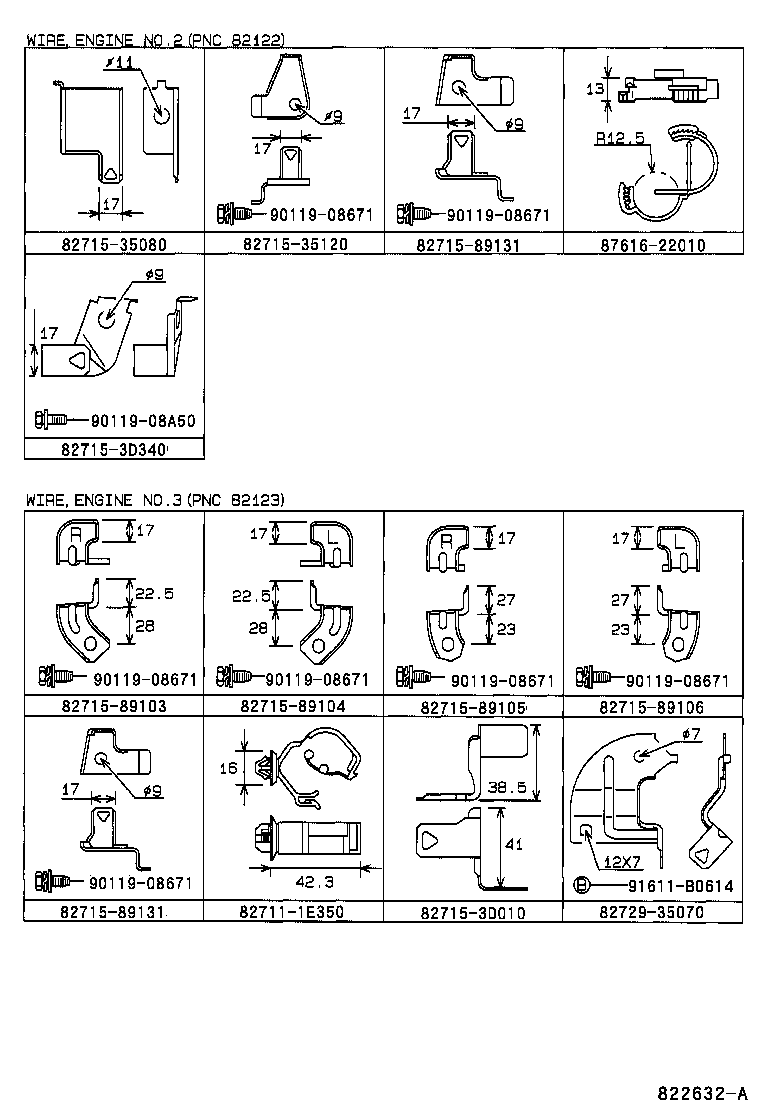

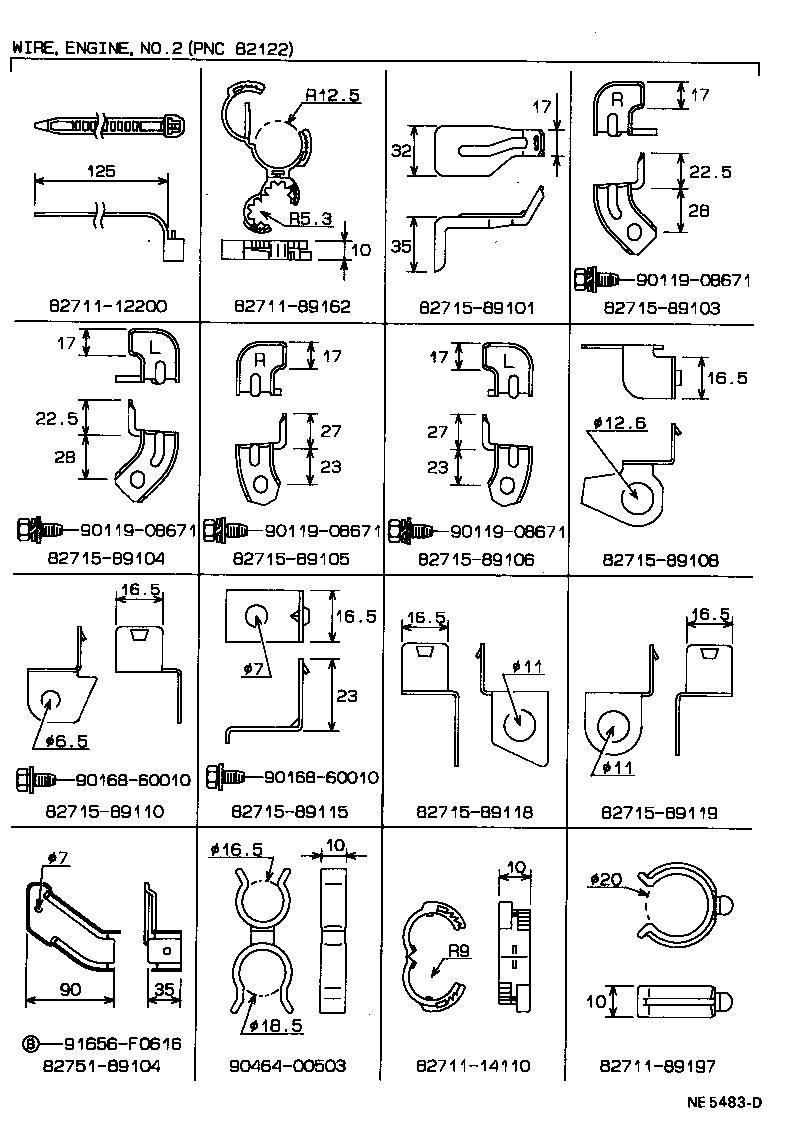

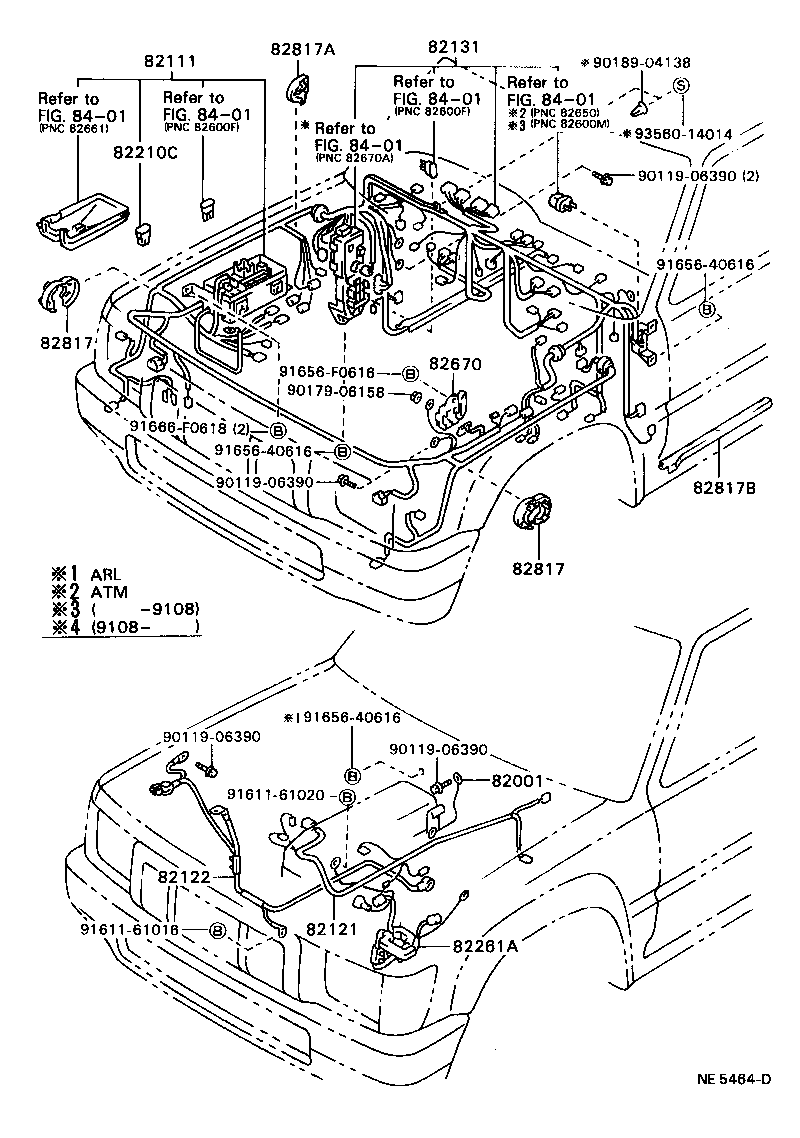

Figure 822091C 822091C 1988-08 → — Figure NE5464D NE5464D 1988-08 → — Figure NE5472B NE5472B 1988-08 → — Figure MES222 MES222 1988-08 → — Figure MEP044A MEP044A 1989-07 → 1993-08 Figure NE5477B NE5477B 1988-08 → — Figure 822574 822574 1988-08 → — Figure 821626A 821626A 1988-08 → — Figure 822573C 822573C 1988-08 → — Figure MES211 MES211 1988-08 → — Figure NE5483D NE5483D 1988-08 → — Figure 822632A 822632A 1988-08 → — Figure MEU724 MEU724 1988-08 → — Figure MES215 MES215 1988-08 → — Figure MEU667 MEU667 1988-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82131 Wire, Cowl
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82155 Wire, Center Piller, NO.1
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82261A Wire, Alternator
82620 Block Assy, Fusible Link
82670 Block Assy, Junction, NO.1
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82823T Cap, Alternator Terminal
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
