Toyota Hilux 2WD
1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · United States
Discontinued model
Data version 2005-07
Switch & Relay & Computer
95 part groups · 14 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|

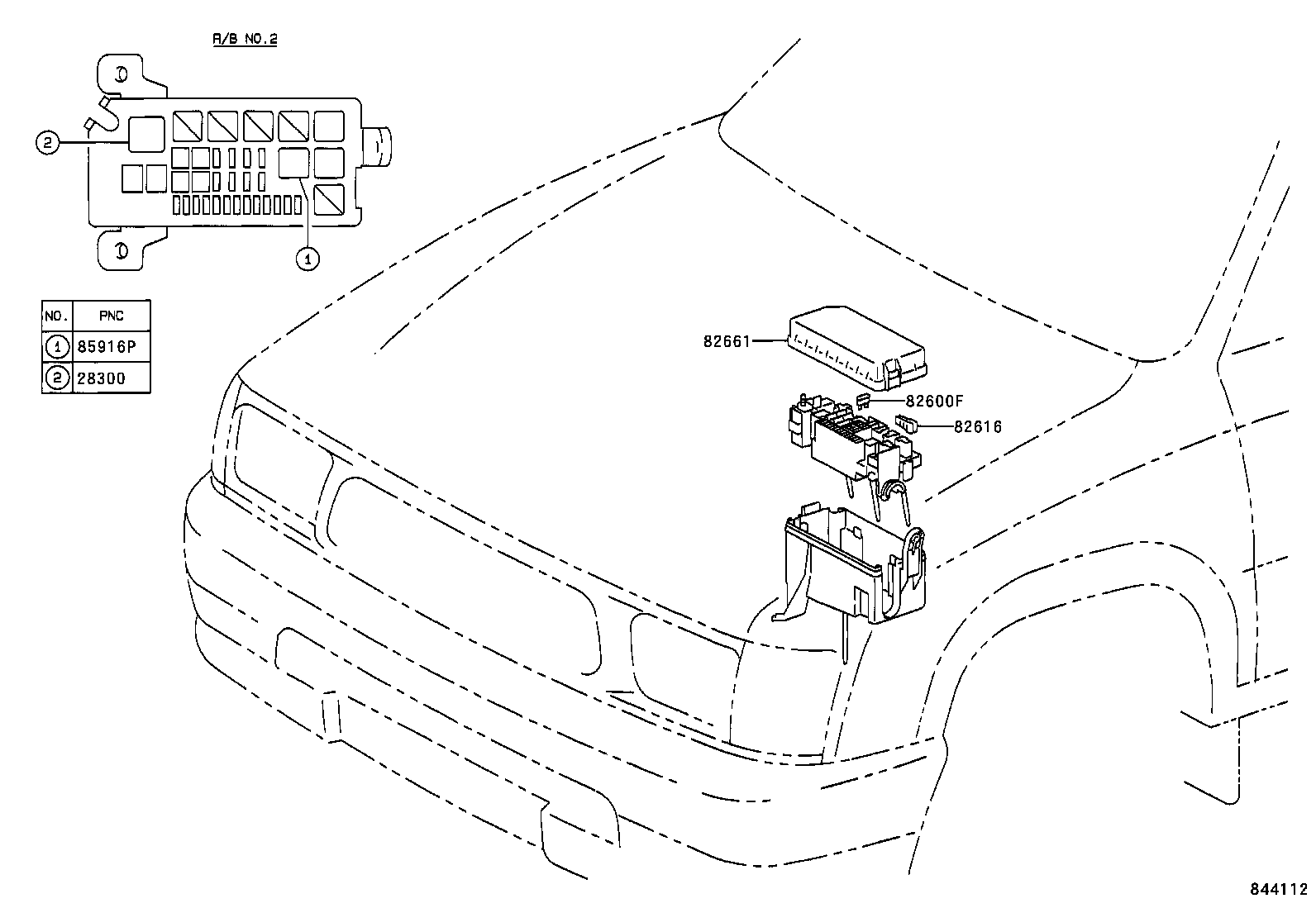

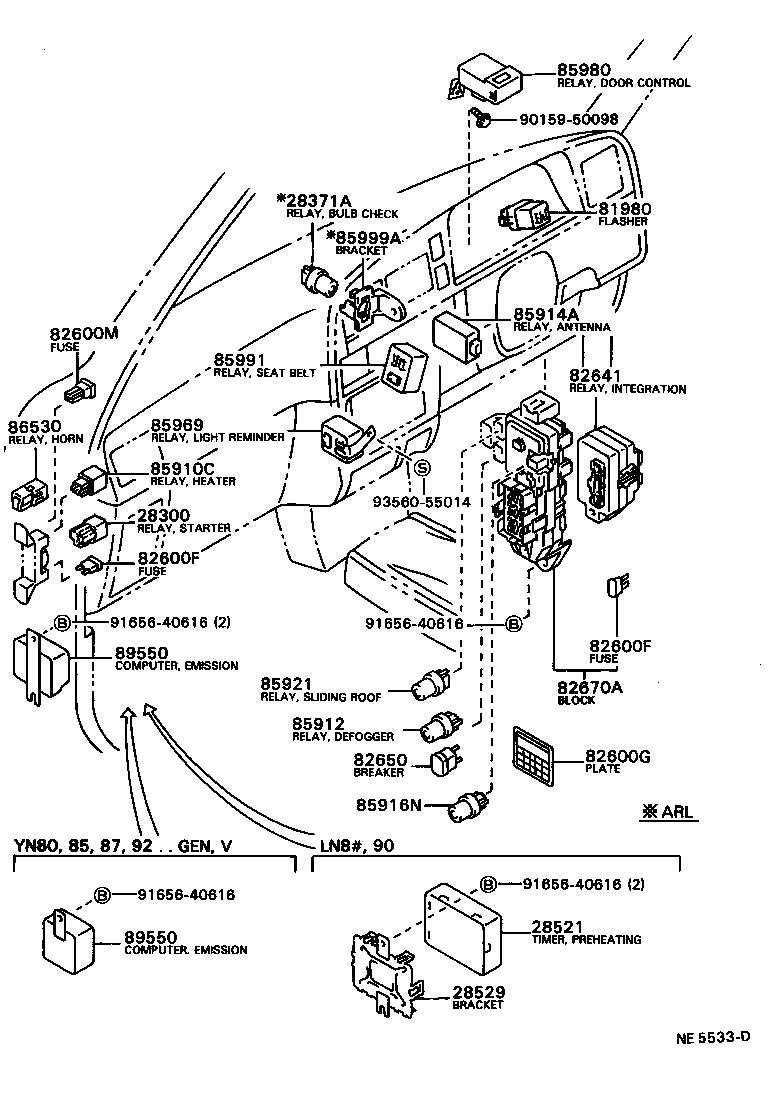

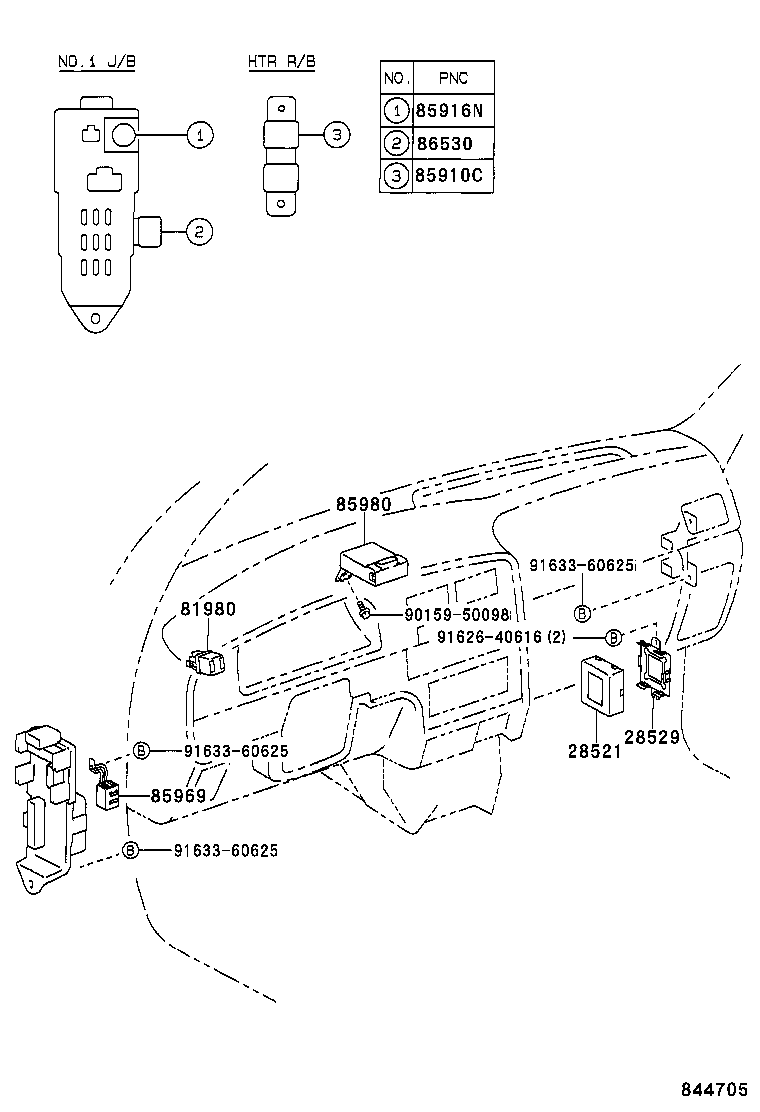

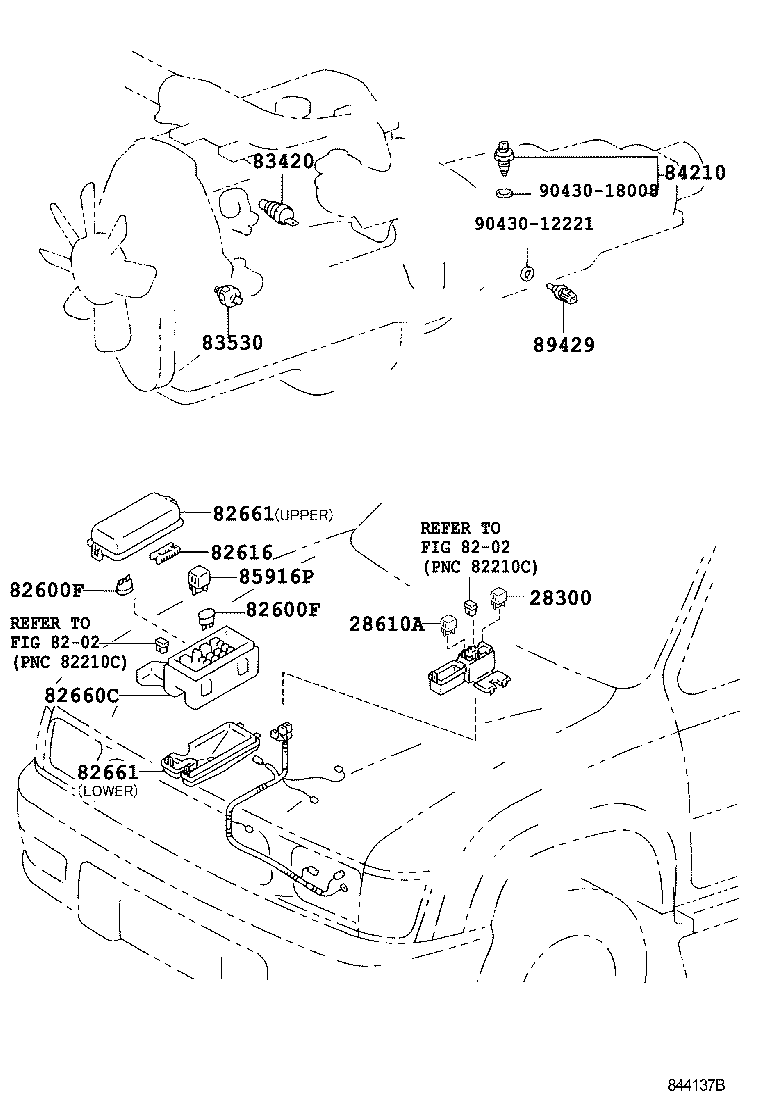

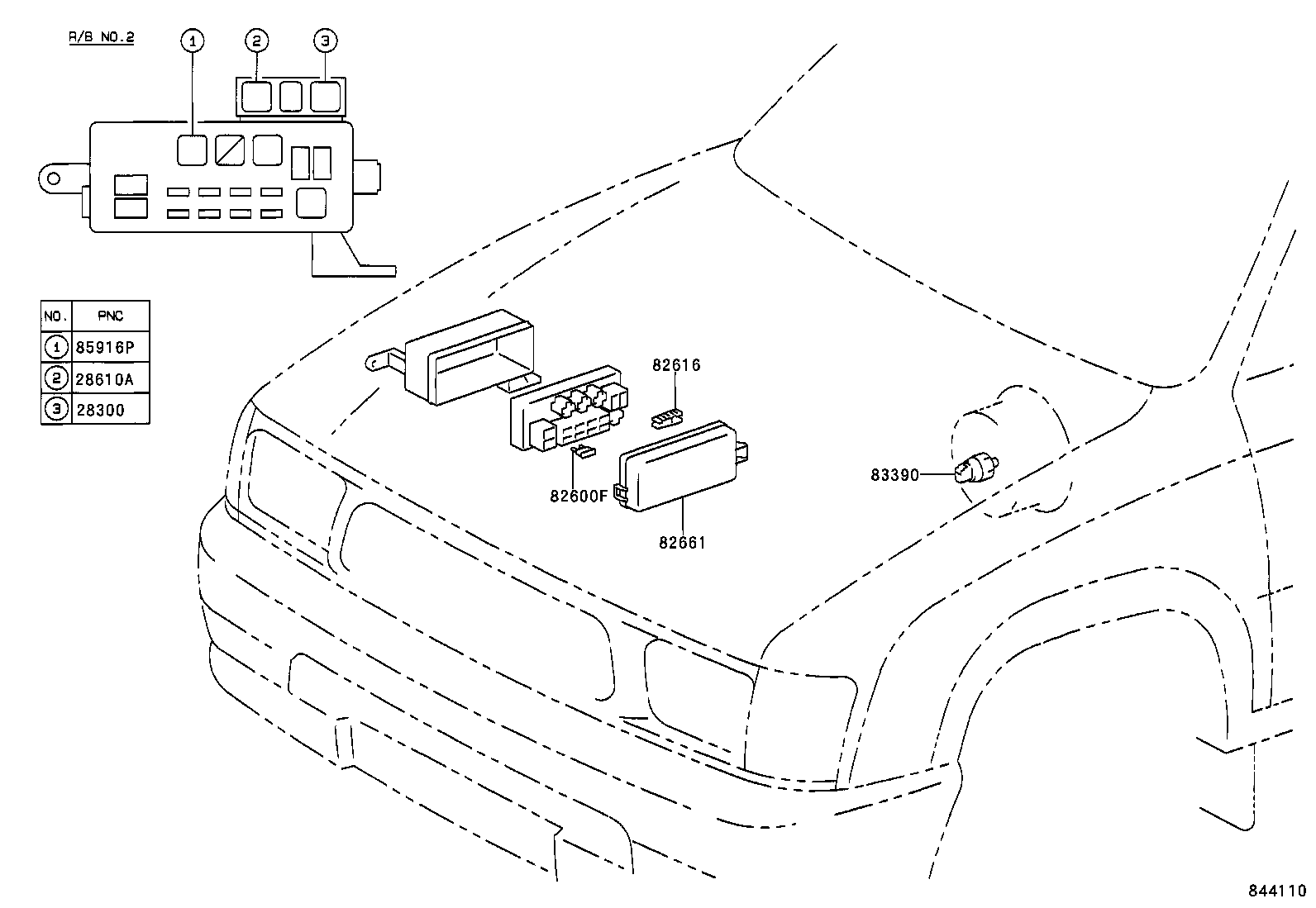

| 28300 | Relay Assy, Starter |
| 28317 | Bracket, Starter Relay |
| 28371A | Relay, Bulb Check |
| 28521 | Timer, Preheating |
| 28529 | Bracket, Preheating Timer, NO.1 |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28610A | Relay Assy, Glow Plug(SUB) |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82600G | Plate, Caution(FOR FUSE) |
| 82600M | Fuse, Medium Current |
| 82616 | Puller, Fuse |
| 82641 | Relay, Integration NO.1 |
| 82650 | Breaker Assy, Wiring Circuit, NO.1 |

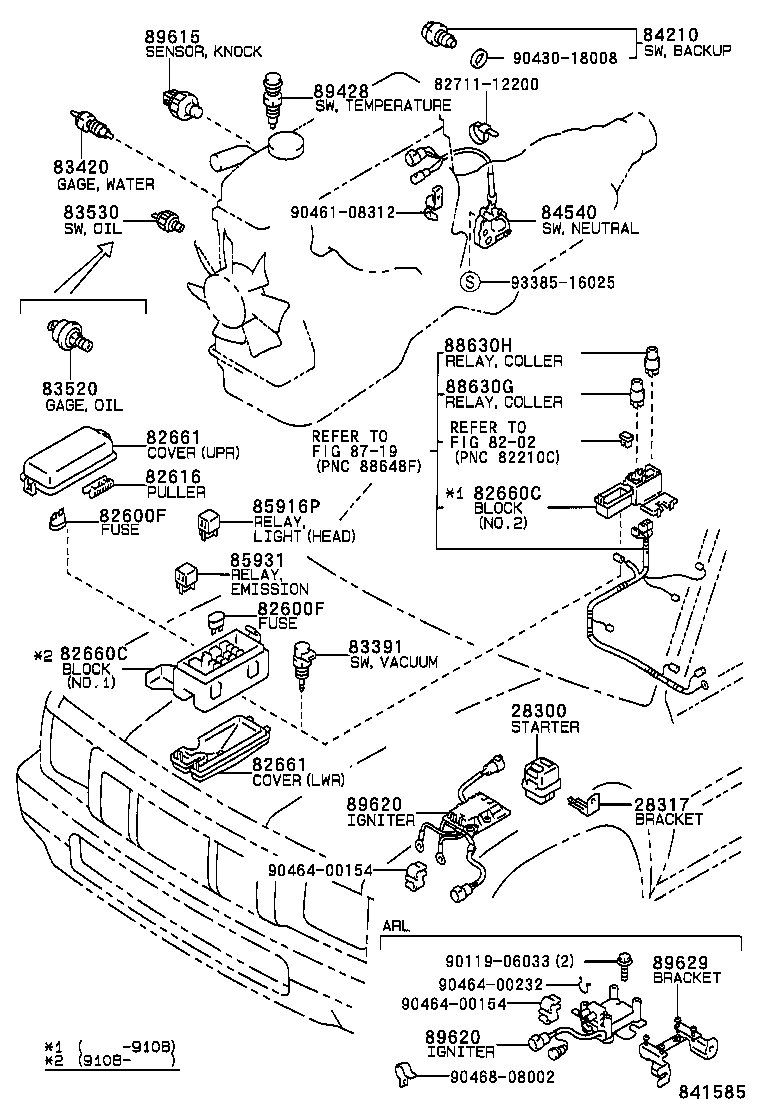

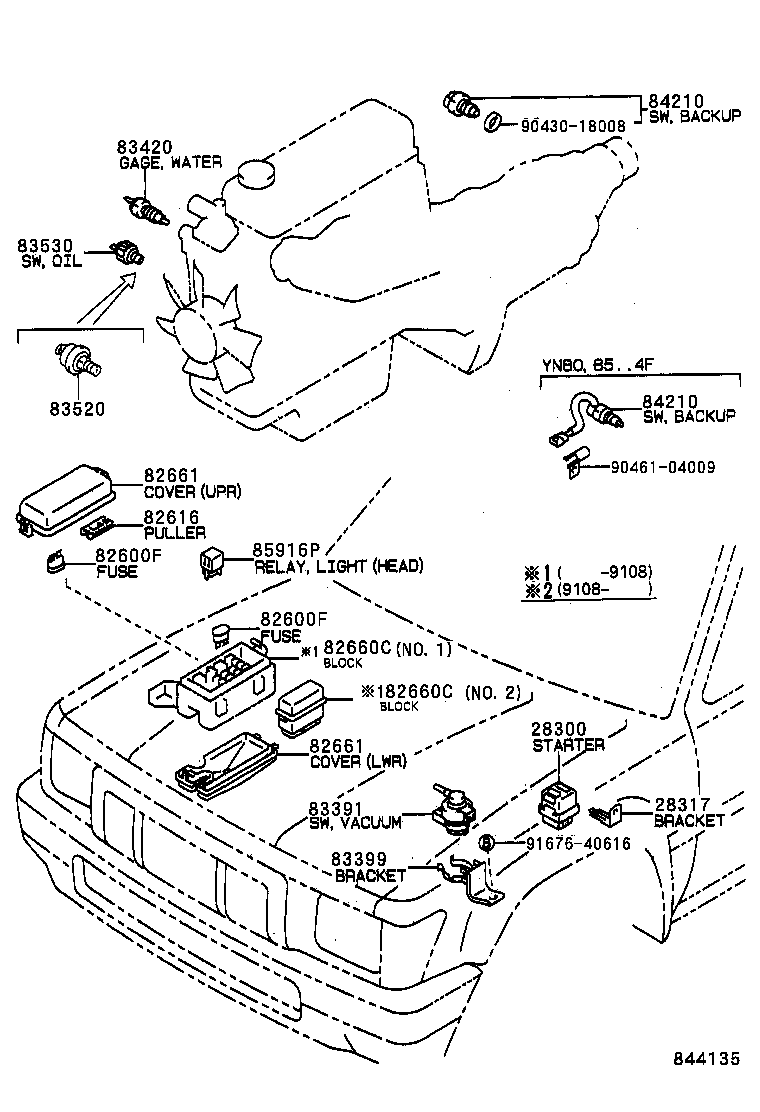

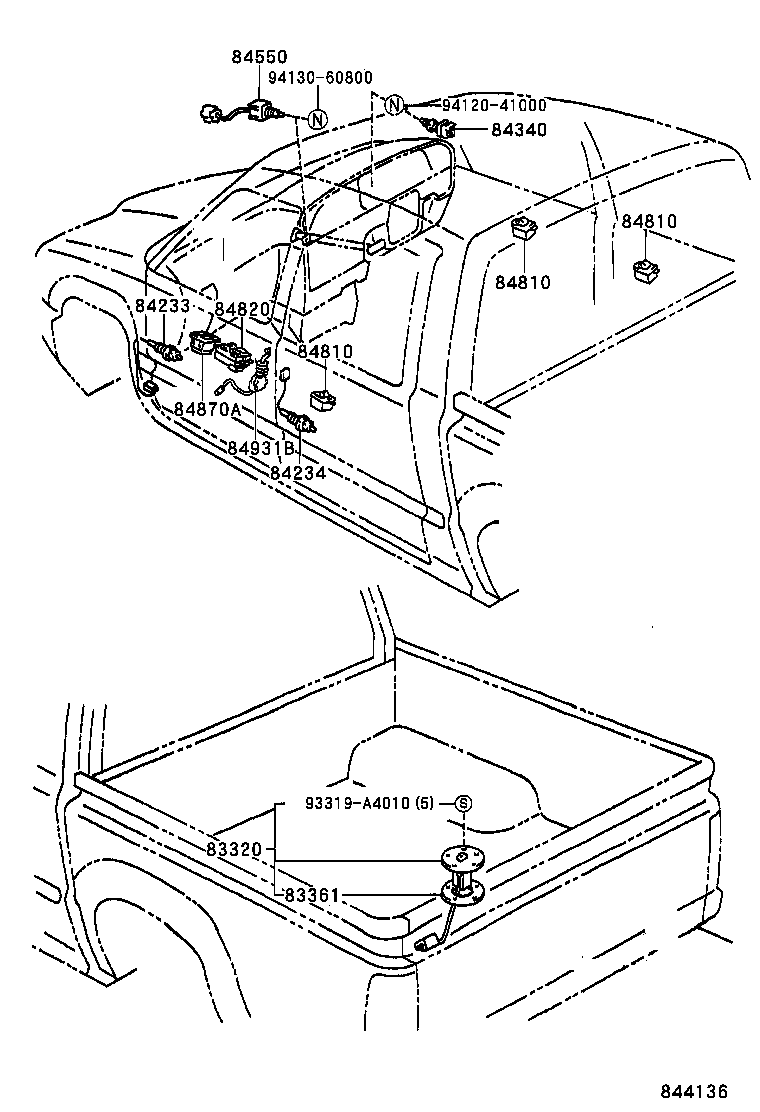

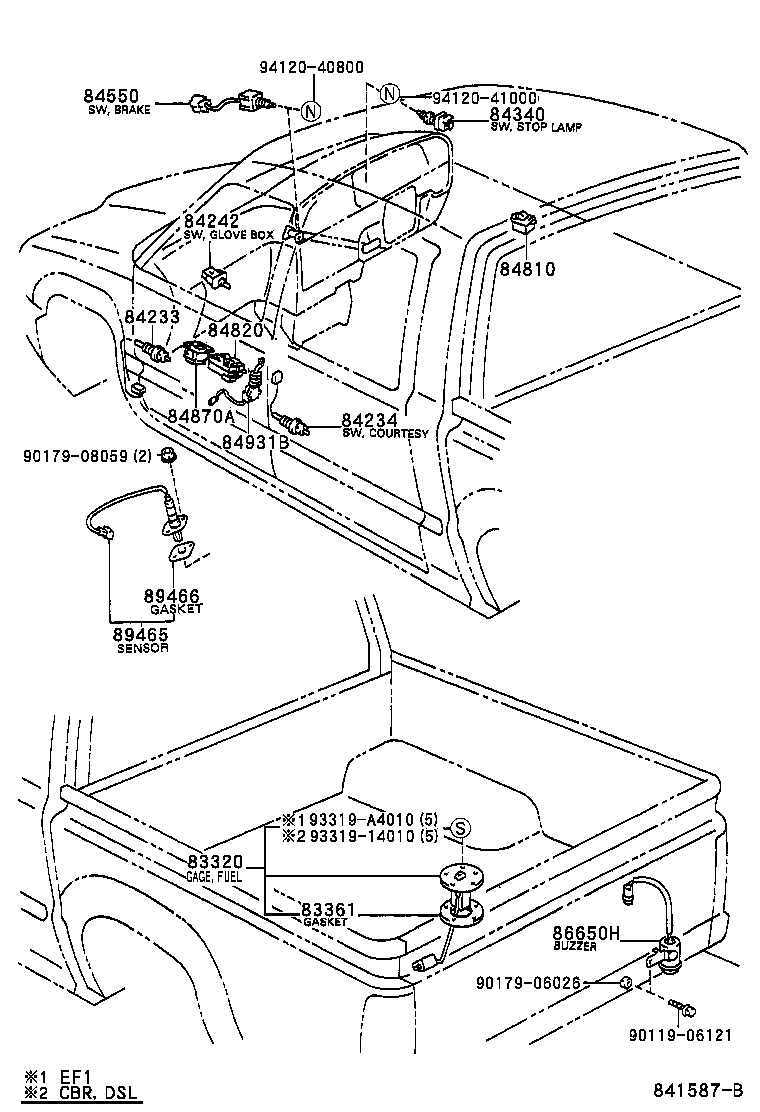

| 82660C | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82670A | Block Assy, Junction, NO.1 |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83390 | Switch Assy, Vacuum Warning |
| 83391 | Switch, Vacuum |
| 83399 | Bracket, Vacuum Switch |
| 83420 | Gage Assy, Water Temperature Sender |
| 83520 | Gage Assy,Oil Pressure Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84118 | Knob, Light Control Rheostat |
| 84119 | Rheostat, Light Control |
| 84119A | Bolt OR Nut, Rheostat Control Set |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84242 | Switch, Glove Box Lamp |
| 84290 | Switch Assy, Limit |

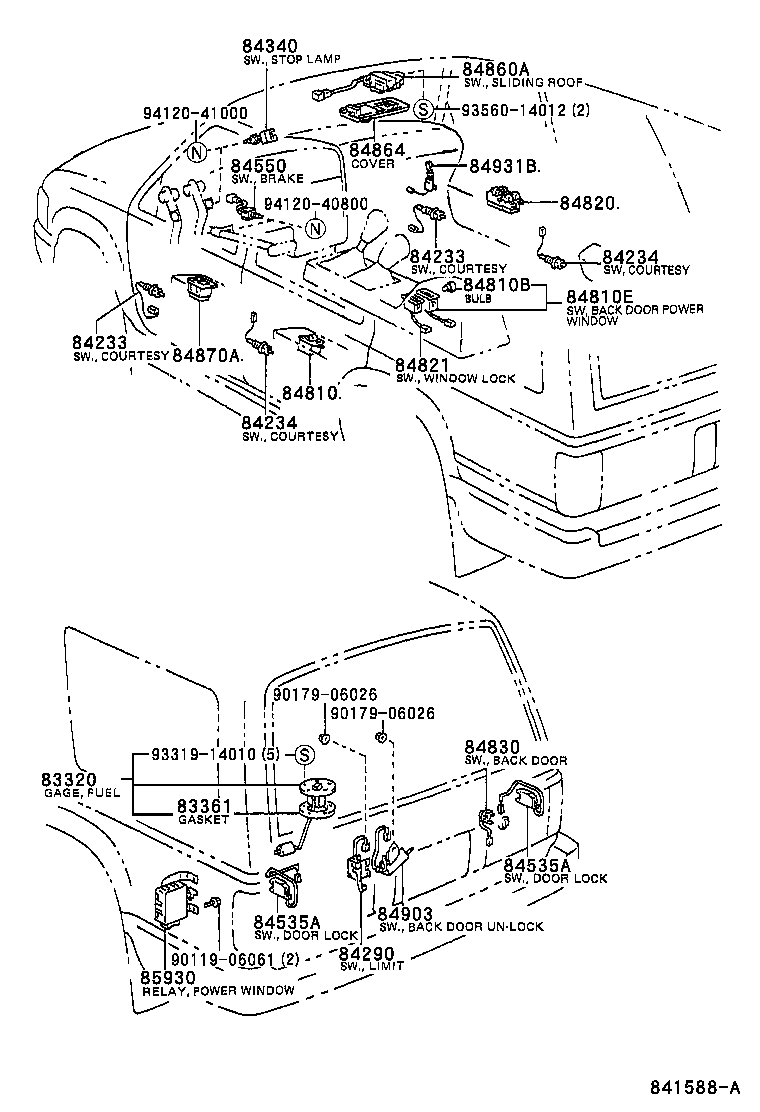

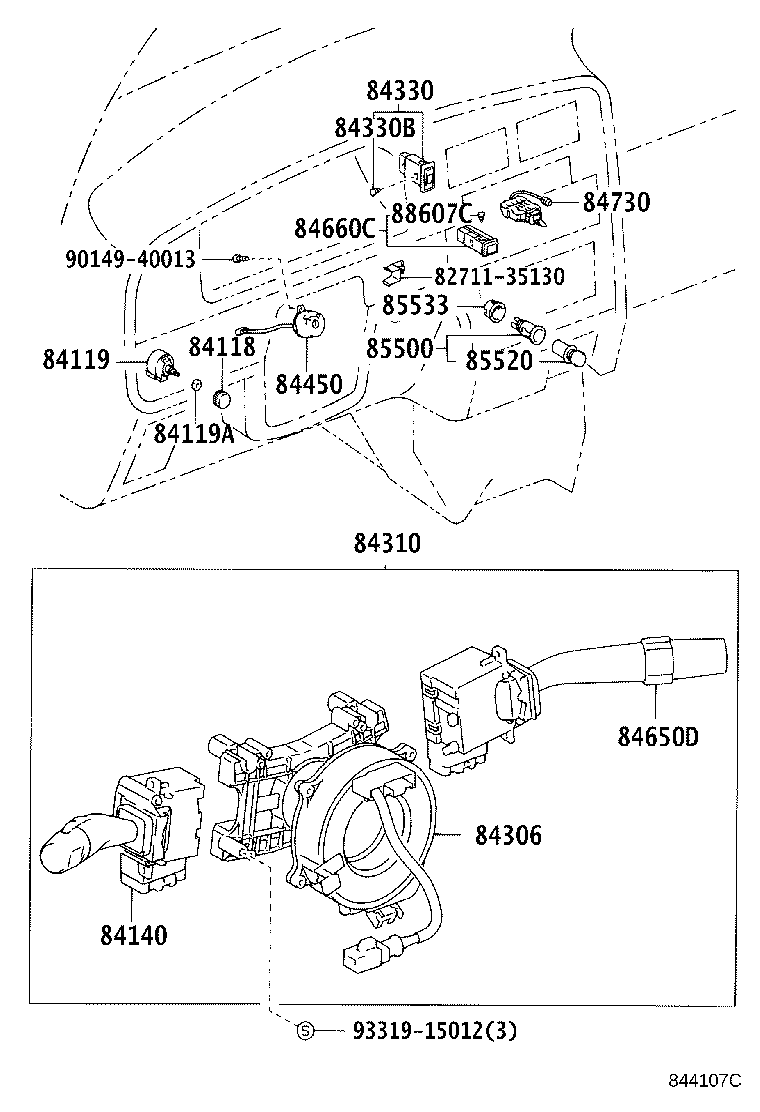

| 84306 | Cable Sub-assy, Spiral |

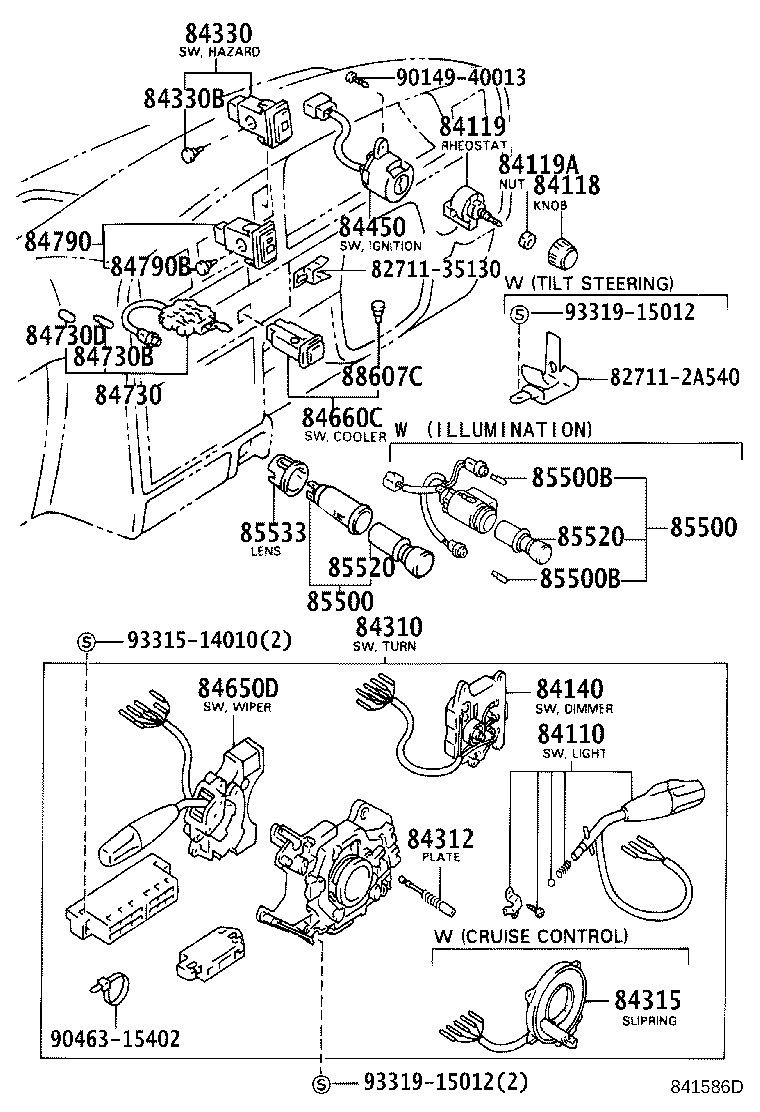

| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84315 | Slipring, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84535A | Switch, Door Lock |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84660C | Switch, Cooler |
| 84730 | Switch Assy, Heater Blower |
| 84730B | Bulb, Heater Blower Switch |
| 84730D | Cap, Heater Blower Switch Bulb |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84810 | Switch Assy, Power Window Regulator |
| 84810B | Bulb (FOR POWER WINDOW REGULATOR SWITCH) |
| 84810E | Switch Assy, Back Door Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84821 | Switch, Power Window Lock |
| 84830 | Switch Assy, Tail Gate Control |
| 84860A | Switch Assy, Sliding Roof |
| 84864 | Cover, Slide Roof Motor Switch |
| 84870A | Switch Assy, Outer Mirror |
| 84903 | Switch Sub-assy, Door Un-lock |
| 84931B | Switch, Door Control |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912 | Relay, Defogger |
| 85914A | Relay, Motor Antenna Control |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85921 | Relay, Sliding Roof Control |
| 85930 | Relay Assy, Power Window |
| 85931 | Relay, Emission Control |
| 85959A | Holder, Relay |
| 85969 | Relay, Light Reminder |
| 85980 | Relay Assy, Door Control |
| 85991 | Relay, Seat Belt Warning |
| 85999A | Bracket, Relay, NO.2 |
| 86530 | Relay Assy, Horn |
| 86650H | Buzzer Assy, Back |
| 88607C | Lamp Sub-assy, Indicator |
| 88630G | Relay Assy, Cooler |
| 88630H | Relay Assy, Cooler |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89429 | Sensor, Oil Temperature |
| 89437 | Cover, Sensor |
| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89550 | Computer Assy, Emission Control |
| 89615 | Sensor, Knock Control |
| 89620 | Igniter Assy |
| 89629 | Bracket, Igniter Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
