Toyota Hilux 2WD
1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · United States
Discontinued model
Data version 2005-07

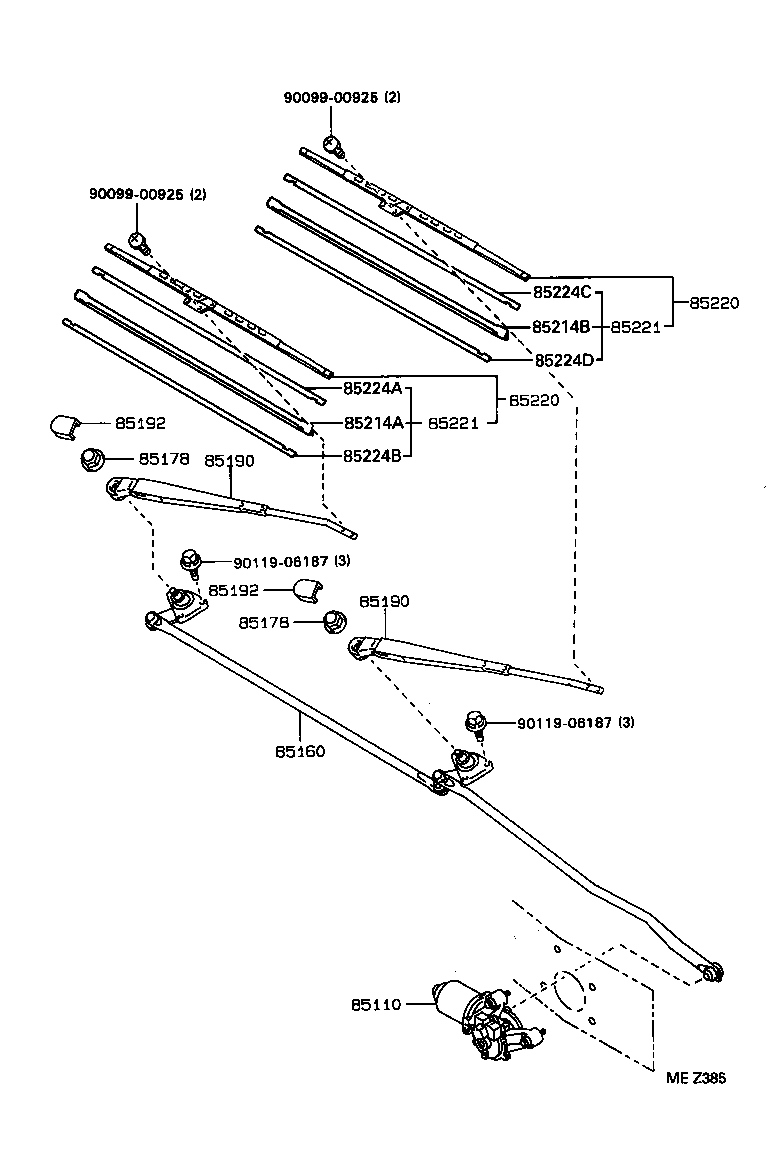

Windshield Wiper
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85110 | Motor Assy, Windshield Wiper |
| 85160 | Link Assy, Windshield Wiper |
| 85178 | Nut (FOR FRONT WIPER ARM SETTING) |
| 85190 | Arm Assy, Windshield Wiper |
| 85192 | Cover, Windshield Wiper Arm |
| 85214A | Rubber, Wiper, RH |
| 85214B | Rubber, Wiper, LH |
| 85220 | Blade Assy, Windshield Wiper |
| 85221 | Blade, Windshield Wiper |
| 85224A | Plate, Wiper Rubber Backing, NO.1 |
| 85224B | Plate, Wiper Rubber Backing, NO.2 |
| 85224C | Plate, Wiper Rubber Backing, NO.3 |
| 85224D | Plate, Wiper Rubber Backing, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
