Toyota Hilux 2WD
1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · United States
Discontinued model
Data version 2005-07

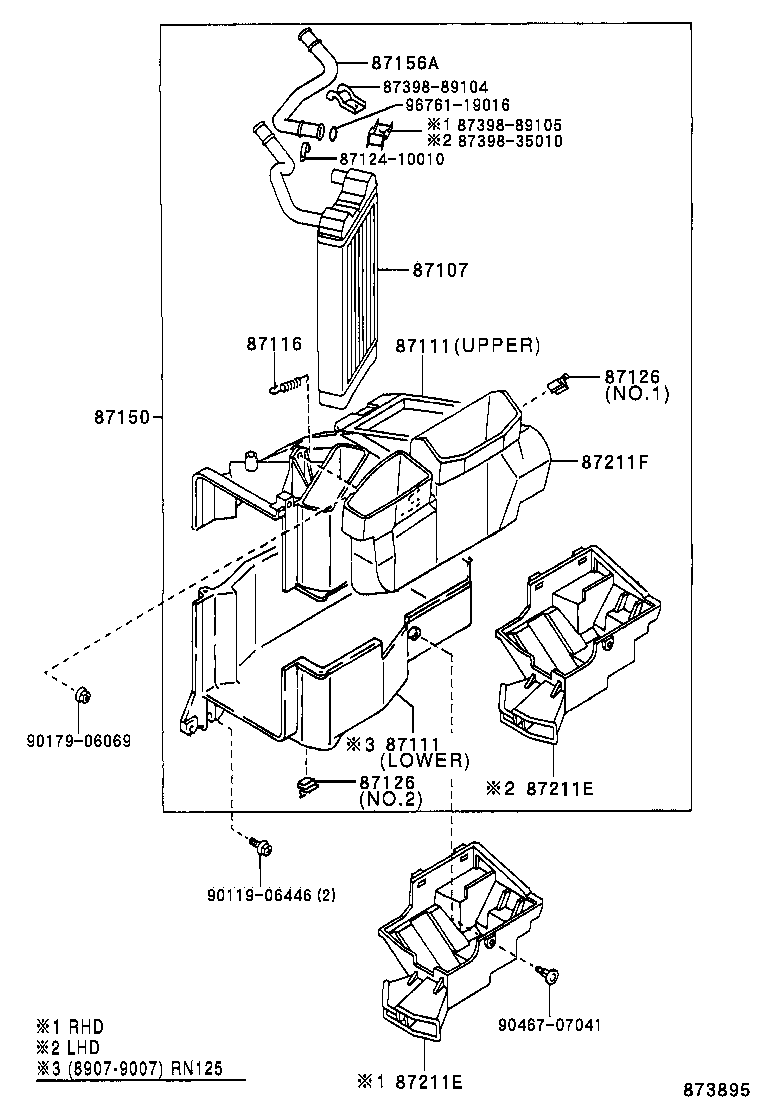

Heating & Air Conditioning - Heater Unit & Blower
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87105 | Fan Sub-assy, Heater Blower |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87111 | Case, Heater |
| 87116 | Spring, Heater Case Fastening |
| 87126 | Clamp, Heater Control |
| 87130 | Blower Assy, Heater, Front |
| 87138 | Resistor, Heater Blower |
| 87150 | Radiator Assy, Heater |
| 87156A | Connector, Heater Water Hose |
| 87211E | Duct, Air |
| 87211F | Duct, Air |
| 87211L | Duct, Air |
| 88910 | Ventilator Assy, Boost |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
