Toyota Hilux 2WD

1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

17 part groups · 6 illustrations

Illustrations

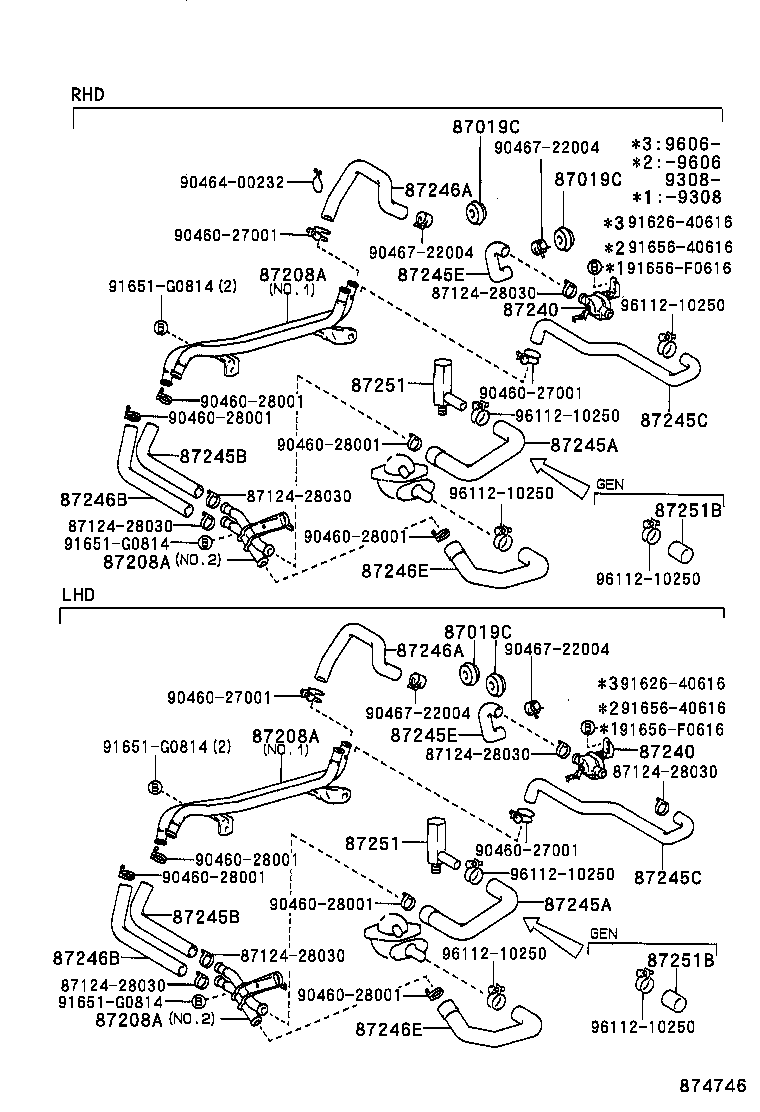

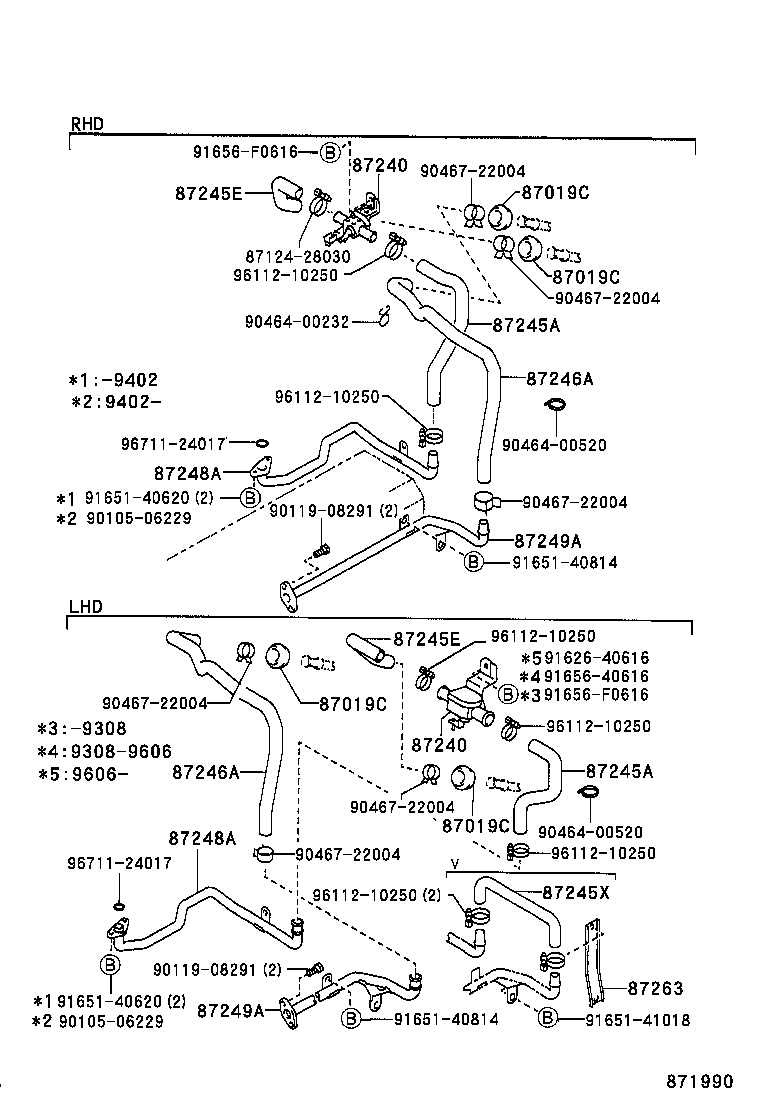

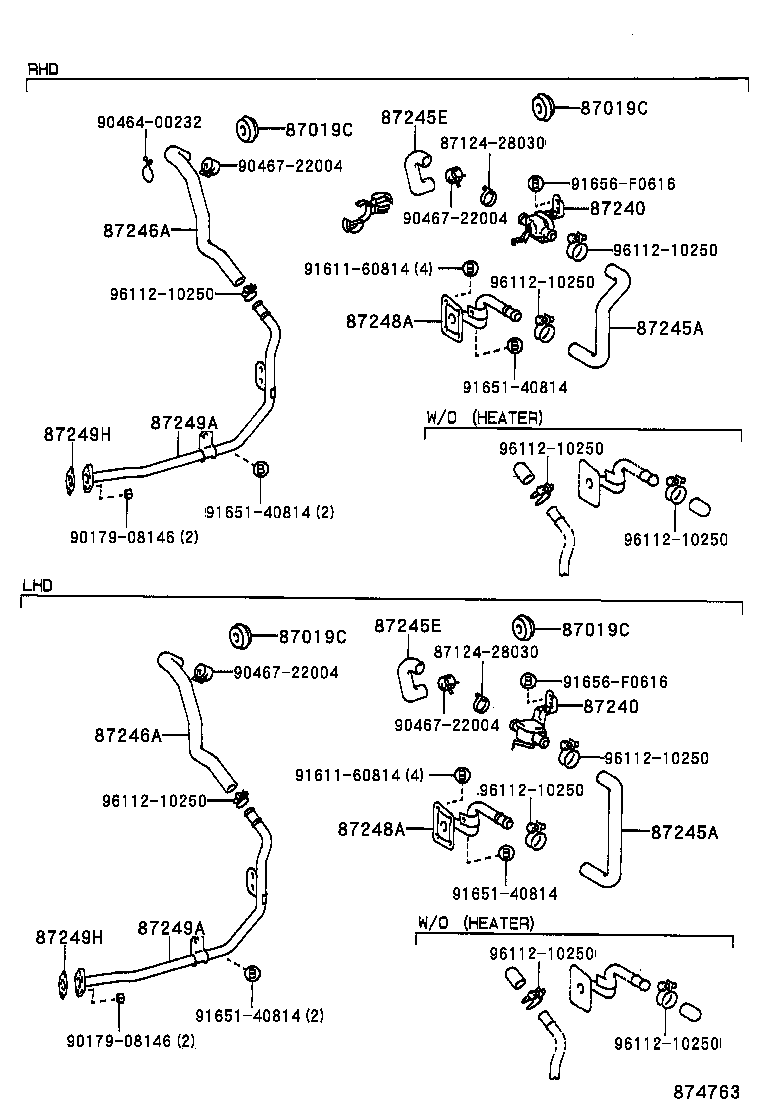

Figure 874765 874765 1988-08 → 1988-10 Figure 874746 874746 1988-10 → — Figure 874763 874763 1988-08 → — Figure 871990 871990 1988-08 → — Figure 874774 874774 2001-05 → — Figure 874714 874714 2001-05 → —

Part groups

PNCDescription
87019C Grommet, Heater Hose
87208A Pipe Sub-assy, Heater Water, A
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245E Hose, Heater Water, Inlet E
87245X Hose, Heater Water
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87249A Pipe, Heater Water Outlet, A
87249H Gasket, Water Outlet Pipe
87251 Joint OR Union, Water Hose Through
87251B Plug, Heater Water
87263 Bracket, Heater Water Pipe, NO.1
