Toyota Hilux

2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

44 part groups · 12 illustrations

Illustrations

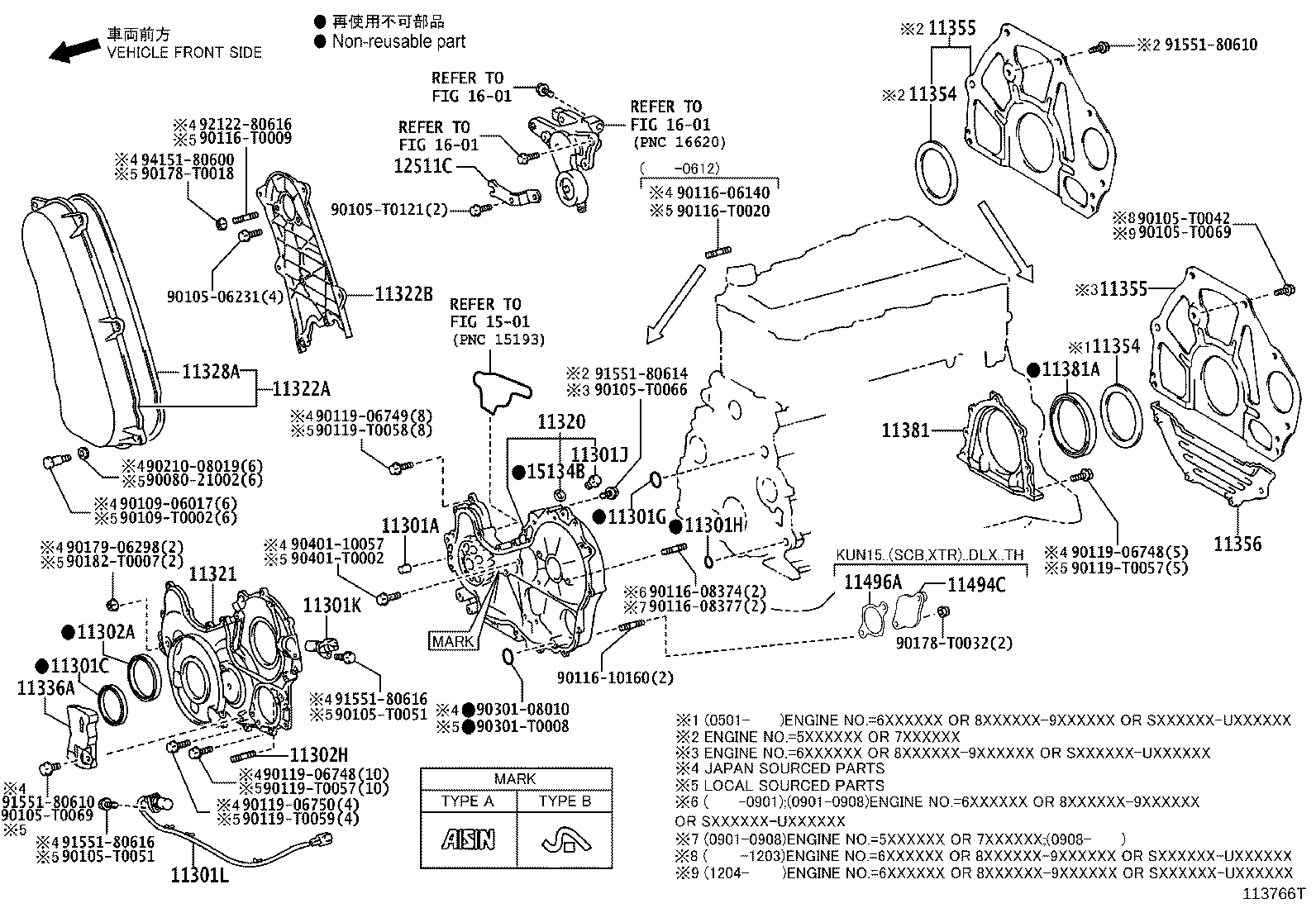

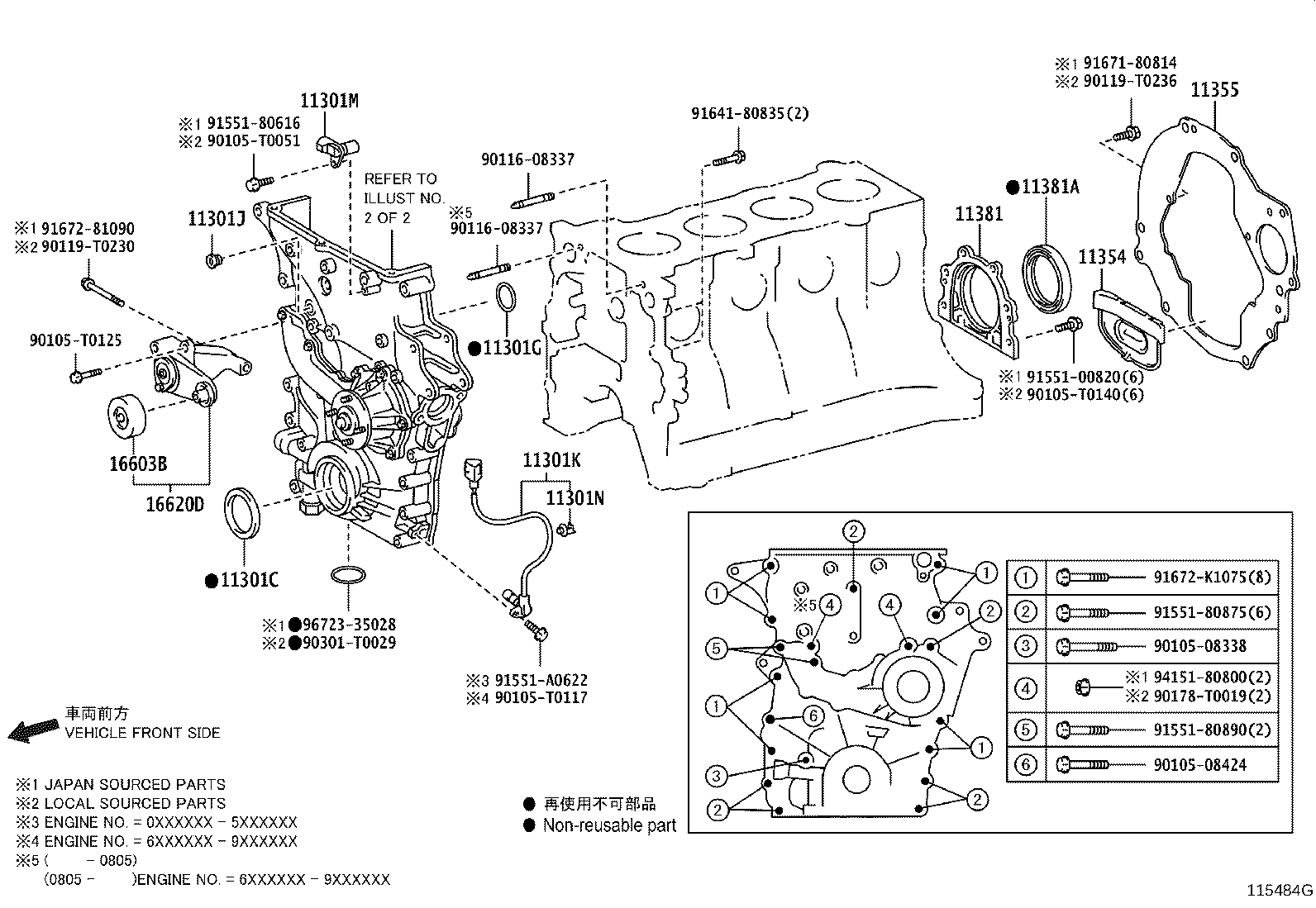

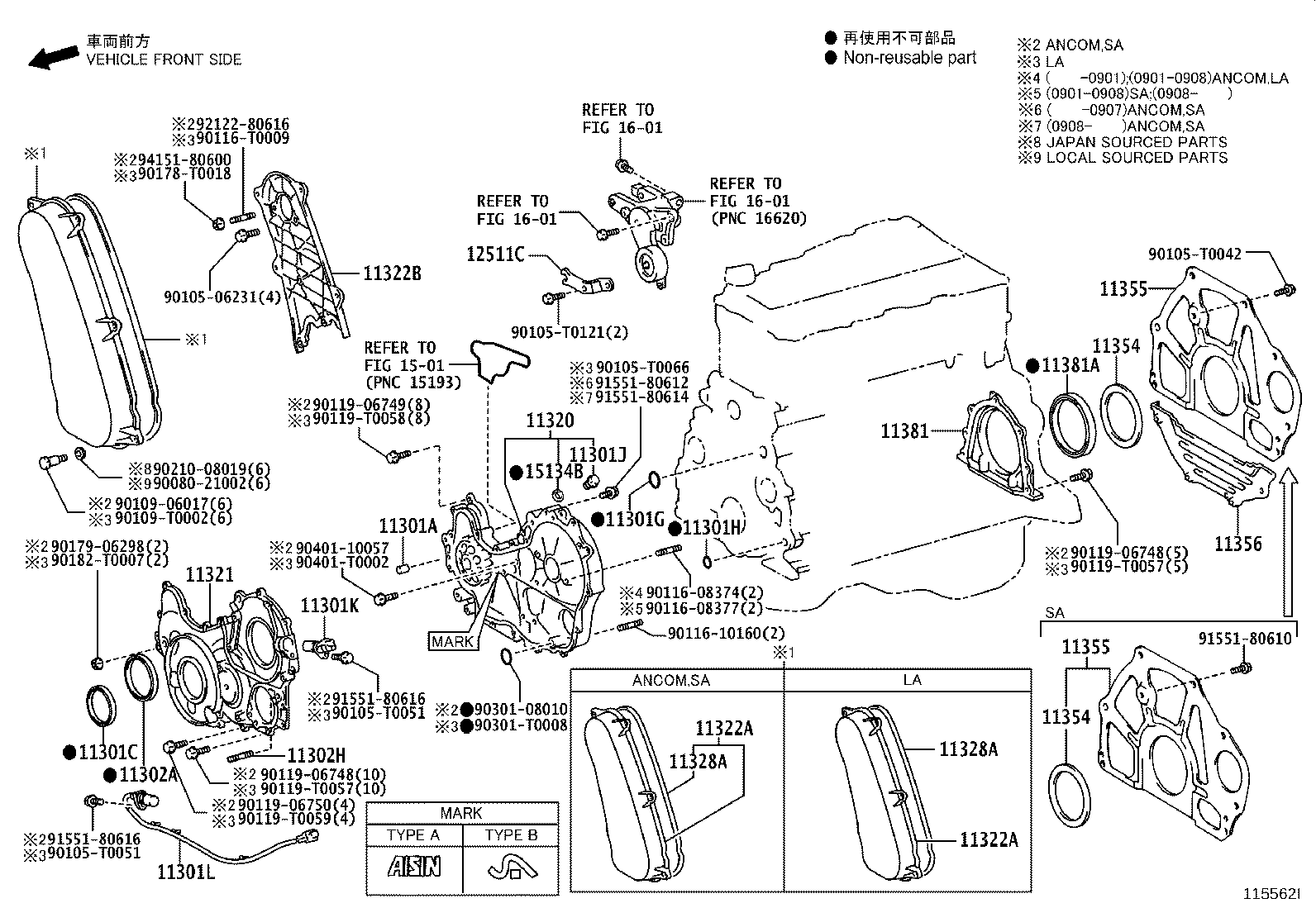

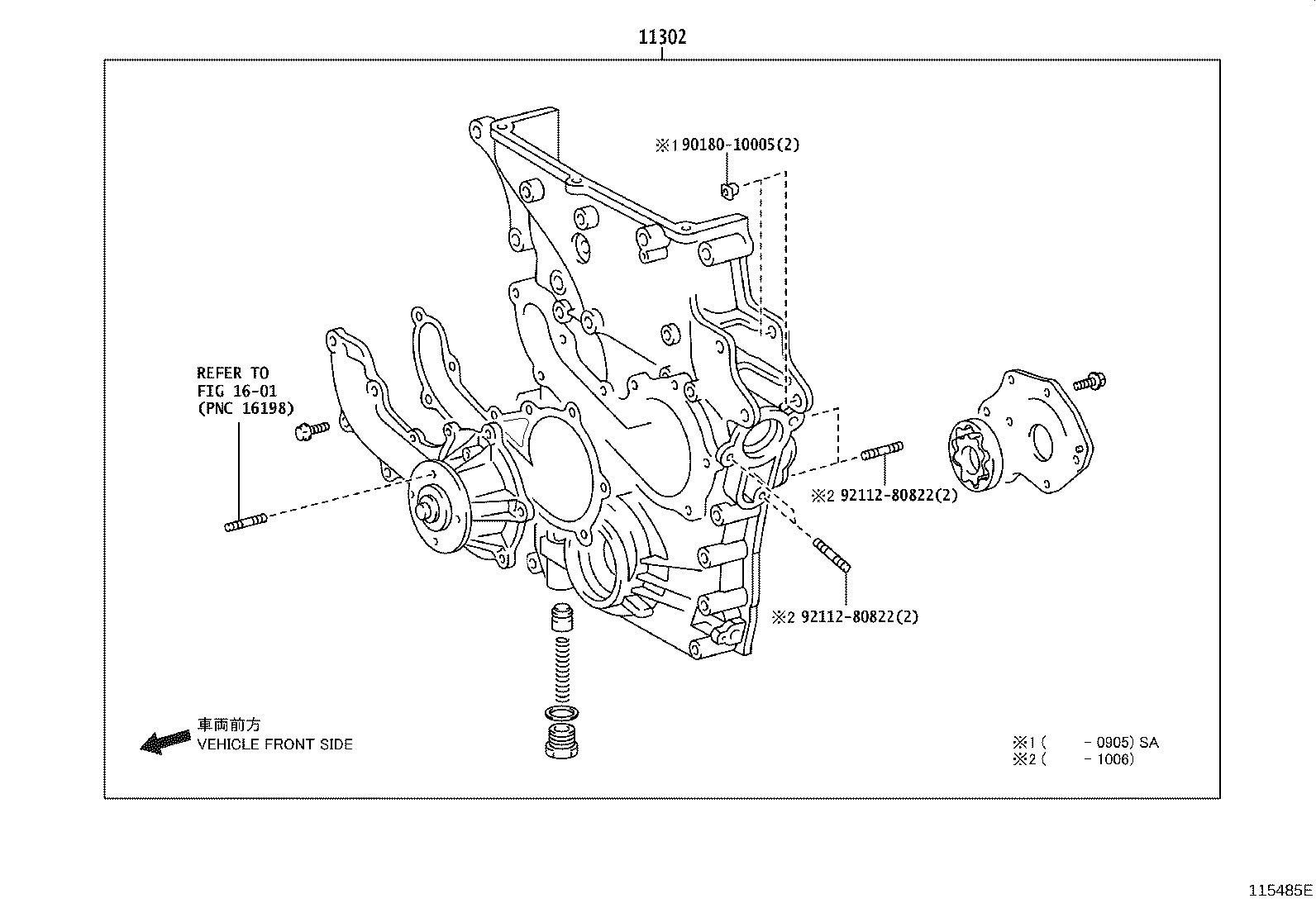

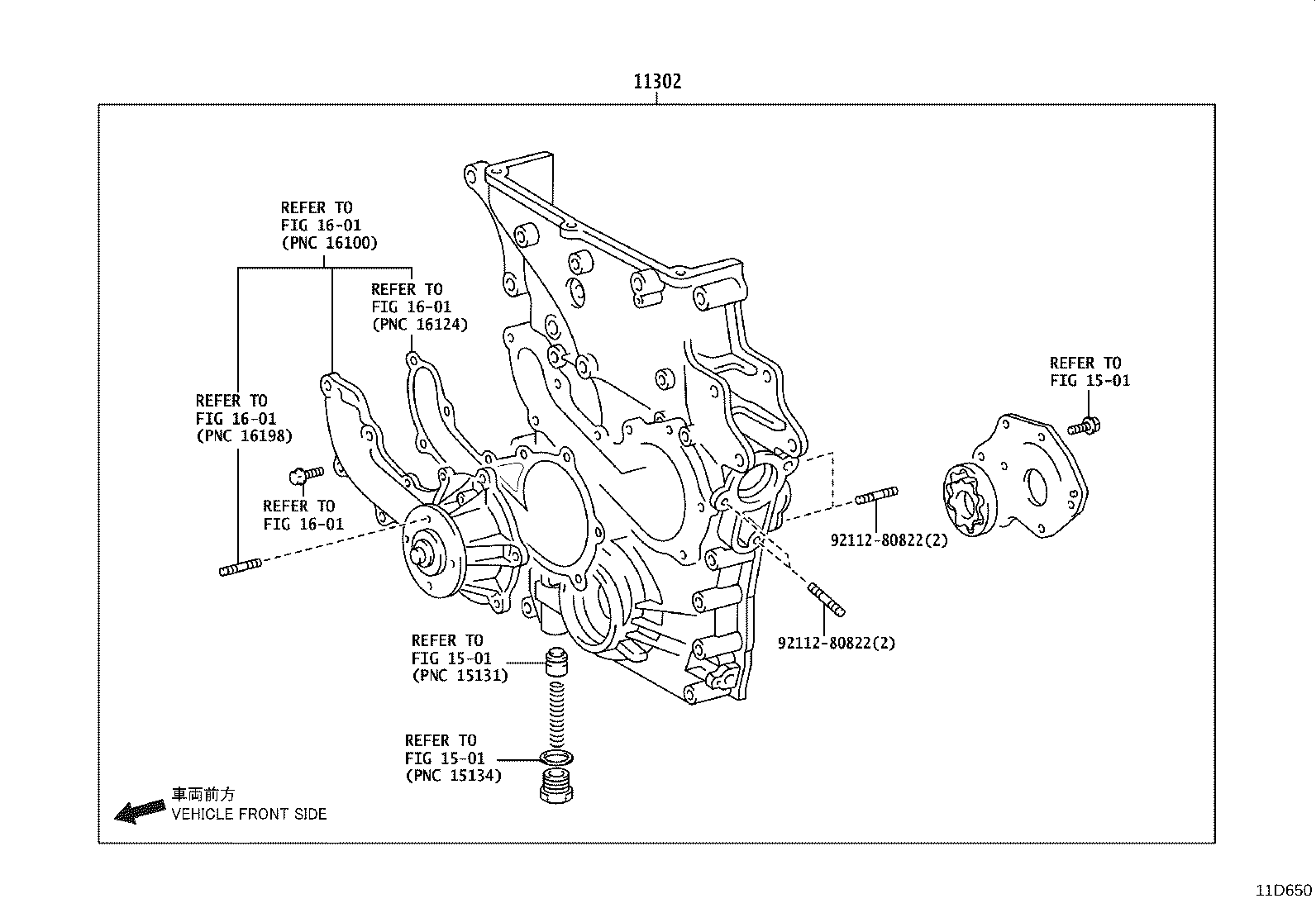

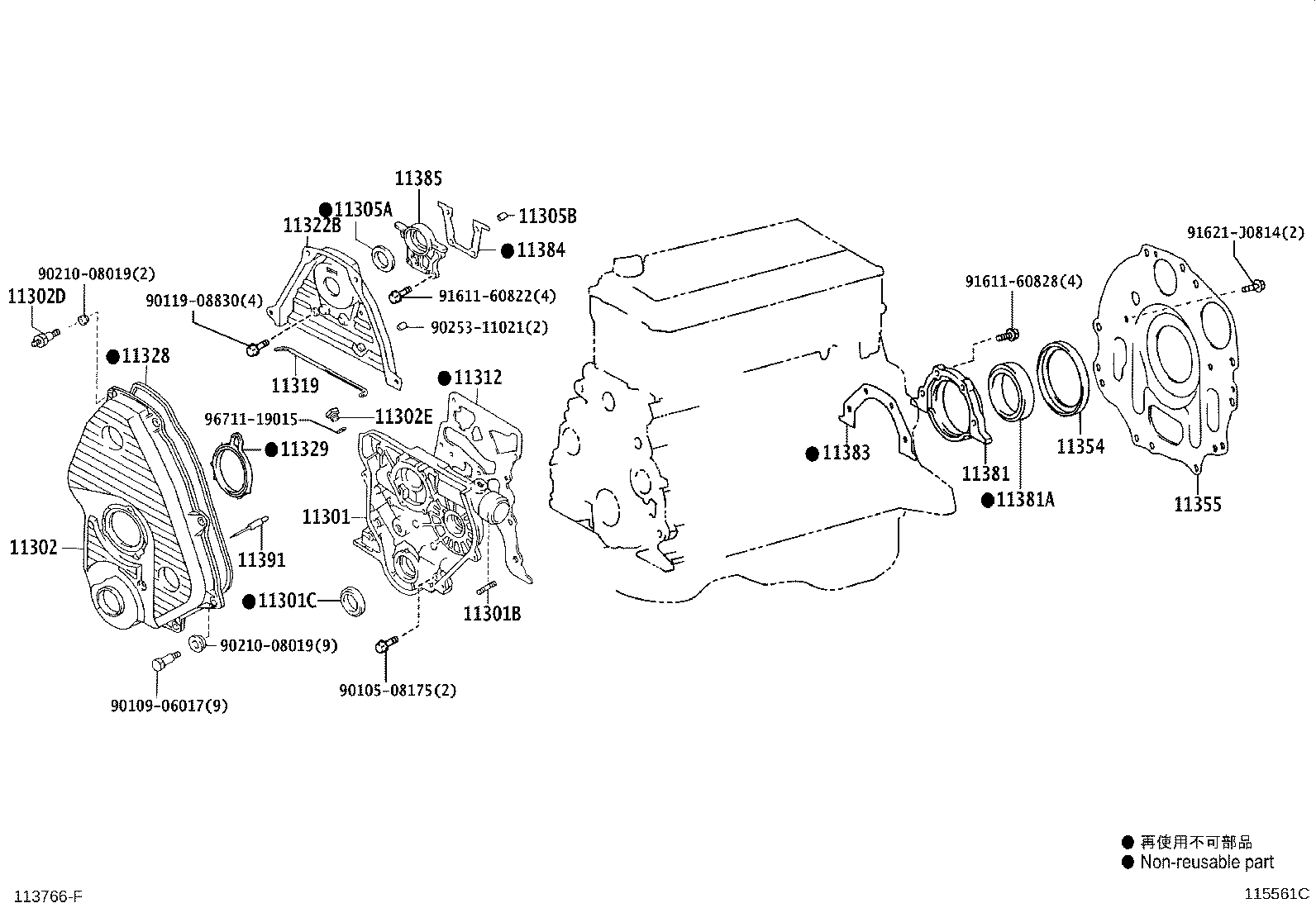

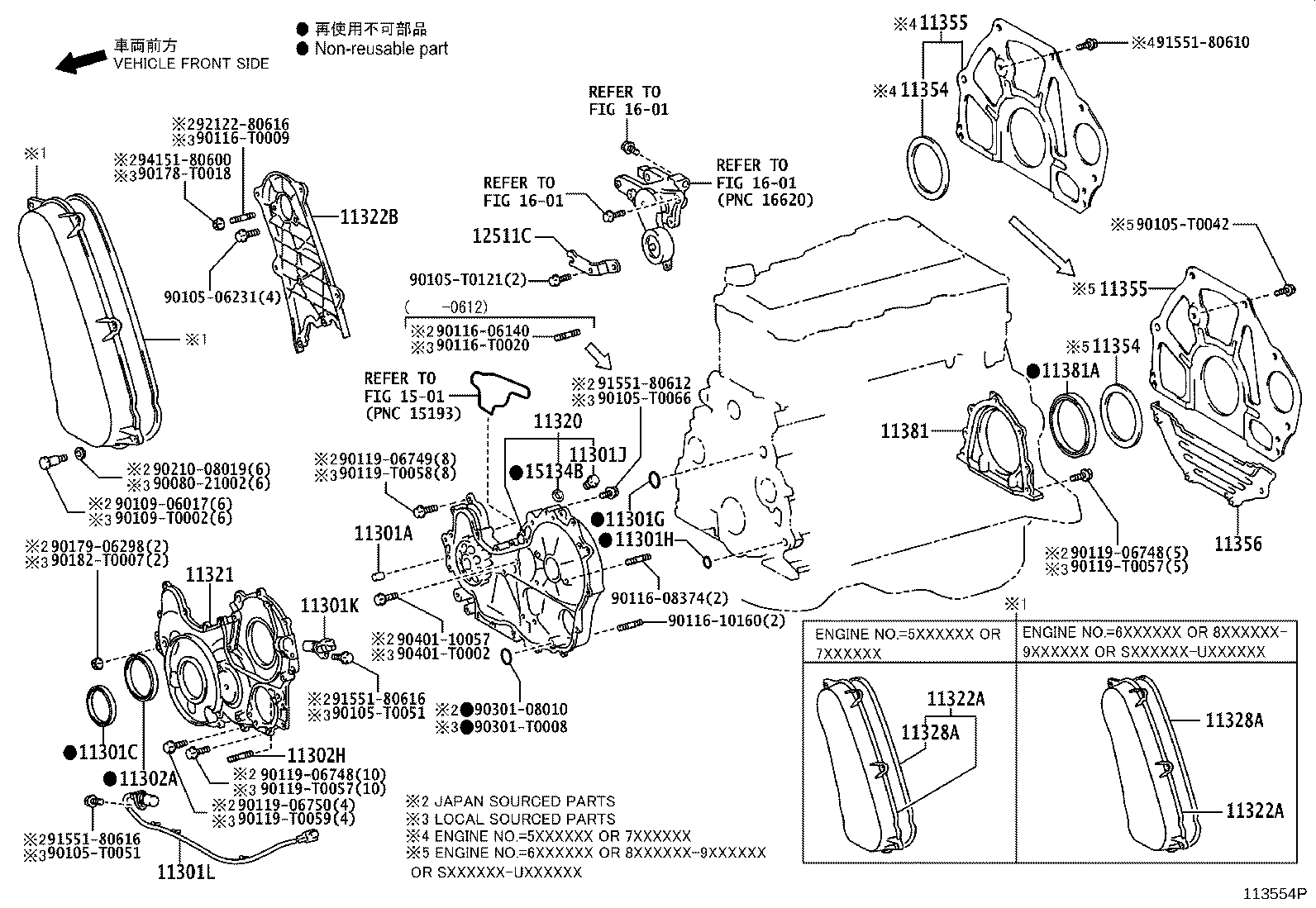

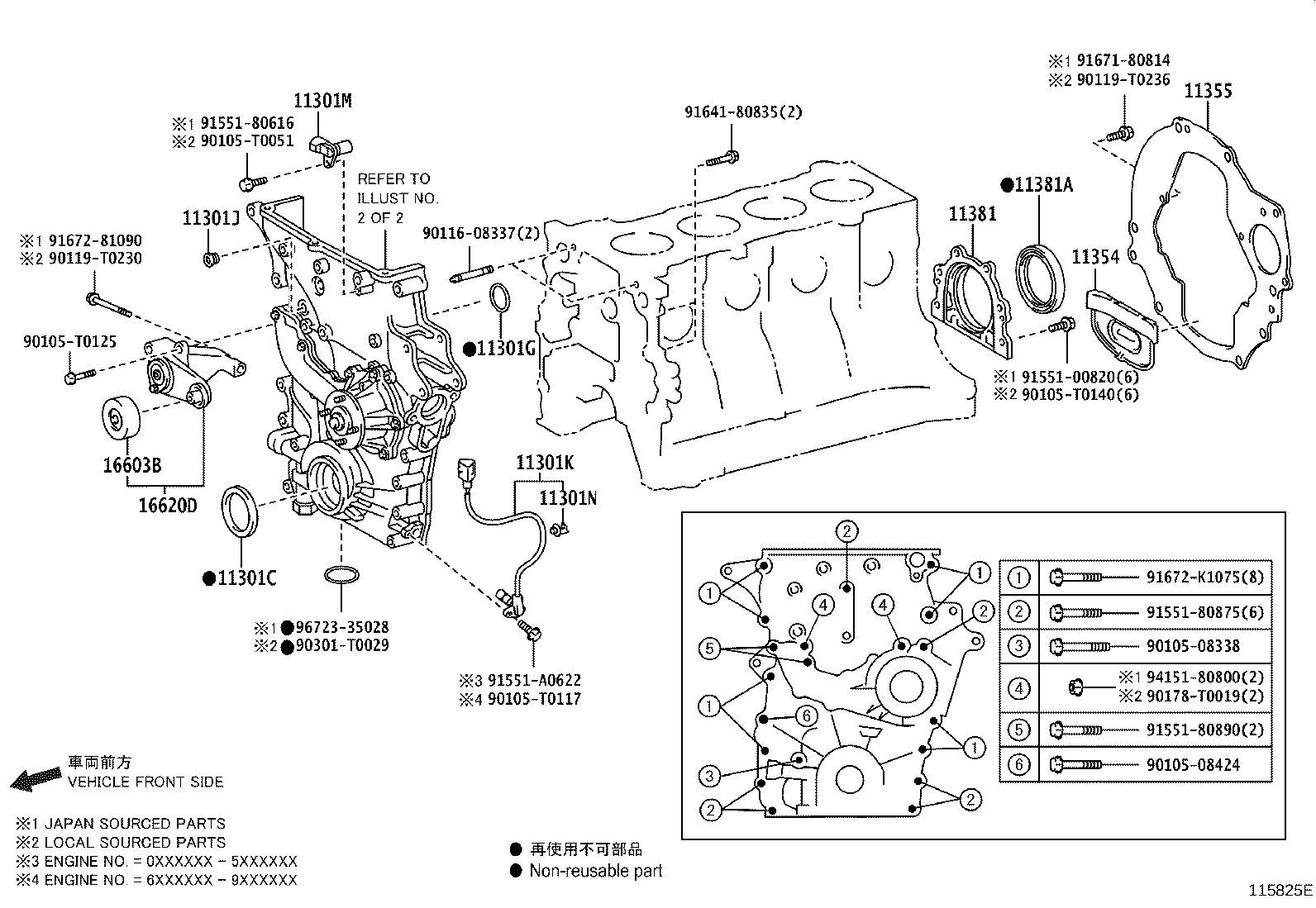

Figure 11D641A 11D641A 2005-02 → — Figure 113766T 113766T 2004-08 → — Figure 113766T 113766T 2007-08 → — Figure 113554P 113554P 2005-01 → 2008-10 Figure 113554P 113554P 2008-10 → 2008-12 Figure 115562I 115562I 2008-10 → — Figure 115562I 115562I 2008-12 → — Figure 115561C 115561C 2005-07 → — Figure 115484G 115484G 2005-01 → — Figure 115485E 115485E 2005-01 → — Figure 115825E 115825E 2005-01 → — Figure 11D650 11D650 2005-01 → —

Part groups

PNCDescription
11301 Case Sub-assy, Timing Gear
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301B Bolt,Stud(FOR TIMING GEAR CASE)
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301G Ring, O(FOR TIMING GEAR CASE, UPPER)
11301H Ring, O(FOR TIMING GEAR CASE, LOWER)
11301J Plug, W/Head Straight Screw(FOR TIMING GEAR CASE)
11301K Sensor, Crank Position
11301L Sensor, Crank Position NO.2
11301M Sensor, Cam Position
11301N Clamp
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302D Bolt, Stud(FOR TIMING GEAR COVER)
11302E Plug, Straight(FOR TIMING GEAR COVER)
11302H Bolt, Stud(FOR TIMING GEAR COVER)
11305A Seal, Oil(FOR OIL SEAL RETAINER, NO.2)
11305B Pin, Ring(FOR OIL SEAL RETAINER, NO.2)
11312 Gasket, Front End Plate
11319 Gasket, Timing Belt Cover, NO.3
11320 Case Assy, Timing Gear
11321 Case, Timing Gear
11322A Cover, Timing Belt, NO.1
11322B Cover, Timing Belt, NO.2
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11328A Gasket, Timing Belt Cover, NO.1
11329 Gasket, Timing Gear Rear Cover
11336A Insulator, Timing Gear Cover
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11356 Plate, Rear End, NO.2
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11384 Gasket, Oil Seal Retainer, NO.2
11385 Retainer, Camshaft Oil Seal
11391 Pointer, Timing
11494C Plate, Oil Hole Cover
11496A Gasket, Oil Hole Cover
12511C Bracket, Alternator
15134B Gasket, Oil Pump Relief Valve
16603B Pulley Sub-assy, Idler
16620D Tensioner Assy, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
