Toyota Hilux

2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

9 part groups · 4 illustrations

Illustrations

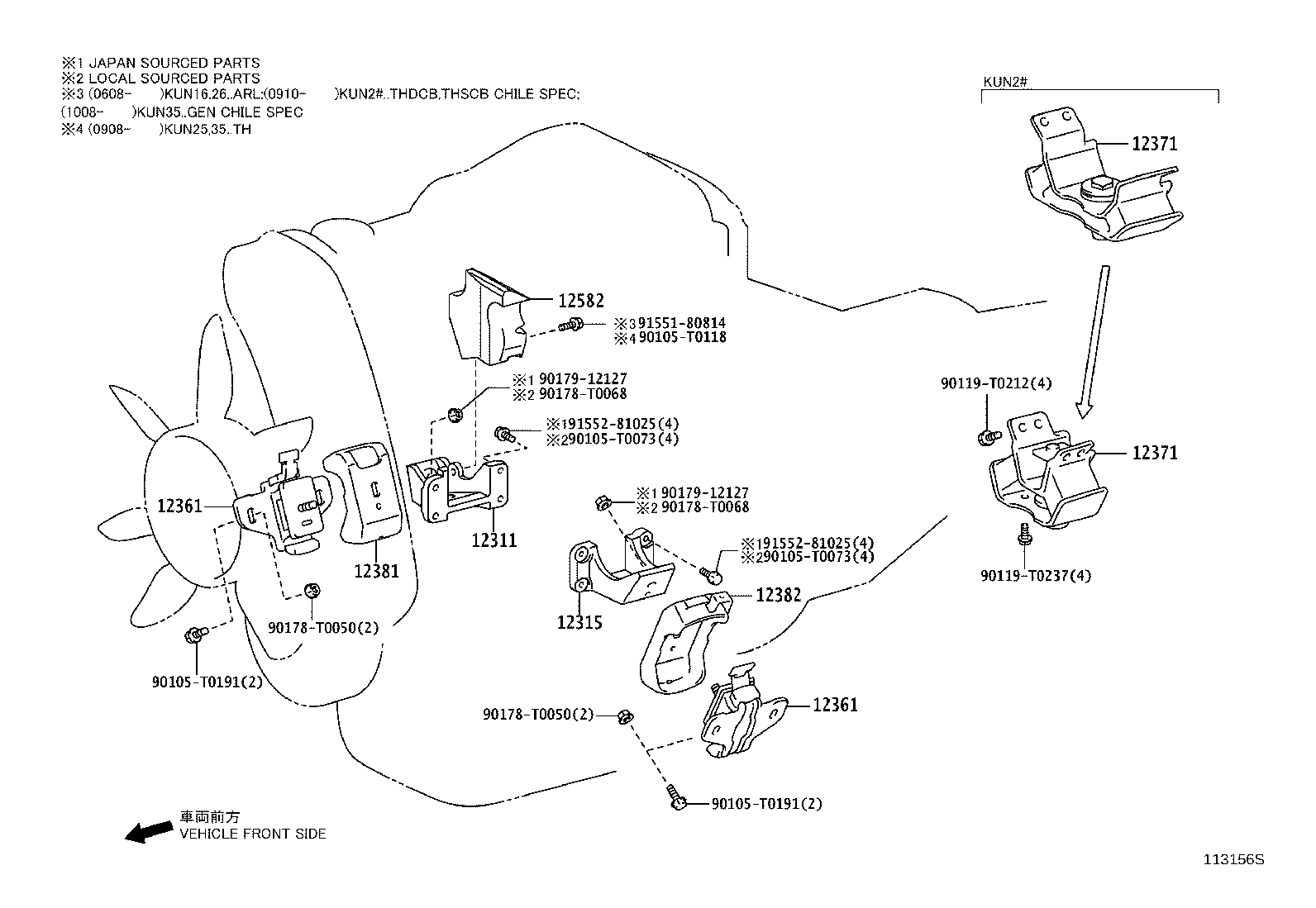

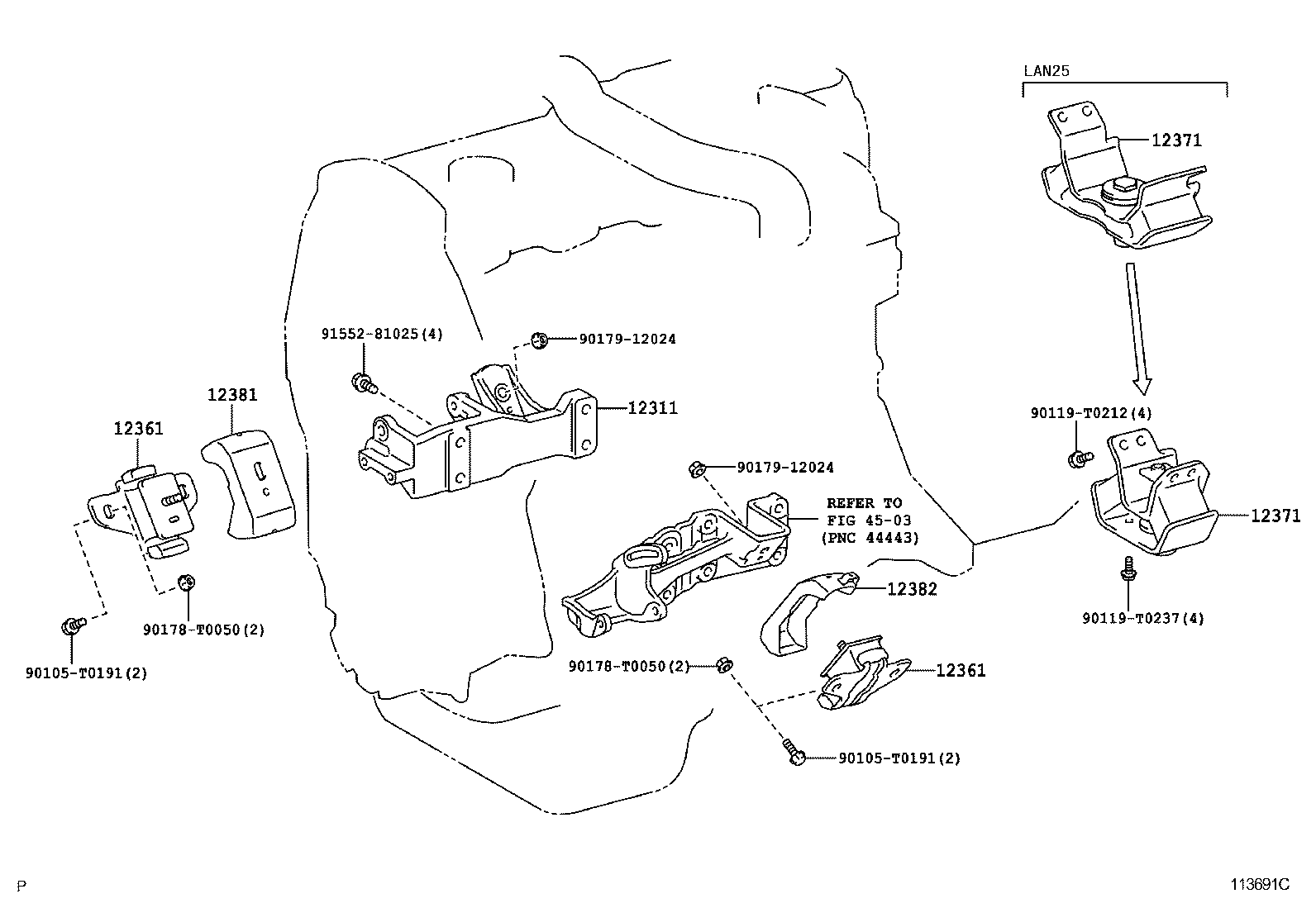

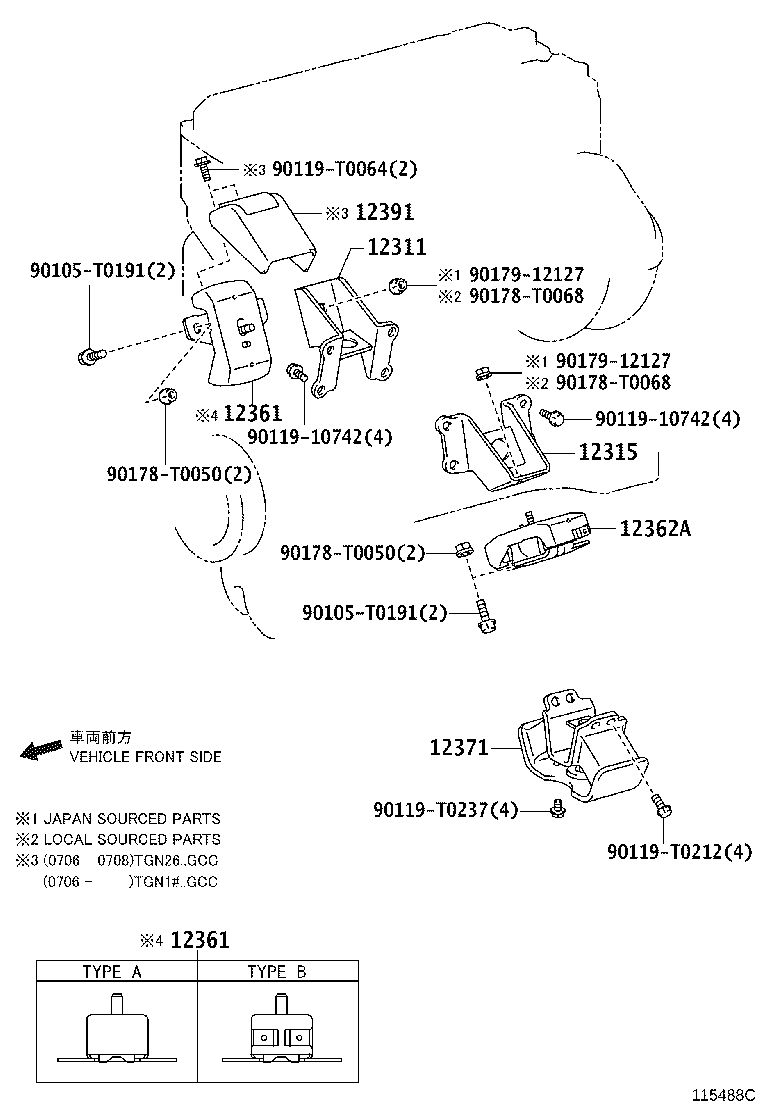

Figure 115890B 115890B 2005-02 → — Figure 113156S 113156S 2004-08 → — Figure 113691C 113691C 2005-07 → — Figure 115488C 115488C 2005-01 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12362A Insulator, Engine Mounting, Front LH
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12382 Stabilizer, Engine Mounting, LH
12391 Insulator, Engine Mounting Front, Heat, RH
12582 Insulator, Cylinder Block, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
