Toyota Hilux

2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

57 part groups · 22 illustrations

Illustrations

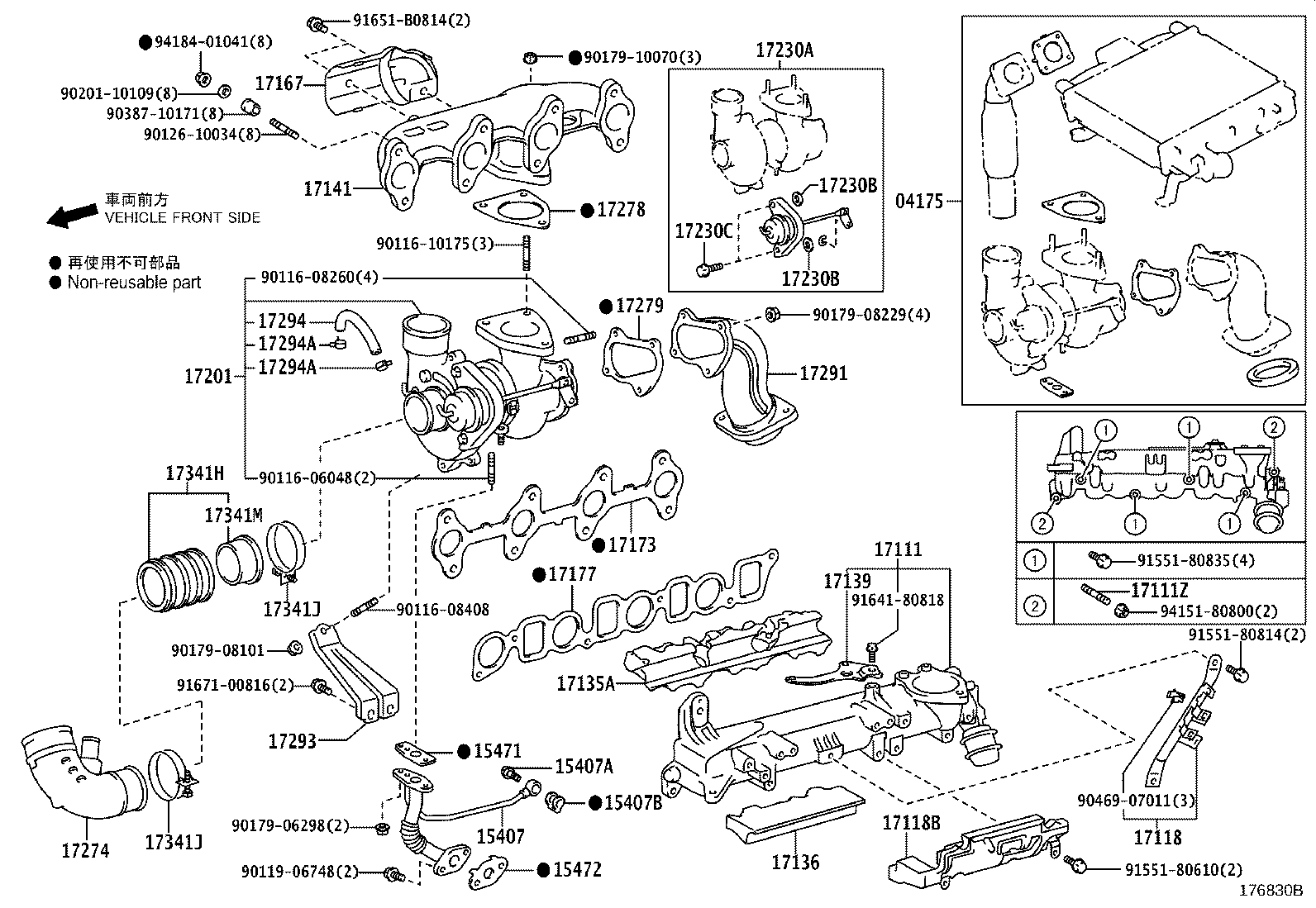

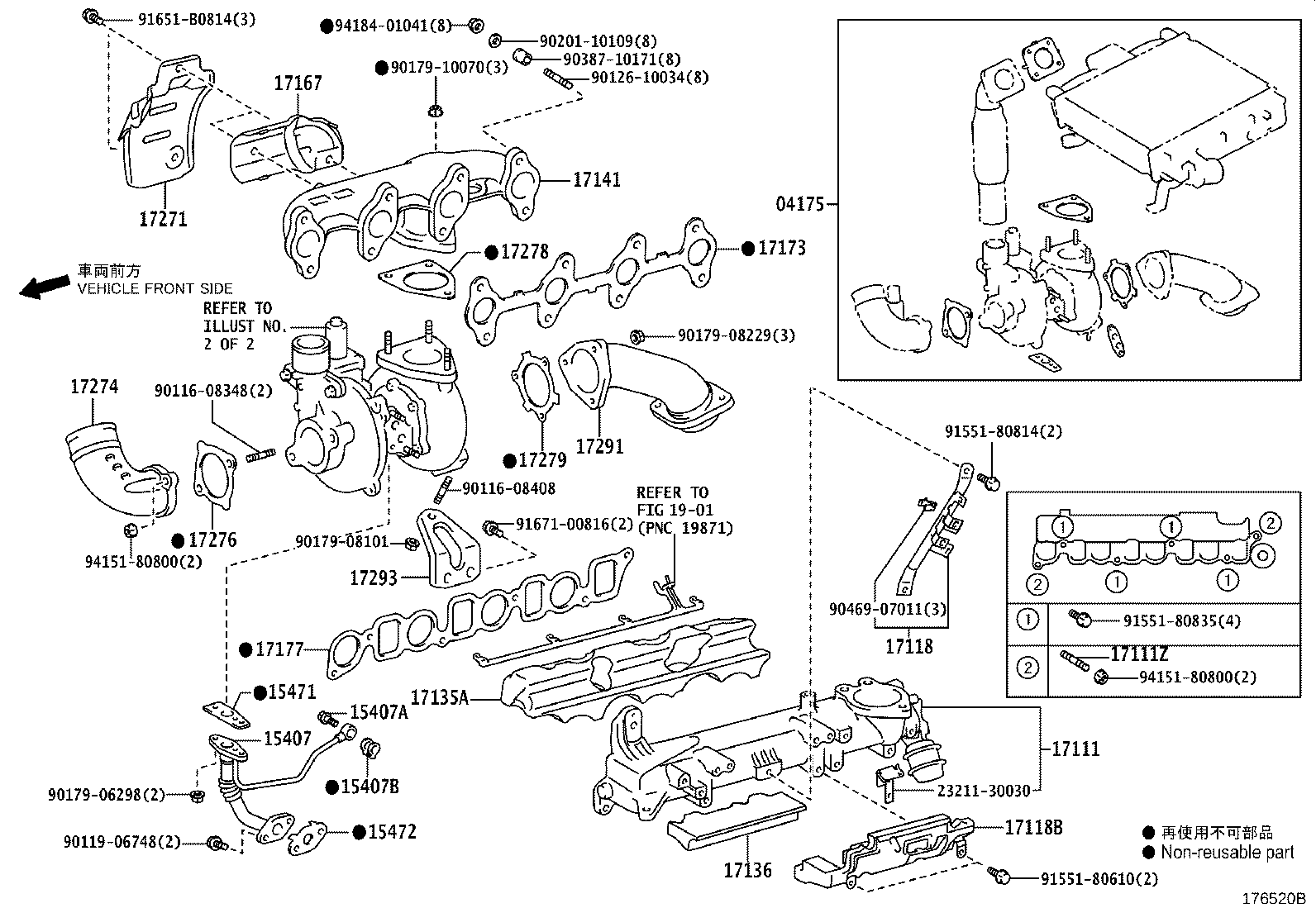

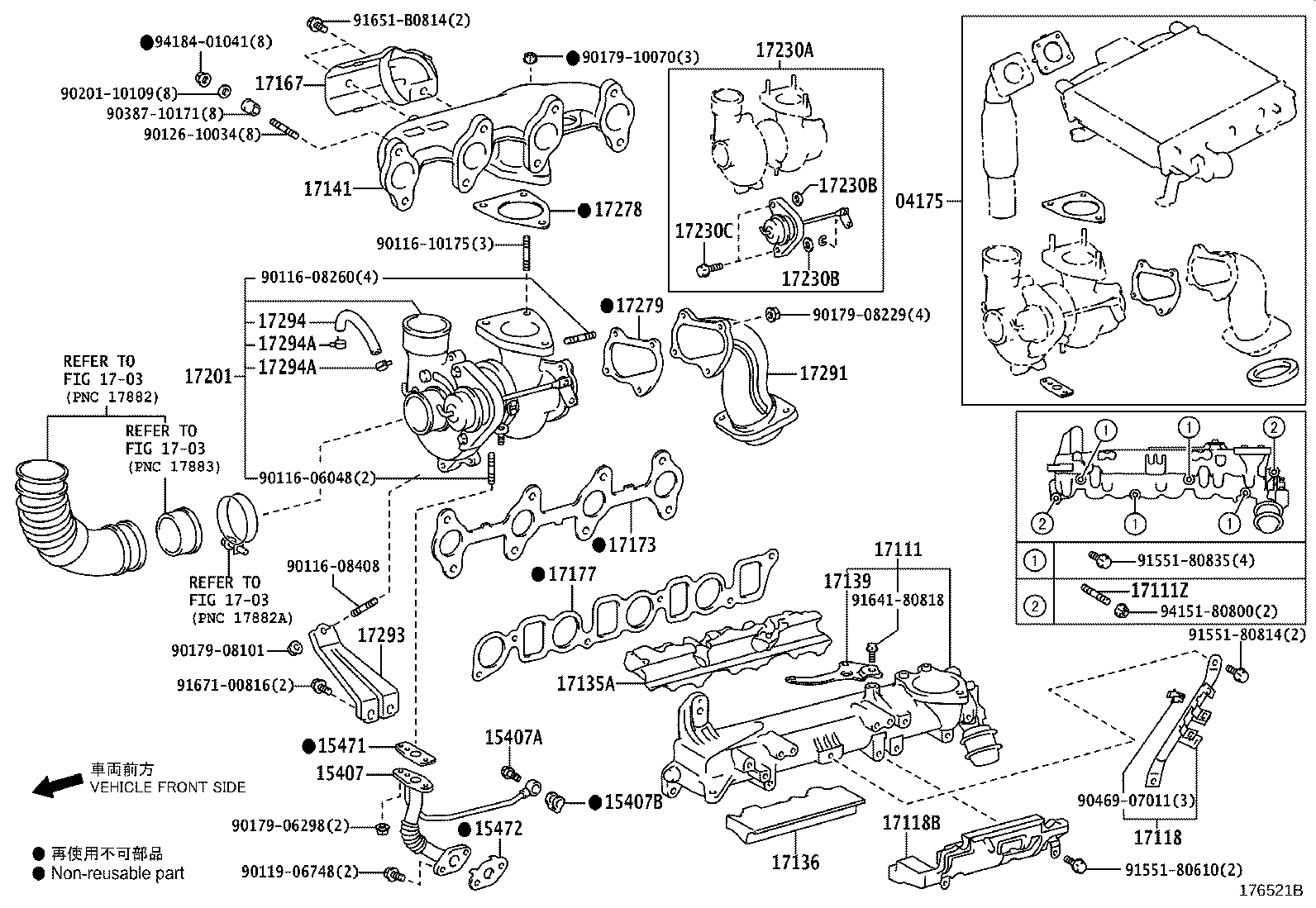

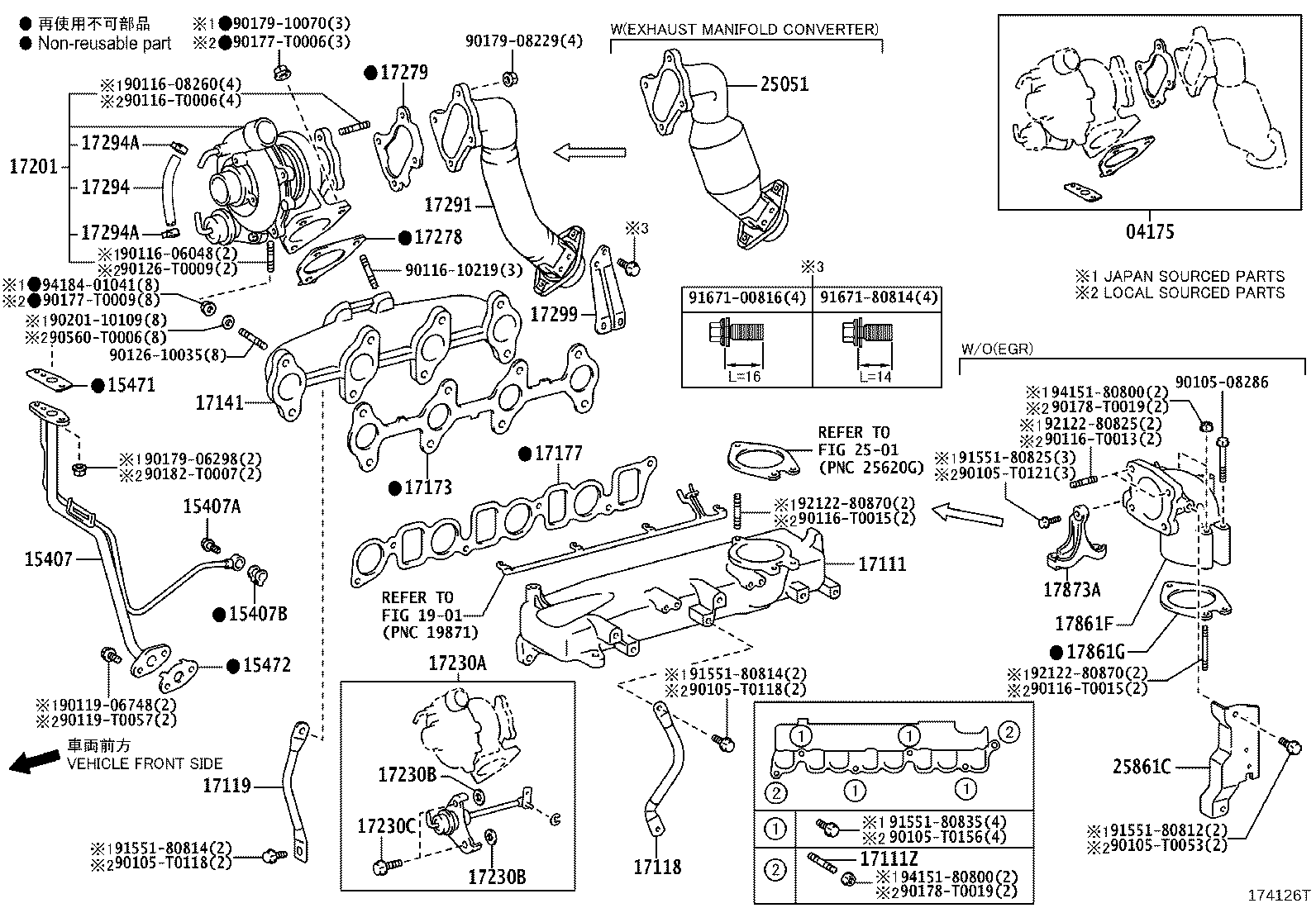

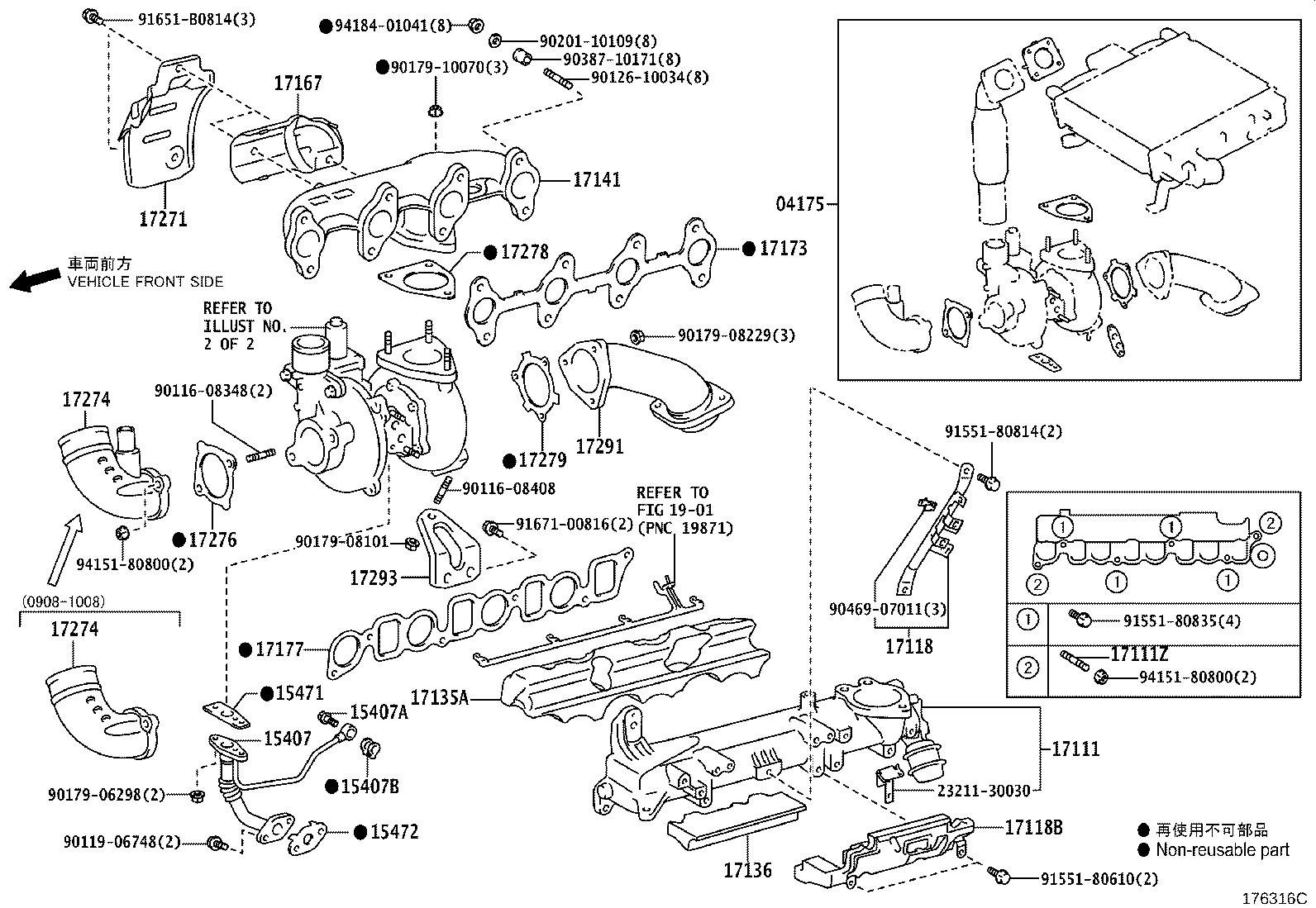

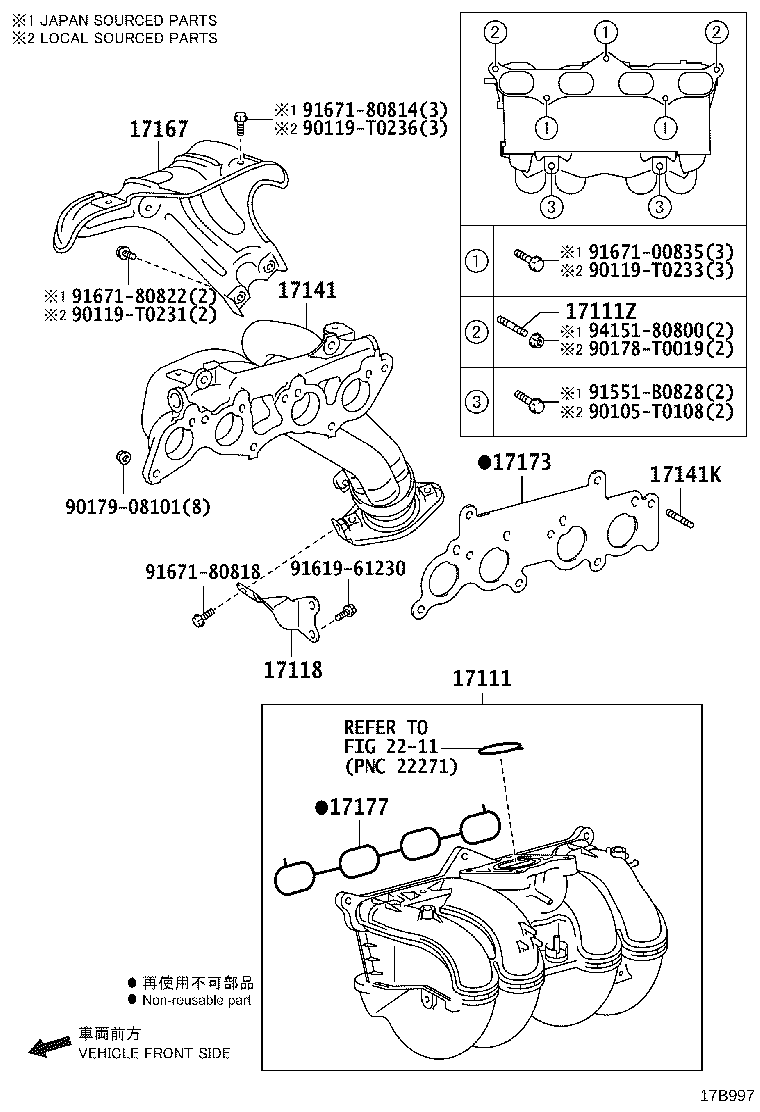

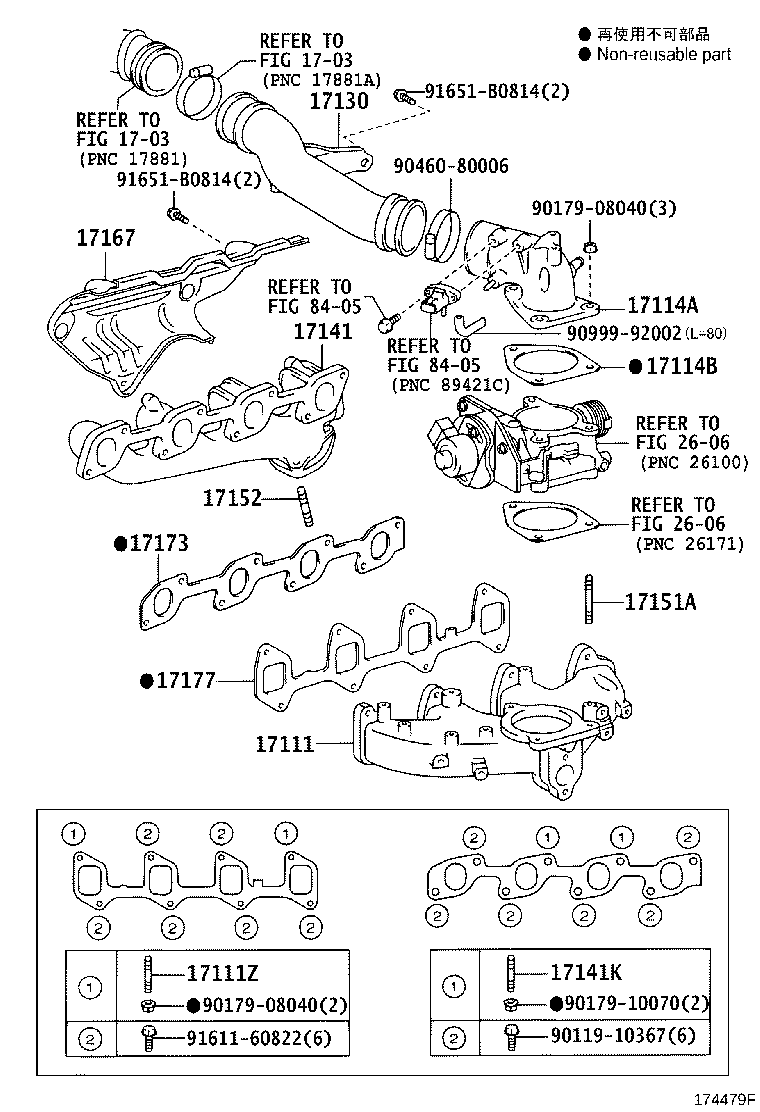

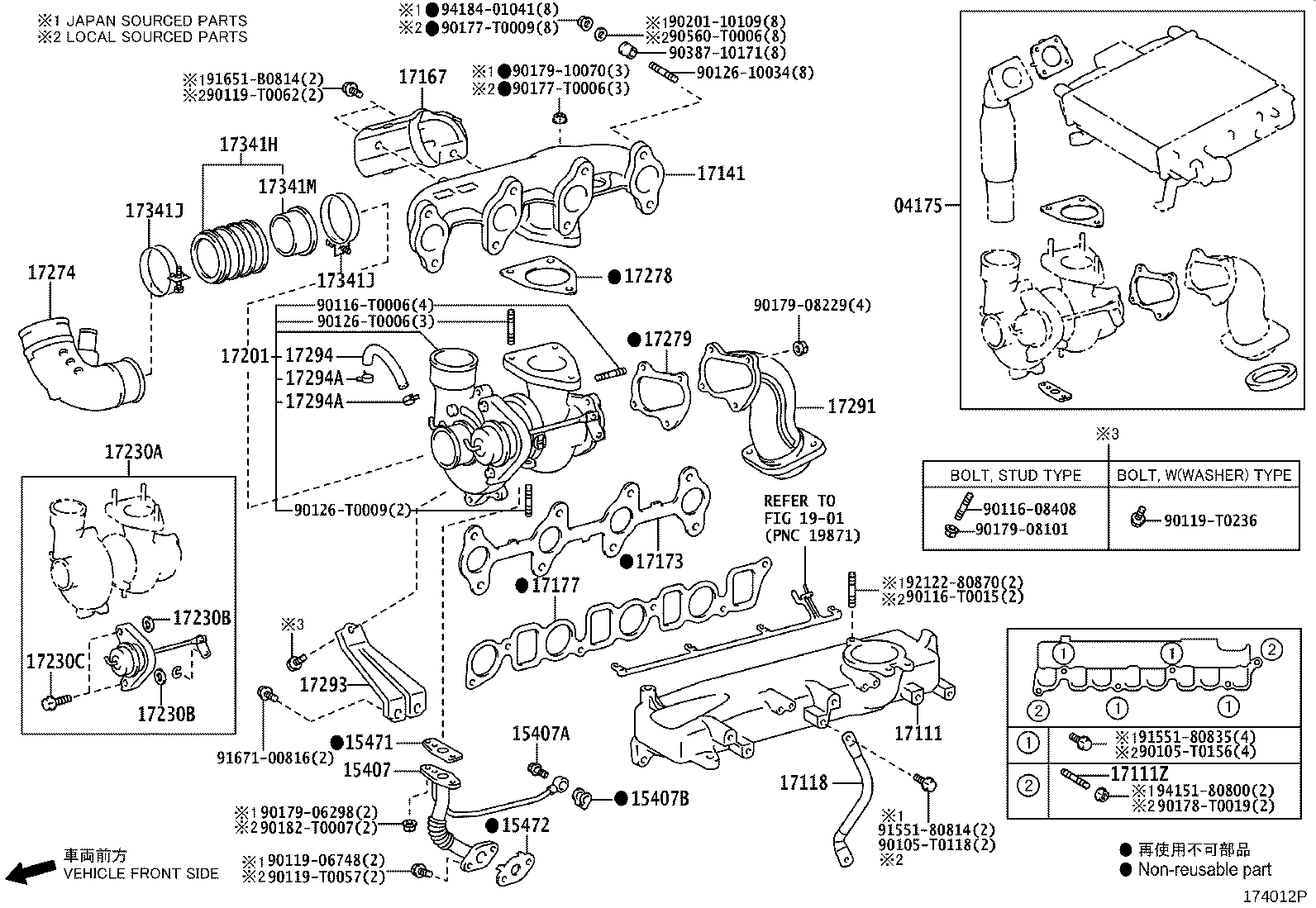

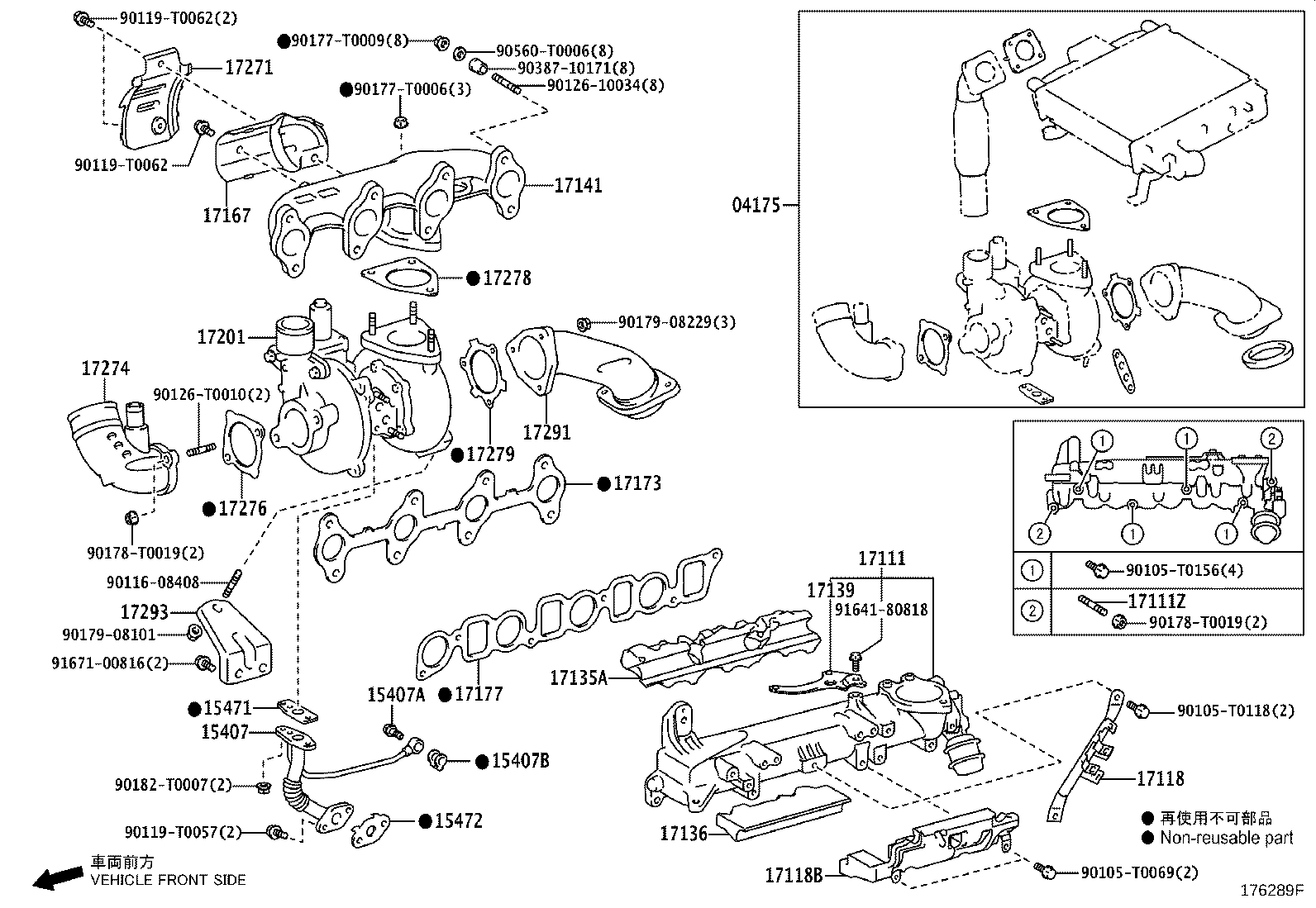

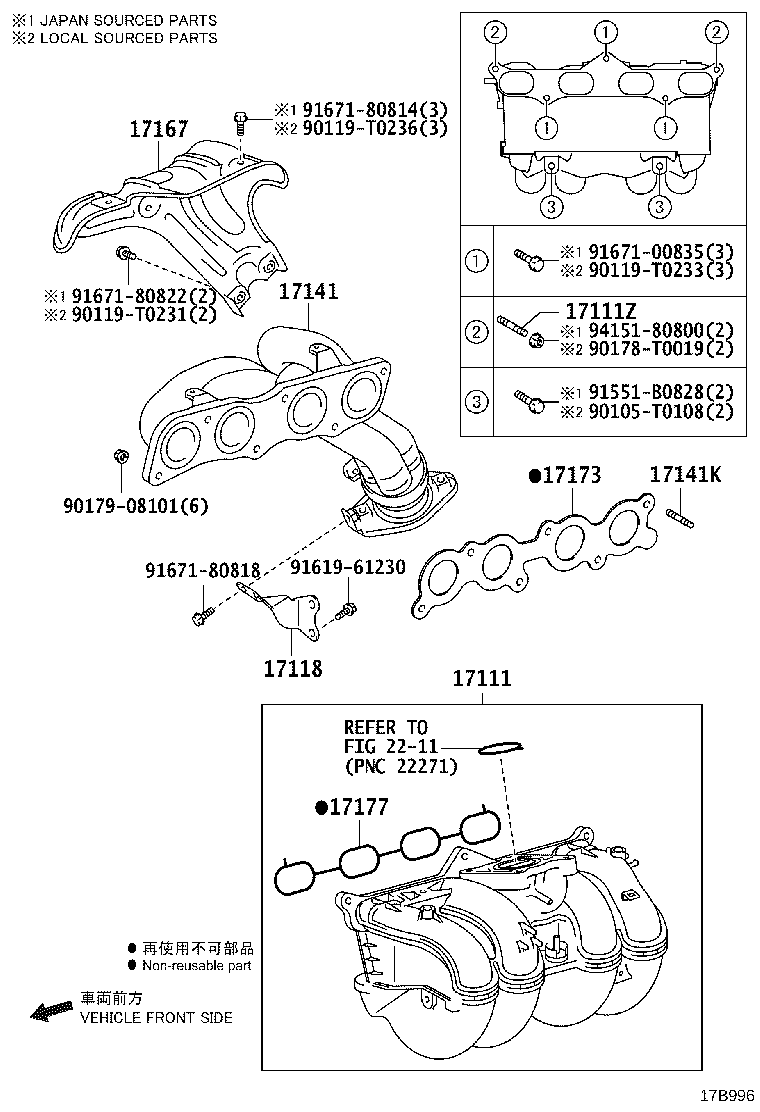

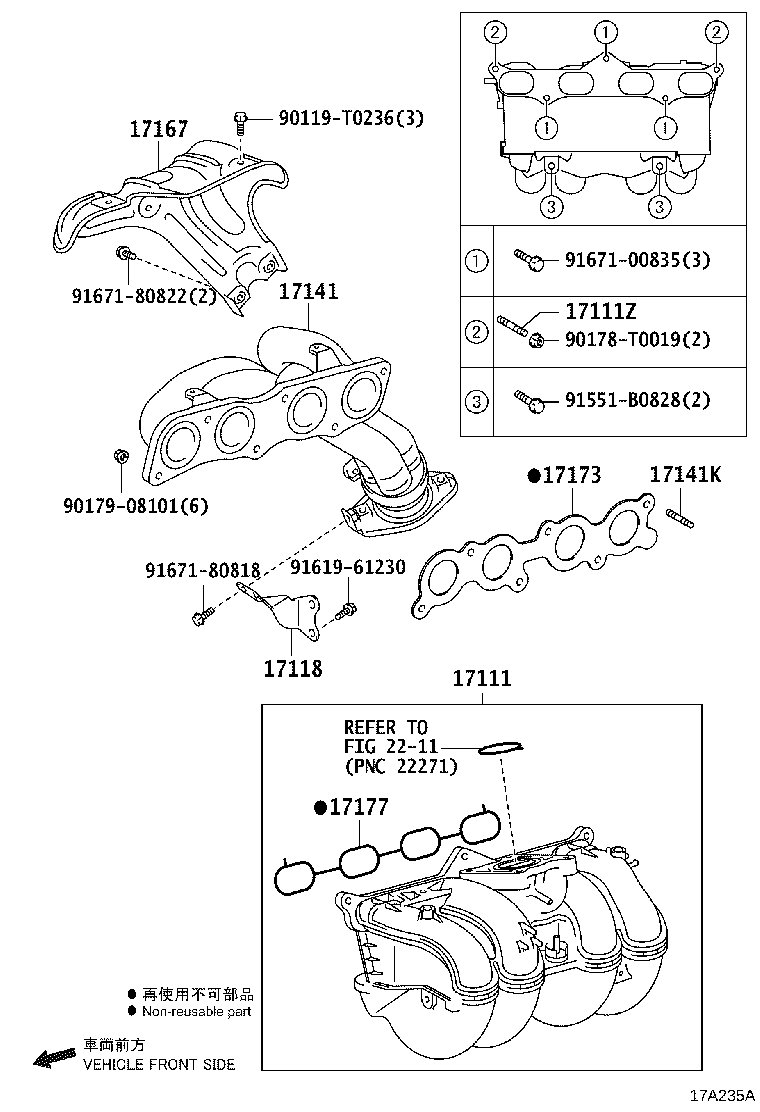

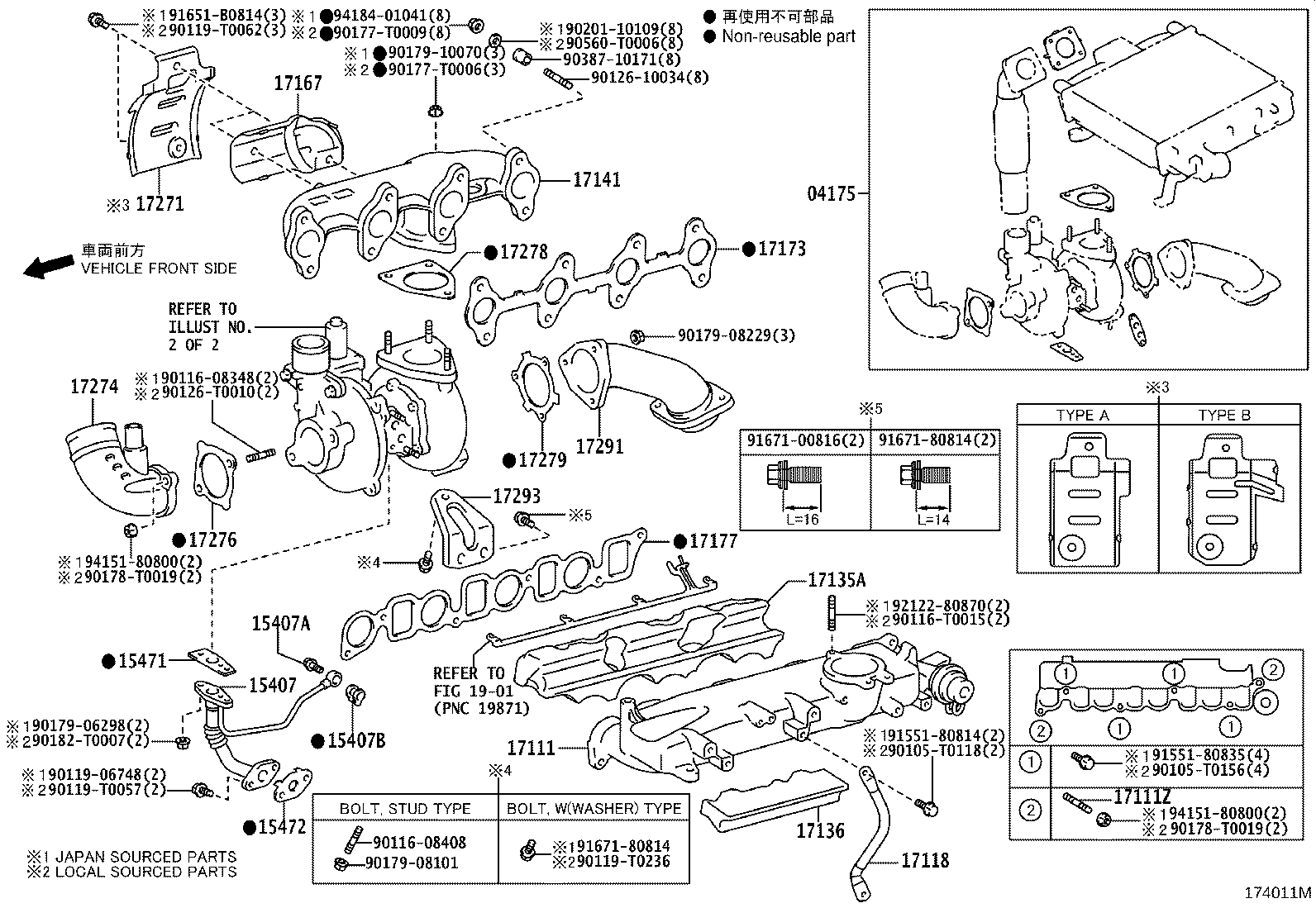

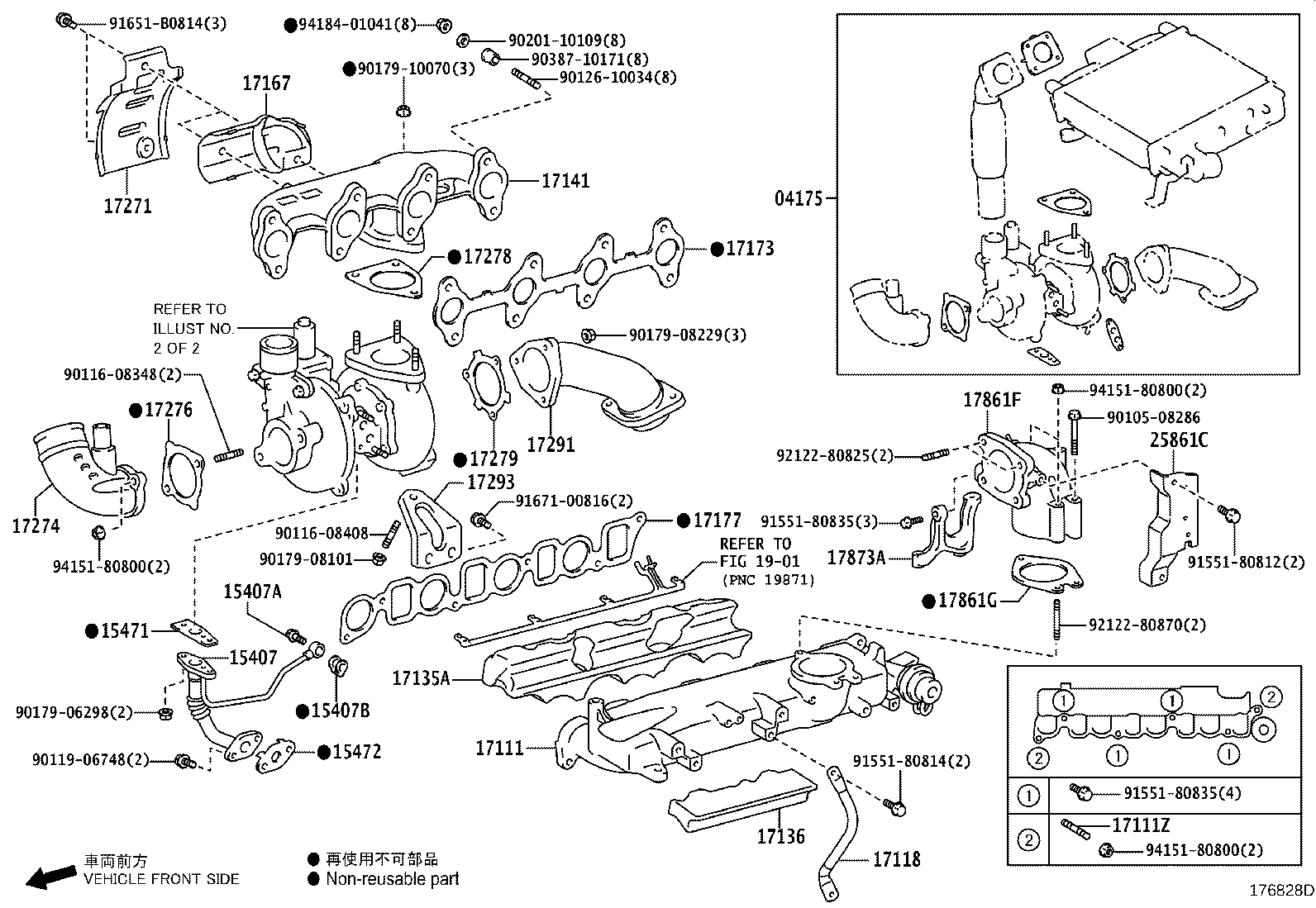

Figure 175998C 175998C 2005-02 → — Figure 174011M 174011M 2004-08 → 2006-08 Figure 174011M 174011M 2006-08 → — Figure 176316C 176316C 2006-08 → — Figure 176520B 176520B 2009-10 → 2010-05 Figure 176828D 176828D 2010-08 → — Figure 175315C 175315C 2004-08 → — Figure 174126T 174126T 2004-08 → — Figure 174126T 174126T 2005-01 → — Figure 174012P 174012P 2004-08 → 2009-08 Figure 174012P 174012P 2009-08 → — Figure 174012P 174012P 2010-08 → — Figure 176289F 176289F 2009-08 → — Figure 176521B 176521B 2009-10 → 2010-05 Figure 176830B 176830B 2010-05 → — Figure 176830B 176830B 2010-10 → — Figure 174479F 174479F 2005-07 → — Figure 17B997 17B997 2005-01 → 2006-12 Figure 17B997 17B997 2005-01 → — Figure 17B996 17B996 2005-01 → — Figure 17B996 17B996 2006-12 → — Figure 17A235A 17A235A 2007-08 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
12216C Plate, Oil Baffle
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15471 Gasket, Turbo Oil Inlet
15472 Gasket, Turbo Oil Outlet, NO.1
17104 Manifold Sub-assy, Exhaust, RH
17105 Manifold Sub-assy, Exhaust, LH
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17114A Flange, Intake
17114B Gasket, Intake Flange
17118 Stay, Manifold
17118B Insulator, Intake Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17129 Tank, Intake Air Surge
17130 Pipe, Intake
17135A Insulator, Intake Manifold, NO.1
17136 Insulator, Intake Manifold, NO.2
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141J Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17151A Bolt, Stud(FOR MANIFOLD TO VENTURI)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17167 Insulator, Exhaust Manifold Heat, NO.1
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
17201 Turbocharger Sub-assy
17230A Repair Actuaor Assy, W/Bracket
17230B Washer, Plate(FOR REPAIR ACTUATOR SET)
17230C Bolt, W/Washer(FOR REPAIR ACTUATOR SET)
17271 Insulator, Turbo, NO.1
17274 Elbow, Compressor Inlet
17276 Gasket, Compressor Inlet
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17291 Elbow, Turbine Outlet
17293 Stay, Turbocharger
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
17299 Stay, Turbine Outlet Elbow
17341H Hose, Air
17341J Clamp, Hose
17341M Hose, Air, NO.1
17861F Connector, Intake Air
17861G Gasket, Intake Air Connector
17873A Bracket, Intake Air Connector, NO.2
22267A Bracket, Throttle Body
25051 Converter Sub-assy, Exhaust Manifold
25861C Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
