Toyota Hilux

2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

34 part groups · 35 illustrations

Illustrations

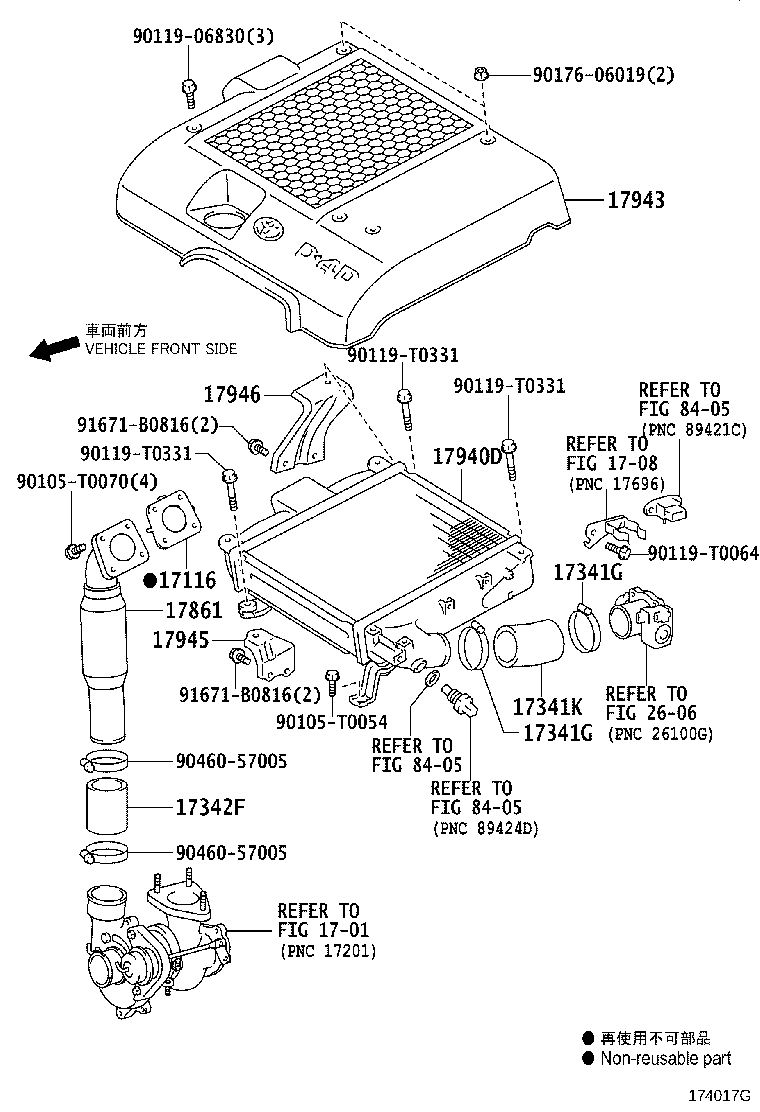

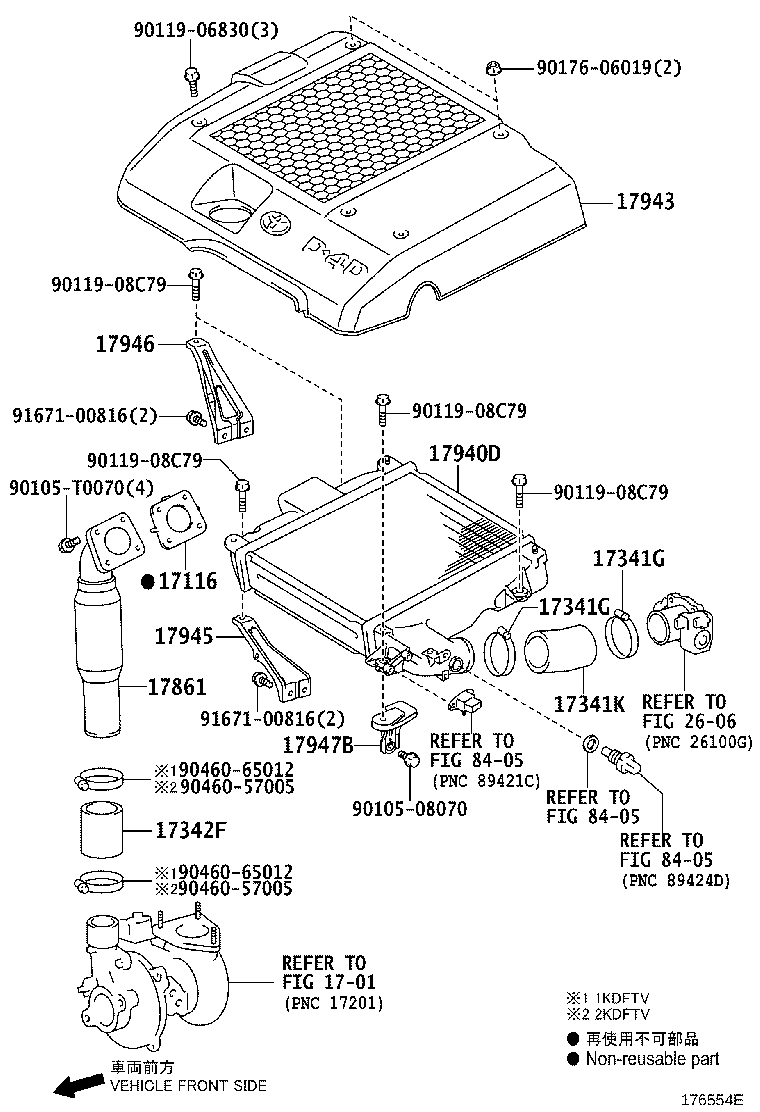

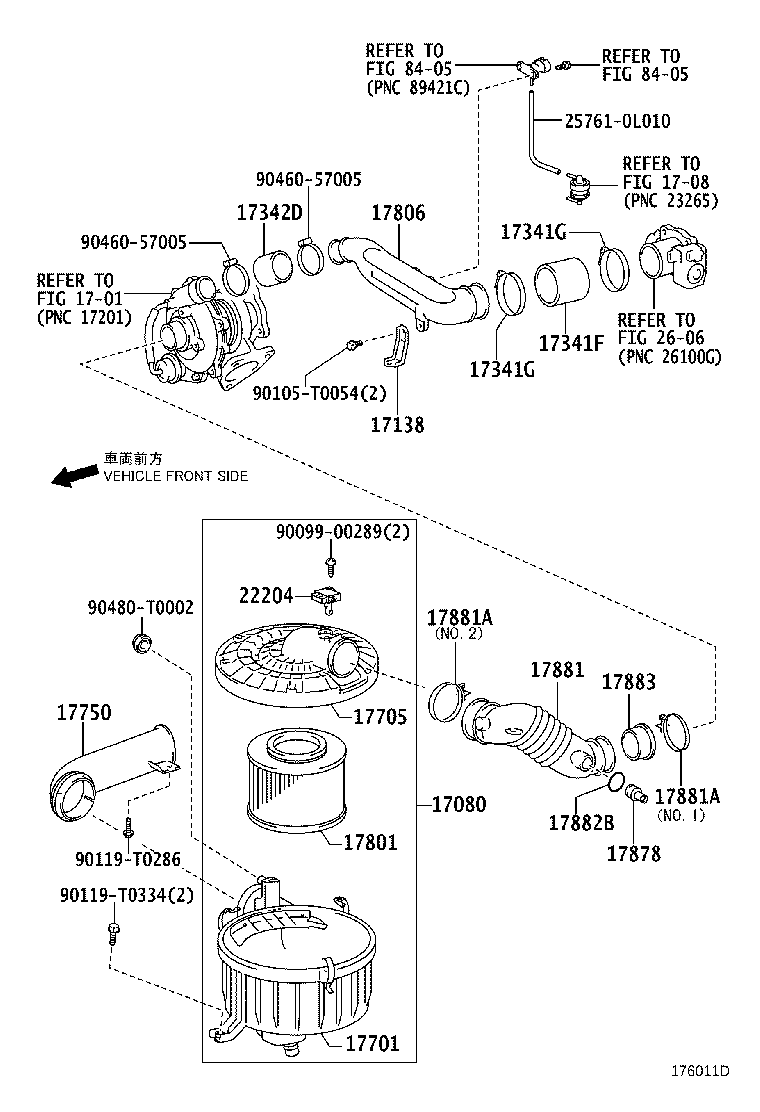

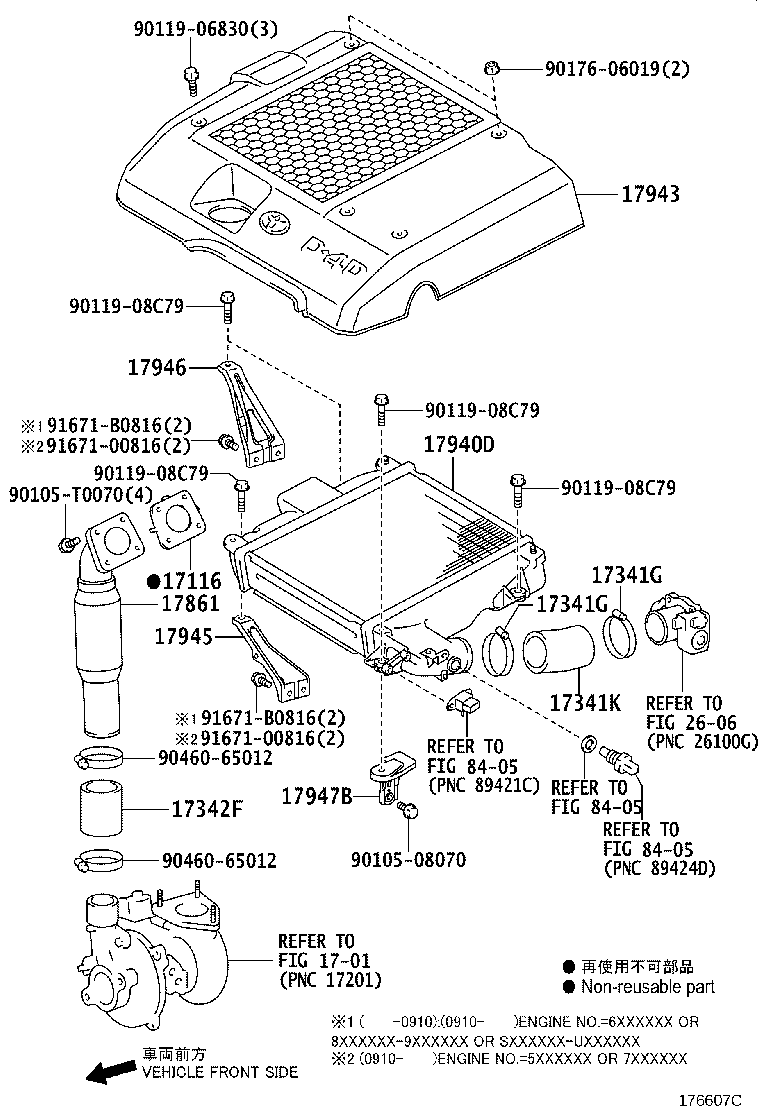

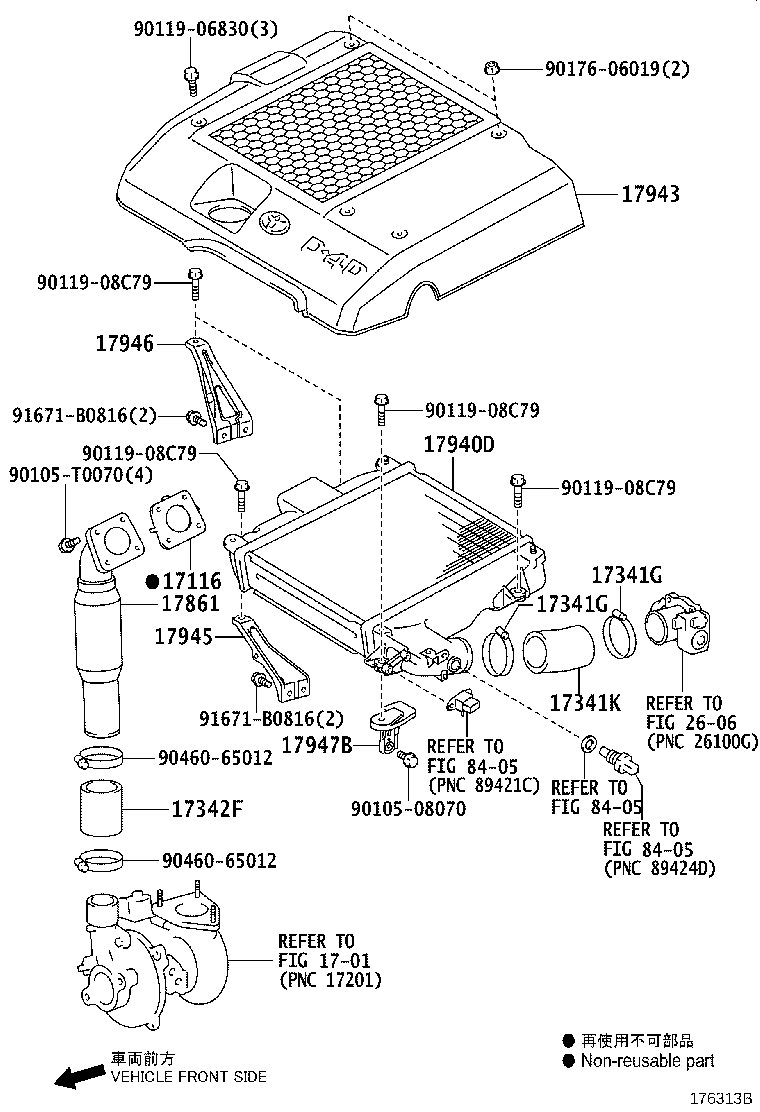

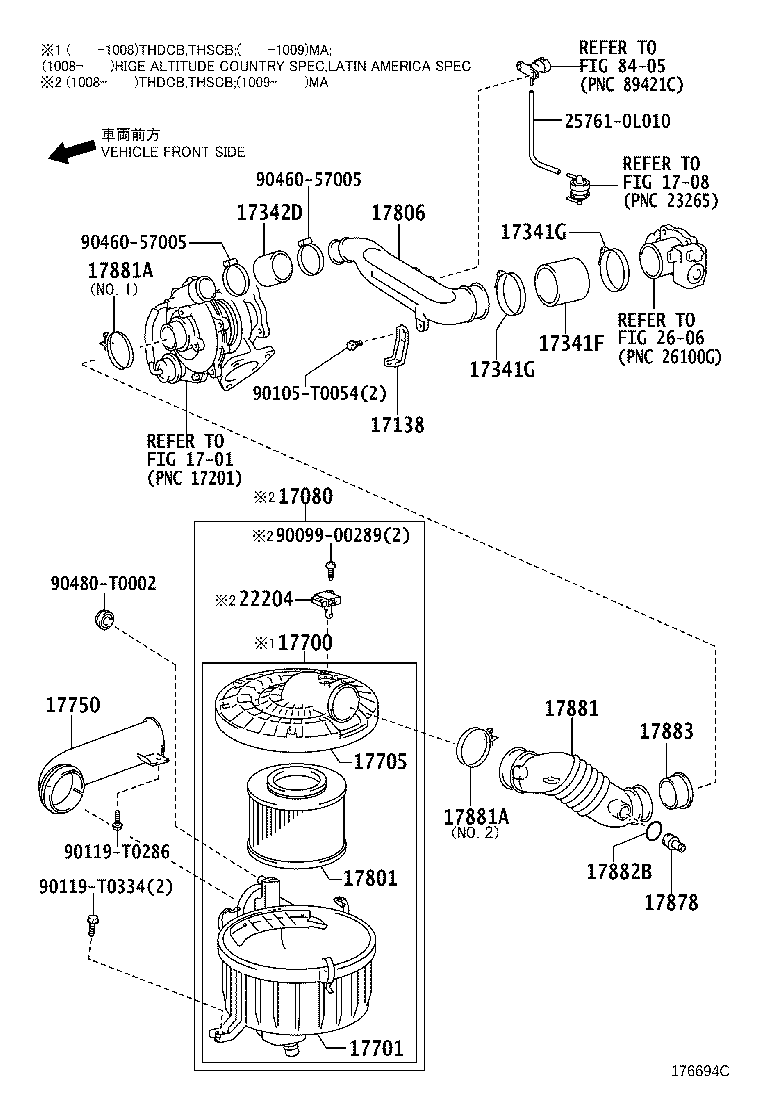

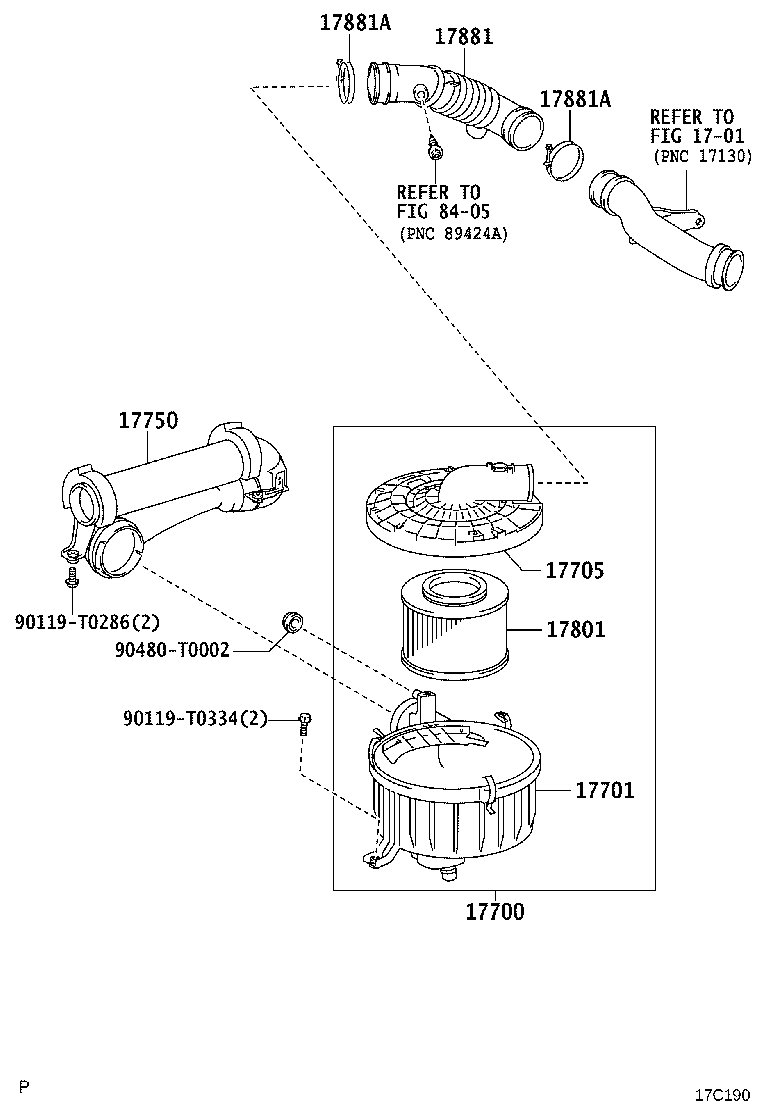

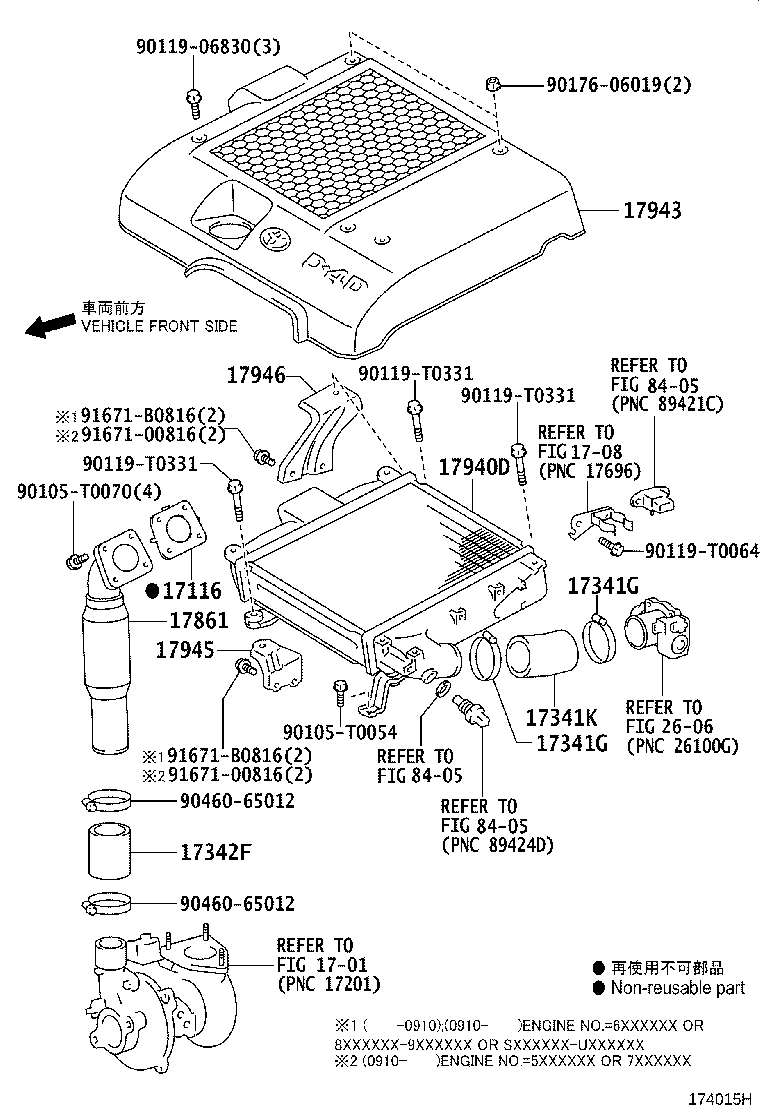

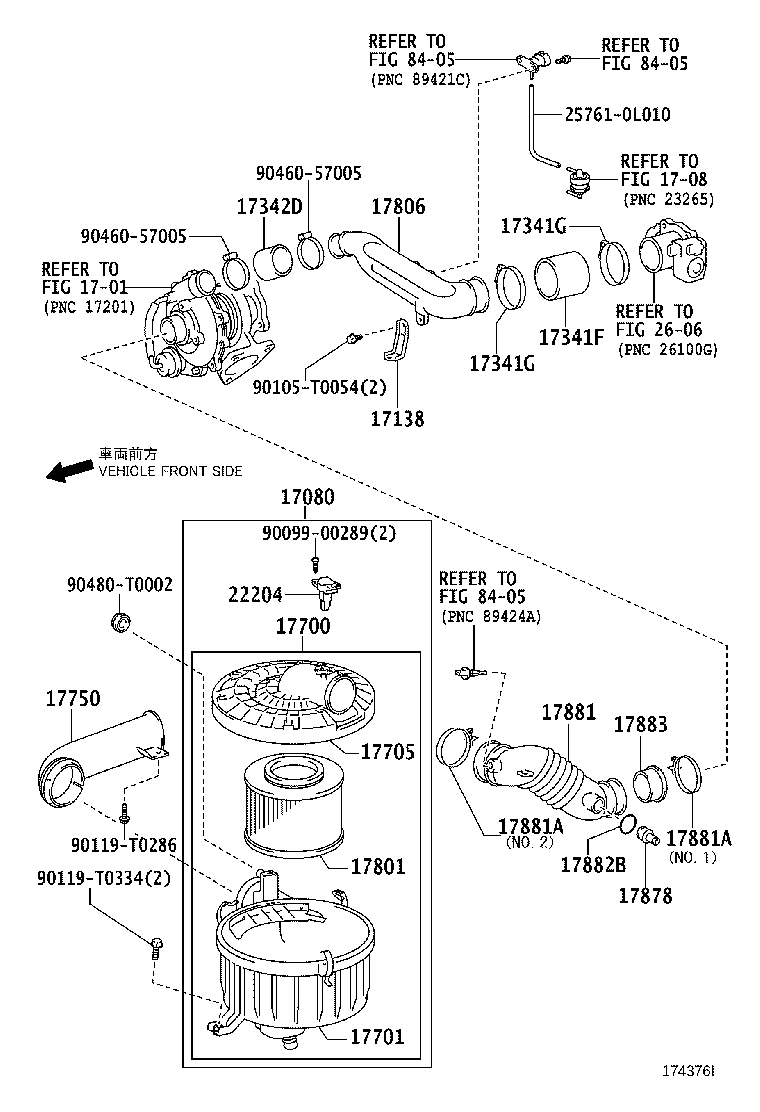

Figure 174365I 174365I 2005-02 → — Figure 174535C 174535C 2004-08 → 2008-08 Figure 174535C 174535C 2008-08 → — Figure 174535C 174535C 2009-08 → — Figure 174535C 174535C 2010-08 → — Figure 174014D 174014D 2004-08 → — Figure 176009F 176009F 2008-08 → — Figure 174016C 174016C 2004-08 → 2008-08 Figure 176010C 176010C 2008-08 → — Figure 176010C 176010C 2010-08 → — Figure 176552D 176552D 2010-11 → — Figure 176553D 176553D 2010-08 → — Figure 176553D 176553D 2010-11 → — Figure 174015H 174015H 2004-08 → 2006-08 Figure 174015H 174015H 2006-08 → — Figure 176607C 176607C 2006-08 → — Figure 176607C 176607C 2009-08 → — Figure 174017G 174017G 2004-08 → 2009-08 Figure 174017G 174017G 2009-08 → — Figure 174017G 174017G 2010-08 → — Figure 176313B 176313B 2009-08 → — Figure 176554E 176554E 2009-10 → — Figure 176554E 176554E 2010-08 → — Figure 174376I 174376I 2004-08 → 2008-08 Figure 174376I 174376I 2005-01 → 2008-08 Figure 174376I 174376I 2005-01 → 2008-08 Figure 174376I 174376I 2008-08 → 2008-09 Figure 174376I 174376I 2008-08 → — Figure 176694C 176694C 2008-08 → — Figure 176694C 176694C 2008-09 → — Figure 176011D 176011D 2008-08 → — Figure 176013D 176013D 2008-08 → 2010-12 Figure 17C190 17C190 2005-07 → — Figure 176431C 176431C 2005-01 → — Figure 176078C 176078C 2005-01 → —

Part groups

PNCDescription
17080 Cleaner Assy, Air W/Air Flow Meter
17116 Gasket, Intake Flange
17138 Stay, Intake Pipe OR Hose
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17341K Hose, Air, NO.1(FOR INTERCOOLER)
17342D Hose, Air, NO.2
17342F Hose, Air, NO.2(FOR INTERCOOLER)
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17730 Precleaner Assy, Air W/Hose
17750 Cover Assy, Air Cleaner Inlet, Seal
17801 Element Sub-assy, Air Cleaner Filter
17806 Pipe Sub-assy, Air Cleaner, NO.2
17861 Connector, Intake Air
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17878 Pipe, Intake Air Connector, NO.3
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17882B Clamp(FOR COOL AIR INTAKE)
17883 Hose, Air Cleaner, NO.3
17893 Resonator, Intake Air
17893A Clamp, Hose
17940D Intercooler Assy
17943 Protector, Intercooler
17945 Bracket, Intercooler Support
17946 Bracket, Intercooler Support, NO.2
17947B Bracket, Intercooler Support, NO.3
22204 Meter Sub-assy, Intake Air Flow
22204A Ring, O(FOR INTAKE AIR FLOW METER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
