Toyota Hilux

2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

19 part groups · 22 illustrations

Illustrations

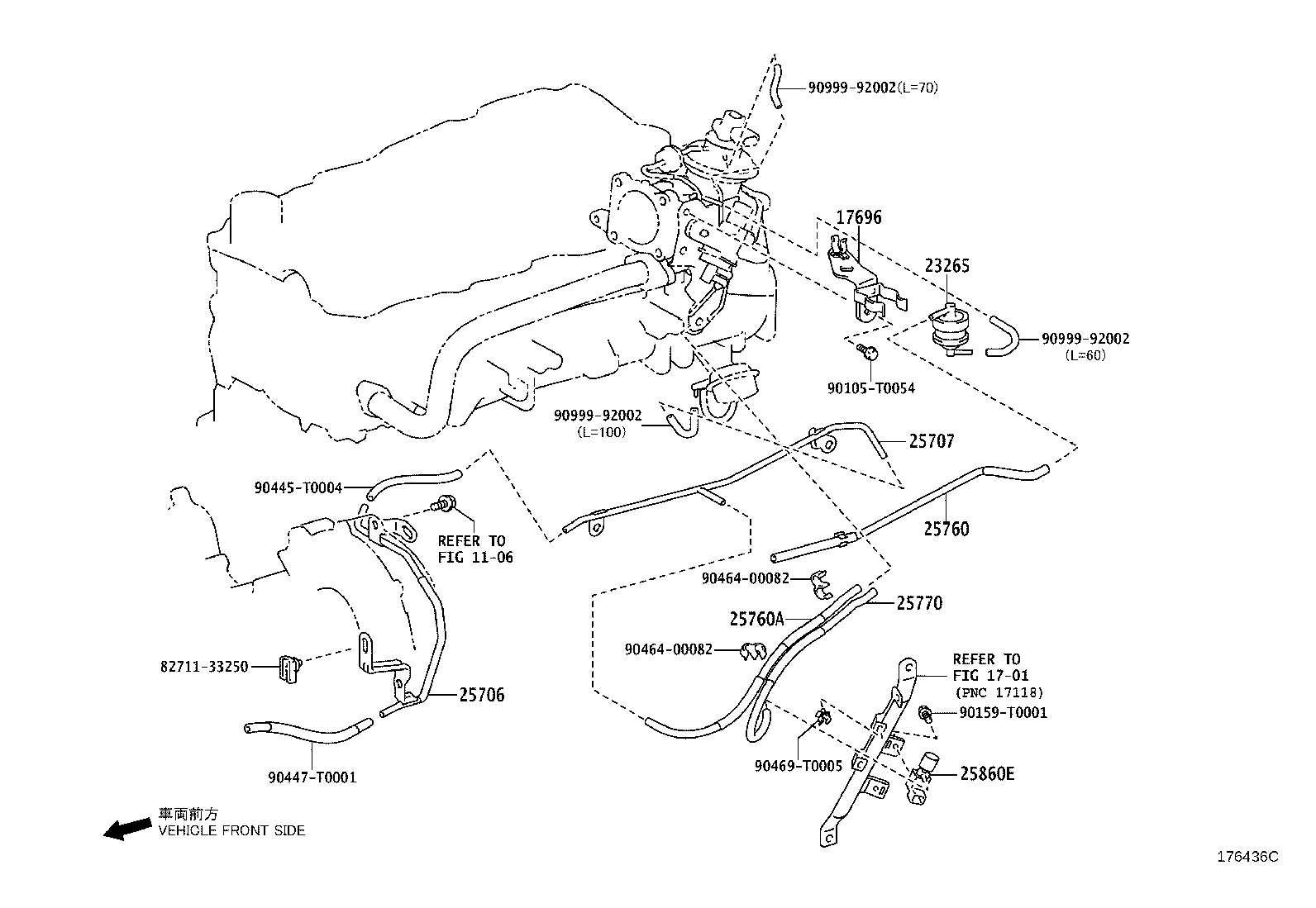

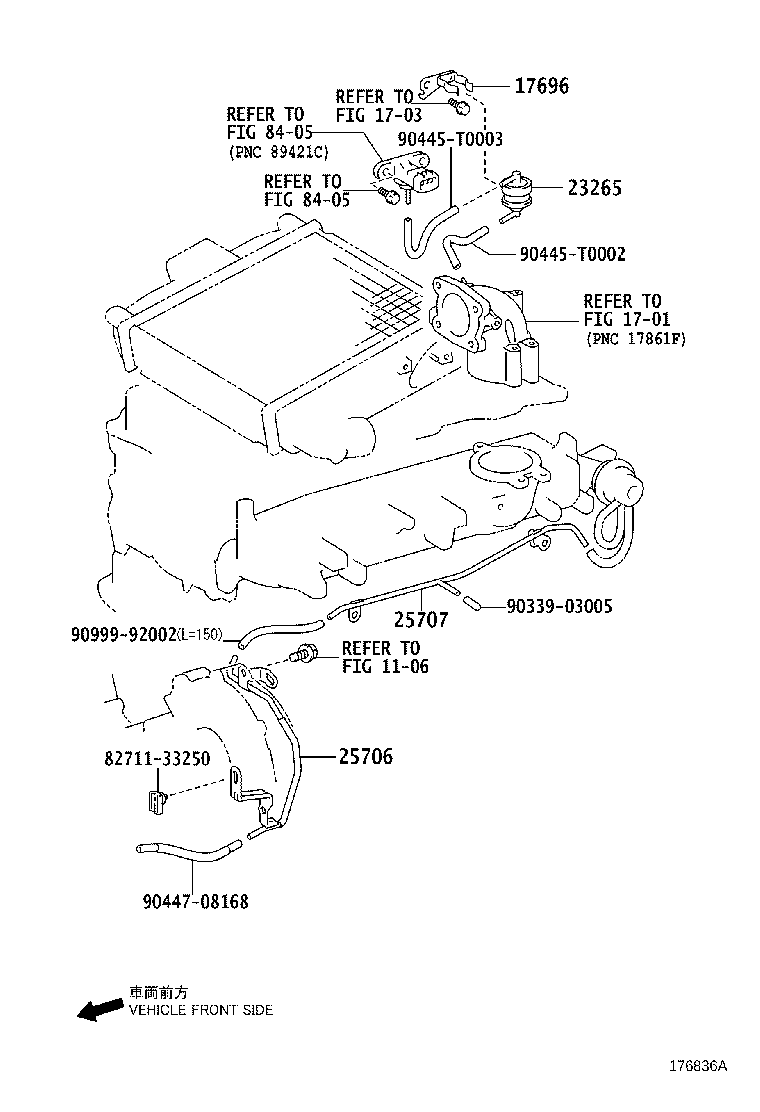

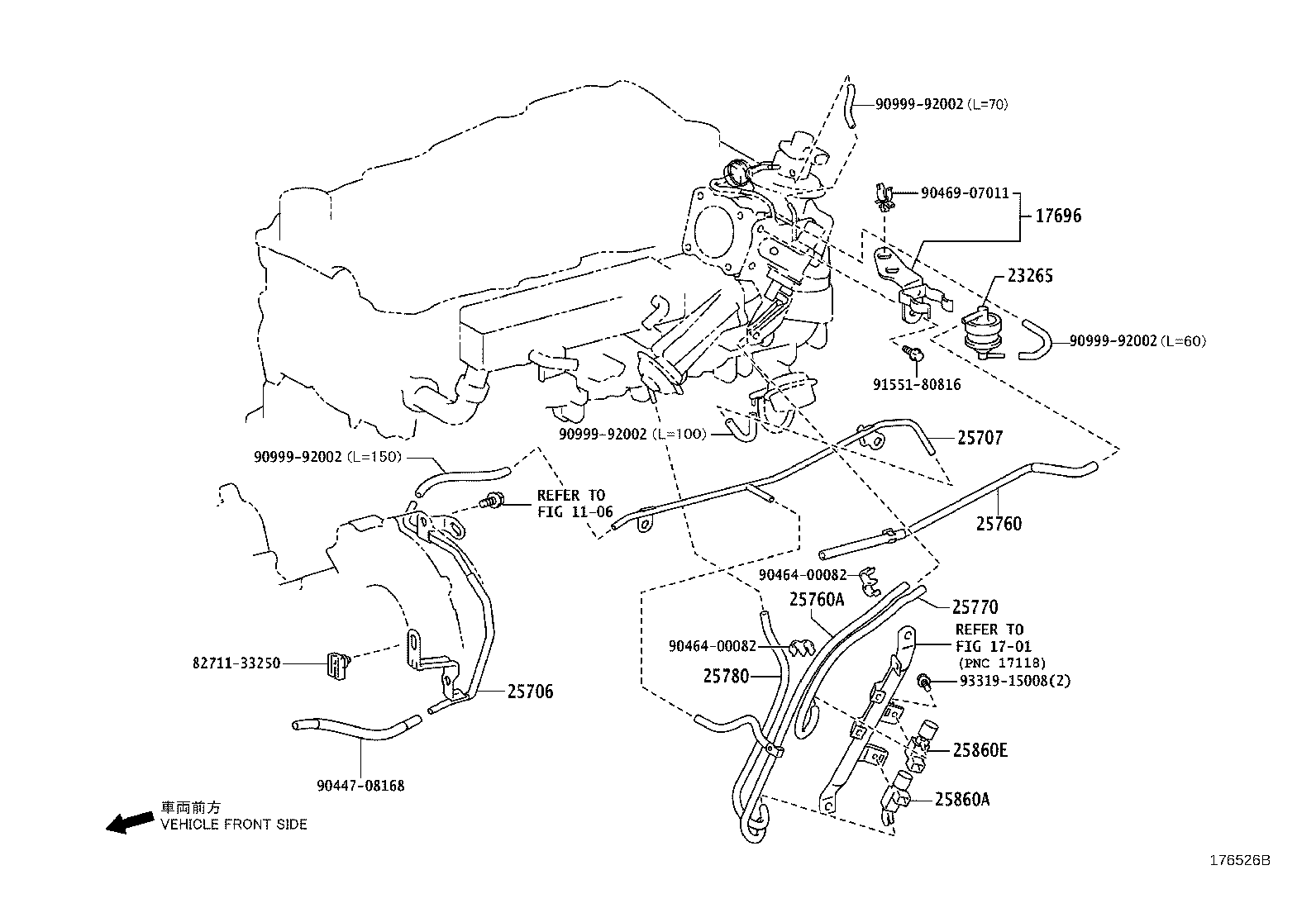

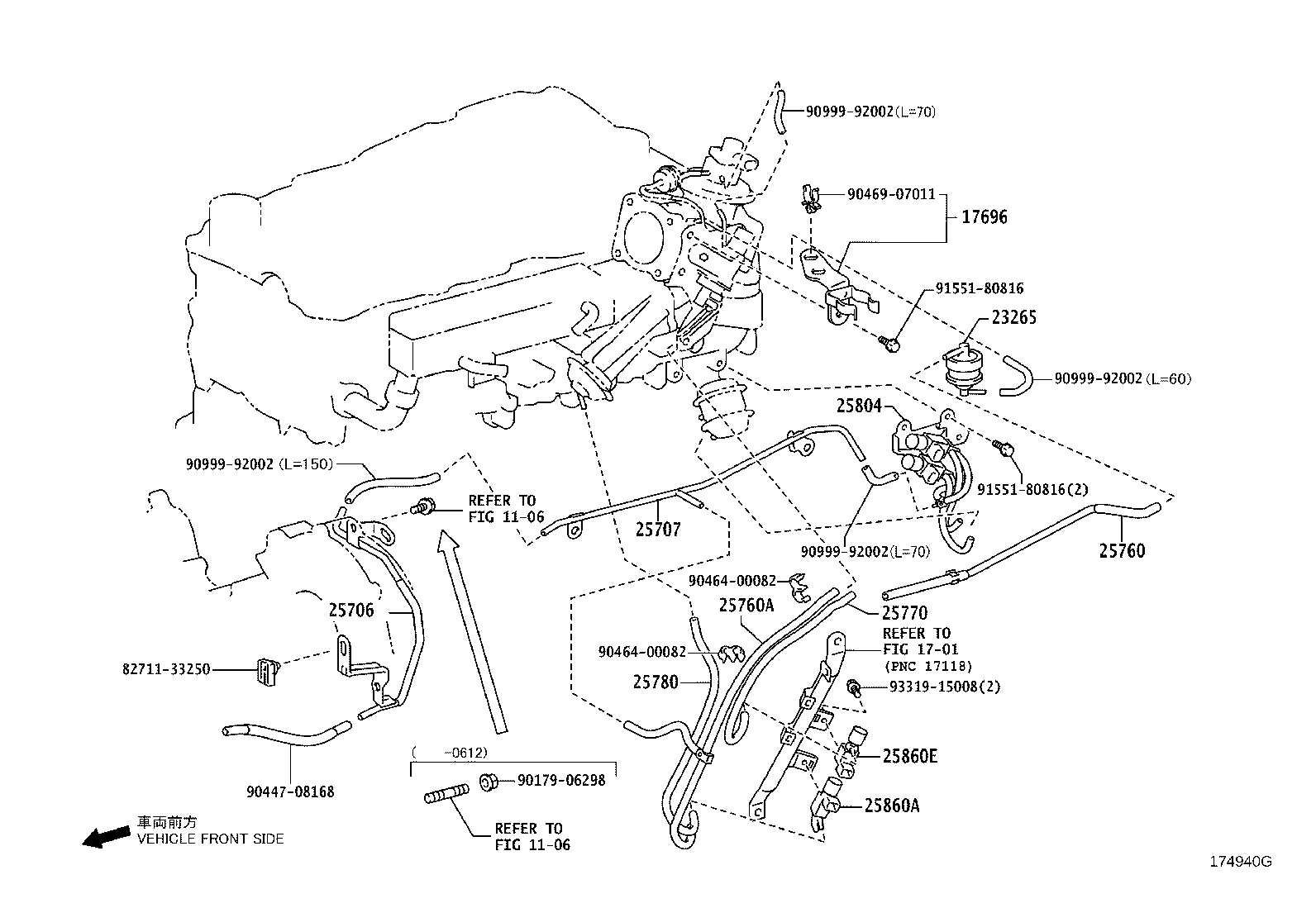

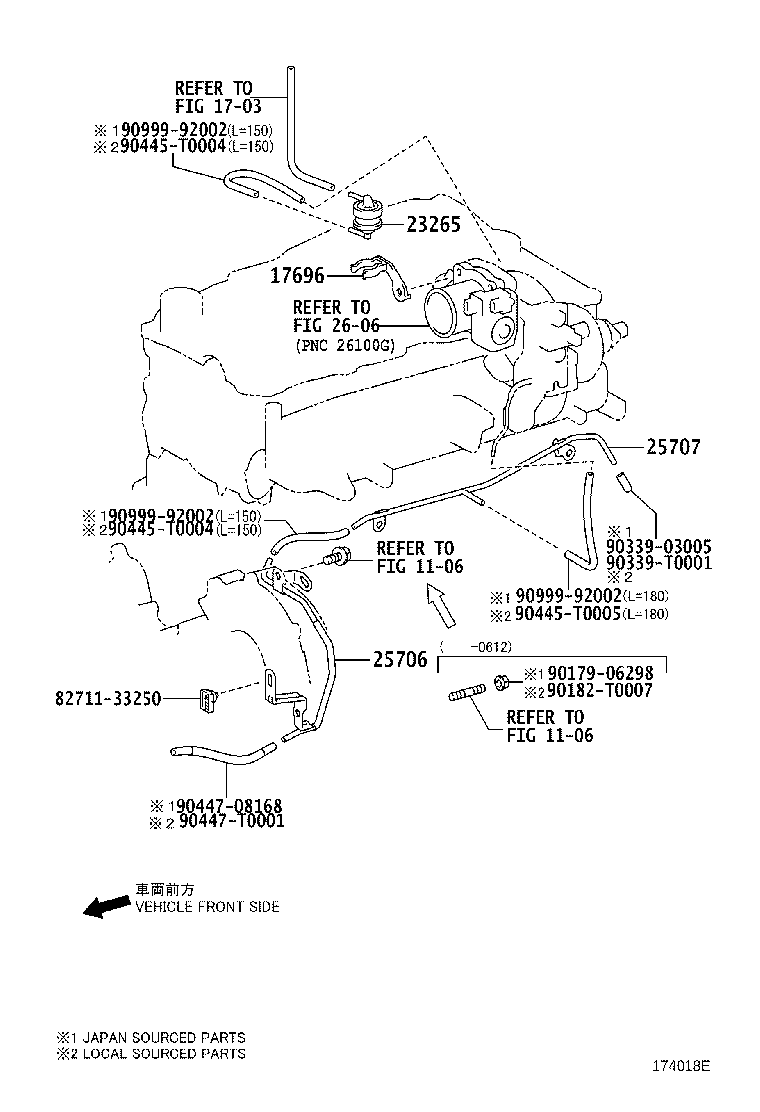

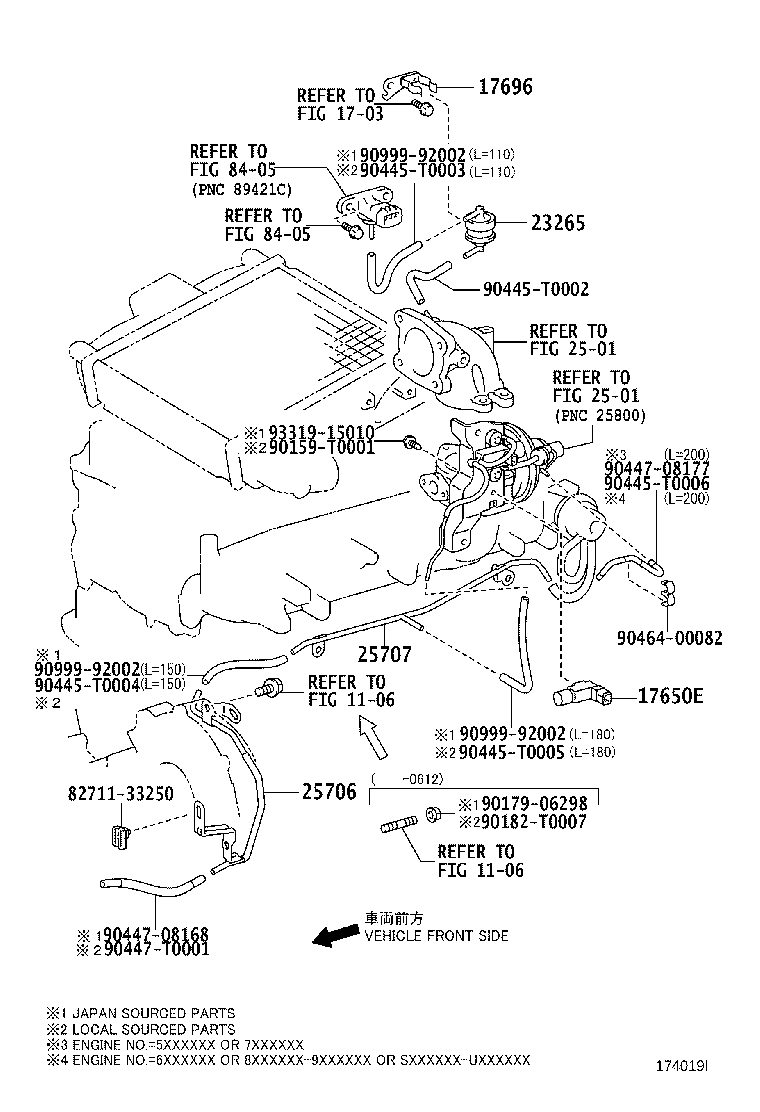

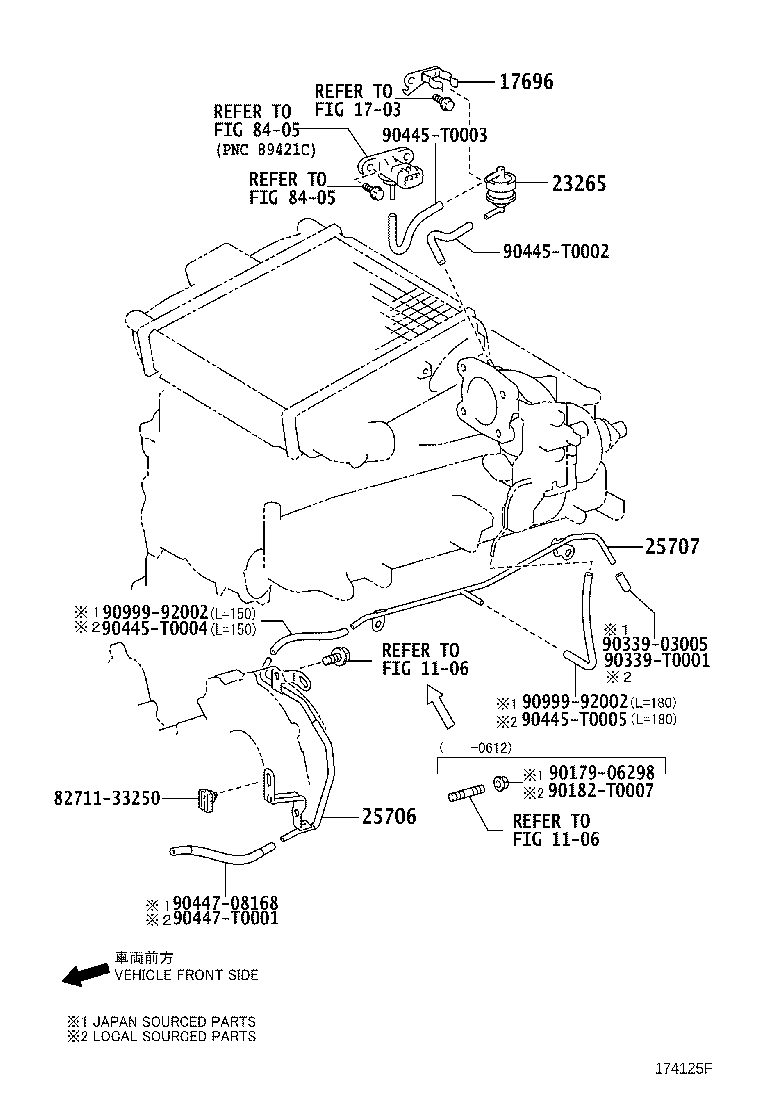

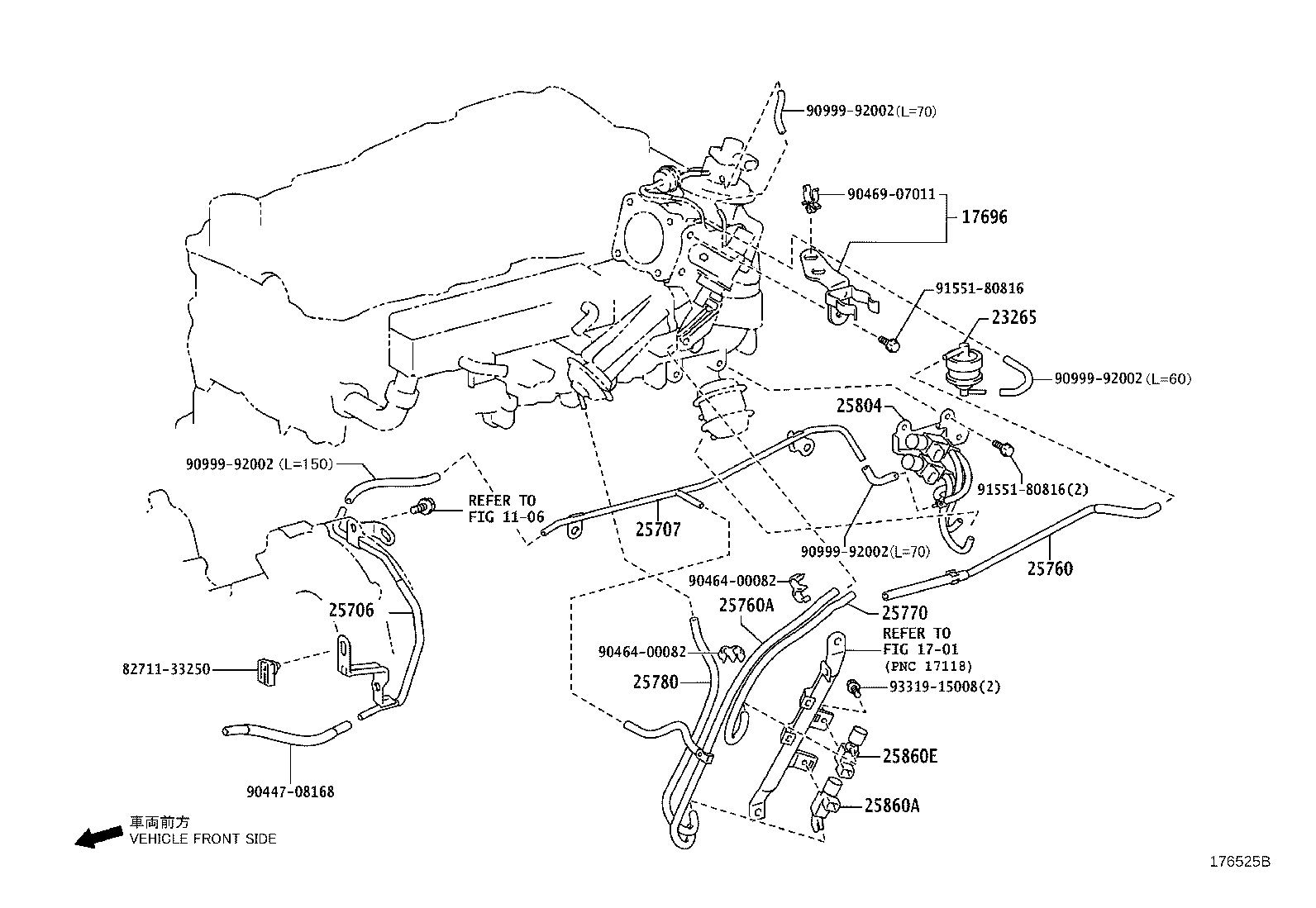

Figure 174364C 174364C 2005-02 → — Figure 174019I 174019I 2004-08 → 2006-08 Figure 174019I 174019I 2006-08 → — Figure 174940G 174940G 2006-08 → — Figure 174018E 174018E 2004-08 → — Figure 174018E 174018E 2005-01 → — Figure 174018E 174018E 2005-01 → — Figure 174018E 174018E 2005-01 → — Figure 174018E 174018E 2008-08 → — Figure 174125F 174125F 2004-08 → 2009-08 Figure 174125F 174125F 2009-08 → — Figure 174125F 174125F 2010-08 → — Figure 176436C 176436C 2009-08 → — Figure 174377E 174377E 2005-01 → — Figure 174377E 174377E 2005-01 → — Figure 174377E 174377E 2008-10 → — Figure 176525B 176525B 2009-10 → — Figure 176526B 176526B 2009-10 → — Figure 176526B 176526B 2010-08 → — Figure 176836A 176836A 2010-08 → — Figure 17A230 17A230 2005-01 → — Figure 17A231 17A231 2005-02 → —

Part groups

PNCDescription
17650E Valve, Vacuum Switching
17650G Valve, Duty Vacuum Switching
17696 Bracket, Gas Filter
23265 Filter, Gas, NO.1
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25760 Hose Assy, Vacuum Transmitting
25760A Hose Assy, Vacuum Transmitting
25770 Hose Assy, Vacuum Transmitting, NO.2
25780 Hose Assy, Vacuum Transmitting, NO.3
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
25860E Valve, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
