Toyota Hilux

2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

22 part groups · 11 illustrations

Illustrations

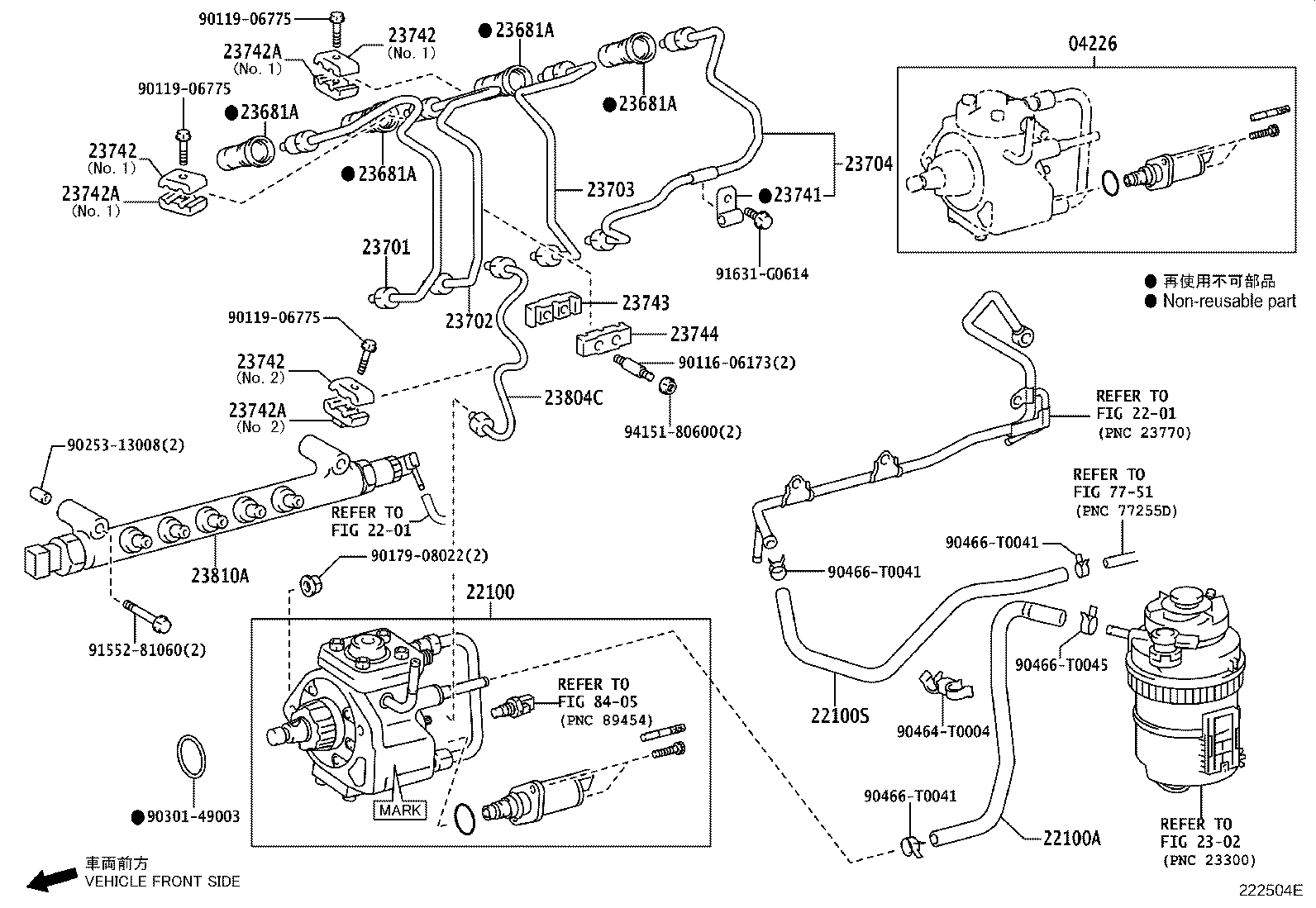

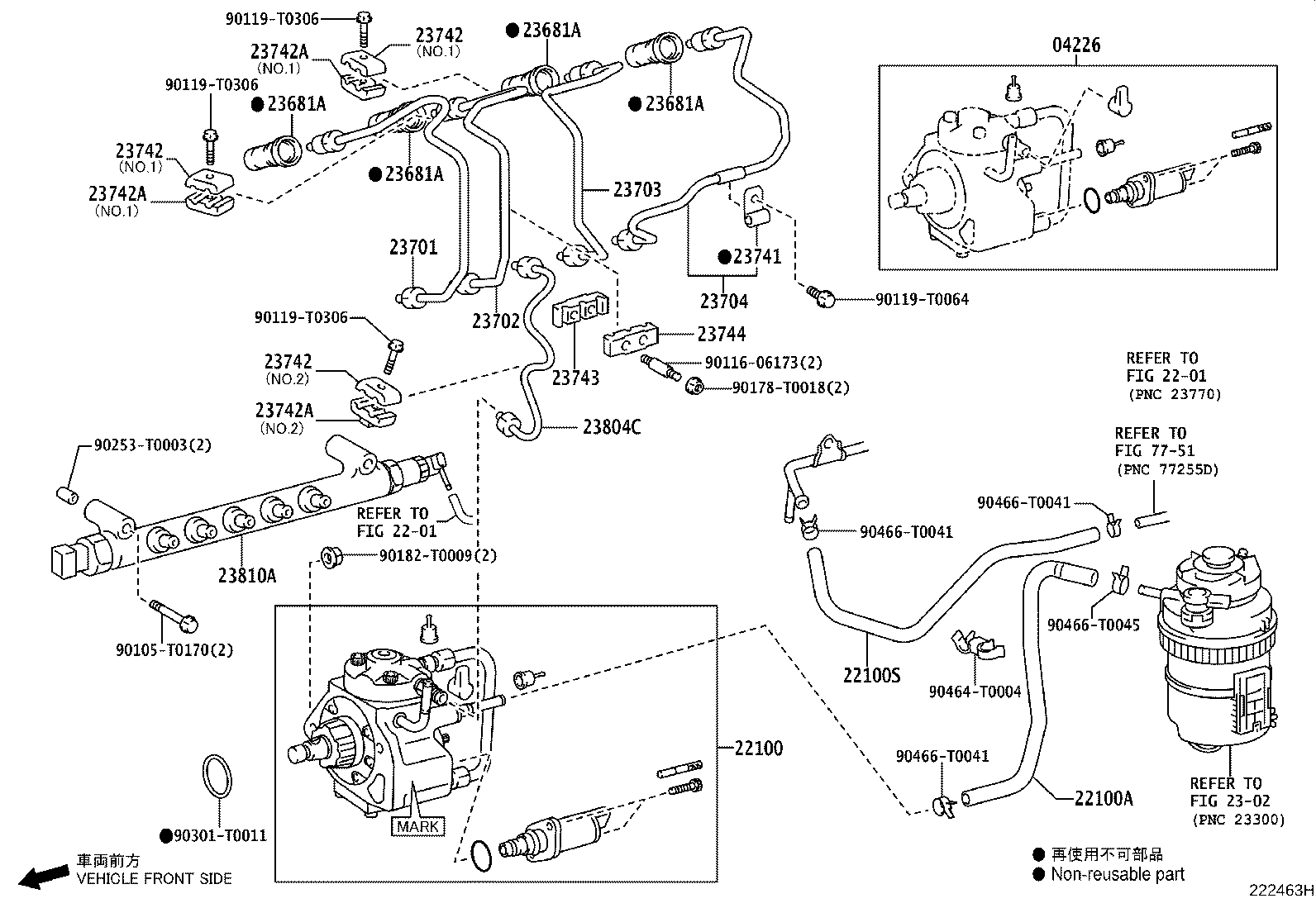

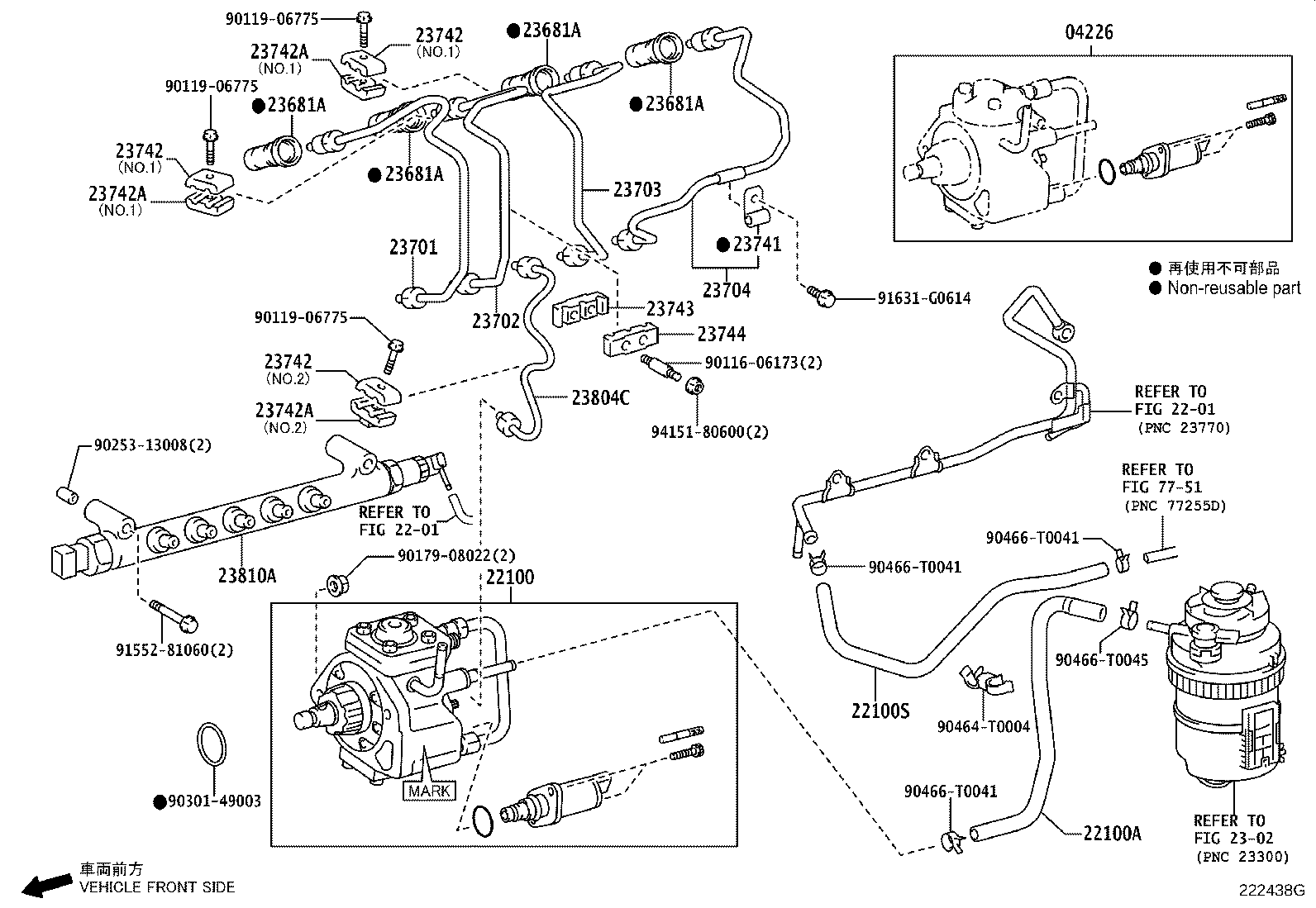

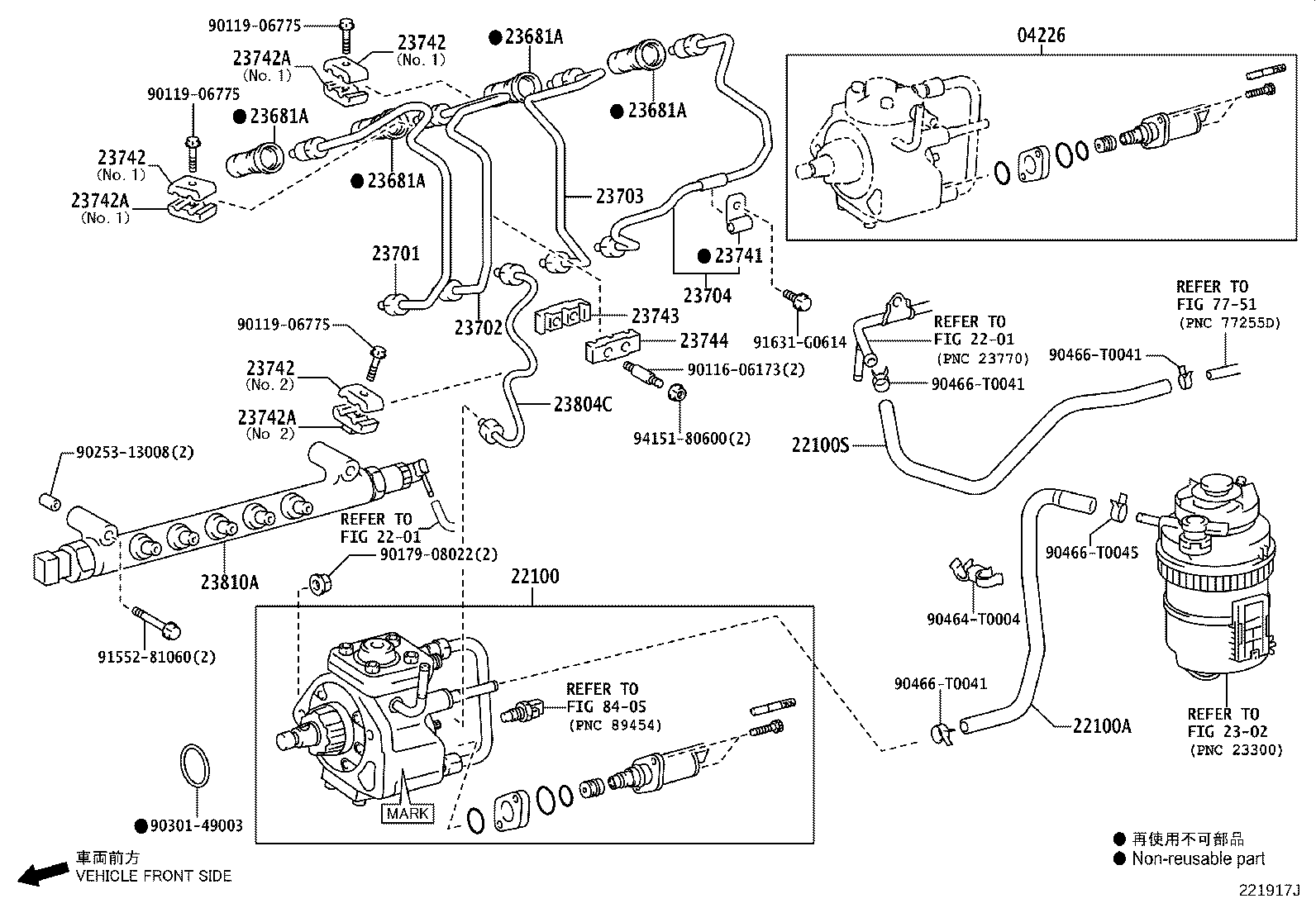

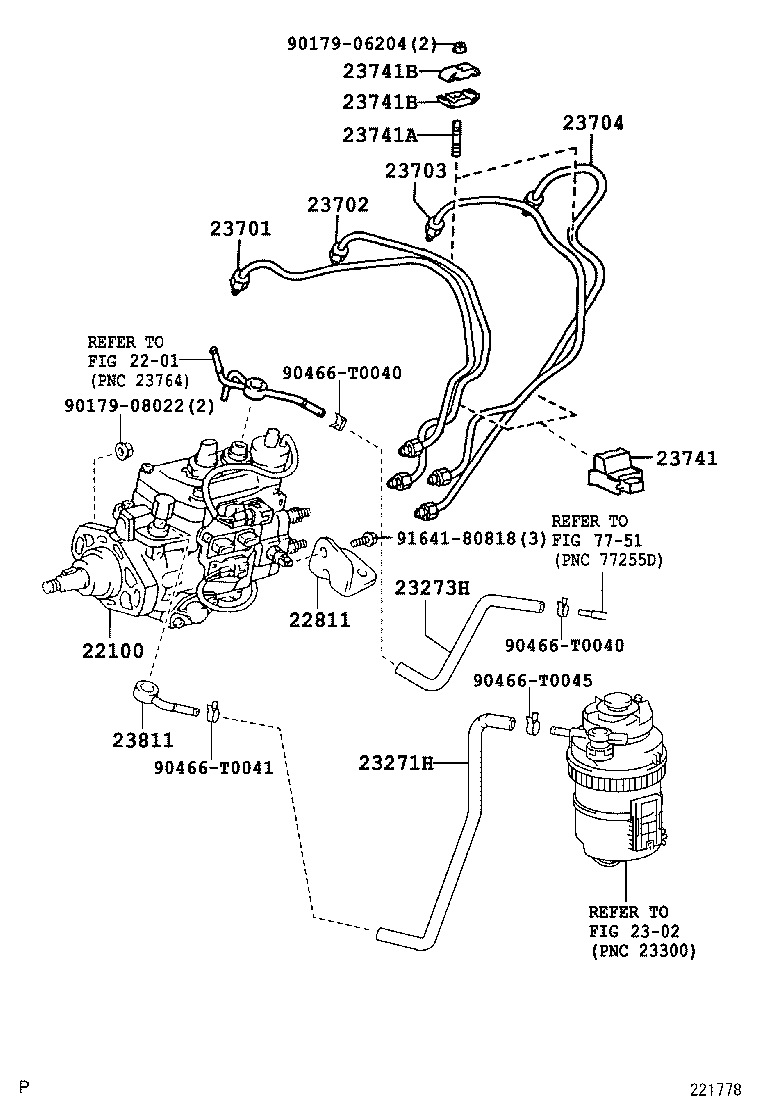

Figure 221784P 221784P 2004-08 → 2006-08 Figure 221784P 221784P 2006-08 → 2009-08 Figure 221784P 221784P 2009-08 → — Figure 221784P 221784P 2009-08 → — Figure 221784P 221784P 2009-08 → — Figure 222463H 222463H 2009-08 → — Figure 221917J 221917J 2006-08 → 2008-01 Figure 222504E 222504E 2008-01 → — Figure 222438G 222438G 2009-10 → — Figure 222438G 222438G 2010-08 → — Figure 221778 221778 2005-07 → —

Part groups

PNCDescription
04226 Valve Kit, Suction Control
22100 Pump Assy, Injection OR Supply
22100A Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
22100S Hose, Fuel(FOR INJECTION PUMP TO FUEL PIPE)
22811 Stay, Injection Pump, NO.1
23271H Hose, Fuel, NO.1
23273H Hose, Fuel, NO.2
23681A Seal, Nozzle Holder
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23741 Clamp, Injection Pipe, NO.1
23741A Bolt, Stud(FOR INJECTION PIPE CLAMP)
23741B Clamp, Injection Pipe
23742 Clamp, Injection Pipe, NO.2
23742A Clamp, Injection Pipe, NO.3
23743 Clamp, Injection Pipe, NO.3
23744 Clamp, Injection Pipe, NO.4
23804C Pipe Sub-assy, Fuel Inlet
23810A Rail Assy, Common
23811 Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
