Toyota Hilux

2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

2 part groups · 5 illustrations

Illustrations

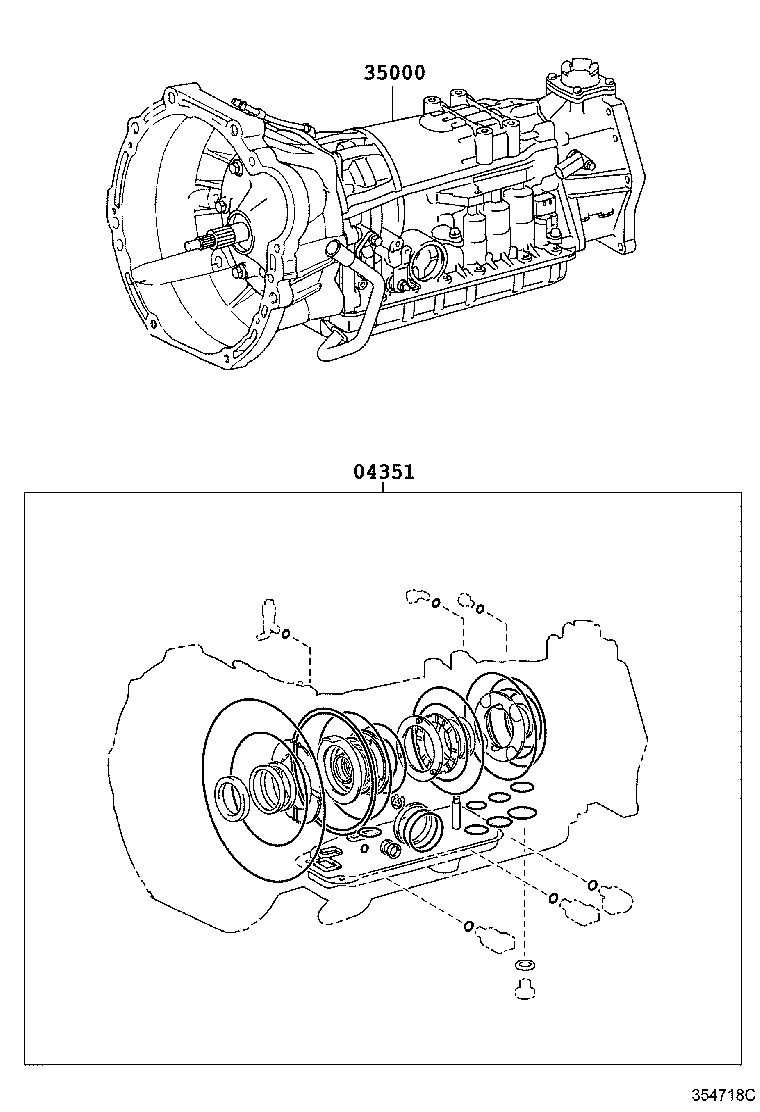

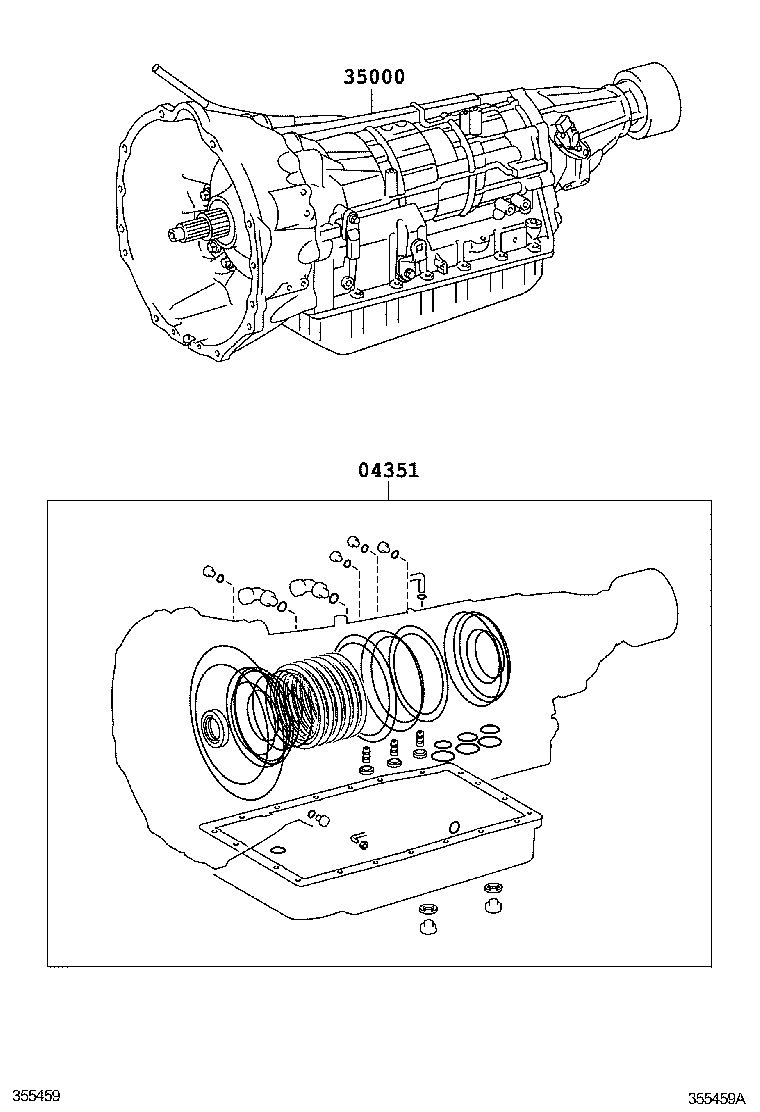

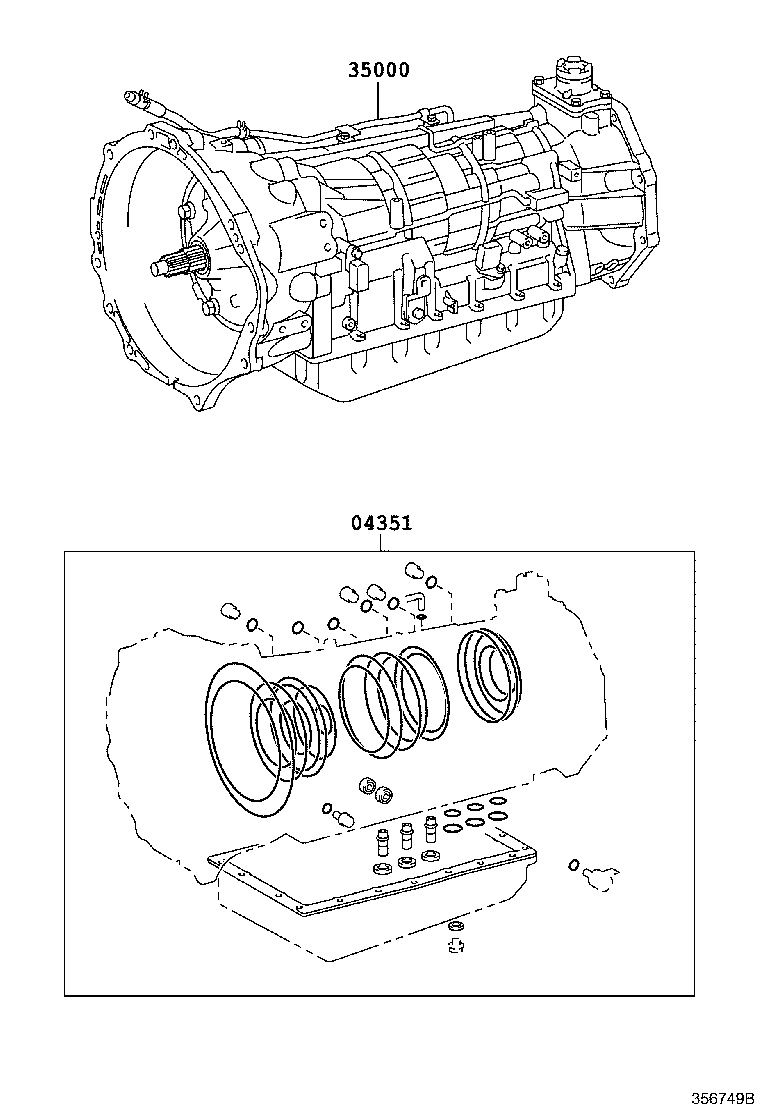

Figure 354716C 354716C 2004-08 → — Figure 354716C 354716C 2005-01 → — Figure 354718C 354718C 2004-08 → — Figure 355459A 355459A 2005-02 → — Figure 356749B 356749B 2005-02 → —

Part groups

PNCDescription
04351 Gasket Kit, Automatic Transmission Overhaul
35000 Transmission Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
