Toyota Hilux

2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

11 part groups · 8 illustrations

Illustrations

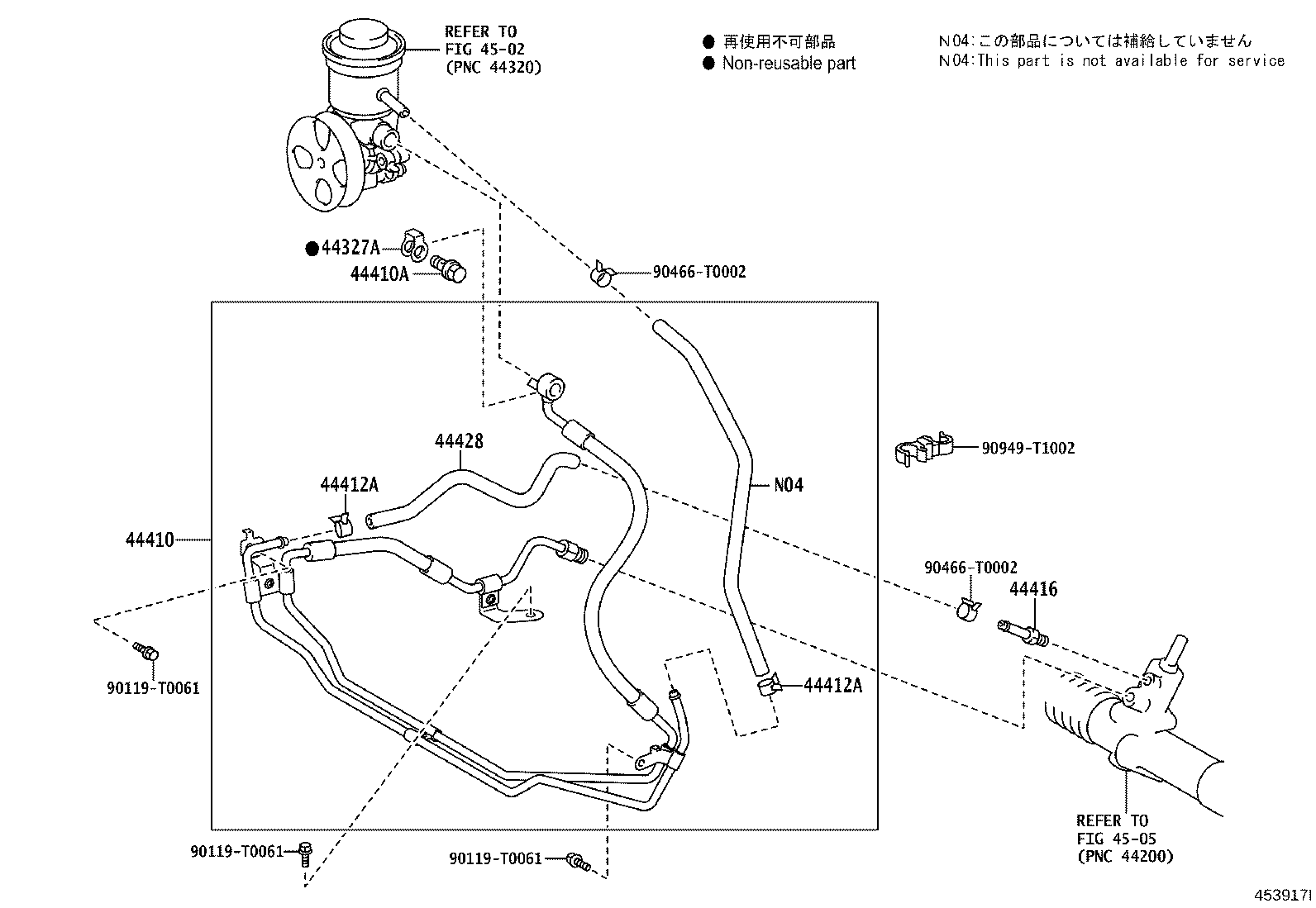

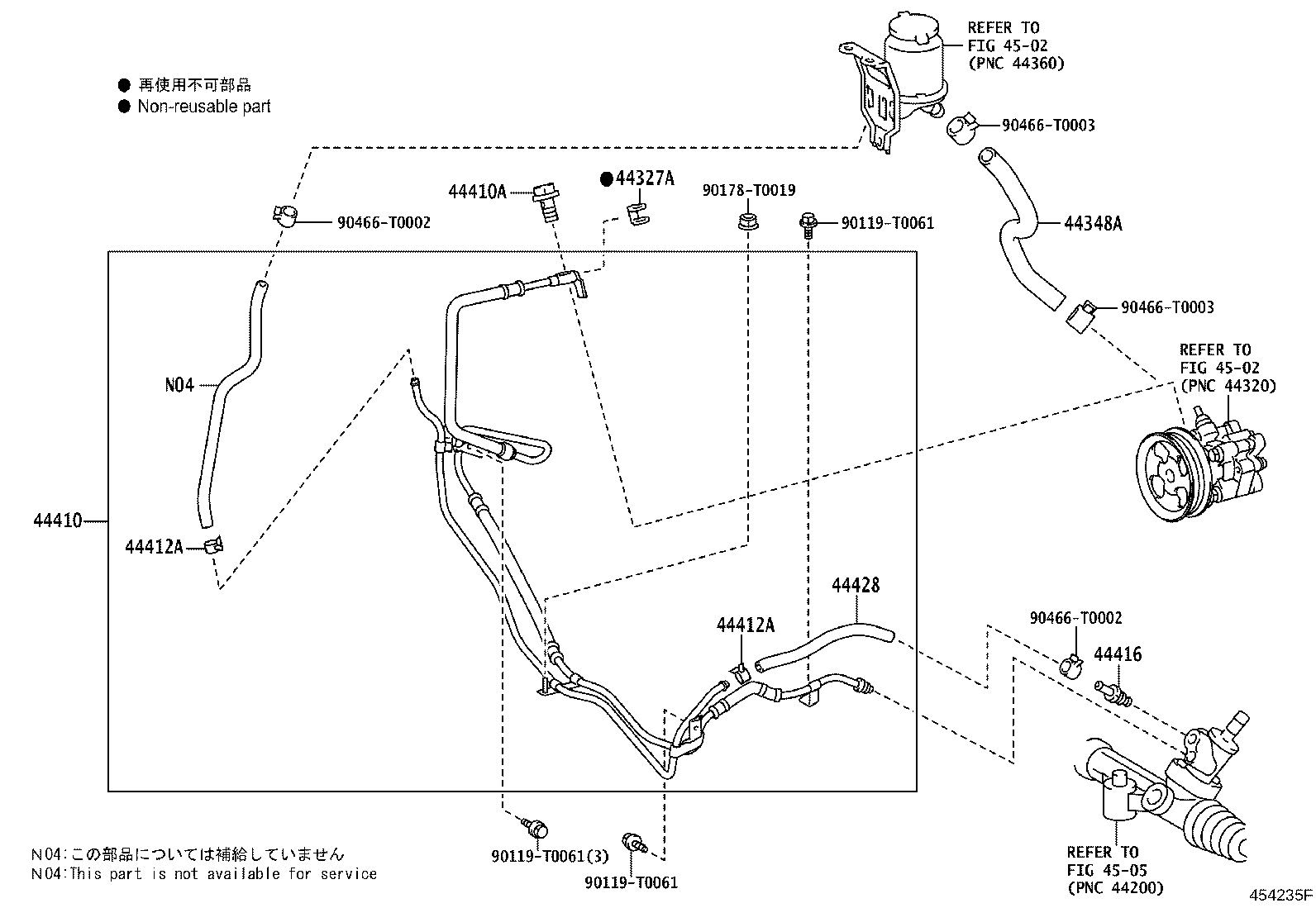

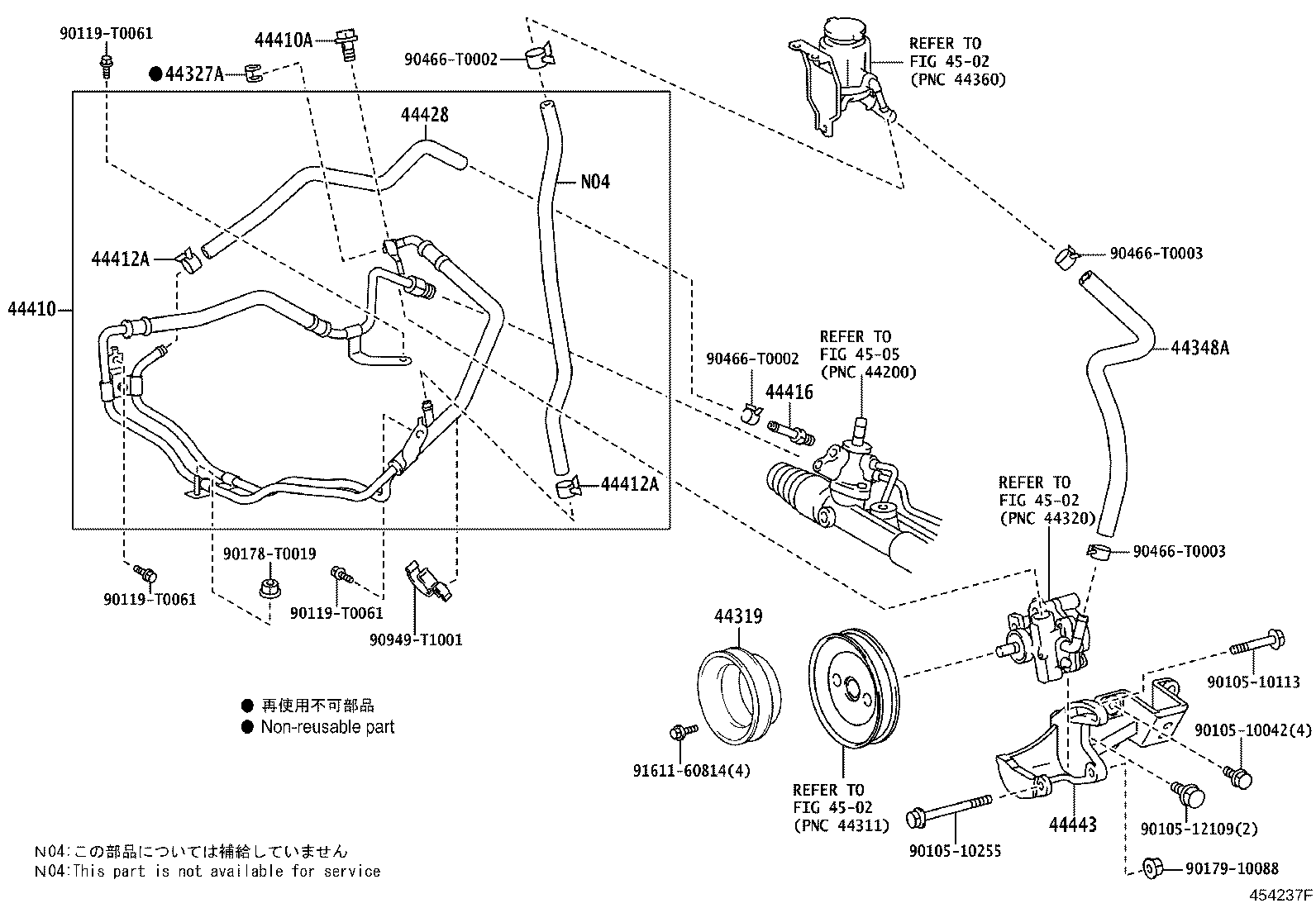

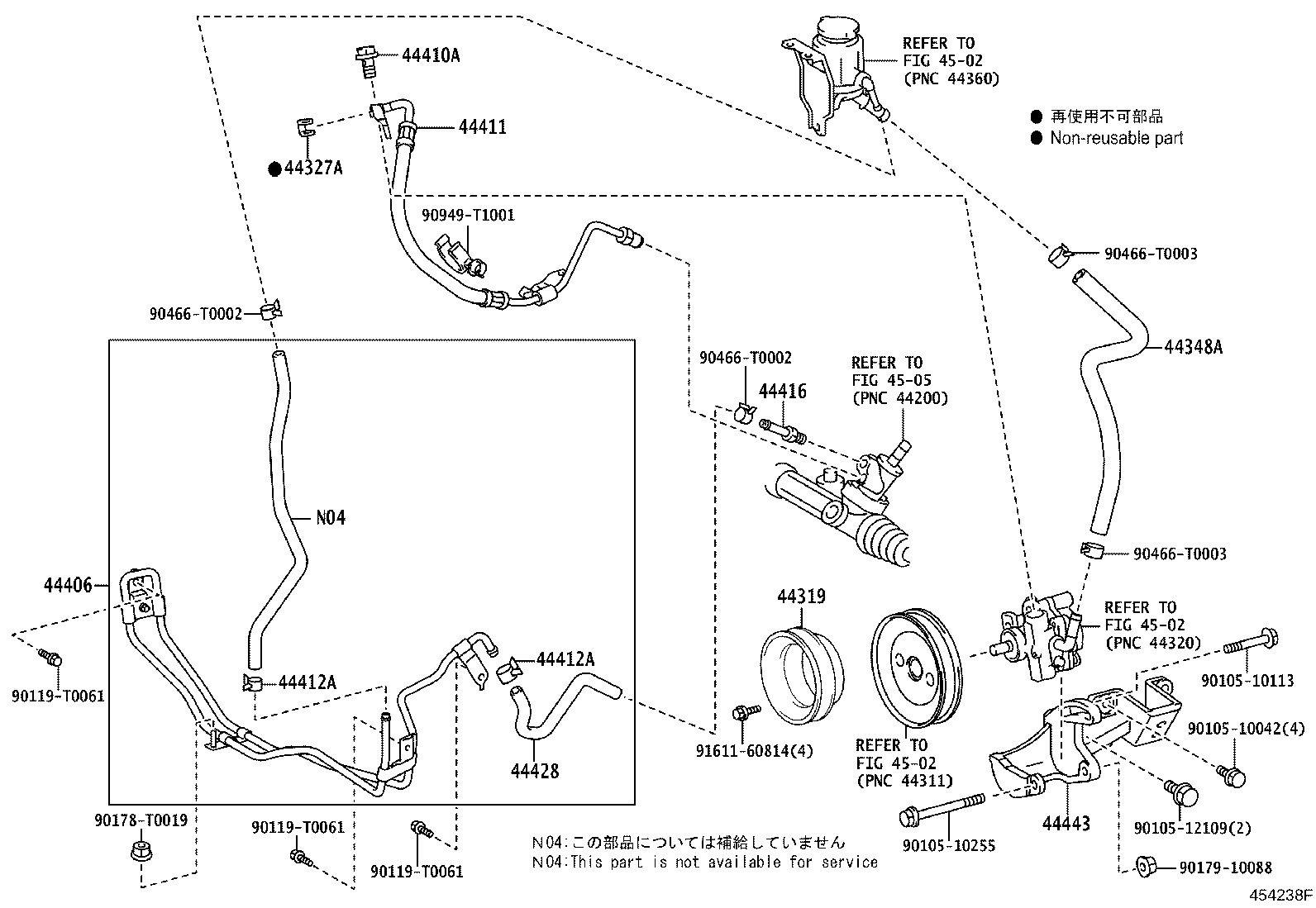

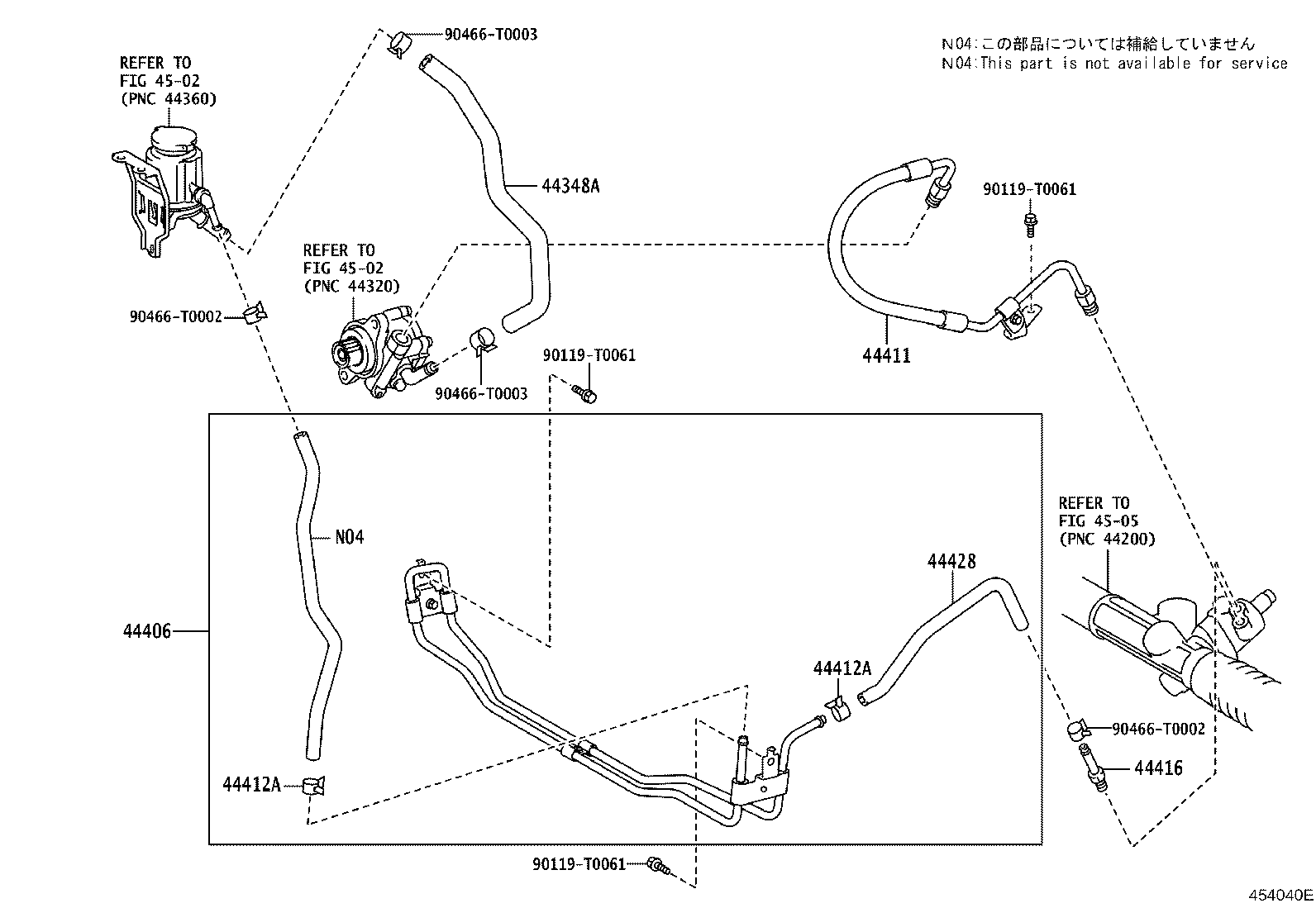

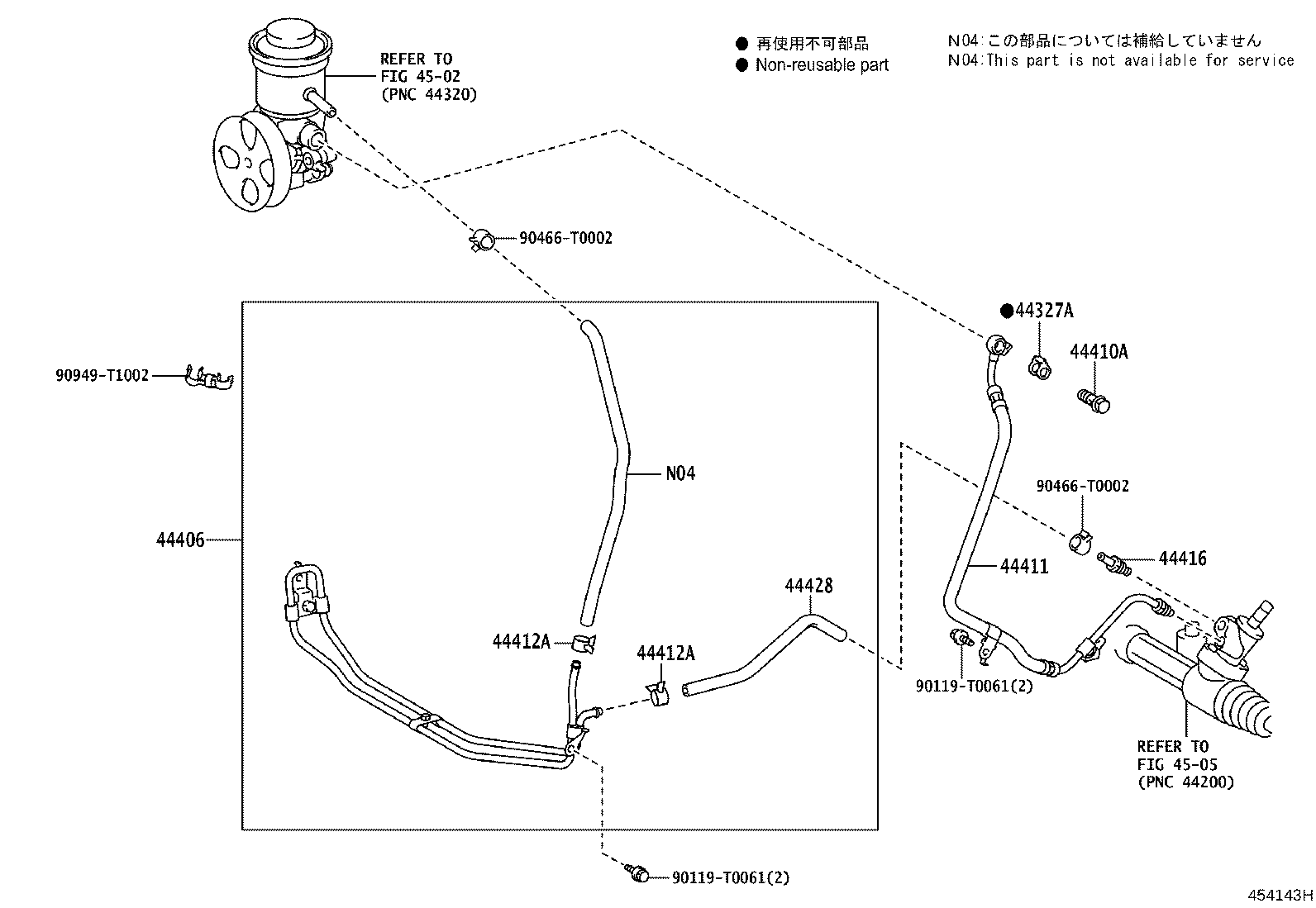

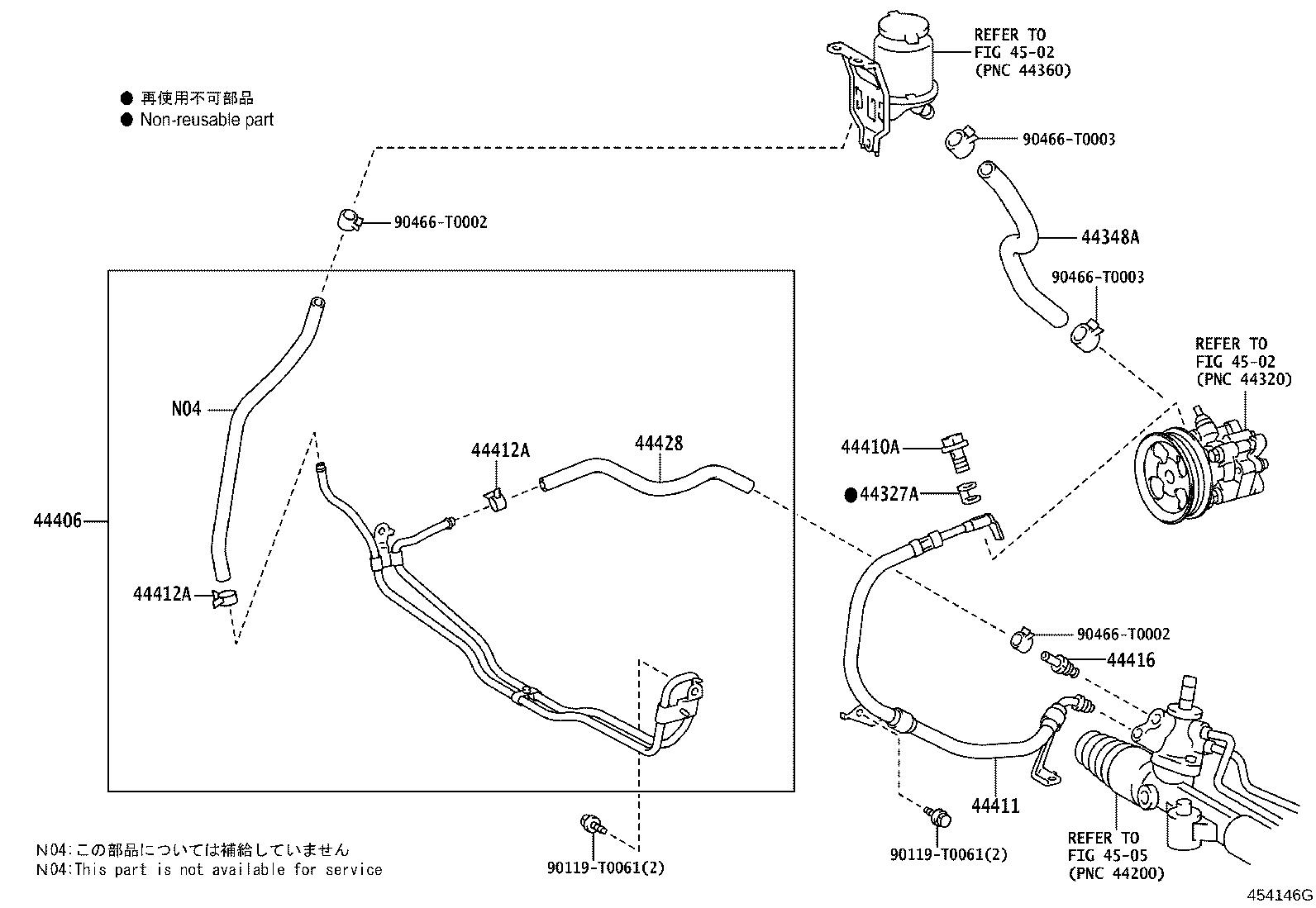

Figure 453916E 453916E 2004-08 → — Figure 454040E 454040E 2004-11 → — Figure 453917I 453917I 2005-01 → — Figure 454143H 454143H 2005-01 → — Figure 454146G 454146G 2005-02 → — Figure 454235F 454235F 2005-07 → — Figure 454237F 454237F 2005-07 → — Figure 454238F 454238F 2005-07 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44412A Clamp, Rubber Hose Complete (FOR RETURN HOSE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44428 Hose, Return, NO.2
44443 Bracket, Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
