Toyota Hilux

2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

9 part groups · 26 illustrations

Illustrations

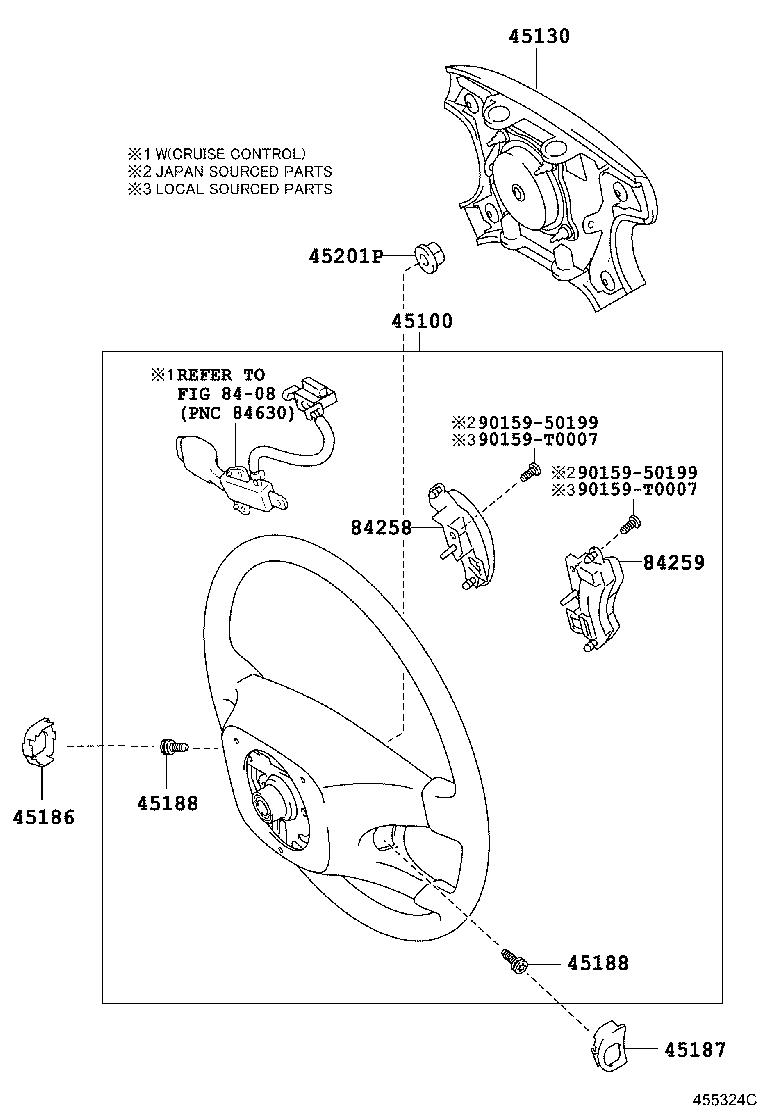

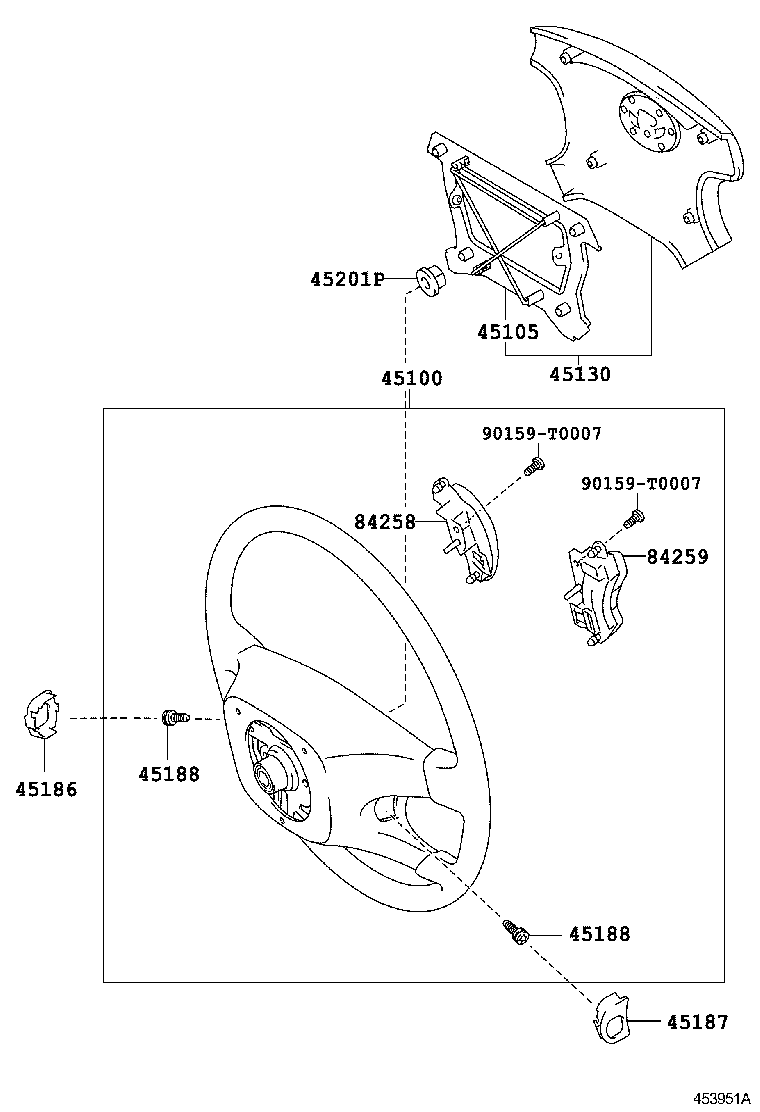

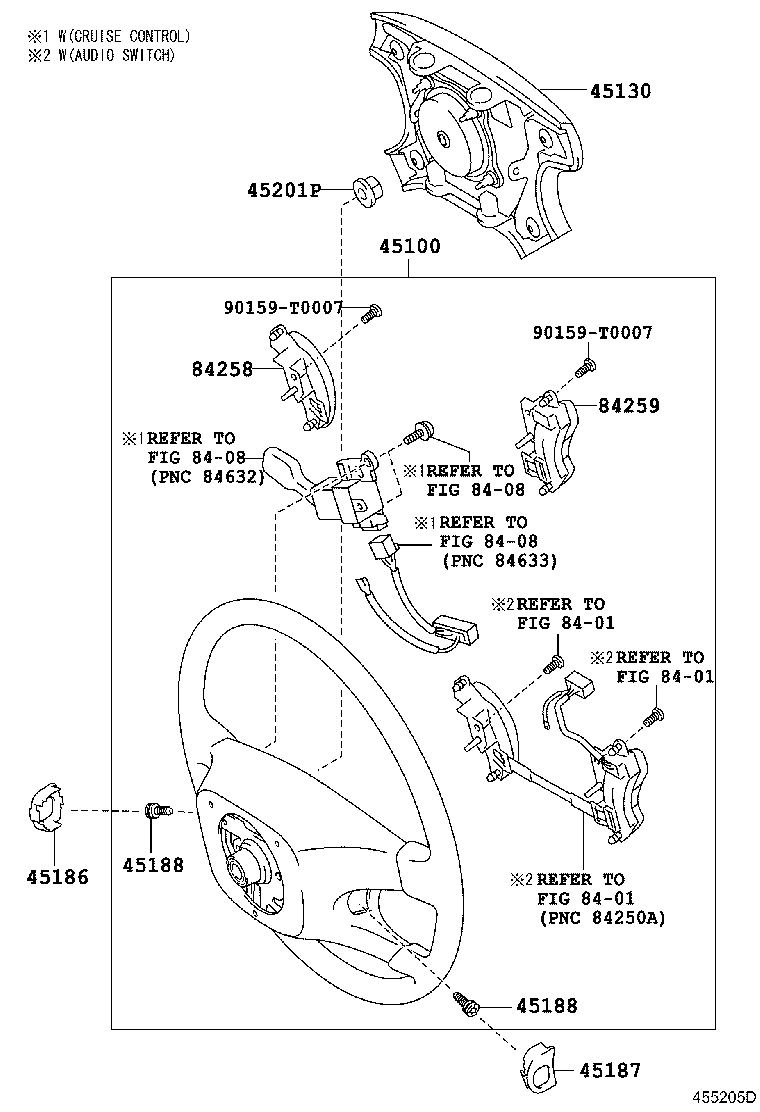

Figure 453949H 453949H 2004-08 → 2008-08 Figure 453949H 453949H 2004-08 → 2008-08 Figure 453949H 453949H 2008-08 → 2009-08 Figure 453949H 453949H 2008-08 → — Figure 453949H 453949H 2008-08 → — Figure 453949H 453949H 2008-08 → — Figure 453949H 453949H 2009-08 → — Figure 453949H 453949H 2009-08 → — Figure 455324C 455324C 2004-08 → 2008-10 Figure 455324C 455324C 2004-08 → — Figure 455324C 455324C 2004-08 → — Figure 455324C 455324C 2004-08 → — Figure 455324C 455324C 2004-08 → — Figure 455324C 455324C 2006-10 → — Figure 455324C 455324C 2007-08 → — Figure 455324C 455324C 2007-08 → — Figure 455324C 455324C 2007-10 → — Figure 455324C 455324C 2008-10 → — Figure 455324C 455324C 2008-10 → — Figure 455324C 455324C 2008-10 → — Figure 455324C 455324C 2009-08 → — Figure 453951A 453951A 2004-08 → — Figure 453951A 453951A 2008-09 → — Figure 455205D 455205D 2008-08 → — Figure 455205D 455205D 2008-10 → — Figure 455637A 455637A 2010-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45130 Button Assy, Horn
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
84258 Cover, Steering Pad, RH
84259 Cover, Steering Pad, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
