Toyota Hilux

2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

11 part groups · 2 illustrations

Illustrations

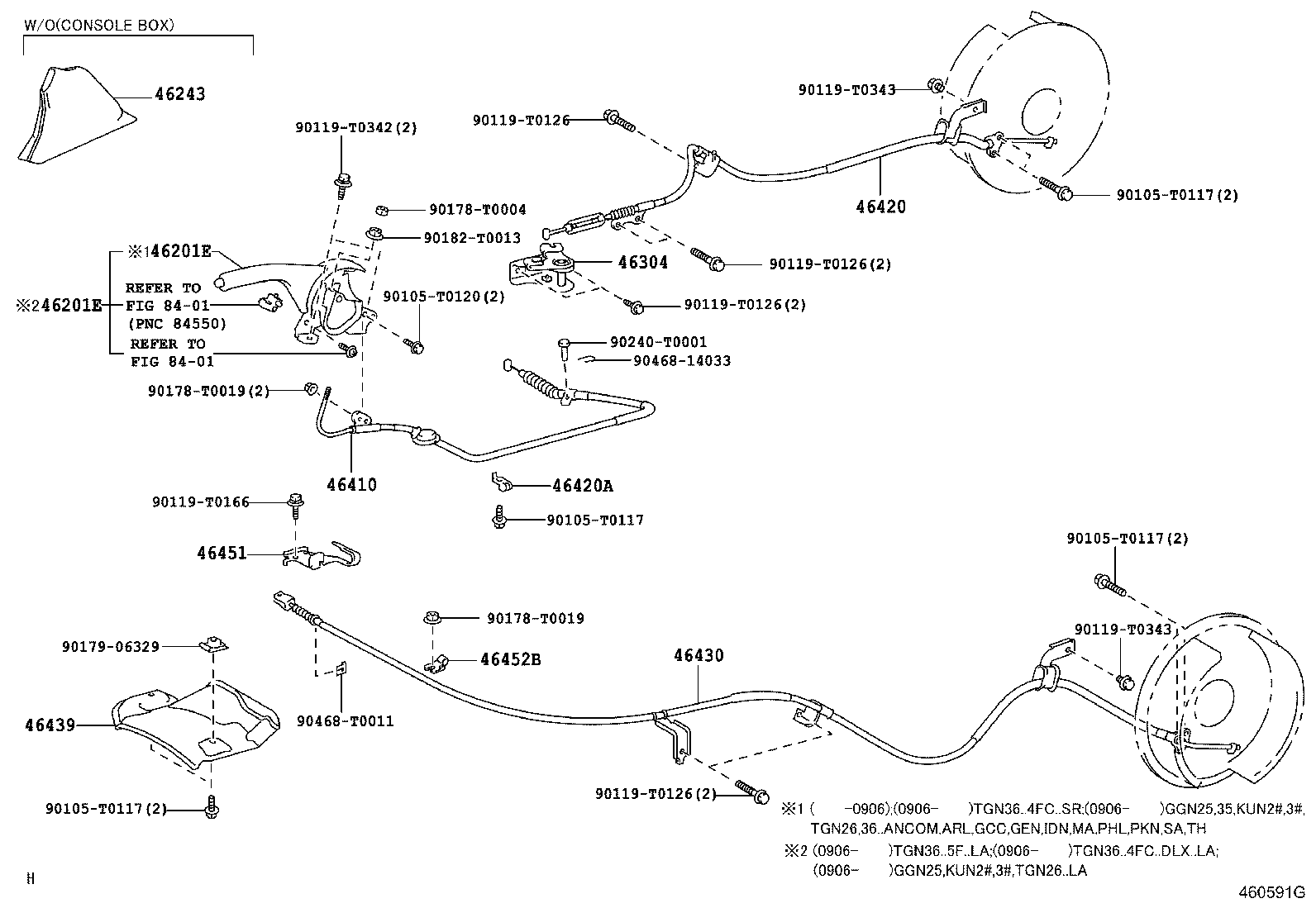

Figure 460590H 460590H 2004-08 → — Figure 460591G 460591G 2004-08 → —

Part groups

PNCDescription
46201E Lever Sub-assy, Parking Brake
46243 Cover, Parking Brake Lever
46304 Equalizer Sub-assy, Parking Brake
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46439 Insulator, Parking Brake Cable Heat
46439A Insulator, Parking Brake Cable Heat, NO.2
46451 Bracket, Cable Support
46452B Bracket, Cable Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
