Toyota Hilux

2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

12 part groups · 9 illustrations

Illustrations

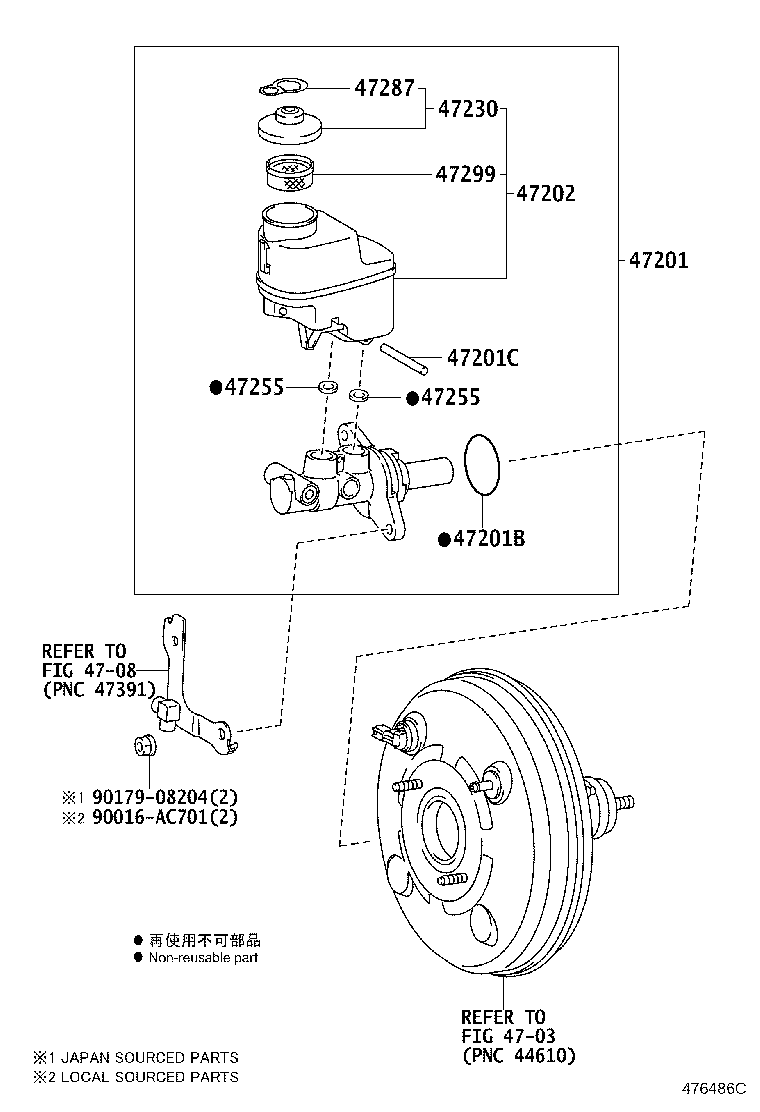

Figure 474080K 474080K 2004-08 → 2008-08 Figure 474080K 474080K 2007-10 → — Figure 474080K 474080K 2008-08 → — Figure 474080K 474080K 2008-08 → — Figure 474080K 474080K 2010-08 → — Figure 474449N 474449N 2005-01 → — Figure 476486C 476486C 2008-08 → — Figure 476486C 476486C 2010-08 → — Figure 477202B 477202B 2010-08 → —

Part groups

PNCDescription
04493 Cylinder Kit, Brake Master
47201 Cylinder Sub-assy, Brake Master
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47201C Ring Pin, Brake Master Cylinder
47202 Reservoir Sub-assy, Brake Master Cylinder
47210J Gasket(FOR MASTER CYLINDER)
47210T Bolt(FOR BRAKE MASTER CYLINDER)
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47255 Grommet, Master Cylinder Reservoir
47275A Seal, Master Cylinder
47287 Label, Brake Fluid Information
47299 Strainer, Brake Master Cylinder Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
