Toyota Hilux

2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

12 part groups · 6 illustrations

Illustrations

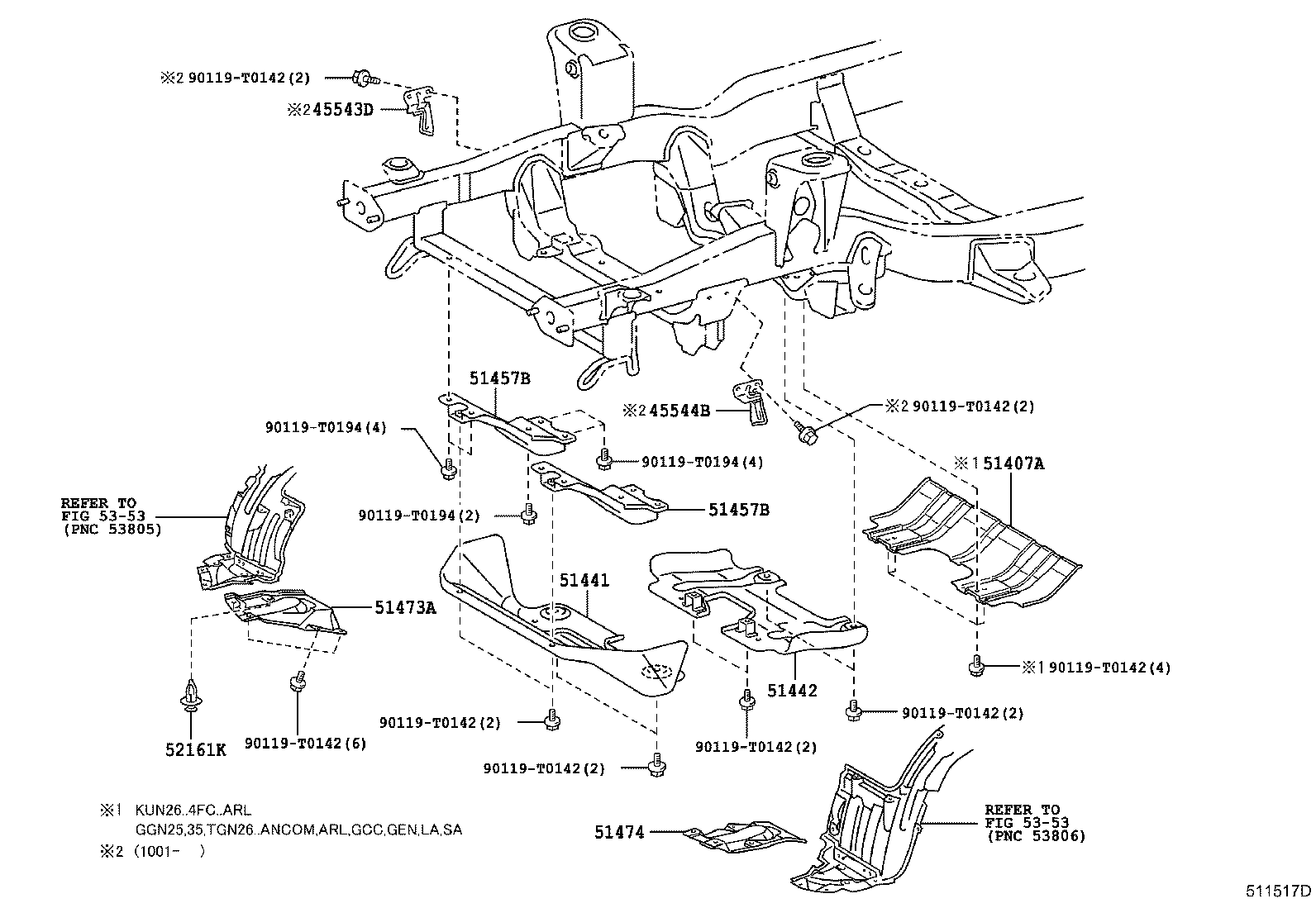

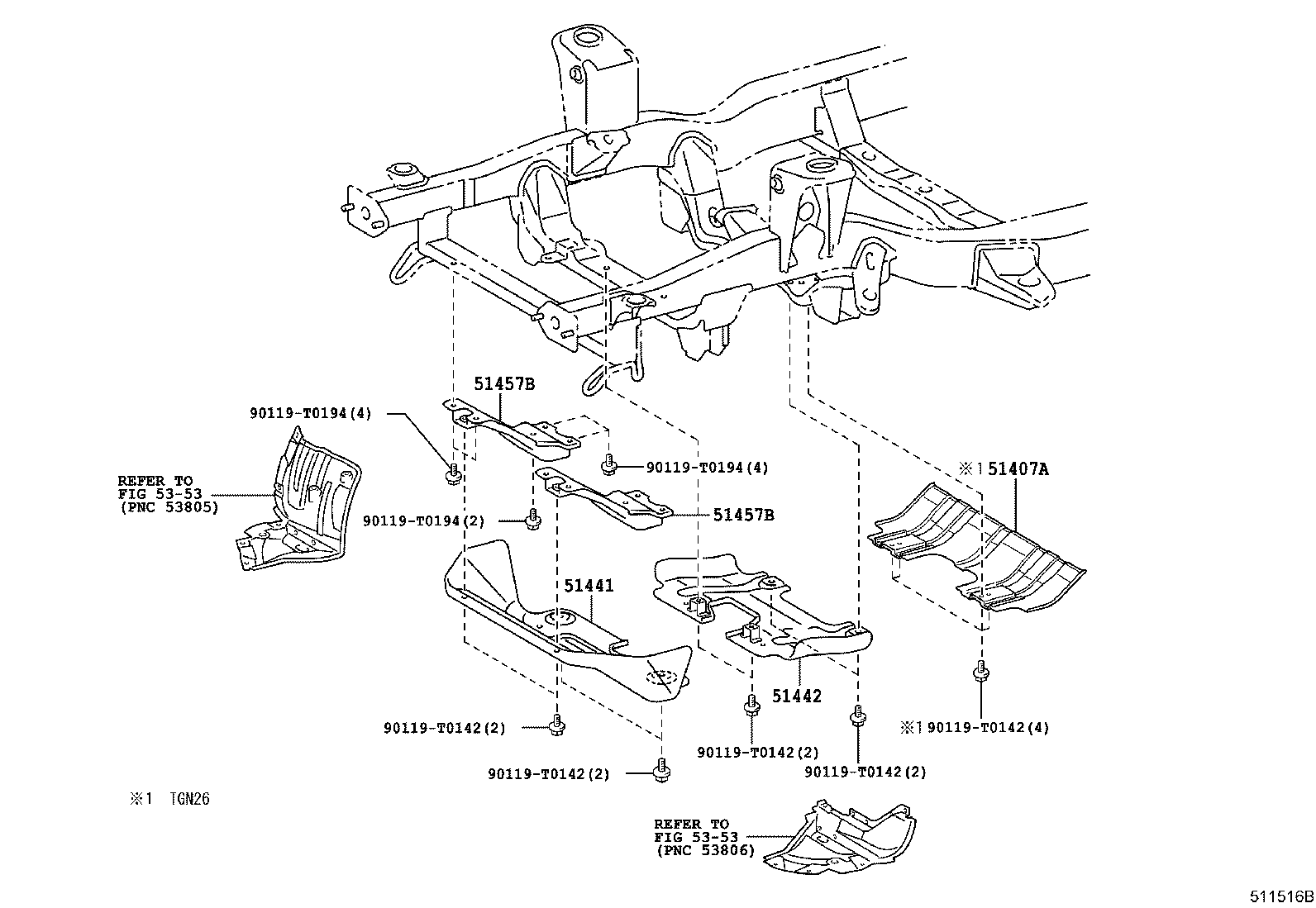

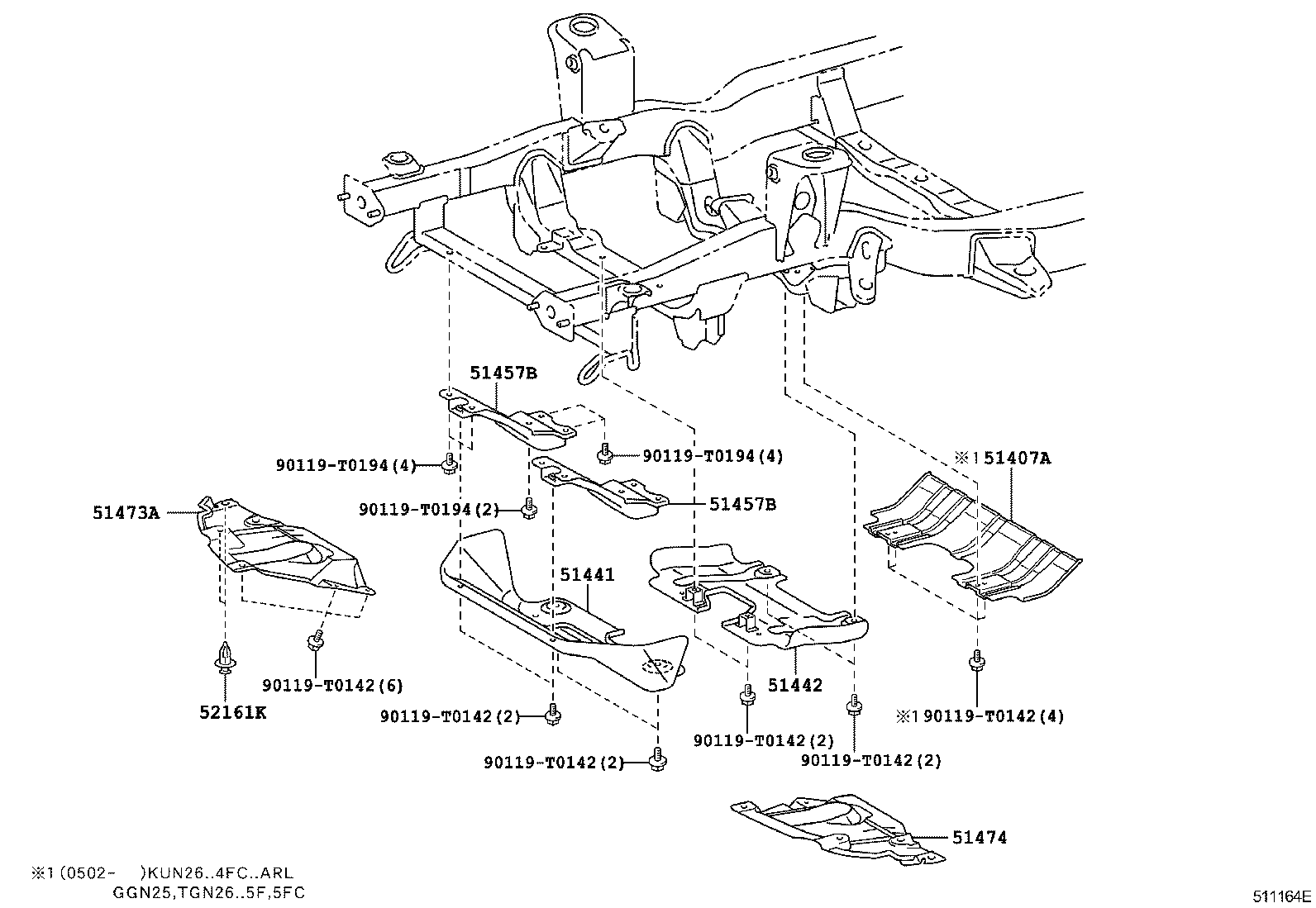

Figure 511295H 511295H 2004-08 → — Figure 511164E 511164E 2004-08 → 2006-08 Figure 511164E 511164E 2005-01 → 2006-04 Figure 511516B 511516B 2006-04 → 2006-10 Figure 511517D 511517D 2006-08 → — Figure 511517D 511517D 2006-10 → —

Part groups

PNCDescription
45057A Protector Sub-assy, Rack Boot, NO.1 RH
45058A Protector Sub-assy, Rack Boot, NO.1 LH
45543D Protector, Steering Rack Boot, RH
45544B Protector, Steering Rack Boot, LH
51407A Cover Sub-assy, Engine Under, NO.3
51441 Cover, Engine Under, NO.1
51441D Cover, Engine Under
51442 Cover, Engine Under, NO.2
51457B Brace, Front Side Member TO Front Suspension Crossmember
51473A Cover Sub-assy, Engine Side, RH
51474 Cover Sub-assy, Engine Side, LH
52161K Piece, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
