Toyota Hilux
2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States
Supported model
Data version 2012-04

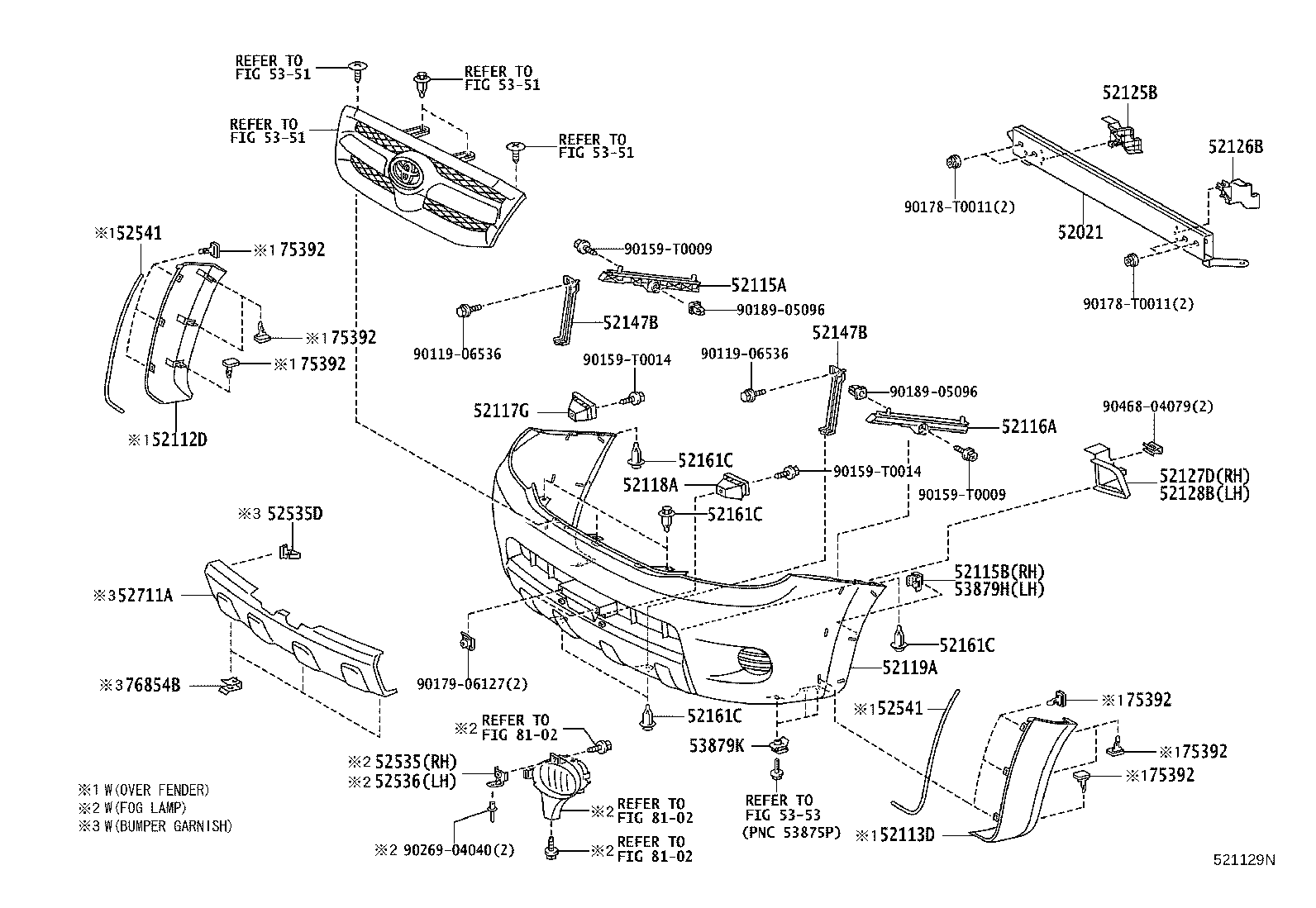

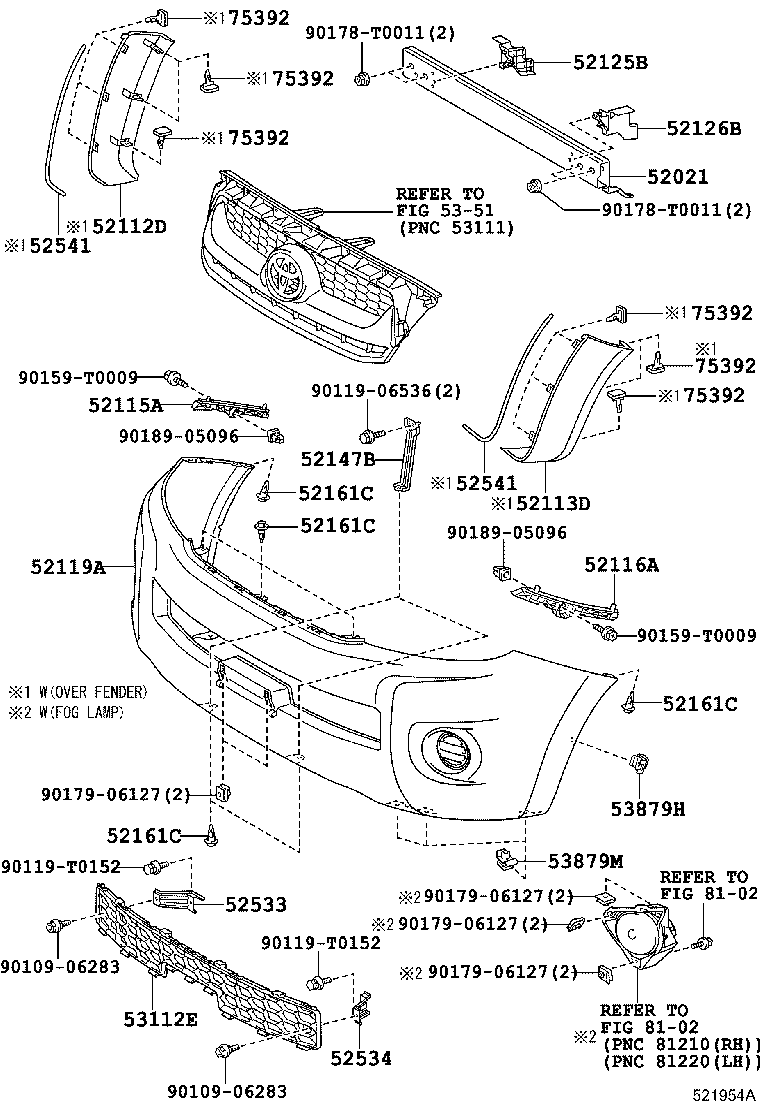

Front Bumper & Bumper Stay
30 part groups · 15 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52112D | Extension, Front Bumper, RH |
| 52113D | Extension, Front Bumper, LH |
| 52115A | Support, Front Bumper Side, RH |
| 52115B | Retainer, Front Bumper Extension, NO.1 |
| 52116A | Support, Front Bumper Side, LH |
| 52117G | Insert, Front Bumper Extension, NO.2 RH |
| 52118A | Insert, Front Bumper Extension, NO.2 LH |
| 52119A | Cover, Front Bumper |
| 52125B | Extension, Front Bumper Reinforcement, RH |
| 52126B | Extension, Front Bumper Reinforcement, LH |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52141D | Stay, Front Bumper, RH |
| 52142C | Stay, Front Bumper, LH |
| 52147B | Bracket, Front Bumper Mounting |
| 52161C | Piece, Front Bumper |
| 52533 | Bracket, Front Bumper Retainer, NO.1 |
| 52534 | Bracket, Front Bumper Retainer, NO.2 |
| 52535 | Retainer, Front Bumper Side, RH |
| 52535D | Retainer, Front Bumper Side |
| 52536 | Retainer, Front Bumper Side, LH |
| 52541 | Protector, Front Bumper |
| 52711A | Garnish, Front Bumper |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53879H | Retainer, Front Fender Liner |
| 53879K | Retainer, Front Fender Liner |
| 53879M | Retainer, Front Fender Liner |
| 75392 | Retainer, Outside Moulding |
| 76854B | Retainer, Front Spoiler,NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
