Toyota Hilux

2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

19 part groups · 10 illustrations

Illustrations

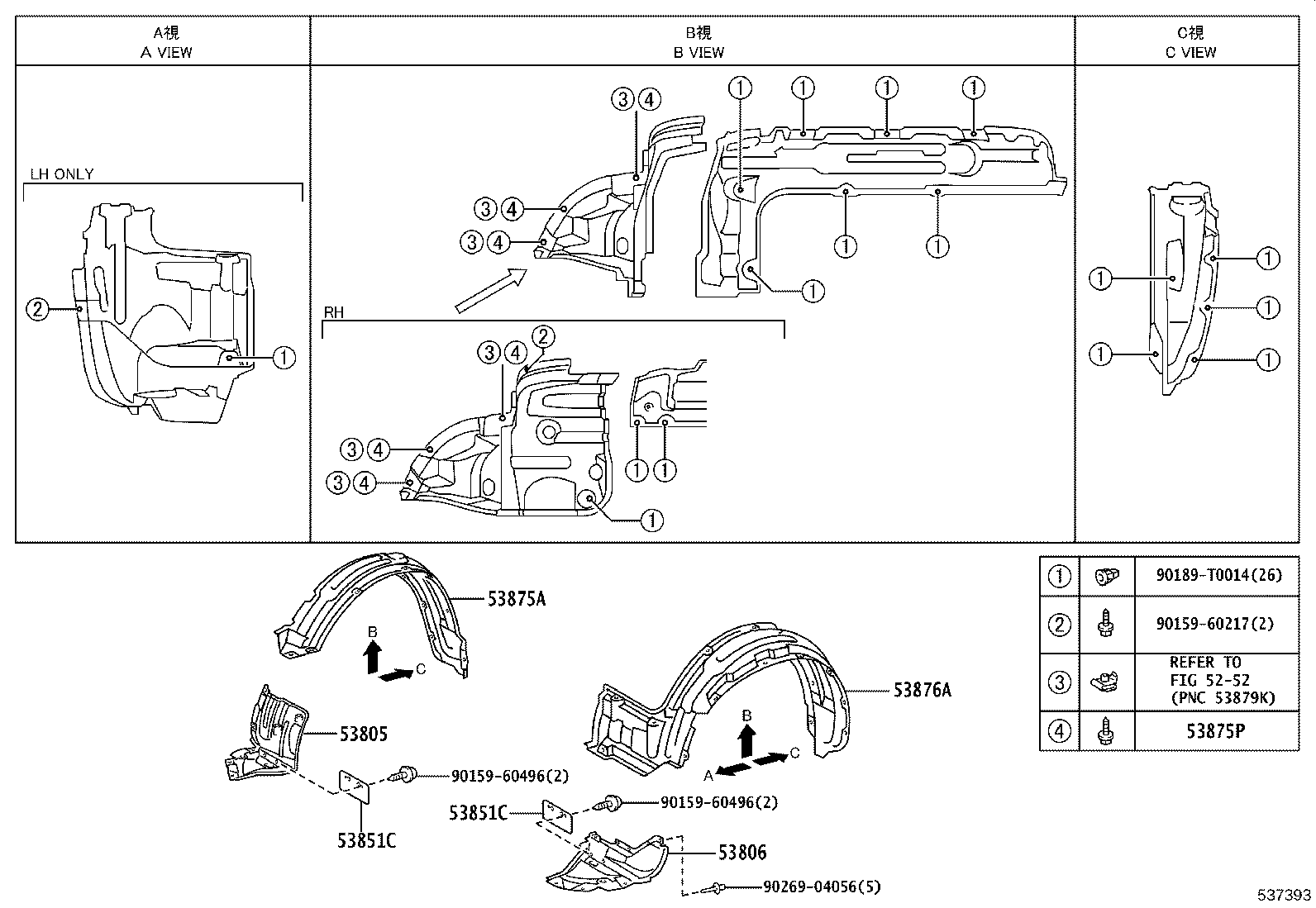

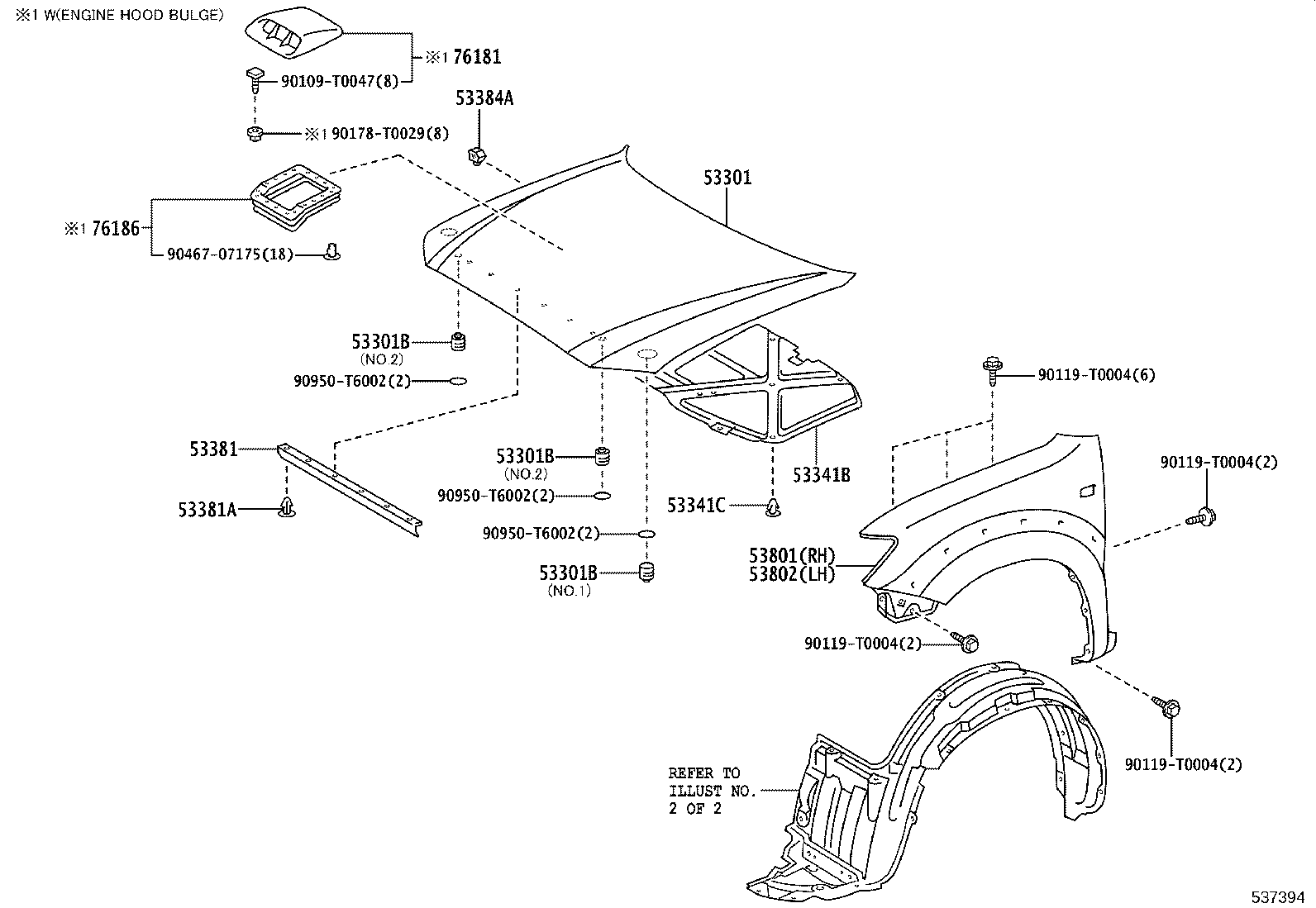

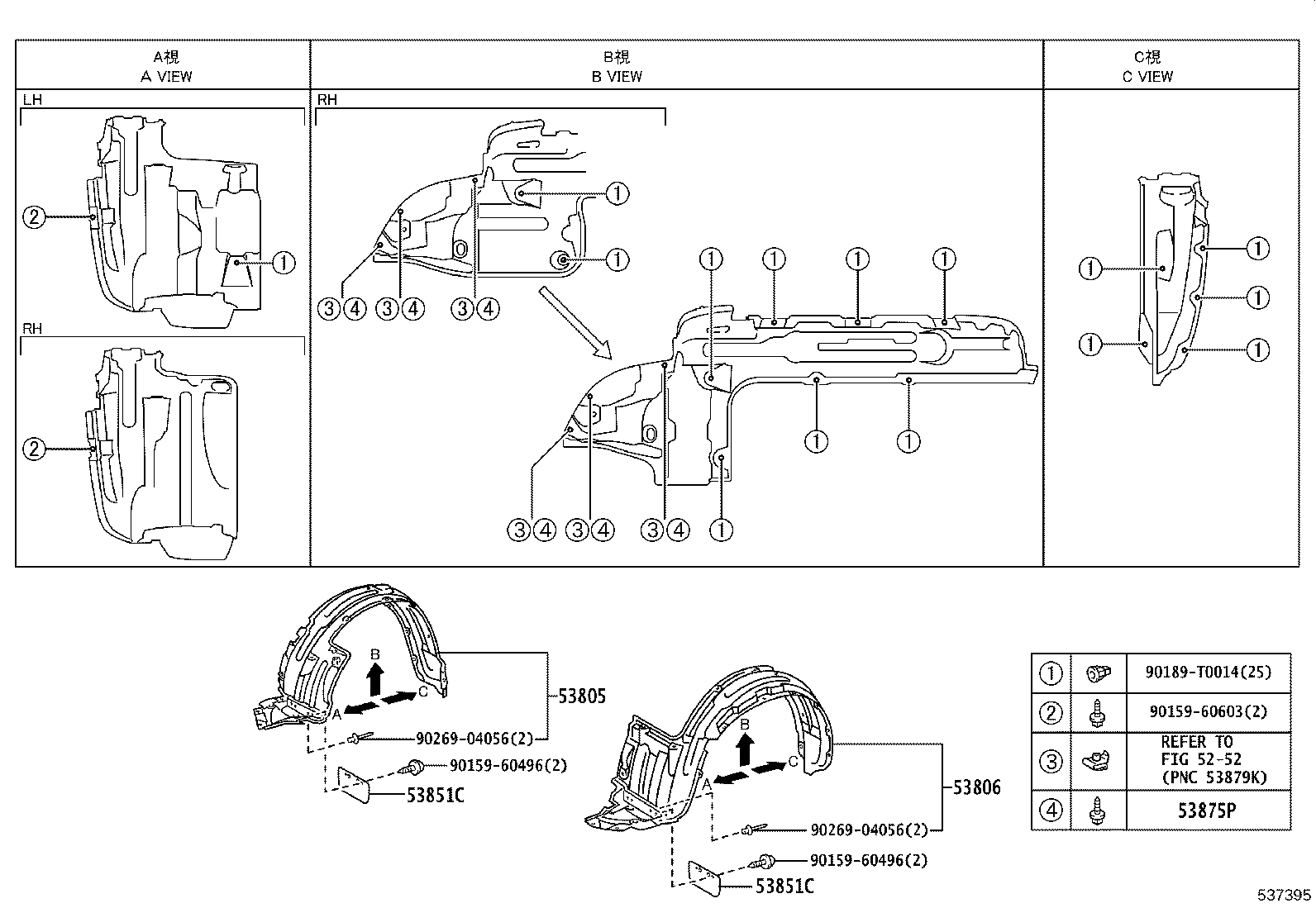

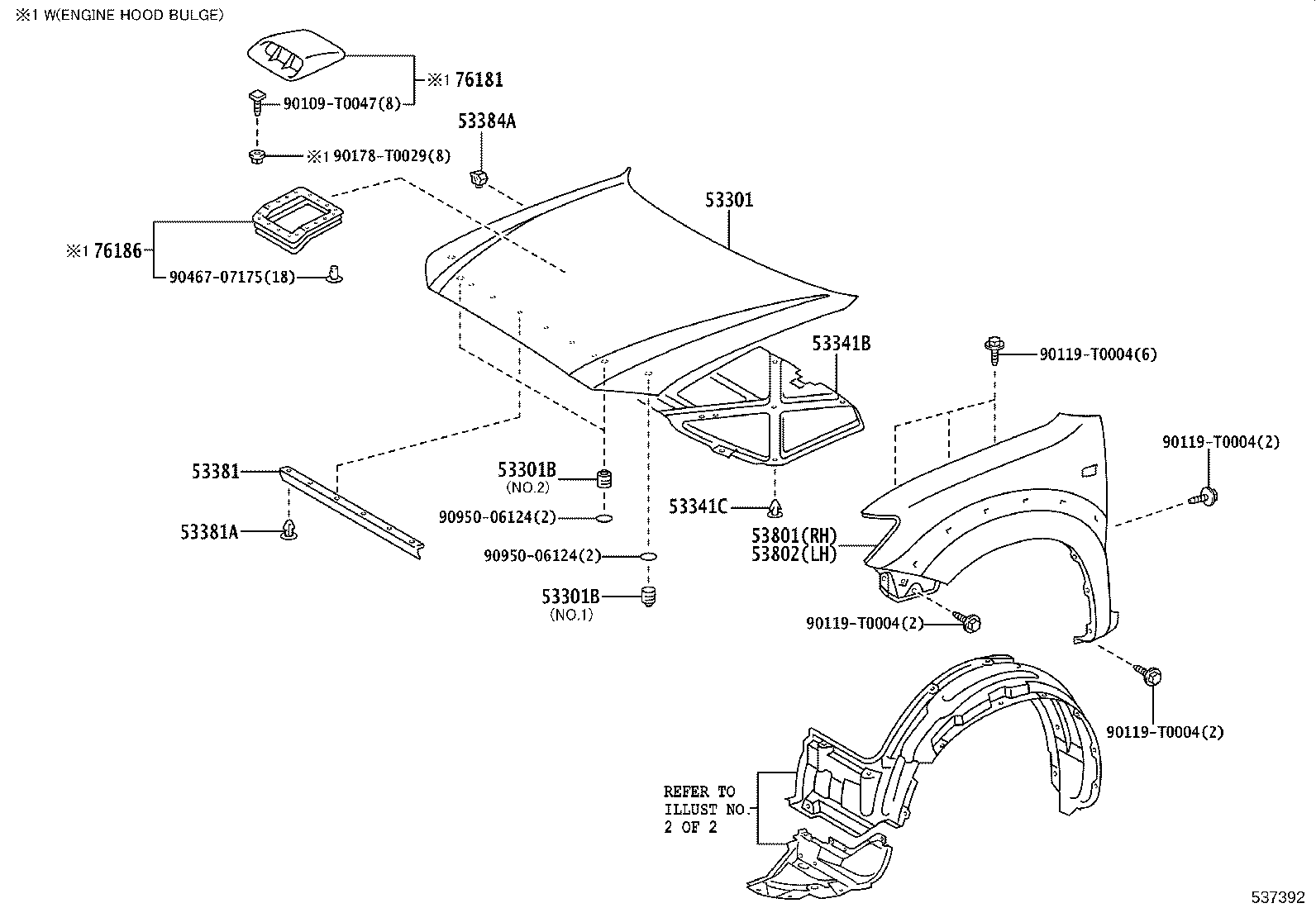

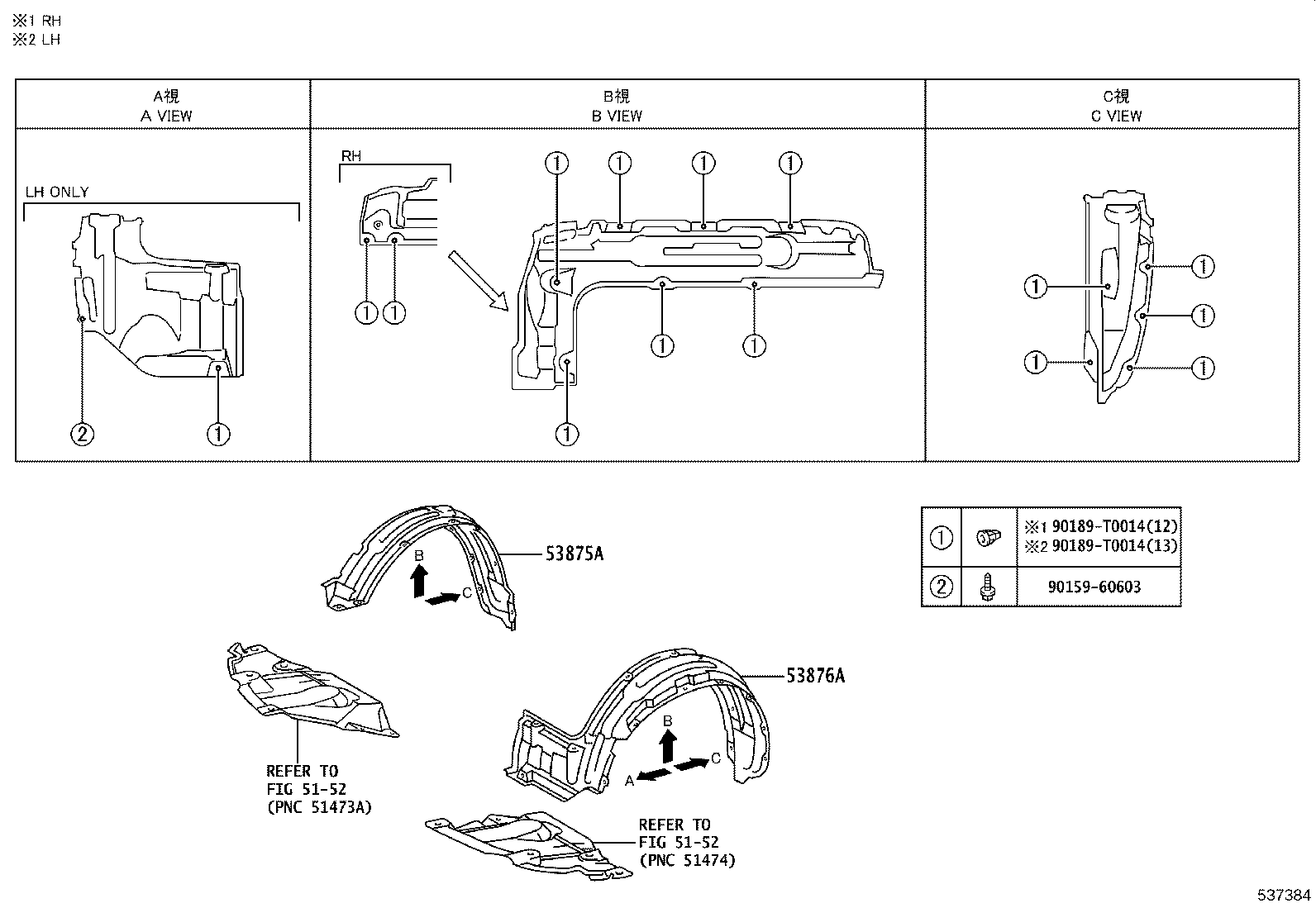

Figure 537391 537391 2004-08 → 2006-08 Figure 537391 537391 2005-01 → 2006-04 Figure 537384 537384 2004-08 → 2006-08 Figure 537384 537384 2005-01 → 2006-04 Figure 537392 537392 2006-04 → 2008-10 Figure 537393 537393 2006-04 → 2008-10 Figure 537394 537394 2006-08 → — Figure 537394 537394 2008-10 → — Figure 537395 537395 2006-08 → — Figure 537395 537395 2008-10 → —

Part groups

PNCDescription
53183F Seal, Headlamp Cover TO Hood
53183M Clip(FOR HEADLAMP COVER SEAL)
53301 Hood Sub-assy
53301B Cushion, Hood Bumper
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384A Bumper, Fender TO Hood
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53851C Pad, Front Wheel Opening Extension, NO.1
53875A Liner, Front Fender, RH
53875P Screw, NO.1
53876A Liner, Front Fender, LH
76181 Bulge, Hood
76186 Seal, Hood Air Intake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
