Toyota Hilux

2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

9 part groups · 3 illustrations

Illustrations

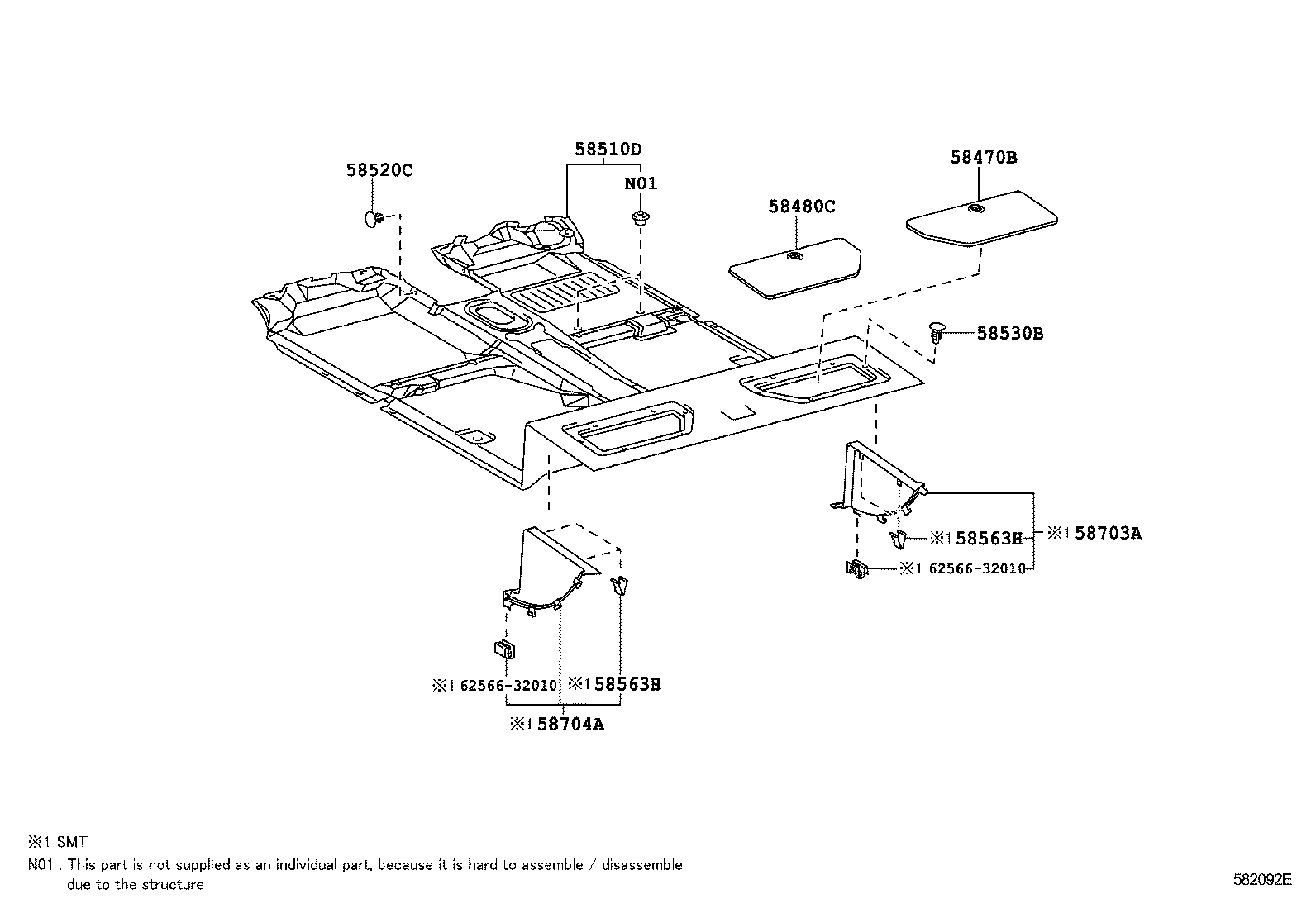

Figure 583389 583389 2004-08 → — Figure 582091F 582091F 2004-08 → — Figure 582092E 582092E 2004-08 → —

Part groups

PNCDescription
58470B Cover Assy, Seat Floor Service Hole, RH
58480C Cover Assy, Seat Floor Service Hole, LH
58510D Carpet Assy, Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58530B Clip(FOR FRONT FLOOR CARPET)
58563H Clip(FOR REAR FLOOR MAT)
58591 Cover, Floor Carpet
58703A Cover Sub-assy, Luggage Compartment Side, RH
58704A Cover Sub-assy, Luggage Compartment Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
