Toyota Hilux
2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States
Supported model
Data version 2012-04

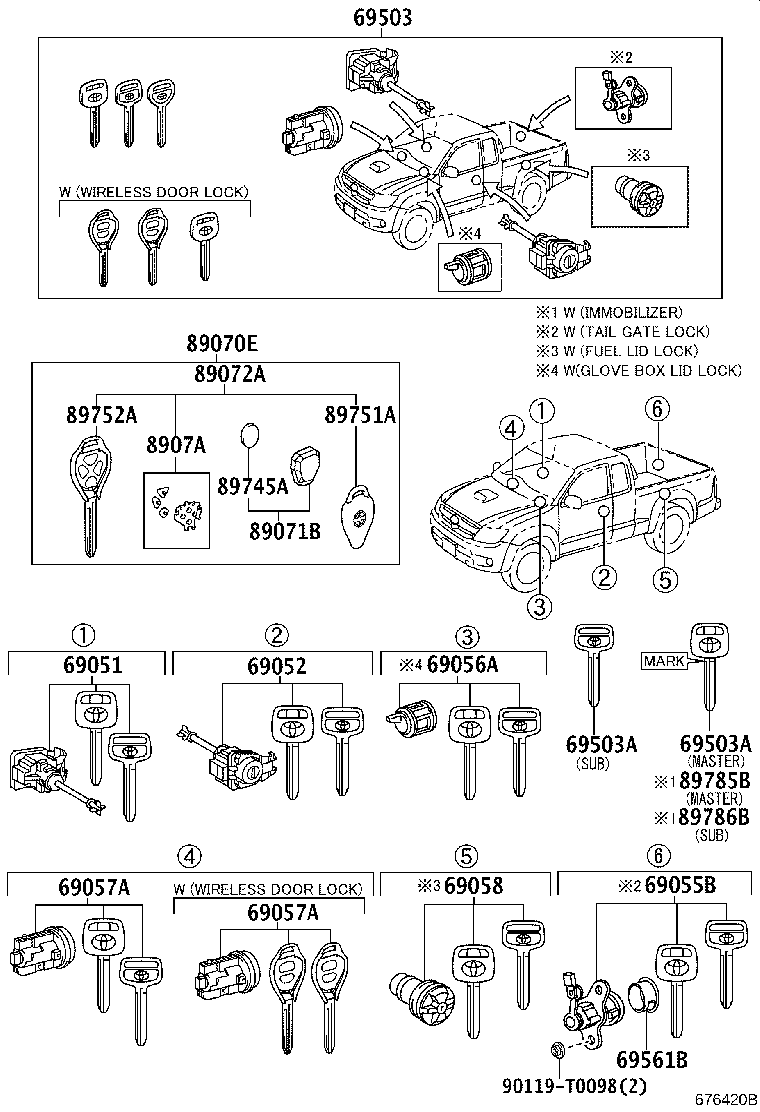

Lock Cylinder Set
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69055B | Cylinder & Key Set, Back Door Lock |
| 69056A | Cylinder & Key Set, Glove Compartment Lock |
| 69057A | Cylinder & Key Set, Ignition Switch Lock |
| 69058 | Cylinder & Key Set, Fuel Filler Lid |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69561B | Retainer, Back Door Lock Cylinder |
| 89070E | Transmitter Assy, Door Control |
| 89071B | Module Set, Transmitter Sub-assy, Door Control |
| 89072A | Housing Set, Door Control Transmitter |
| 8907A | Switch Set, Transmitter |
| 89745A | Battery, Transmitter |
| 89751A | Cover, Transmitter Housing |
| 89752A | Case, Transmitter Housing |
| 89785B | Transmitter, Transponder Key Master |
| 89786B | Transmitter, Transponder Key Sub |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
