Toyota Hilux
2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States
Supported model
Data version 2012-04

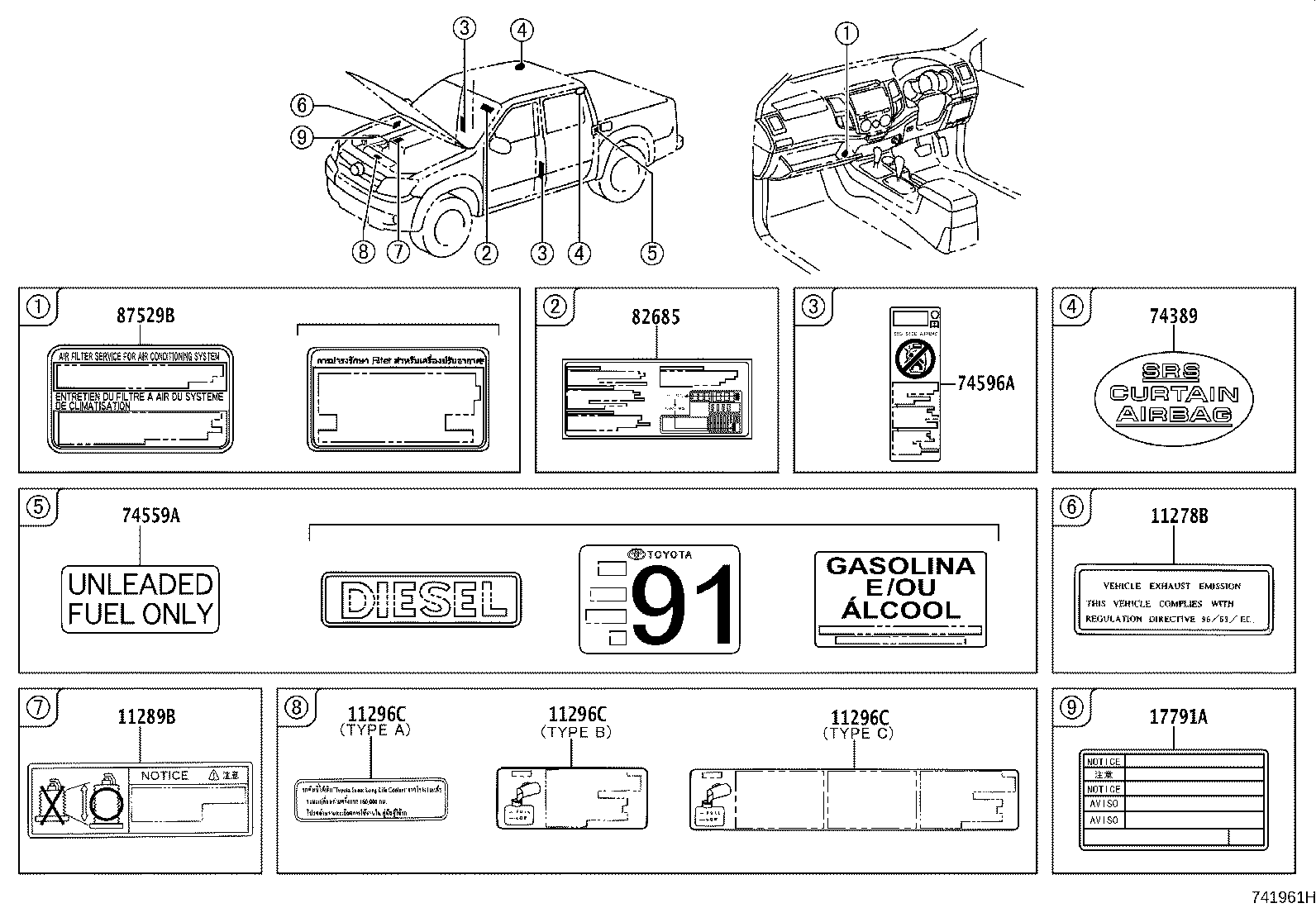

Caution Plate
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11278B | Label, Engine Emission Compliance Information |
| 11289B | Label, Spark Plug Notice |
| 11296C | Label, Engine Service Information |
| 11298B | Label, Emission Control Information |
| 17791A | Label, Maintenance Information |
| 23923A | Label, Fuel Sedimenter Notice |
| 36369 | Label, Transfer Information |
| 41991A | Plate, Caution |
| 47939A | Plate, Load Sensing Valve Marking |
| 69339A | Plate, Child Protector Lock Caution |
| 74389 | Label, Airbag Caution |
| 74515A | Plate, Theft Warning |
| 74541 | Plate, Tire Pressure Caution |
| 74559A | Plate, Fuel Caution |
| 74567A | Plate, E.C.E Approved Number |
| 74582 | Plate, Load Sensing Valve Marking |
| 74596A | Label, Side Airbag Caution |
| 74598C | Label, Passenger Airbag Caution |
| 82685 | Plate, Caution |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
