Toyota Hilux
2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States
Supported model
Data version 2012-04

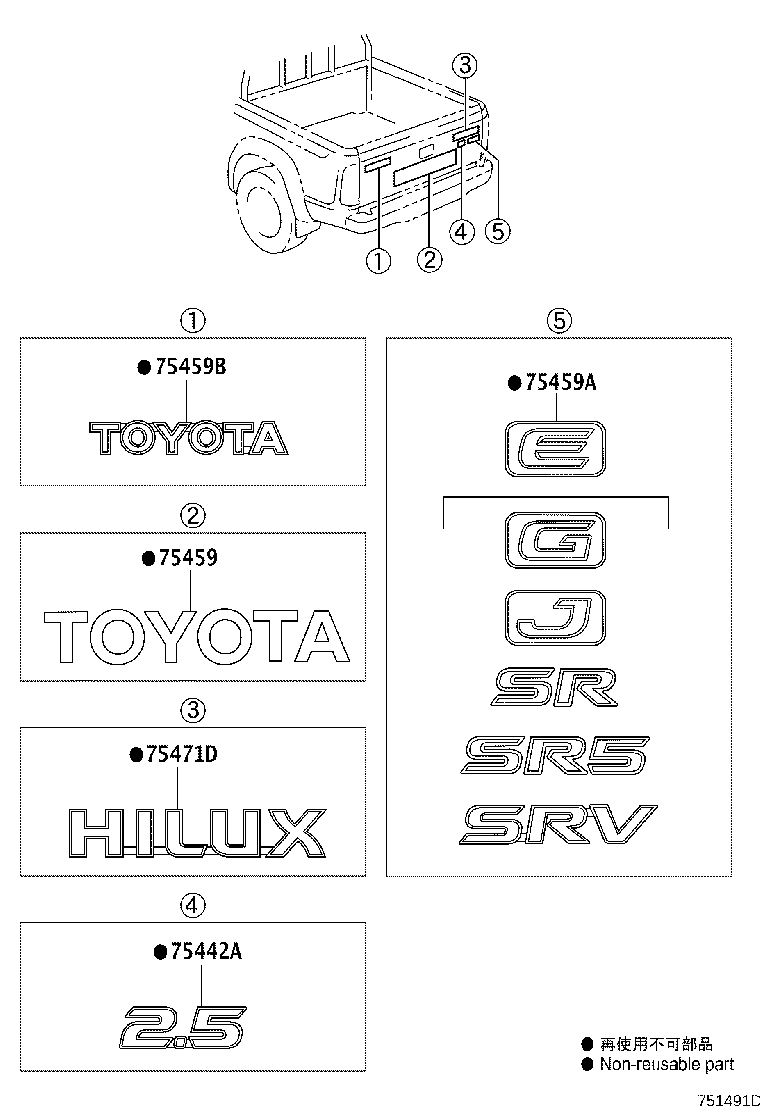

Emblem & Name Plate
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 75311 | Emblem, Radiator Grille (OR FRONT PANEL) |
| 75321 | Plate, Radiator Grille OR Front Panel Name |
| 75427 | Plate, Front Door Name |
| 75427B | Plate, Front Door Name, NO.1 |
| 75428B | Plate, Front Door Name, NO.2 |
| 75442A | Plate, Back Door Name, NO.2 |
| 75459 | Mark, Tail Gate |
| 75459A | Mark, Back Door |
| 75459B | Mark, Tail Gate, NO.2 |
| 75471D | Plate, Rear Name |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
