Toyota Hilux

2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

10 part groups · 9 illustrations

Illustrations

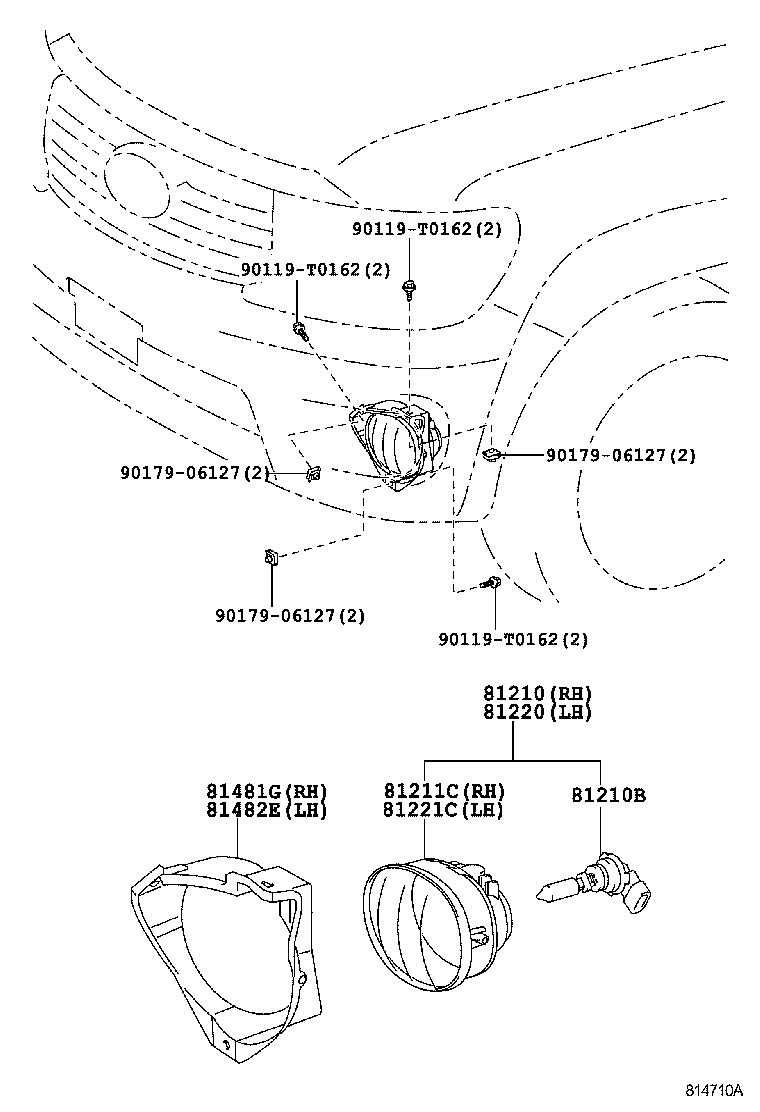

Figure 812943G 812943G 2004-08 → 2008-08 Figure 812943G 812943G 2004-08 → 2008-09 Figure 812943G 812943G 2004-08 → 2008-10 Figure 812943G 812943G 2004-08 → 2008-12 Figure 814710A 814710A 2008-08 → — Figure 814710A 814710A 2008-08 → — Figure 814710A 814710A 2008-09 → — Figure 814710A 814710A 2008-10 → — Figure 814710A 814710A 2008-12 → —

Part groups

PNCDescription
81210 Lamp Assy, Fog
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81212E Back Cover, Fog Lamp
81219A Bracket, Fog Lamp, RH
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
81229A Bracket, Fog Lamp, LH
81481G Bracket, Fog Lamp, RH
81482E Bracket, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
