Meter

4 part groups · 2 illustrations

Illustrations

831070 2004-08 → —

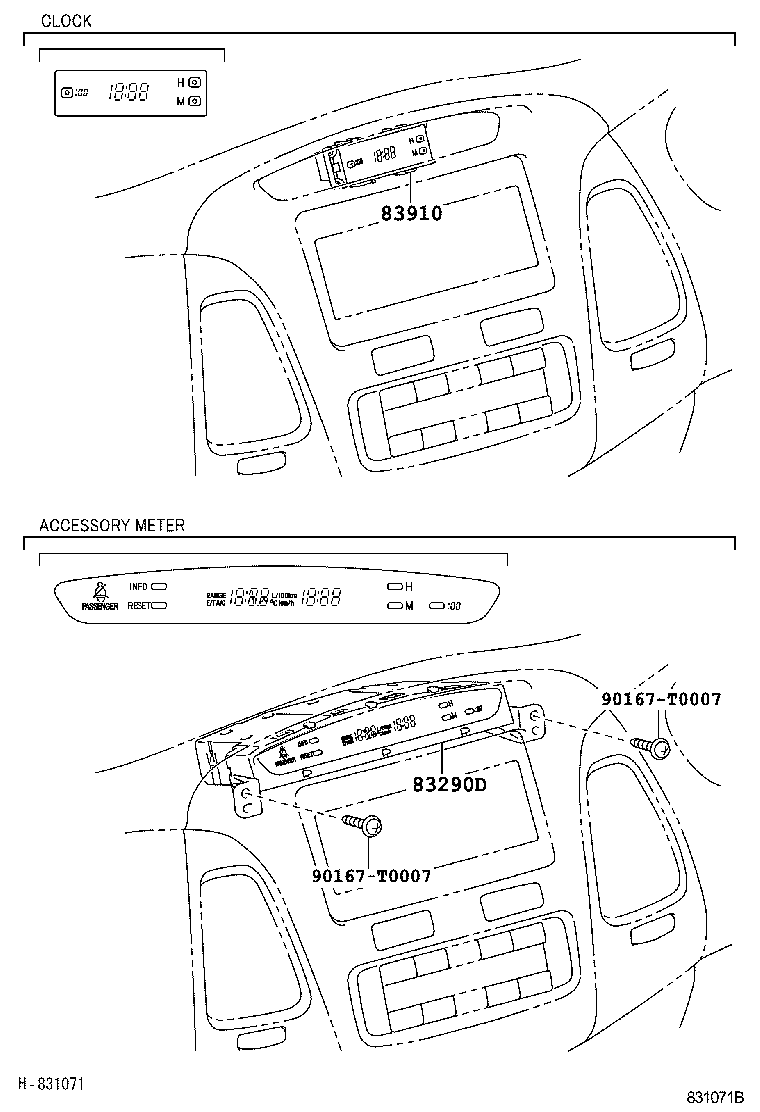

Figure 831071B

831071B 2004-08 → —

Part groups

PNC	Description
83100	Meter Assy, Combination
83138G	Glass, Combination Meter
83290D	Meter Assy, Accessory
83910	Clock Assy

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
