Toyota Hilux

2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States

Supported model Data version 2012-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

6 part groups · 2 illustrations

Illustrations

Figure 862264E

862264E 2004-08 → —

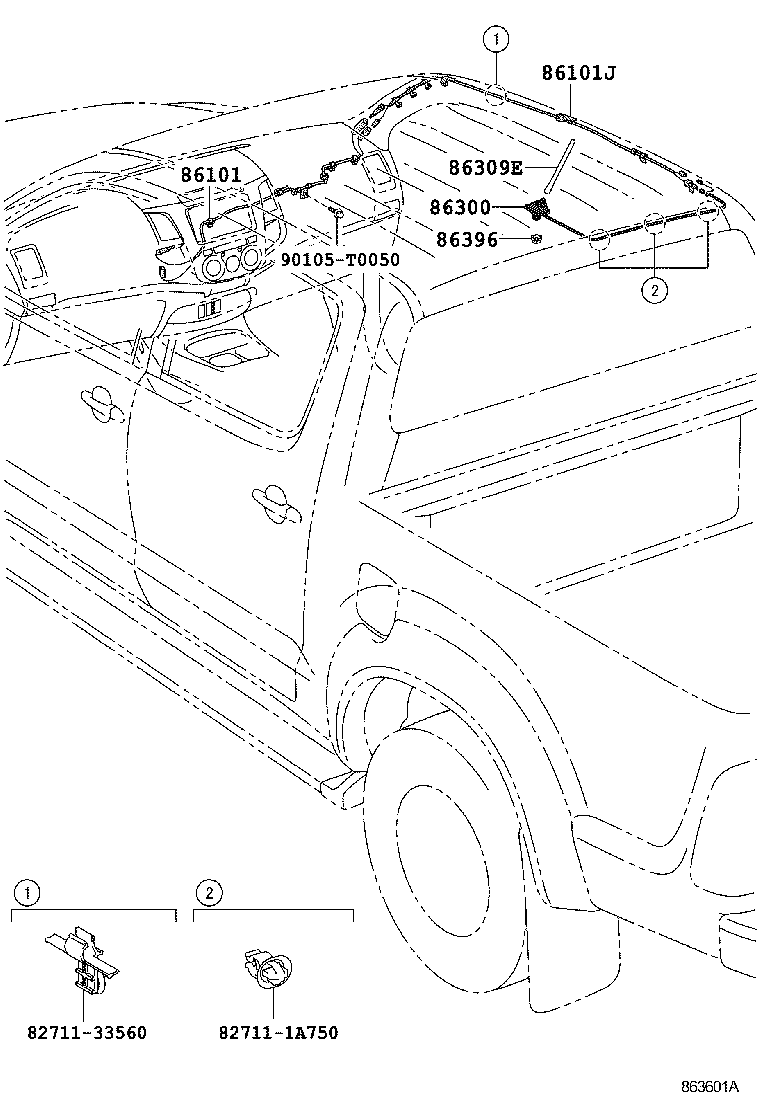

Figure 863601A

863601A 2008-10 → —

Part groups

PNC	Description
86101	Cord Sub-assy, Antenna
86101J	Cord Sub-assy, Antenna, NO.2
86300	Antenna Assy, W/Holder
86309E	Pole Sub-assy, Roof Antenna
86392	Ornament, Antenna
86396	Nut, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
