Heating & Air Conditioning - Water Piping

9 part groups · 10 illustrations

Illustrations

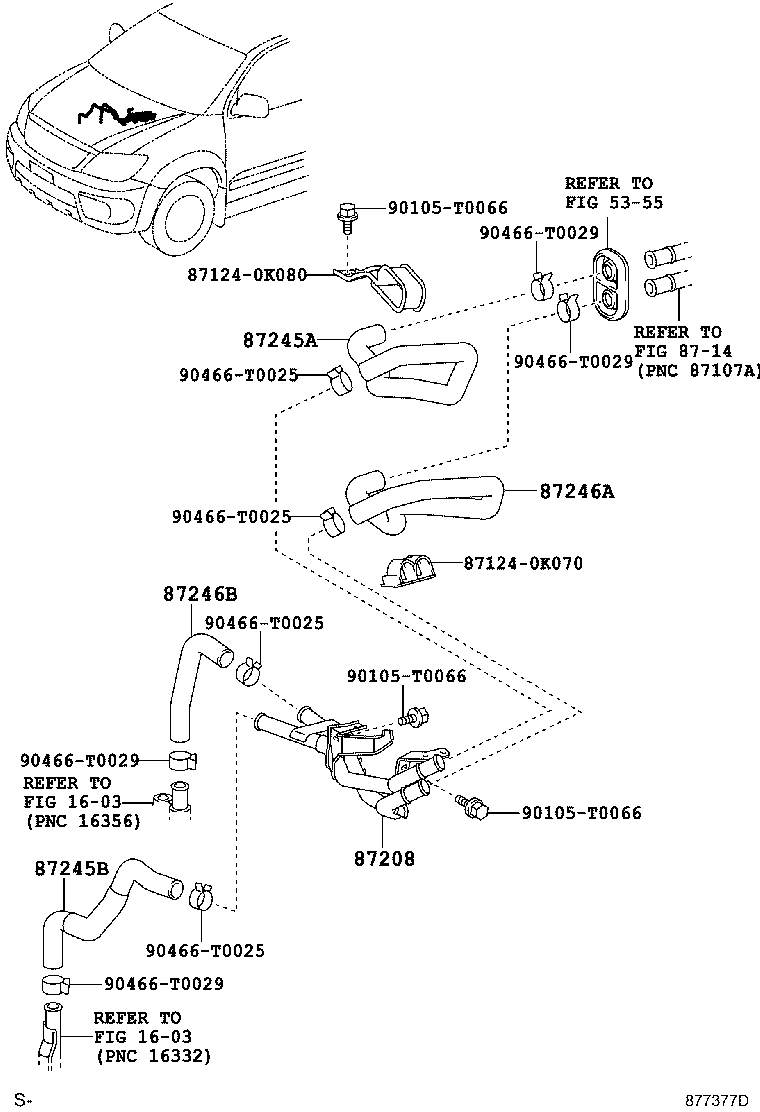

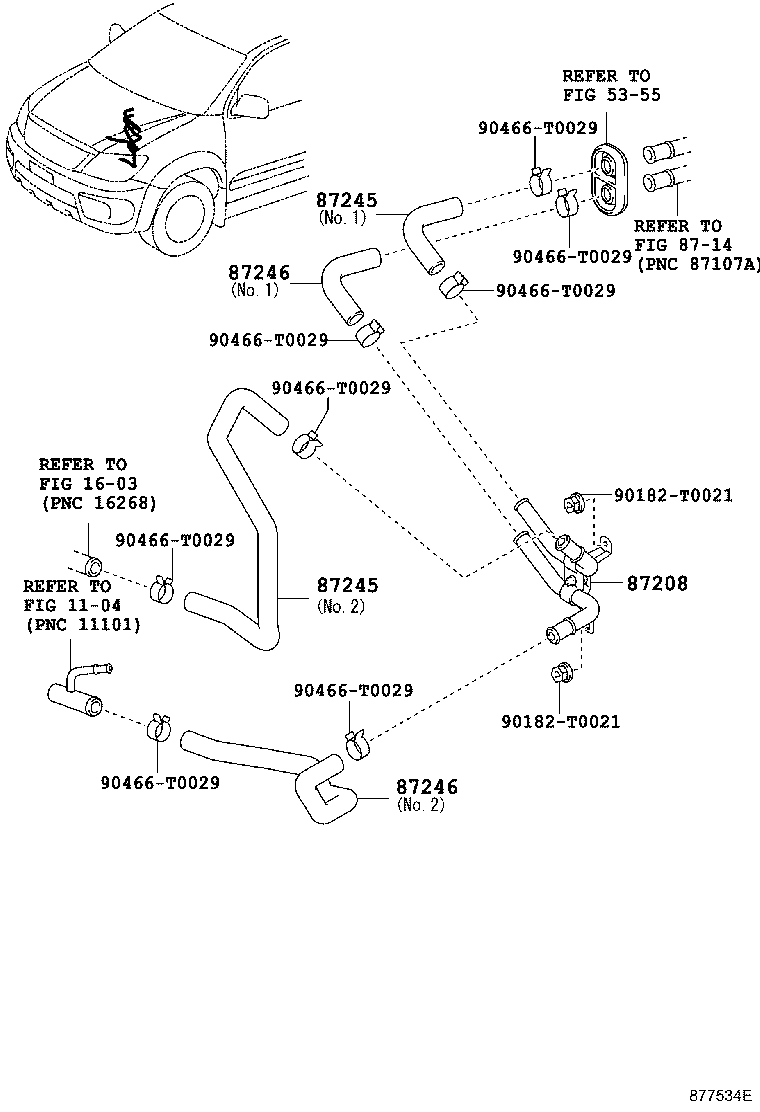

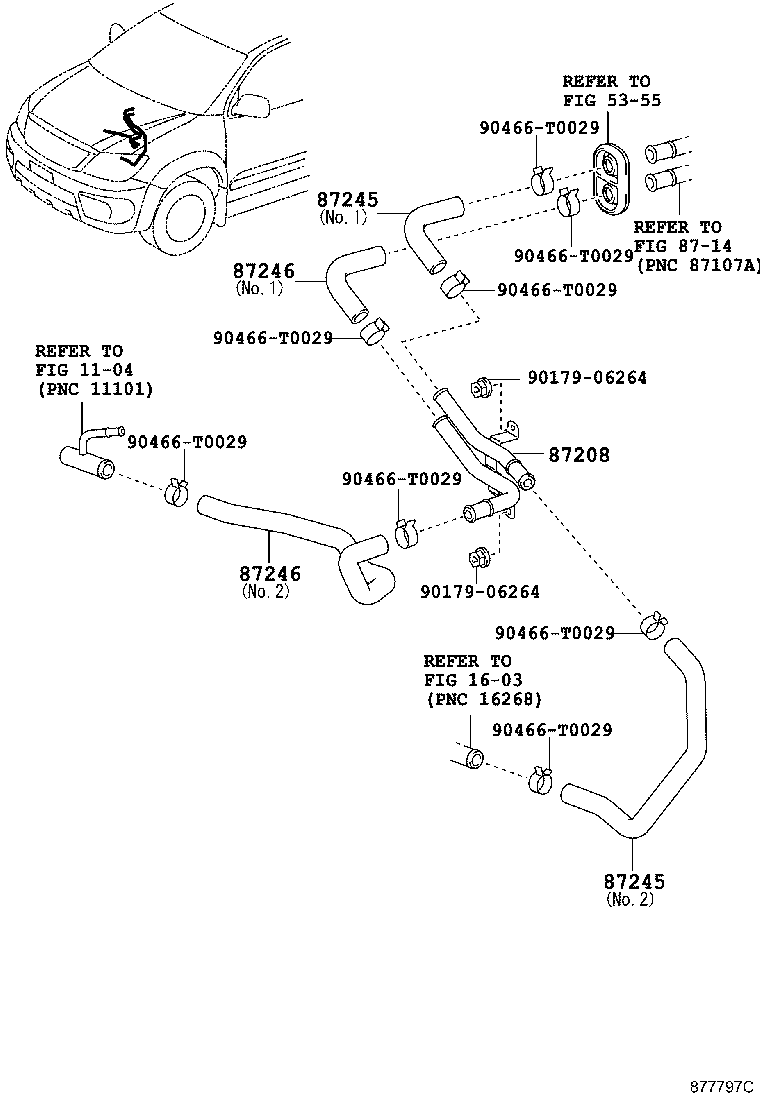

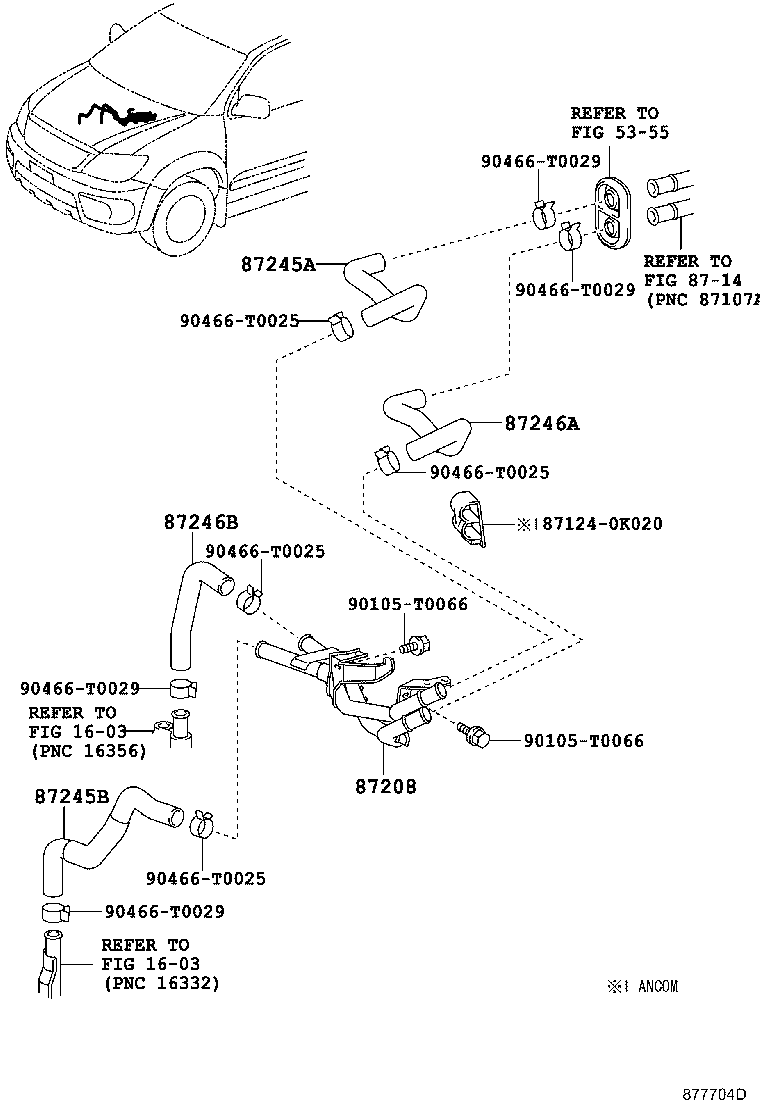

Figure 877380L 877380L 2005-01 → — Figure 877380L 877380L 2005-01 → — Figure 877380L 877380L 2010-08 → — Figure 877380L 877380L 2010-08 → — Figure 877380L 877380L 2010-10 → — Figure 877797C 877797C 2005-02 → — Figure 877534E 877534E 2005-02 → — Figure 877377D 877377D 2005-02 → — Figure 877704D 877704D 2005-07 → — Figure 877662B 877662B 2005-07 → —

Part groups

PNCDescription
87208 Pipe Sub-assy, Heater Water
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245H Hose, Heater Water, Inlet H
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246G Hose, Heater Water, Outlet G
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
