Toyota Hilux

2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

15 part groups · 33 illustrations

Illustrations

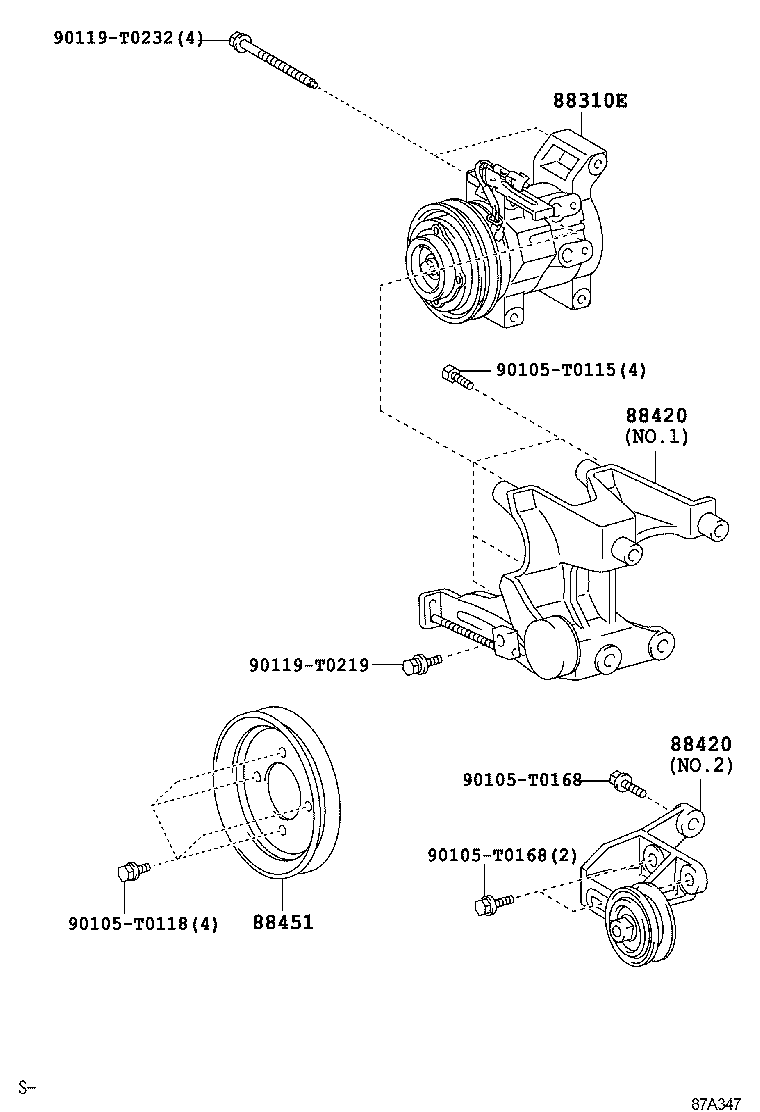

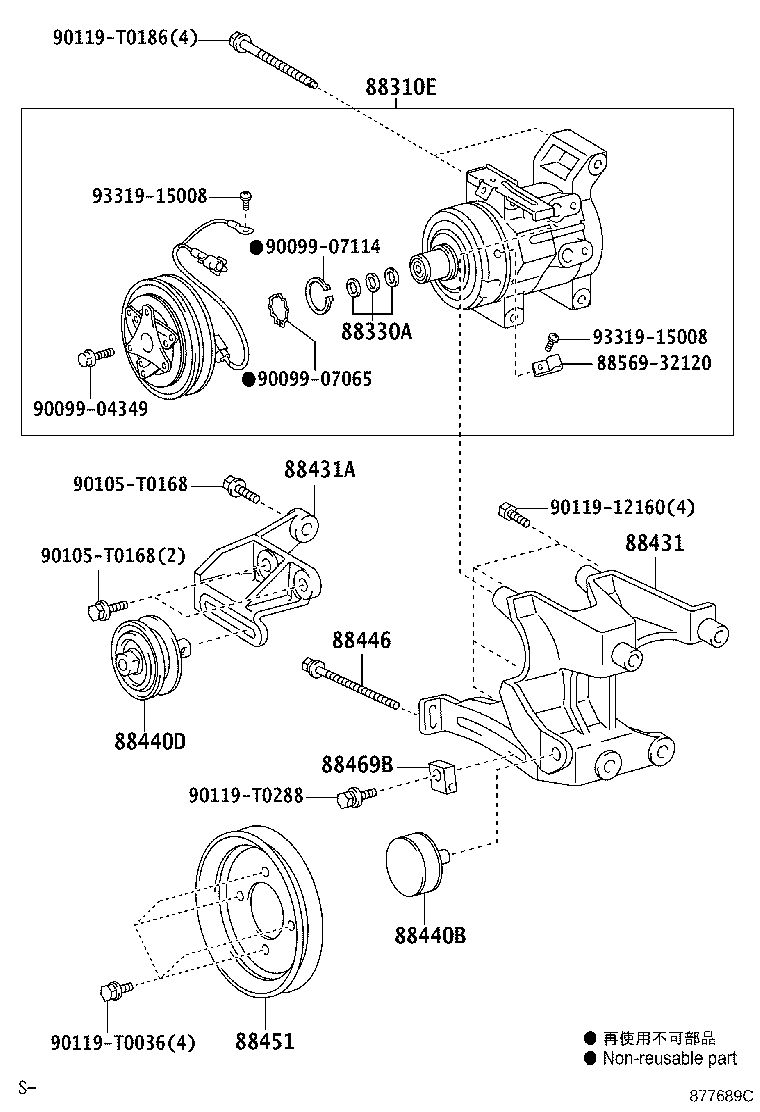

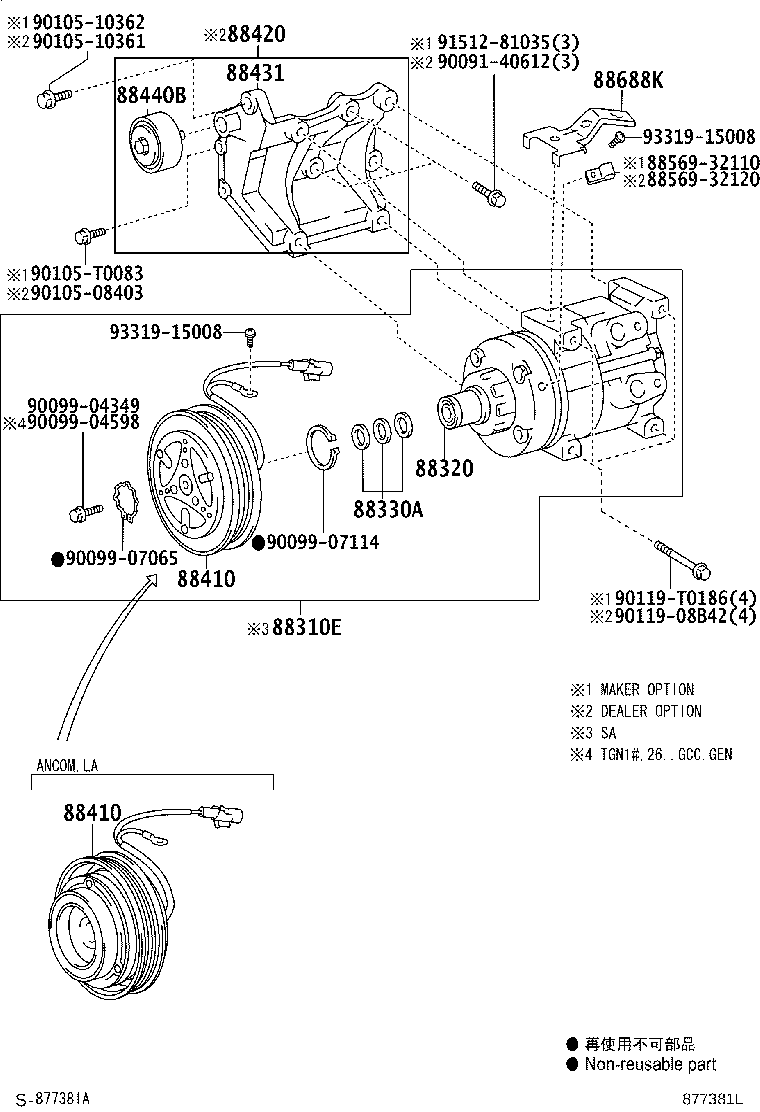

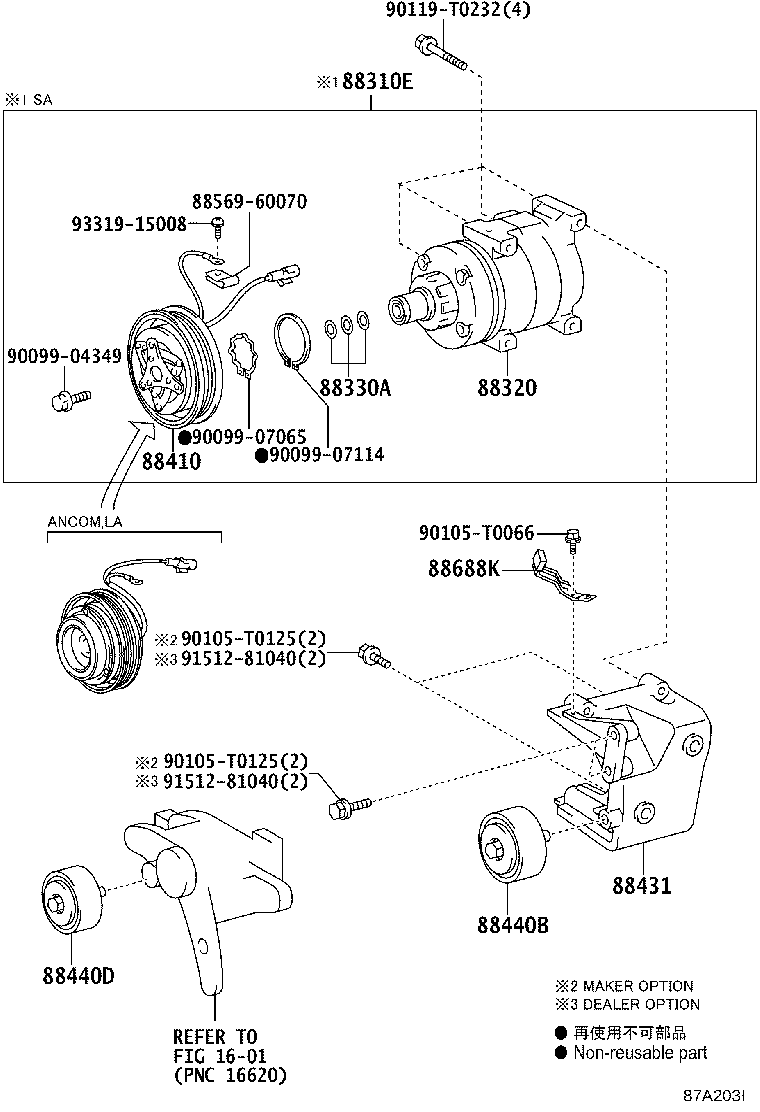

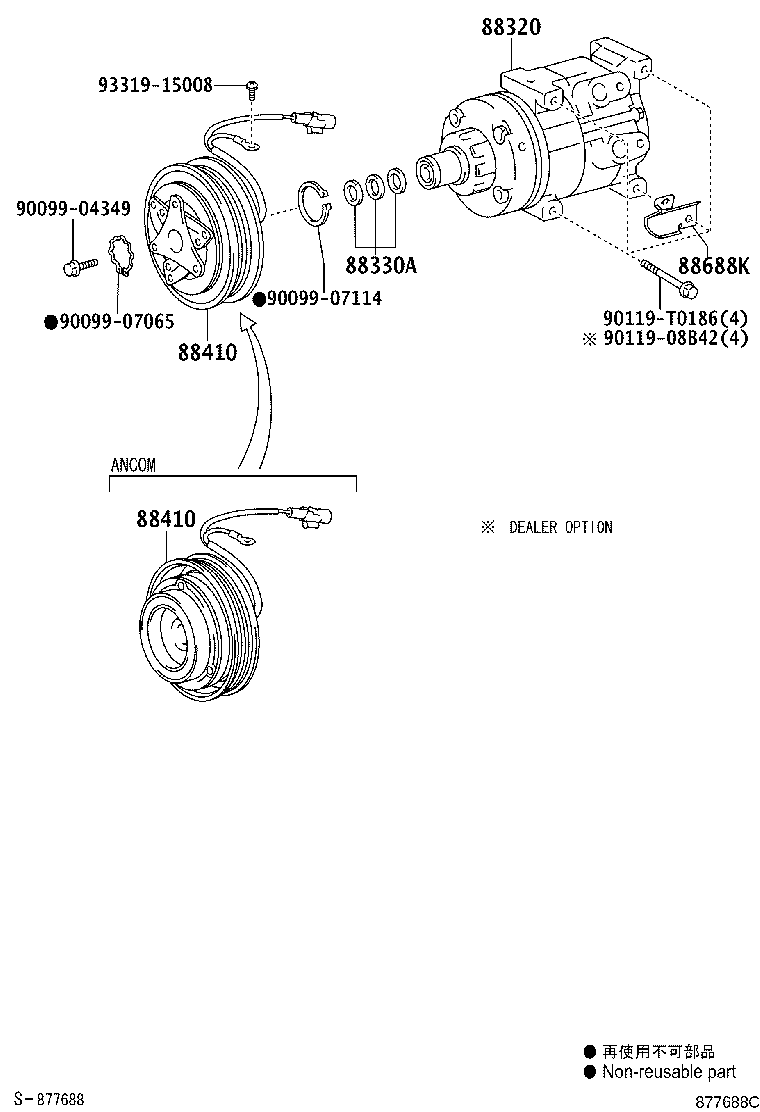

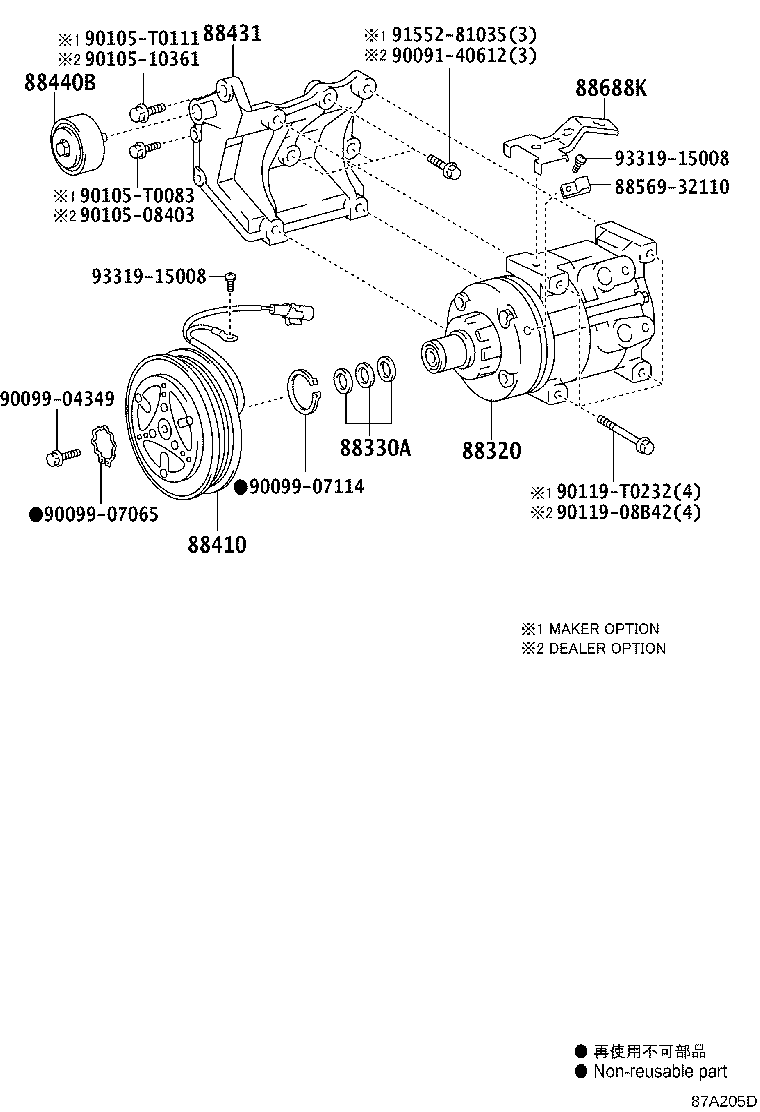

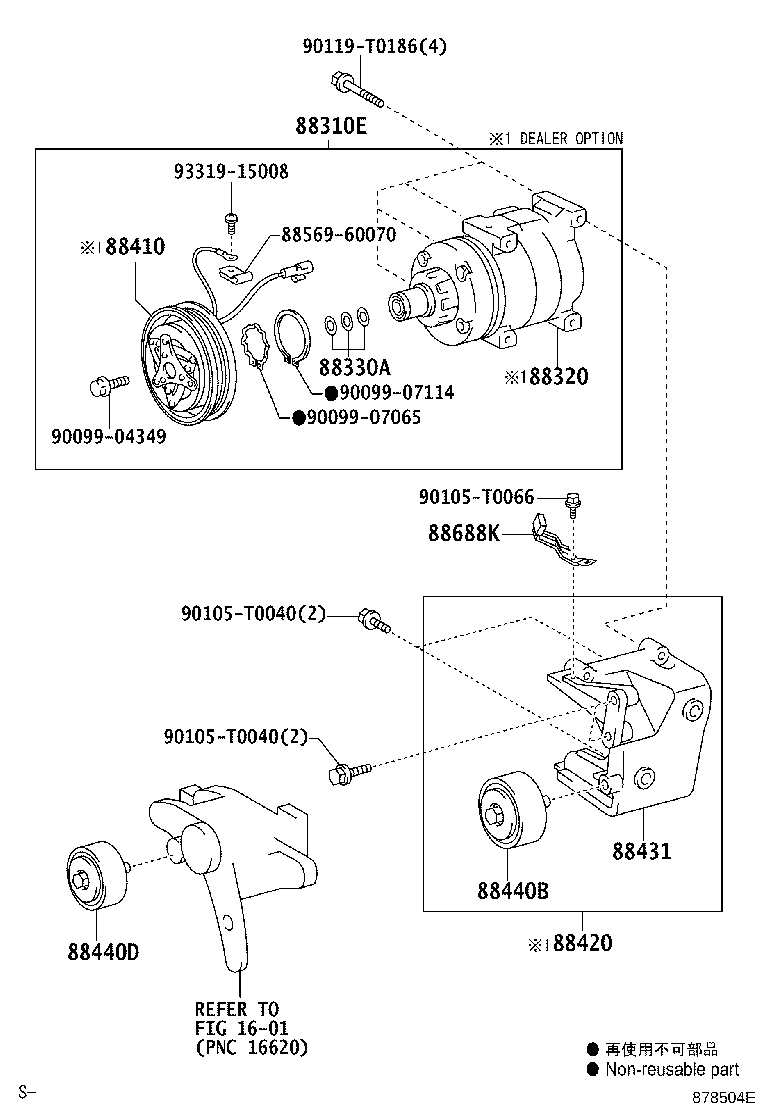

Figure 877194N 877194N 2004-08 → 2008-08 Figure 877194N 877194N 2004-08 → 2008-09 Figure 877194N 877194N 2005-01 → 2008-10 Figure 877194N 877194N 2005-01 → 2008-12 Figure 877194N 877194N 2005-02 → 2008-08 Figure 877194N 877194N 2006-08 → 2008-08 Figure 878504E 878504E 2005-04 → 2008-10 Figure 877381L 877381L 2005-01 → 2008-08 Figure 877381L 877381L 2005-01 → 2008-12 Figure 877381L 877381L 2005-01 → — Figure 877381L 877381L 2005-07 → 2008-10 Figure 877381L 877381L 2006-08 → 2008-08 Figure 877688C 877688C 2005-04 → — Figure 878672 878672 2005-07 → 2008-12 Figure 878672 878672 2005-07 → — Figure 878505B 878505B 2005-04 → 2008-10 Figure 877689C 877689C 2005-07 → 2008-10 Figure 877689C 877689C 2007-10 → — Figure 87A203I 87A203I 2008-08 → — Figure 87A203I 87A203I 2008-08 → — Figure 87A203I 87A203I 2008-09 → — Figure 87A203I 87A203I 2008-10 → — Figure 87A203I 87A203I 2008-12 → — Figure 87A203I 87A203I 2008-12 → — Figure 87A205D 87A205D 2008-08 → — Figure 87A205D 87A205D 2008-10 → — Figure 87A205D 87A205D 2008-12 → — Figure 87A205D 87A205D 2010-08 → — Figure 87A346B 87A346B 2008-10 → — Figure 87A346B 87A346B 2008-12 → — Figure 87A347 87A347 2008-10 → — Figure 87A345 87A345 2008-10 → — Figure 87B493A 87B493A 2010-10 → —

Part groups

PNCDescription
88310 Compressor Assy, W/Pulley
88310E Compressor, W/Magnet Clutch
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88410 Clutch Assy, Magnet
88420 Pulley Assy, Idle, W/Bracket
88431 Bracket, Compressor Mounting, NO.1
88431A Bracket, Compressor Mounting, NO.2
88440B Pulley Assy, Idle
88440D Pulley Assy, Idle NO.2
88446 Bolt, Idle Pulley
88451 Pulley, Crankshaft
88469B Collar
88688K Bracket, Cooler Compressor
88688N Bracket, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
