Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

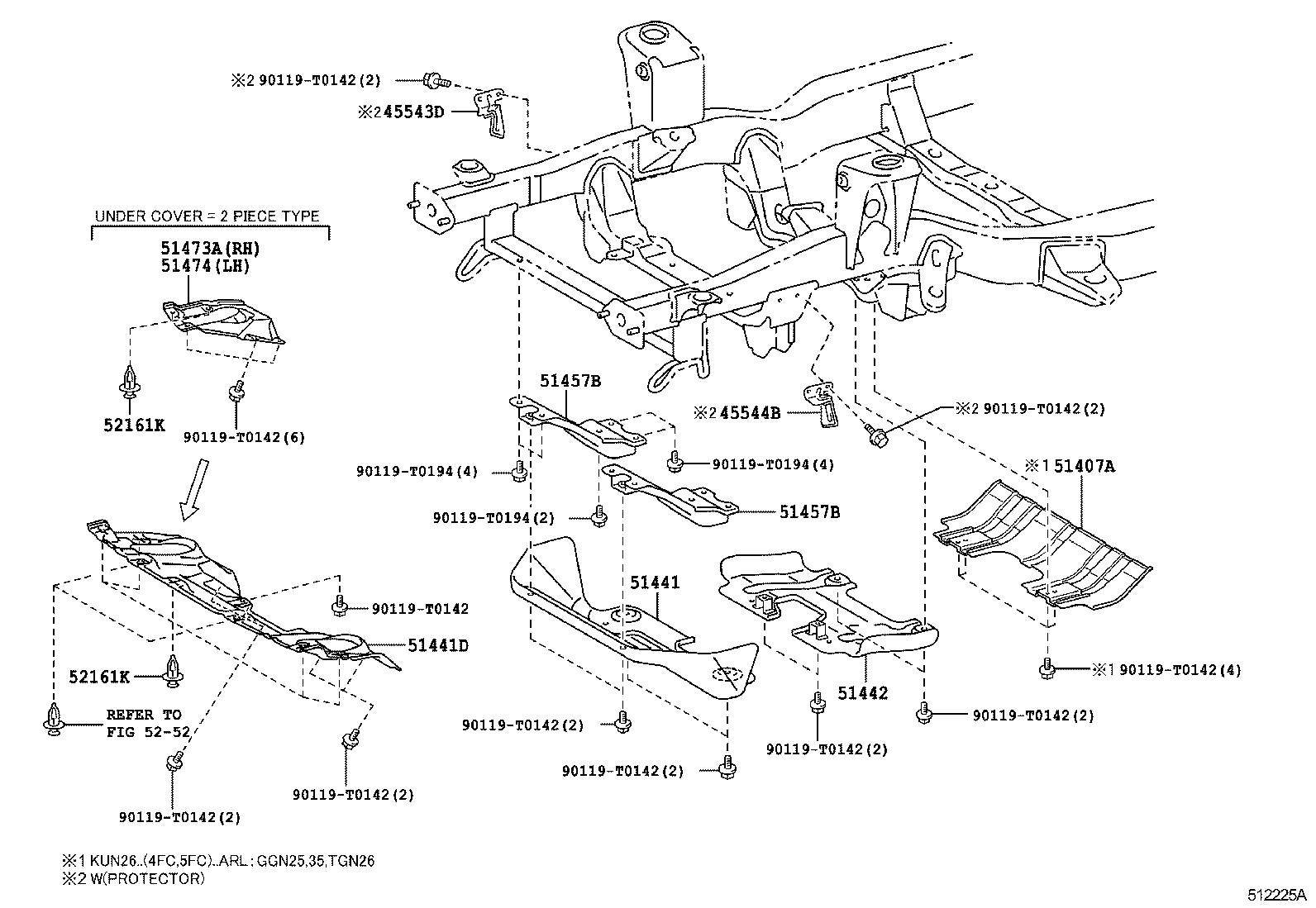

Exploded illustration 512225A 51441 — COVER, ENGINE UNDER, NO.1 (3 parts) 51442 — COVER, ENGINE UNDER, NO.2 (4 parts) 51407A — COVER SUB-ASSY, ENGINE UNDER, NO.3 (1 parts) 51457B — BRACE, FRONT SIDE MEMBER TO FRONT SUSPENSION CROSSMEMBER (5 parts) 51457B — BRACE, FRONT SIDE MEMBER TO FRONT SUSPENSION CROSSMEMBER (5 parts) 90119T0142 — not listed in this catalogue 90119T0142 — not listed in this catalogue 90119T0142 — not listed in this catalogue 90119T0142 — not listed in this catalogue 90119T0142 — not listed in this catalogue 90119T0194 — not listed in this catalogue 90119T0194 — not listed in this catalogue 90119T0194 — not listed in this catalogue 51473A — COVER SUB-ASSY, ENGINE SIDE, RH (2 parts) 51474 — COVER SUB-ASSY, ENGINE SIDE, LH (2 parts) 52161K — PIECE, FRONT BUMPER (3 parts) 90119T0142 — not listed in this catalogue 45544B — PROTECTOR, STEERING RACK BOOT, LH (6 parts) 45543D — PROTECTOR, STEERING RACK BOOT, RH (6 parts) 90119T0142 — not listed in this catalogue 90119T0142 — not listed in this catalogue 51441D — COVER, ENGINE UNDER (2 parts) 52161K — PIECE, FRONT BUMPER (3 parts) 90119T0142 — not listed in this catalogue 90119T0142 — not listed in this catalogue 90119T0142 — not listed in this catalogue 5252 — not listed in this catalogue
512225A · 12 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
34 parts on this figure
Part number Description Fitment Price
45543D — Protector, Steering Rack Boot, RH
45543-0K020 note Protector, Steering Rack Boot, RH
2011-07 → 2015-04 ended
TGN26 SCB GCC —
45543-0K020 note Protector, Steering Rack Boot, RH
2011-07 → 2015-04 ended
KUN25,TGN26 DCB 5F GCC —
45543-0K020 Protector, Steering Rack Boot, RH
2011-07 → —
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36 ANCOM,ARL,CO,GEN,IDN,LA,MA,PHL,SA,TH —
45543-0K020 Protector, Steering Rack Boot, RH
2011-07 → 2016-09 ended
KUN25 PKN —
45543-0K020 note Protector, Steering Rack Boot, RH
2013-08 → 2015-04 ended
TGN26 4FC GCC —
45543-0K020 note Protector, Steering Rack Boot, RH
2011-07 → 2015-04 ended
KUN25,TGN26 5F GCC —
45544B — Protector, Steering Rack Boot, LH
45544-0K020 note Protector, Steering Rack Boot, LH
2011-07 → 2015-04 ended
KUN25,TGN26 DCB 5F GCC —
45544-0K020 note Protector, Steering Rack Boot, LH
2011-07 → 2015-04 ended
TGN26 SCB GCC —
45544-0K020 note Protector, Steering Rack Boot, LH
2011-07 → 2015-04 ended
KUN25,TGN26 5F GCC —
45544-0K020 note Protector, Steering Rack Boot, LH
2013-08 → 2015-04 ended
TGN26 4FC GCC —
45544-0K020 Protector, Steering Rack Boot, LH
2011-07 → 2016-09 ended
KUN25 PKN —
45544-0K020 Protector, Steering Rack Boot, LH
2011-07 → —
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36 ANCOM,ARL,CO,GEN,IDN,LA,MA,PHL,SA,TH —
51407A — Cover Sub-assy, Engine Under, NO.3
51407-0K020 Cover Sub-assy, Engine Under, NO.3
2011-07 → —
GGN25,35,TGN26;KUN26 (4FC,5FC) ARL —
51441 — Cover, Engine Under, NO.1
51410-0K021 Cover, Engine Under, NO.1
2011-07 → 2016-09 ended
KUN25 PKN —
51410-0K021 Cover, Engine Under, NO.1
2011-07 → —
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36 ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH —
51441-0K020 Cover, Engine Under, NO.1
2011-07 → 2015-04 ended
TGN16 GCC;GGN15,KUN10,15,TGN10,11,15 ARL,GCC —
51441D — Cover, Engine Under
51441-0K040 Cover, Engine Under
2011-07 → 2015-04 ended
KUN10,15,TGN1# GCC —
51441-0K050 Cover, Engine Under
2011-07 → 2016-01 ended
KUN25 ARL,CO,LA,MA,SA,TH;GGN25,35,KUN36,TGN36 SADCB,SCB,THDCB,THSCB,XTR) SR +10 —
51442 — Cover, Engine Under, NO.2
51420-0K010 Cover, Engine Under, NO.2
2011-07 → 2016-09 ended
KUN25 PKN —
51420-0K010 Cover, Engine Under, NO.2
2011-07 → —
GGN25,KUN2#,3#,TGN26,36 ANCOM,CO,GEN,IDN,LA,MA,PHL,TH —
51420-0K040 Cover, Engine Under, NO.2
2011-07 → 2015-12 ended
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36 ARL,GCC,SA —
51442-0K030 Cover, Engine Under, NO.2
2011-07 → 2015-04 ended
TGN16 GCC;GGN15,KUN10,15,TGN10,11,15 ARL,GCC —
51457B — Brace, Front Side Member TO Front Suspension Crossmember
51405-0K010 Brace, Front Side Member TO Front Suspension Crossmember
2011-07 → 2016-09 ended
GGN15,KUN1#,LAN15,TGN10,15,16 ARL,GEN,IDN,PHL,PKN,SA,TH —
51405-0K020 Brace, Front Side Member TO Front Suspension Crossmember
2011-07 → 2016-09 ended
KUN25 PKN —
51405-0K020 Brace, Front Side Member TO Front Suspension Crossmember
2011-07 → —
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36 ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH —
51405-0K030 note Brace, Front Side Member TO Front Suspension Crossmember
2011-07 → 2015-04 ended
KUN10,15,TGN1# GCC —
51405-0K040 note Brace, Front Side Member TO Front Suspension Crossmember
2011-07 → 2015-04 ended
KUN10,15,TGN1# GCC —
51473A — Cover Sub-assy, Engine Side, RH
51473-0K010 Cover Sub-assy, Engine Side, RH
2011-07 → 2016-09 ended
KUN25 PKN —
51473-0K010 Cover Sub-assy, Engine Side, RH
2011-07 → —
KUN25 6 LHD LHD +10 —
51474 — Cover Sub-assy, Engine Side, LH
51474-0K010 Cover Sub-assy, Engine Side, LH
2011-07 → 2016-09 ended
KUN25 PKN —
51474-0K010 Cover Sub-assy, Engine Side, LH
2011-07 → —
KUN25 6 LHD LHD +10 —
52161K — Piece, Front Bumper
52161-0K050 Piece, Front Bumper
2011-07 → 2016-01 ended
KUN25 ARL,CO,LA,MA,SA,TH;GGN25,35,KUN36,TGN36 SADCB,SCB,THDCB,THSCB,XTR) SR +10 —
52161-0K050 Piece, Front Bumper
2011-07 → 2016-09 ended
KUN25 PKN —
52161-0K050 Piece, Front Bumper
2011-07 → —
KUN25 6 LHD LHD +10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
