Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

12 part groups · 22 illustrations

Illustrations

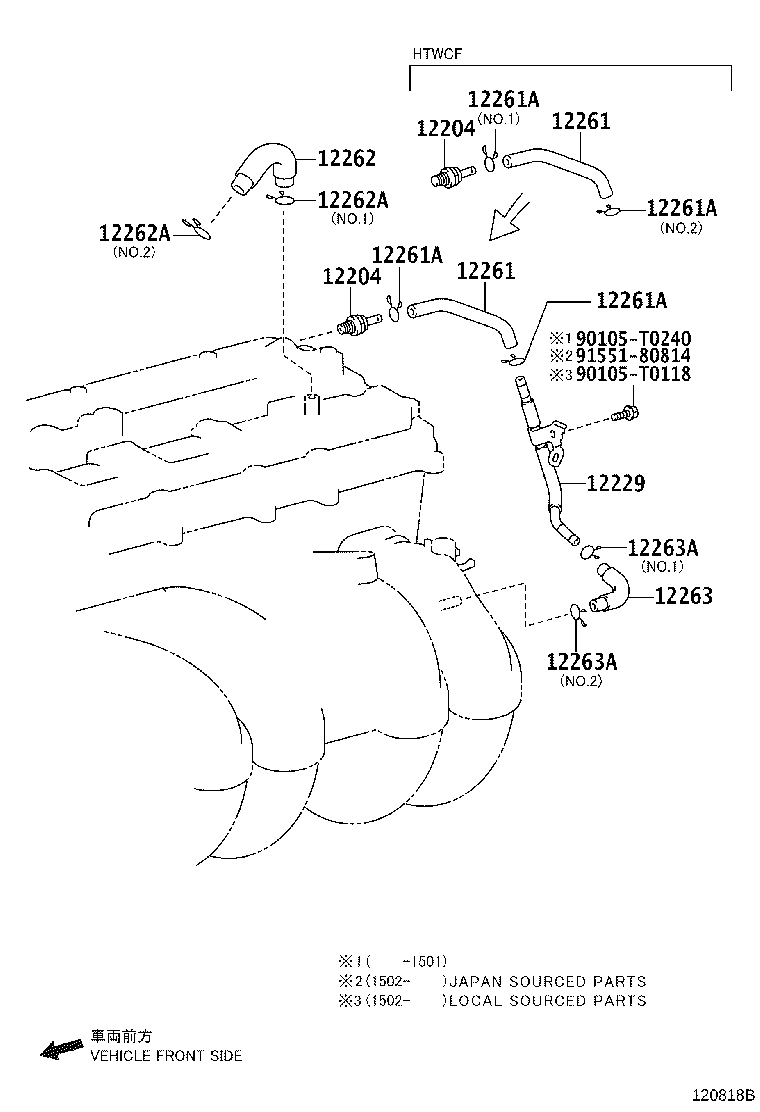

Figure 121258 121258 2011-07 → — Figure 120799B 120799B 2011-07 → 2012-08 Figure 120799B 120799B 2011-07 → — Figure 120799B 120799B 2011-07 → — Figure 120799B 120799B 2011-07 → — Figure 120799B 120799B 2011-09 → 2012-10 Figure 120799B 120799B 2011-11 → 2014-10 Figure 120889B 120889B 2011-07 → — Figure 120889B 120889B 2011-07 → — Figure 120889B 120889B 2012-08 → 2012-10 Figure 120889B 120889B 2012-08 → — Figure 120889B 120889B 2012-08 → — Figure 120889B 120889B 2012-10 → — Figure 120889B 120889B 2013-08 → — Figure 120889B 120889B 2014-08 → — Figure 120889B 120889B 2014-10 → — Figure 120803A 120803A 2011-07 → 2012-03 Figure 120800A 120800A 2011-07 → 2012-03 Figure 120844A 120844A 2012-03 → — Figure 120795A 120795A 2011-08 → — Figure 120818B 120818B 2011-07 → — Figure 120898A 120898A 2013-08 → —

Part groups

PNCDescription
12203 Pipe Sub-assy, Ventilation
12204 Valve Sub-assy, Ventilation
12229 Pipe, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12261B Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12262B Clamp(FOR VENTILATION HOSE)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
12278 Insulator, Ventilation Hose Heat
