Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

21 part groups · 5 illustrations

Illustrations

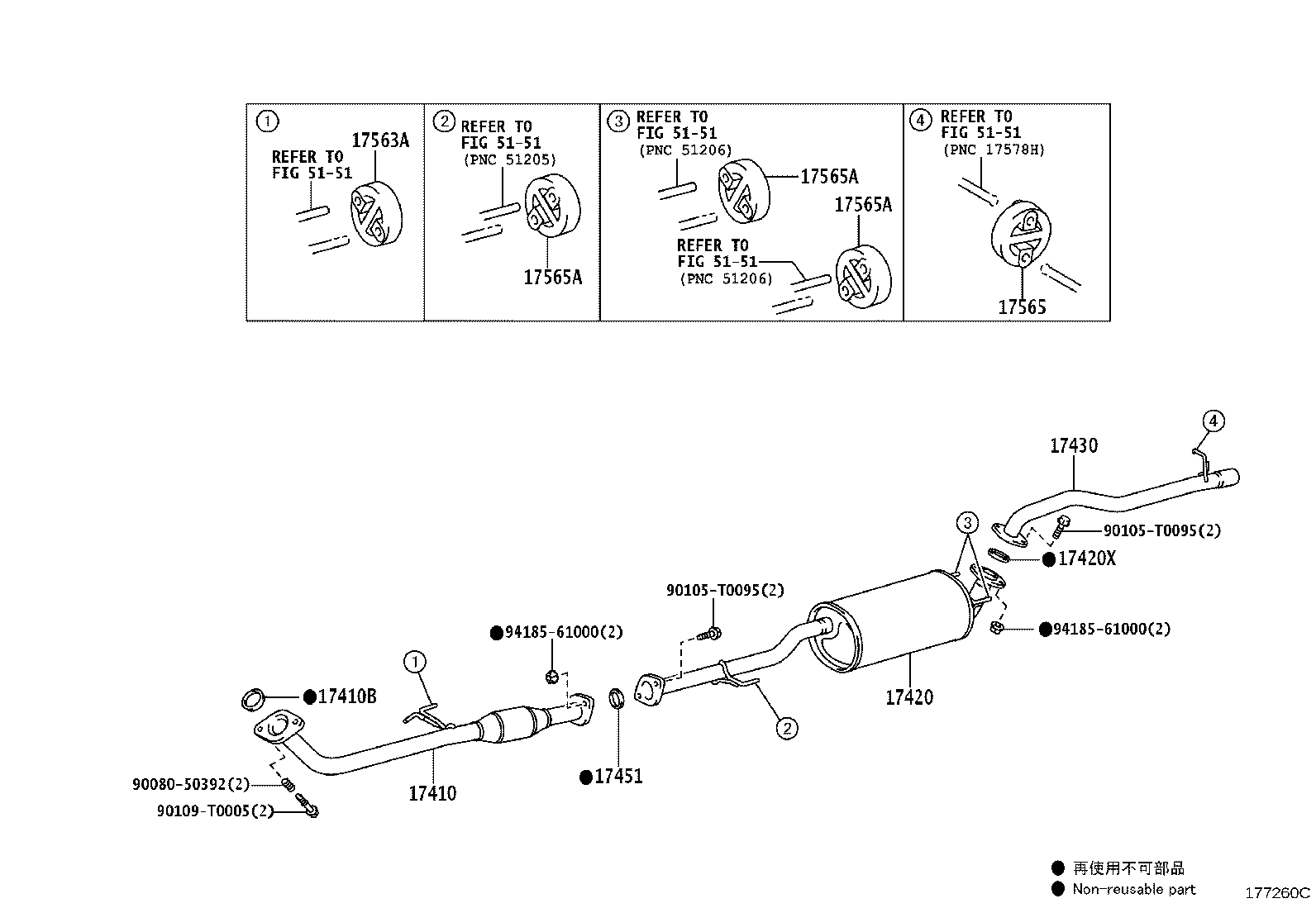

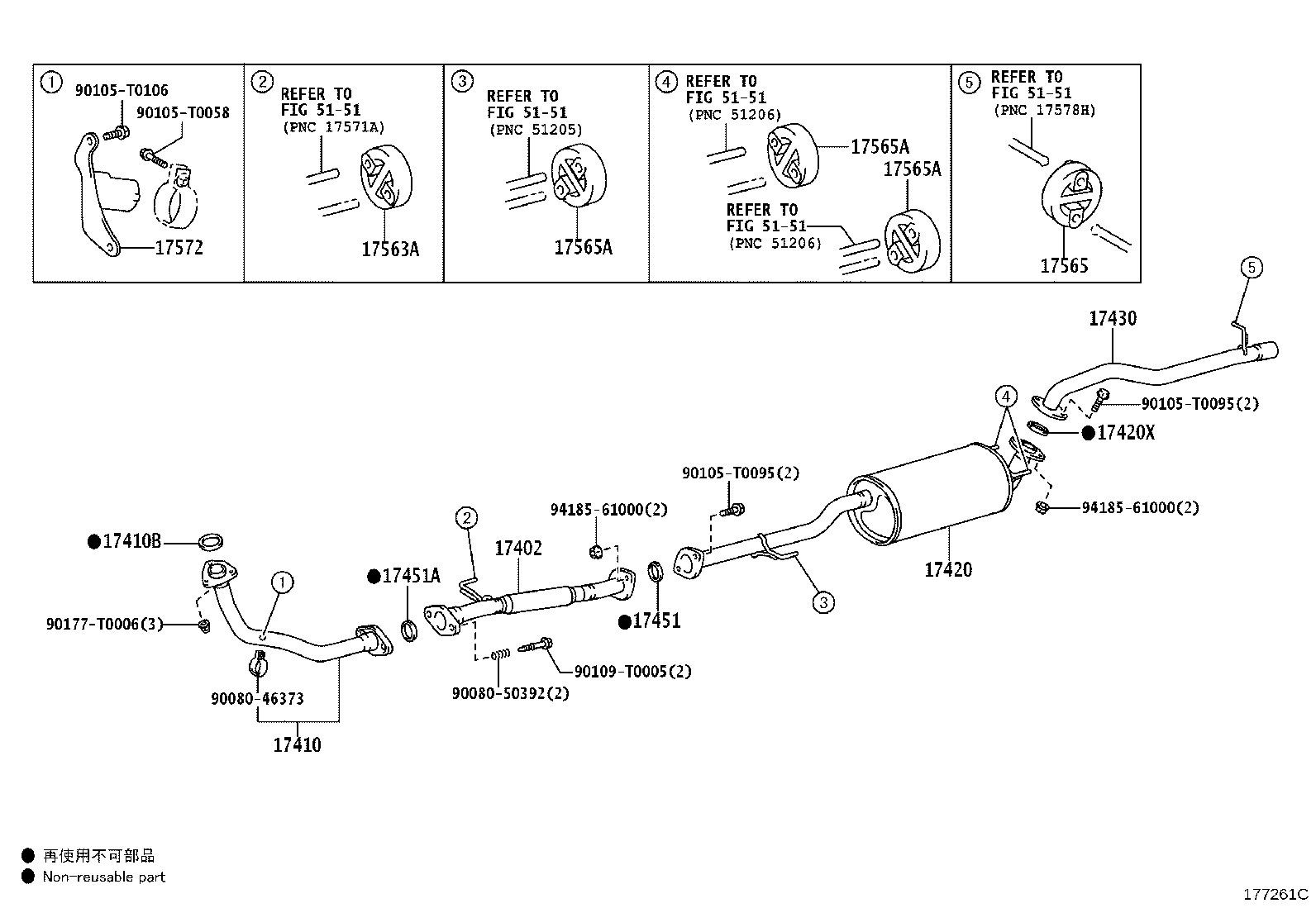

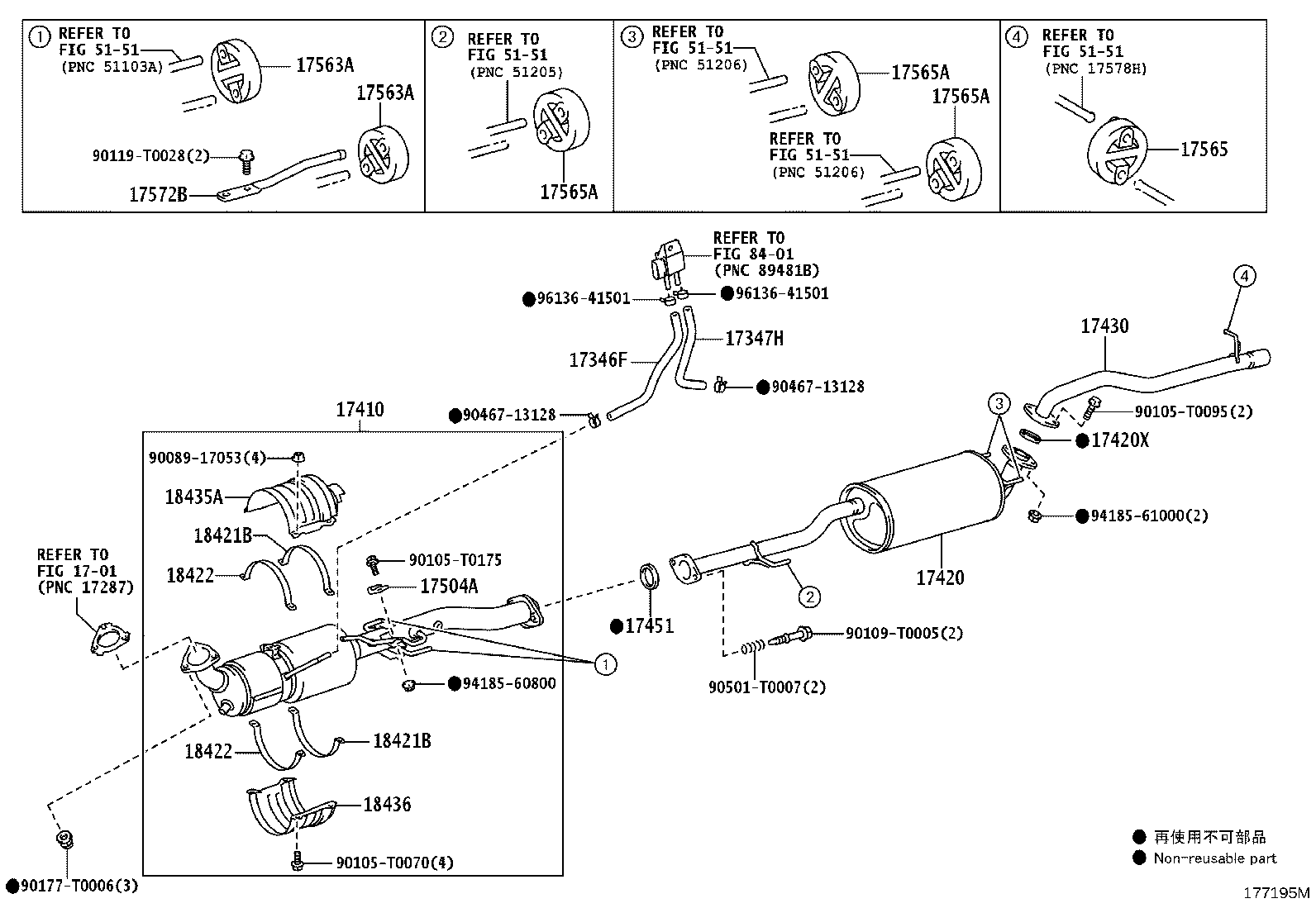

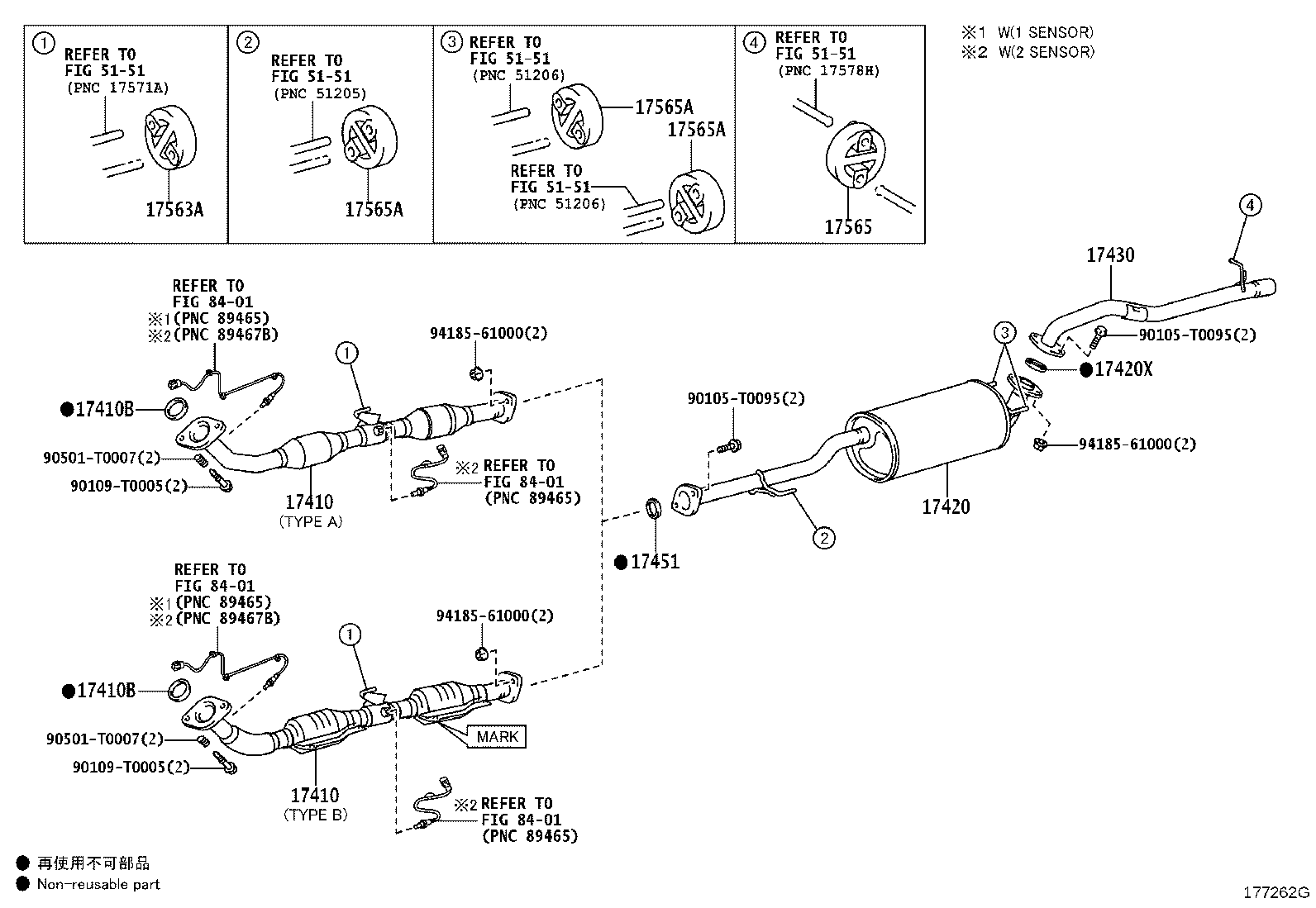

Figure 177259E 177259E 2011-07 → — Figure 177260C 177260C 2011-07 → — Figure 177261C 177261C 2011-07 → — Figure 177262G 177262G 2011-07 → — Figure 177195M 177195M 2012-05 → —

Part groups

PNCDescription
17346F Hose, Air, NO.6
17347H Hose, Air, NO.7
17402 Pipe Sub-assy, Exhaust, Front NO.2
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17450B Pipe Assy, Exhaust, Front NO.2
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17504A Clamp Sub-assy, Exhaust Pipe
17563A Support, Exhaust Pipe, NO.3
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
18421B Stay, Converter Protector, NO.2
18422 Stay, Converter Protector, NO.2
18435A Protector, Monolithic Converter
18436 Protector, Monolithic Converter, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
