Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

16 part groups · 5 illustrations

Illustrations

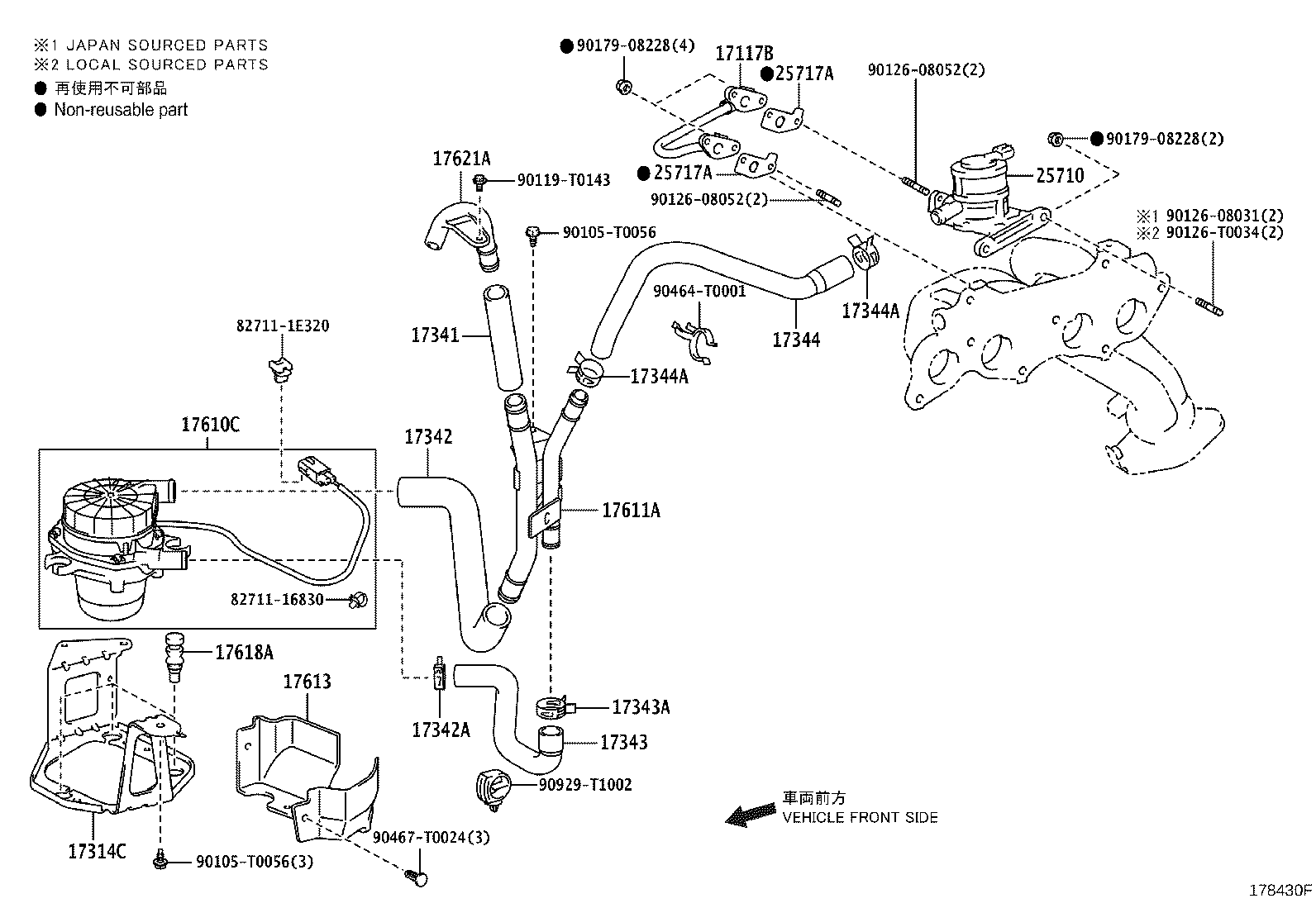

Figure 177895D 177895D 2011-07 → 2014-08 Figure 177895D 177895D 2011-07 → 2014-08 Figure 177895D 177895D 2011-07 → — Figure 178430F 178430F 2014-08 → — Figure 178430F 178430F 2014-08 → —

Part groups

PNCDescription
17117B Pipe, Intake, NO.4
17314C Bracket, Air Pump
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342A Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17343A Clamp OR Clip, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17344 Hose, NO.4(FOR AIR INJECTION SYSTEM)
17344A Clamp OR Clip, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4)
17610C Pump Assy, Air
17611A Pipe, Air Pump Inlet
17613 Cover, Air Pump
17618A Insulator, Air Pump
17621A Inlet, Air Pump
25710 Valve Assy, Air Switching
25717A Gasket, Air Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
