Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

21 part groups · 46 illustrations

Illustrations

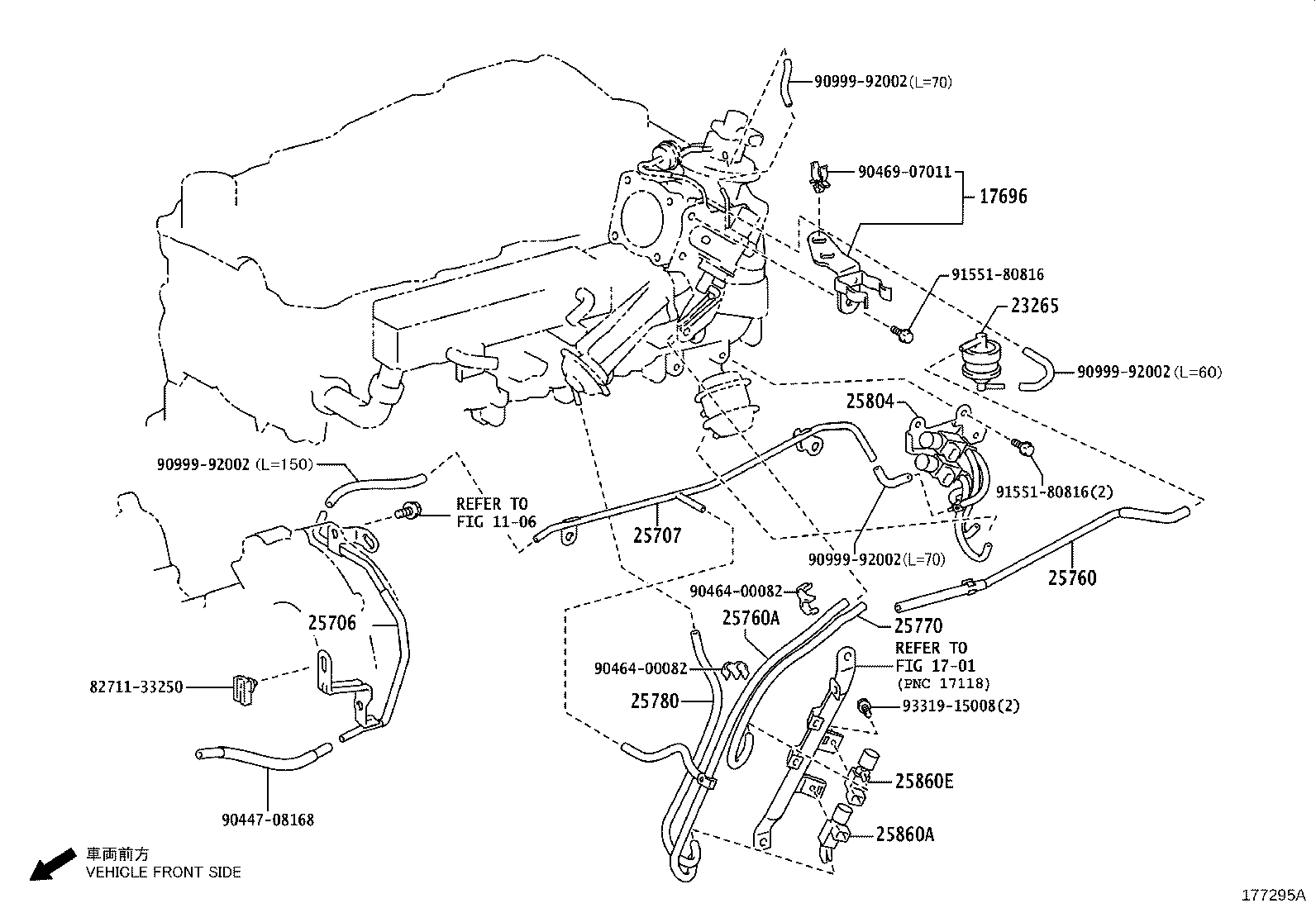

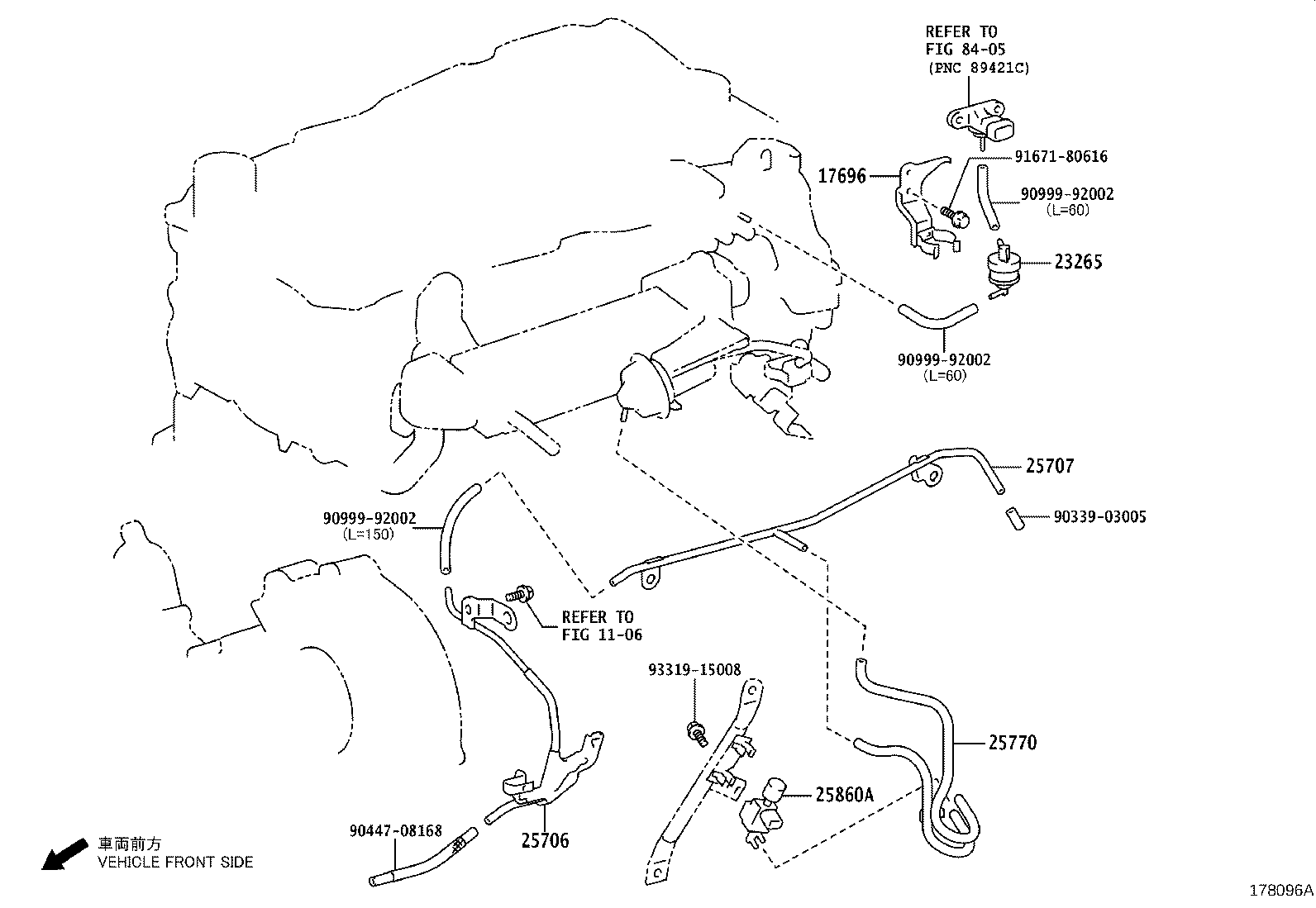

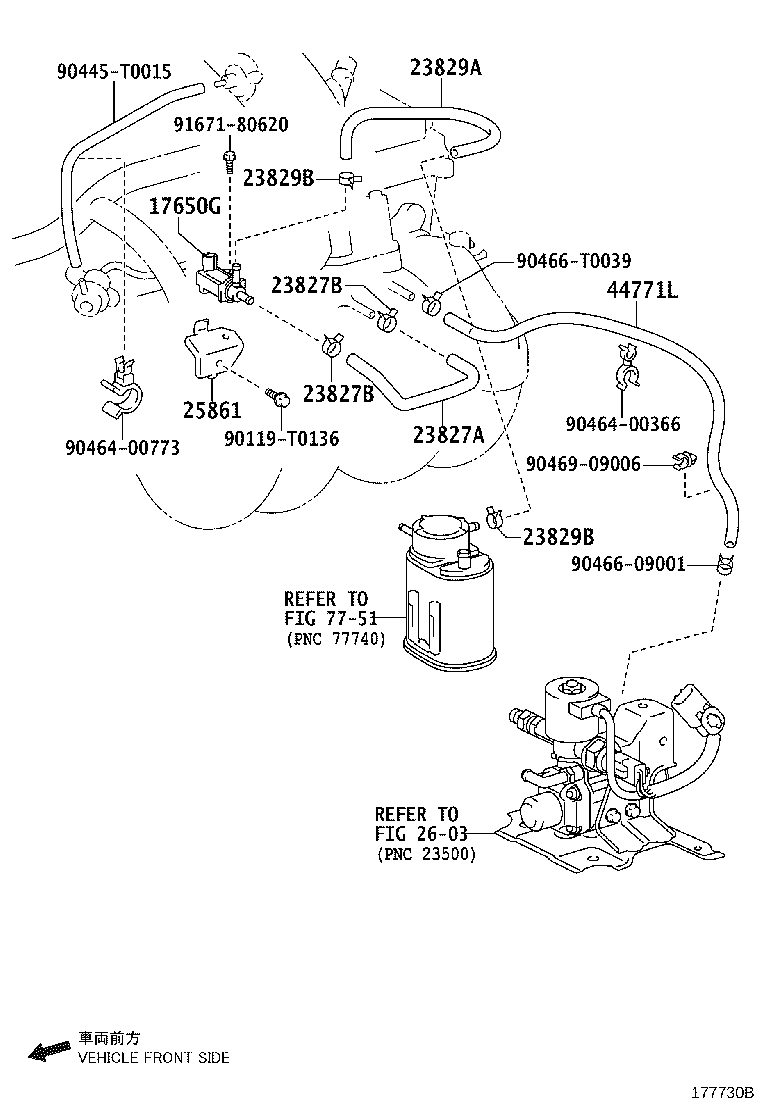

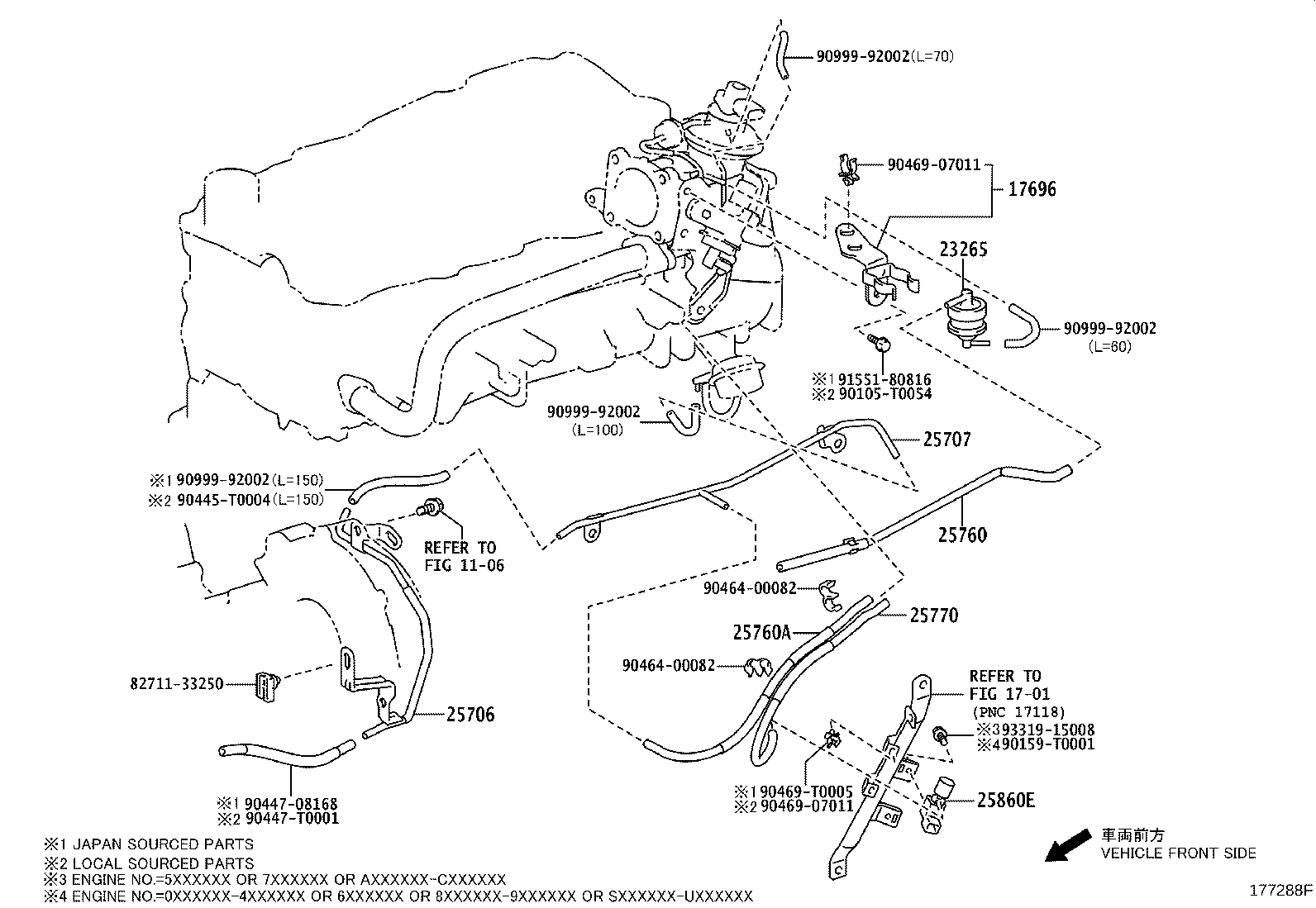

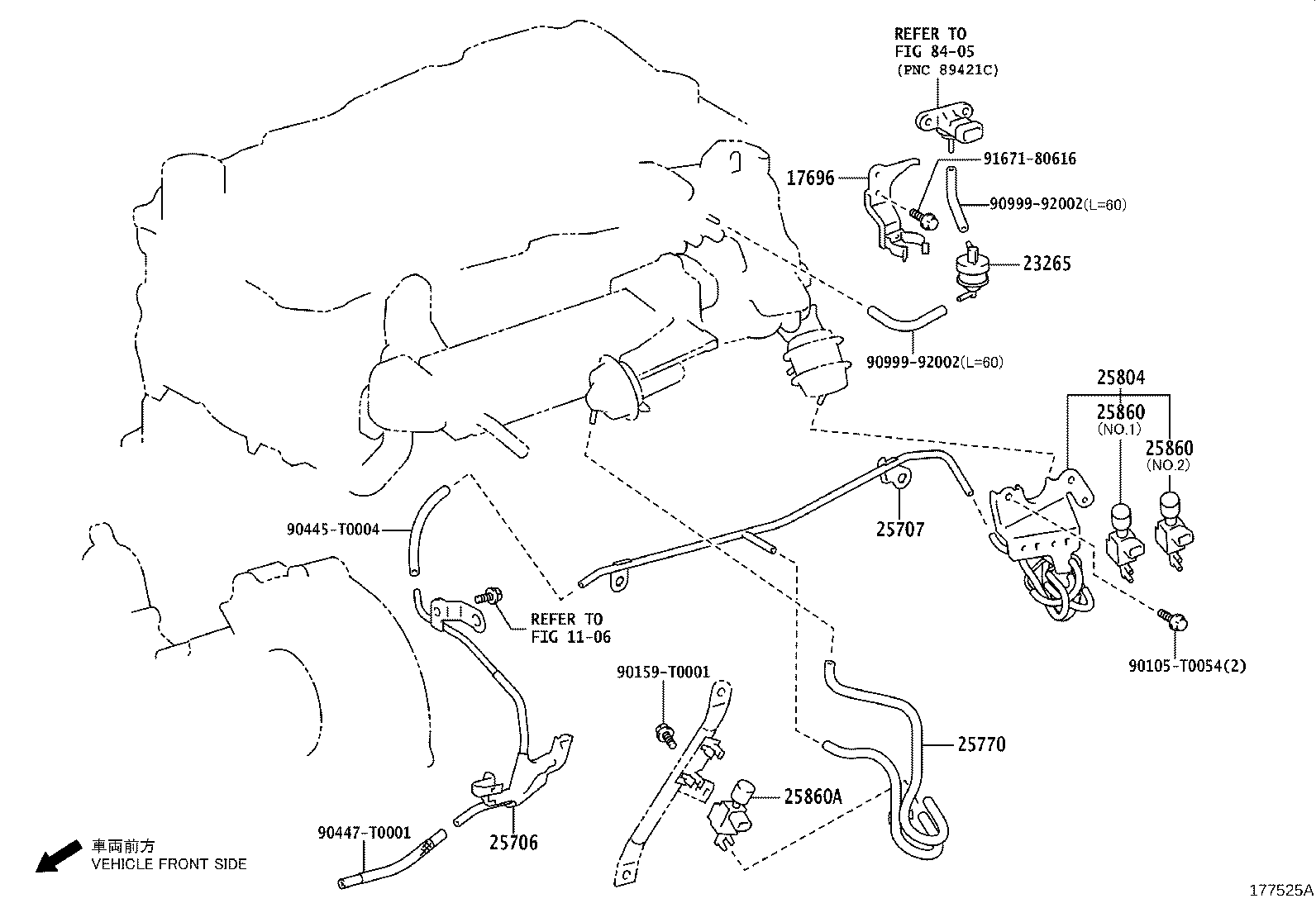

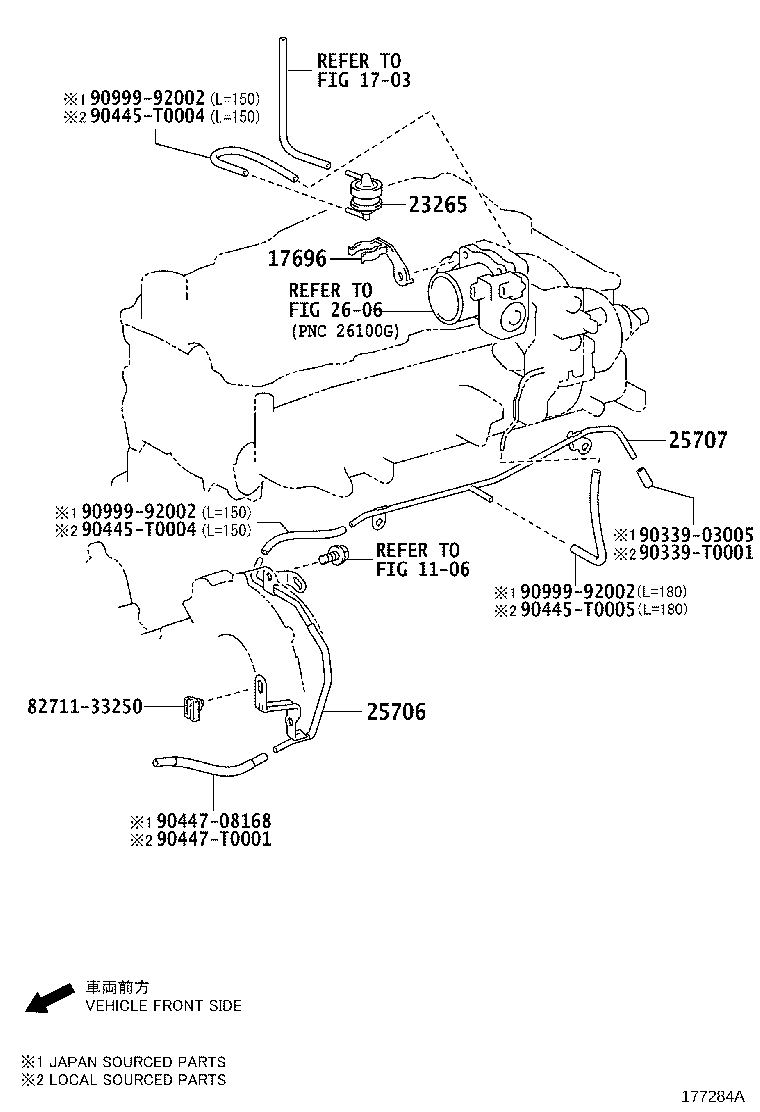

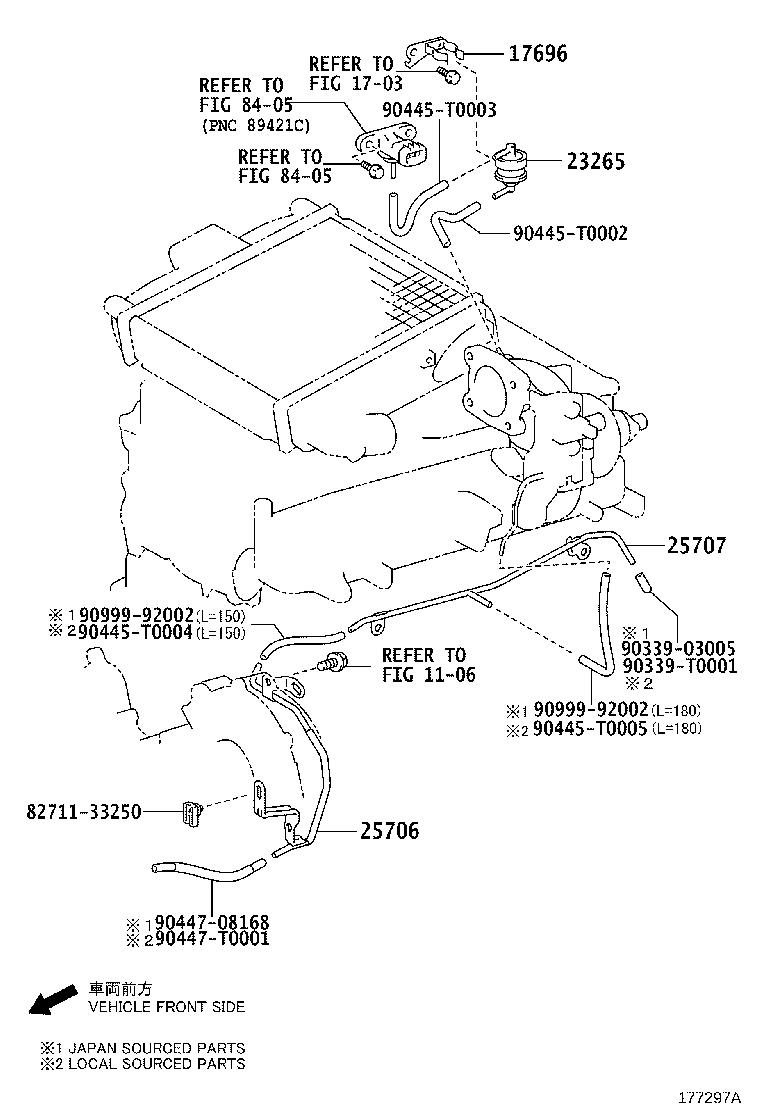

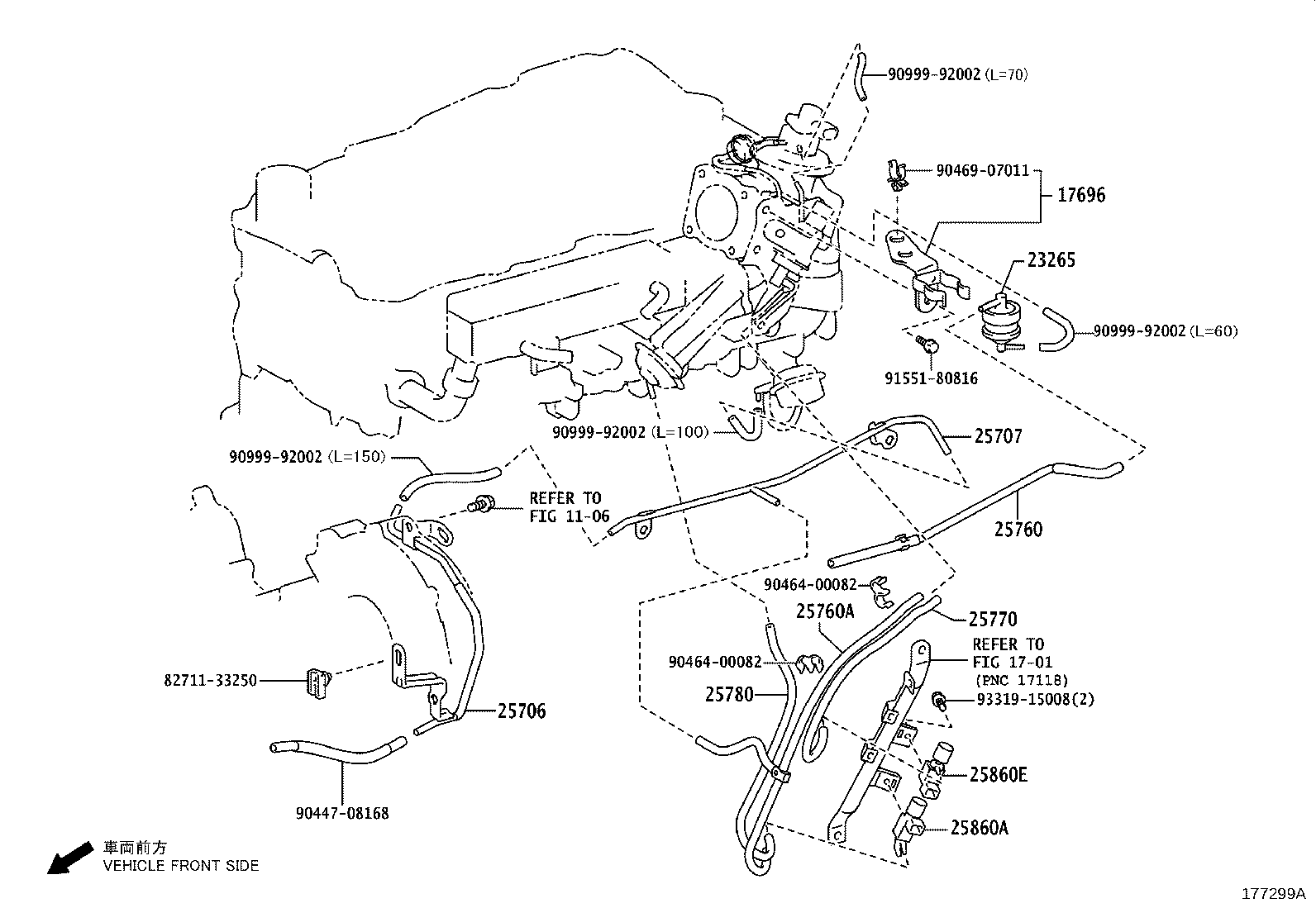

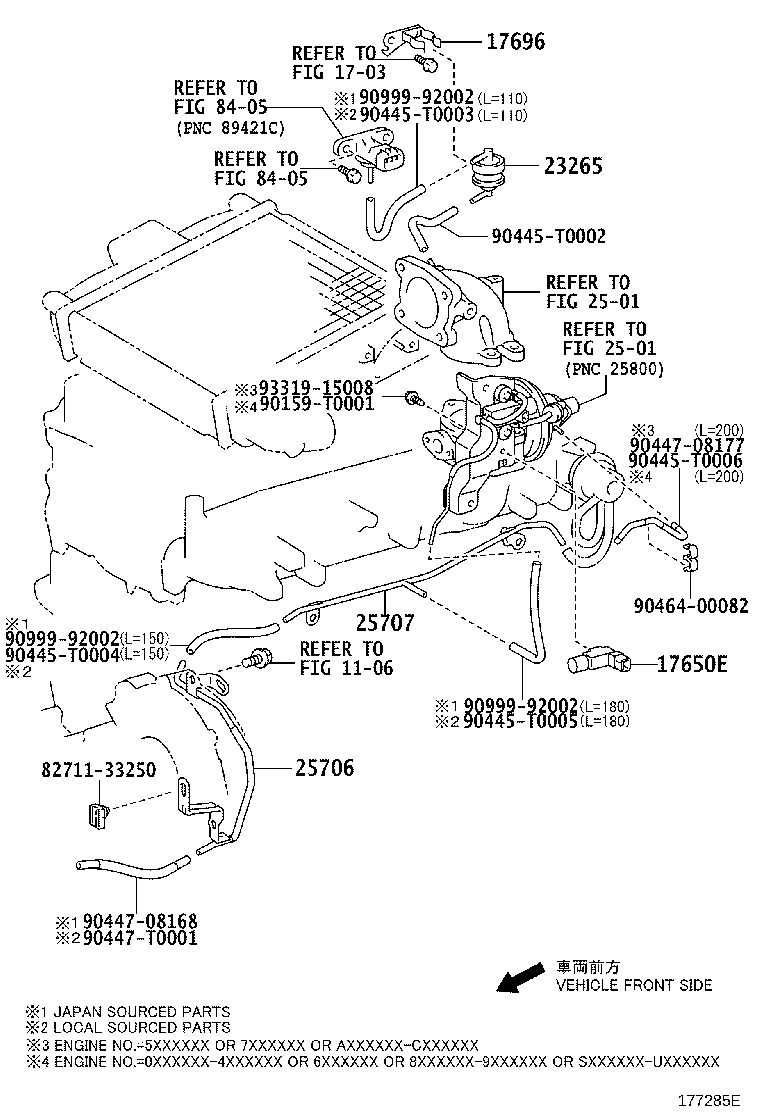

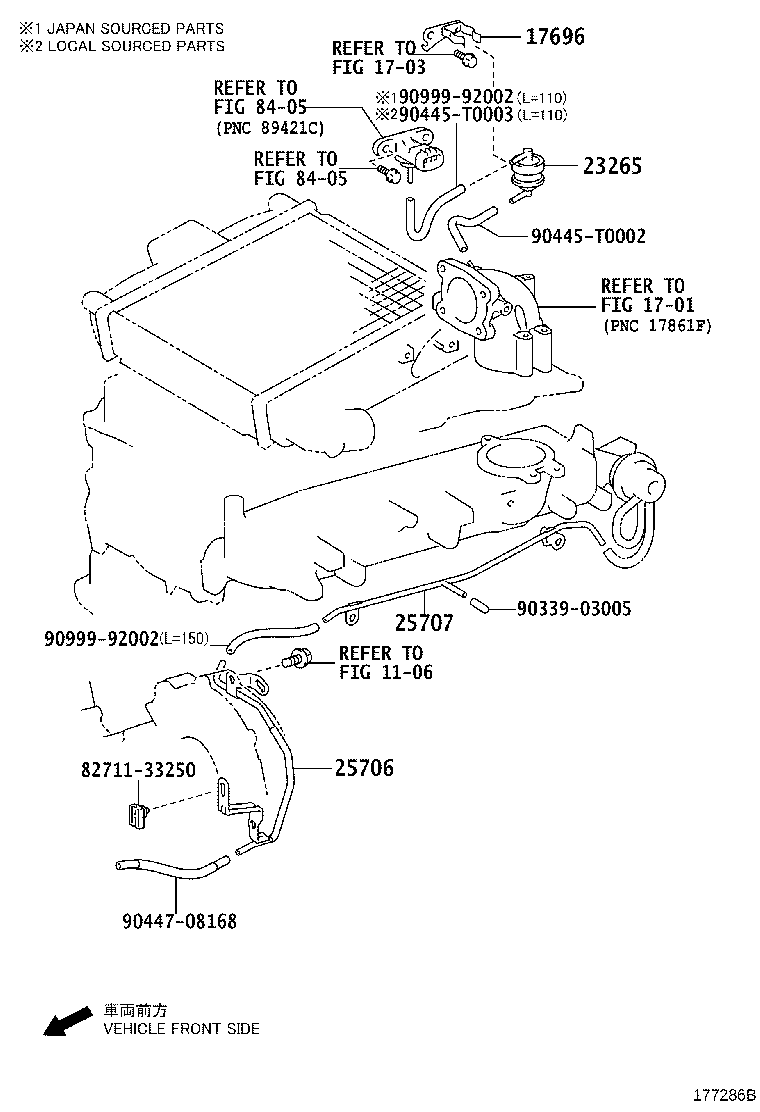

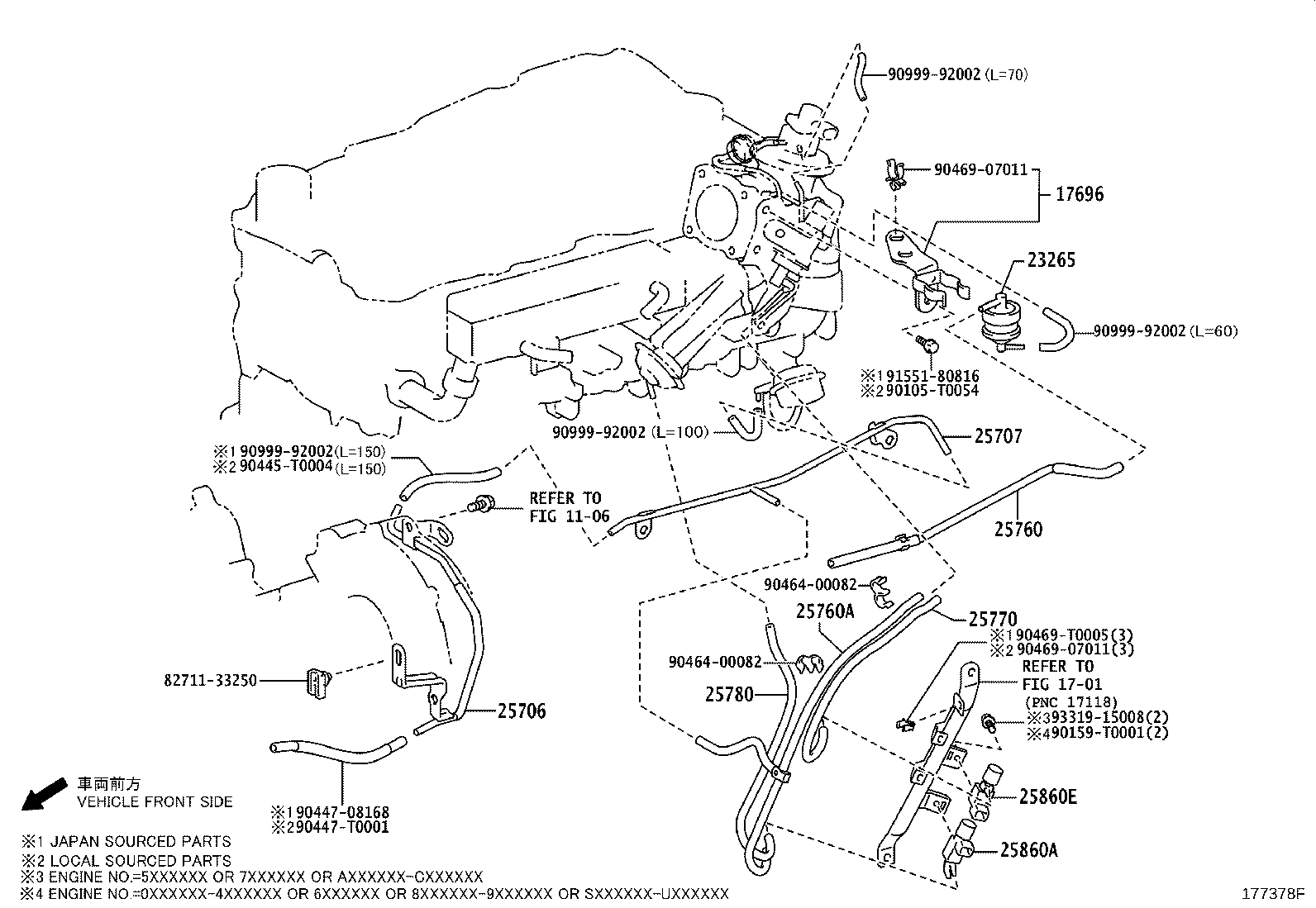

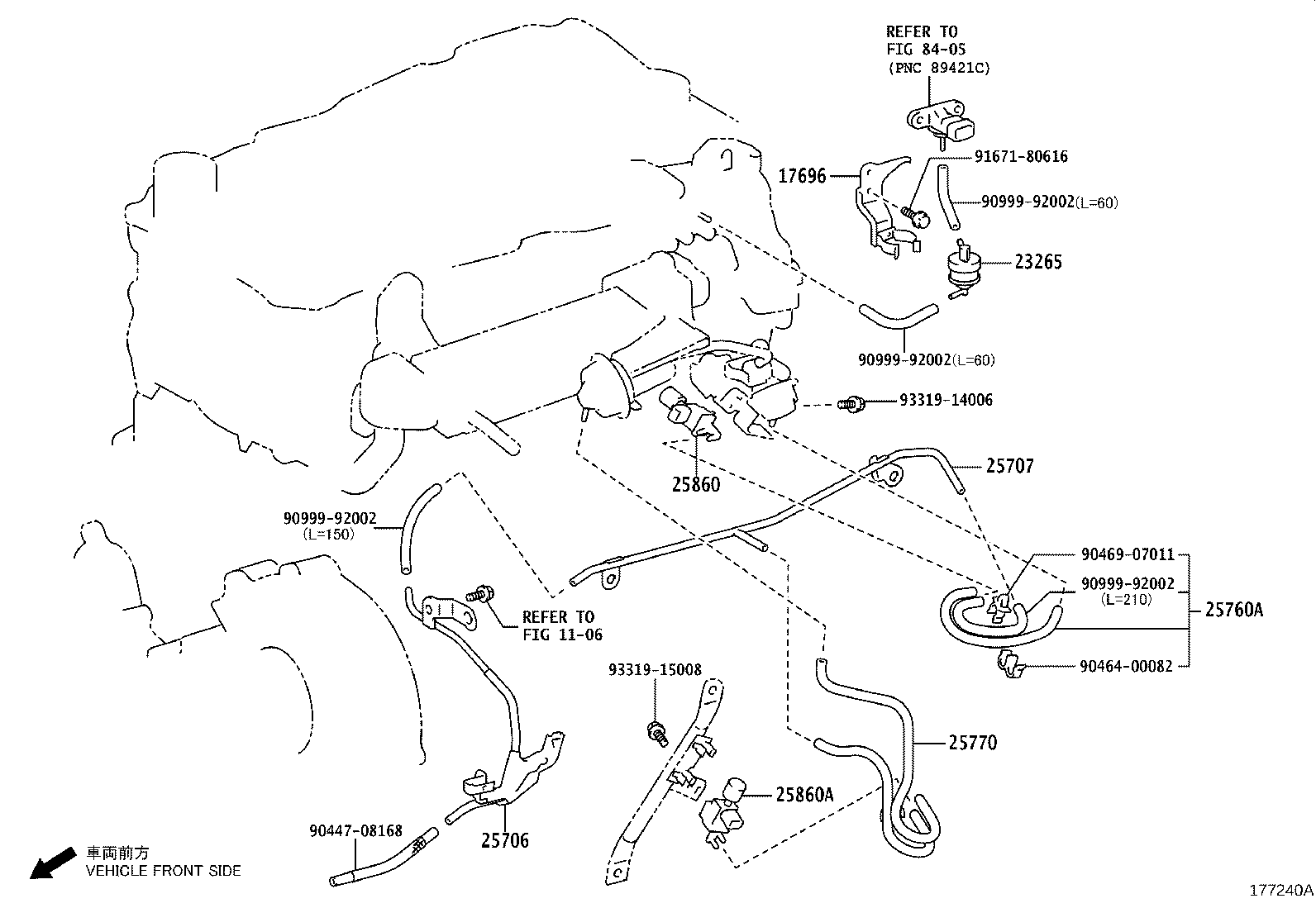

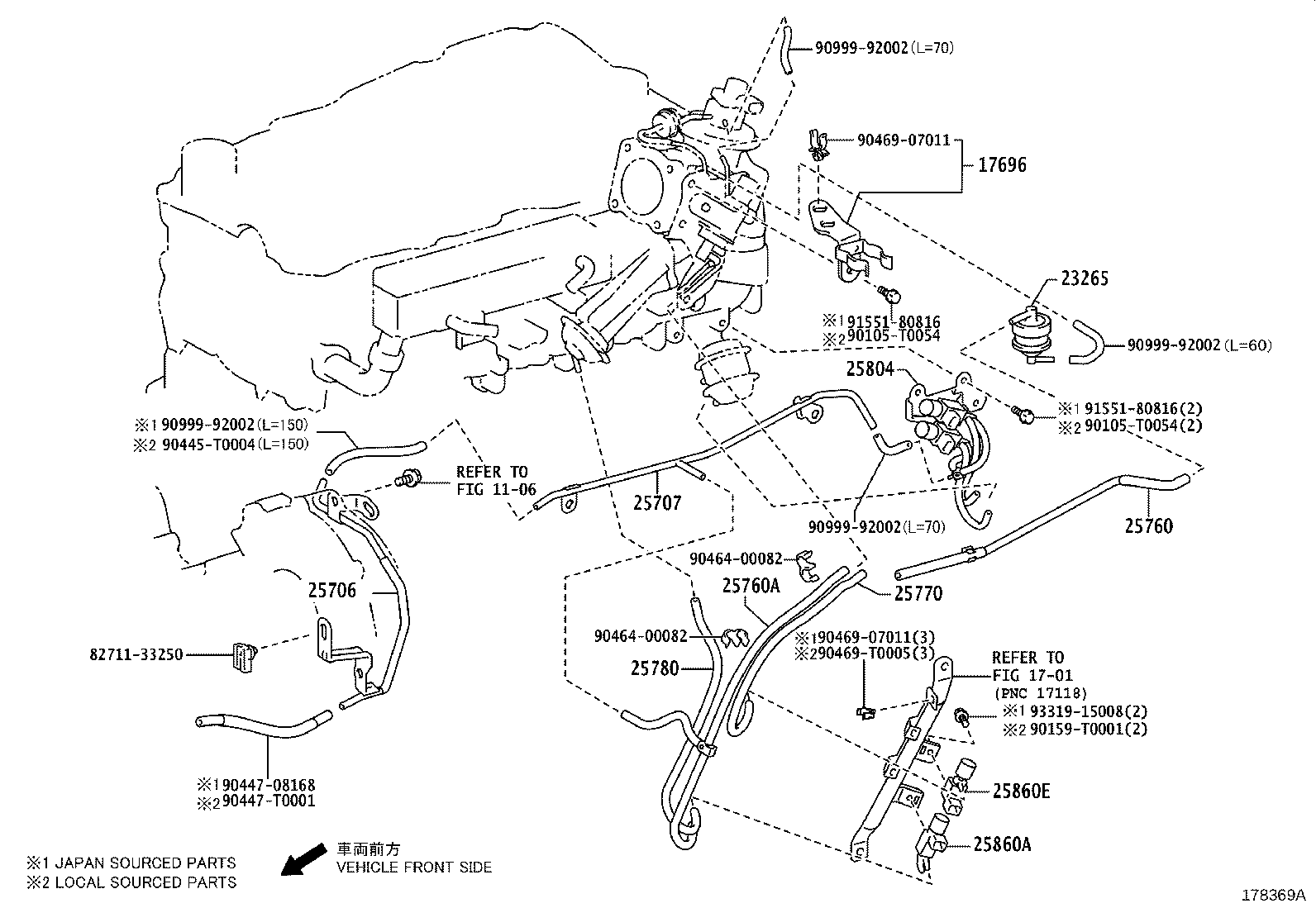

Figure 177214A 177214A 2011-07 → — Figure 177294A 177294A 2011-07 → — Figure 177286B 177286B 2011-07 → — Figure 177286B 177286B 2012-04 → — Figure 177285E 177285E 2011-07 → — Figure 177285E 177285E 2012-01 → — Figure 177285E 177285E 2012-08 → — Figure 177295A 177295A 2011-07 → — Figure 177240A 177240A 2011-07 → — Figure 177525A 177525A 2012-04 → — Figure 178369A 178369A 2011-10 → — Figure 178369A 178369A 2012-08 → — Figure 178369A 178369A 2013-11 → — Figure 178369A 178369A 2014-08 → — Figure 178369A 178369A 2014-10 → — Figure 177284A 177284A 2011-07 → 2012-08 Figure 177284A 177284A 2011-07 → 2012-10 Figure 177284A 177284A 2011-07 → — Figure 177284A 177284A 2011-07 → — Figure 177284A 177284A 2011-07 → — Figure 177284A 177284A 2013-08 → — Figure 177284A 177284A 2013-08 → — Figure 177296A 177296A 2011-07 → — Figure 177296A 177296A 2011-07 → — Figure 177296A 177296A 2011-10 → — Figure 177297A 177297A 2011-07 → — Figure 177288F 177288F 2011-07 → 2012-08 Figure 177288F 177288F 2011-07 → — Figure 177288F 177288F 2012-08 → — Figure 177288F 177288F 2012-08 → — Figure 177288F 177288F 2012-10 → — Figure 177288F 177288F 2012-10 → — Figure 177288F 177288F 2013-08 → — Figure 177299A 177299A 2011-07 → — Figure 177241A 177241A 2011-07 → — Figure 177241A 177241A 2013-08 → — Figure 178096A 178096A 2012-08 → — Figure 177378F 177378F 2011-10 → — Figure 177378F 177378F 2012-08 → — Figure 177378F 177378F 2013-11 → — Figure 177378F 177378F 2014-08 → — Figure 177378F 177378F 2014-10 → — Figure 176252B 176252B 2011-07 → — Figure 176251B 176251B 2011-07 → — Figure 177370B 177370B 2011-10 → — Figure 177730B 177730B 2012-05 → —

Part groups

PNCDescription
17650E Valve, Vacuum Switching
17650G Valve, Duty Vacuum Switching
17696 Bracket, Gas Filter
23265 Filter, Gas, NO.1
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25760 Hose Assy, Vacuum Transmitting
25760A Hose Assy, Vacuum Transmitting
25770 Hose Assy, Vacuum Transmitting, NO.2
25780 Hose Assy, Vacuum Transmitting, NO.3
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
25860E Valve, Vacuum Switching, NO.2
25861 Bracket, Vacuum Switching Valve
44771L Hose, Vacuum Tube Connector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
