Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

10 part groups · 8 illustrations

Illustrations

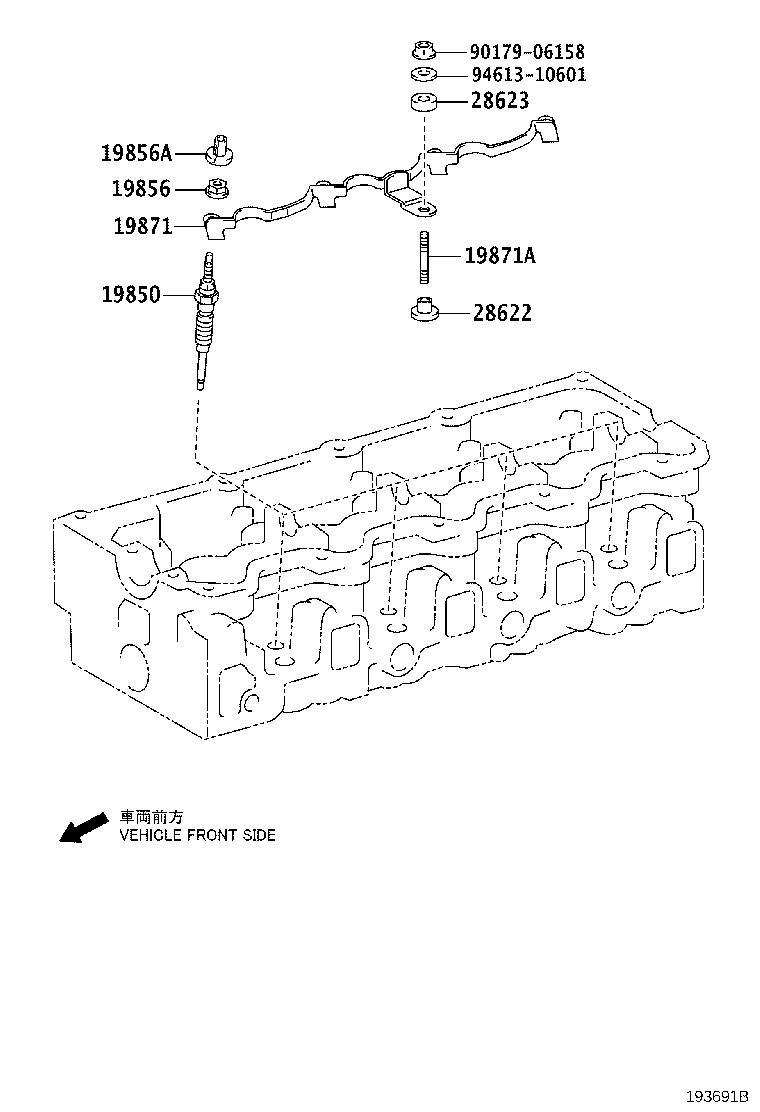

Figure 195305 195305 2011-07 → — Figure 193721A 193721A 2011-07 → — Figure 193714C 193714C 2011-07 → — Figure 193846C 193846C 2012-04 → — Figure 193846C 193846C 2012-08 → — Figure 193846C 193846C 2013-08 → — Figure 193691B 193691B 2011-08 → — Figure 193729C 193729C 2011-07 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19856 Nut, Connecting(FOR GLOW PLUG)
19856A Grommet, Screw(FOR, GLOW PLUG CONNECTOR)
19871 Connector, Glow Plug NO.1
19871A Bolt, Stud(FOR INTAKE MANIFOLD TO GLOW PLUG CONNECTOR NO.1)
28622 Insulator, Glow Plug Resistor, NO.1
28623 Insulator, Glow Plug Resistor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
