Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

21 part groups · 17 illustrations

Illustrations

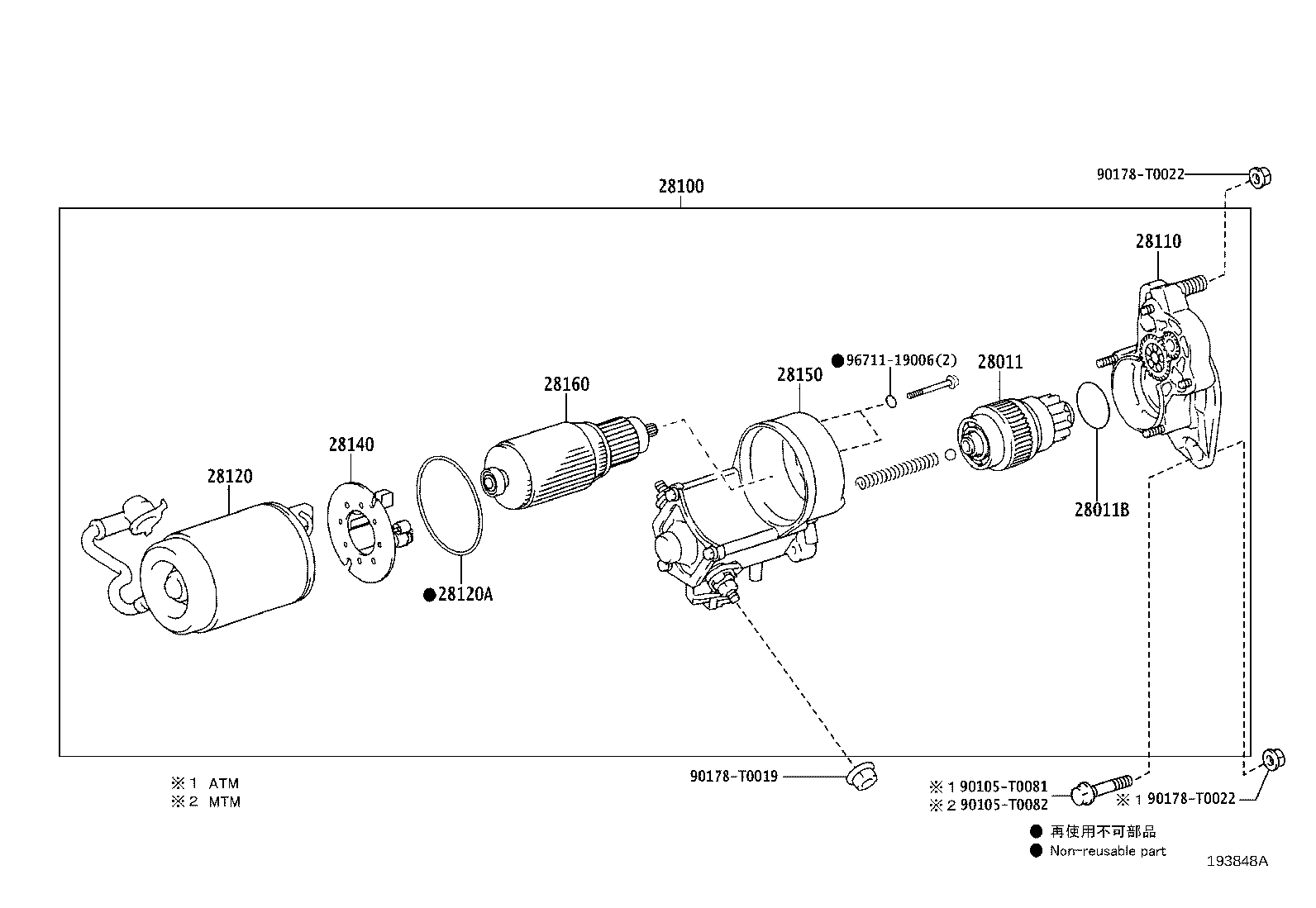

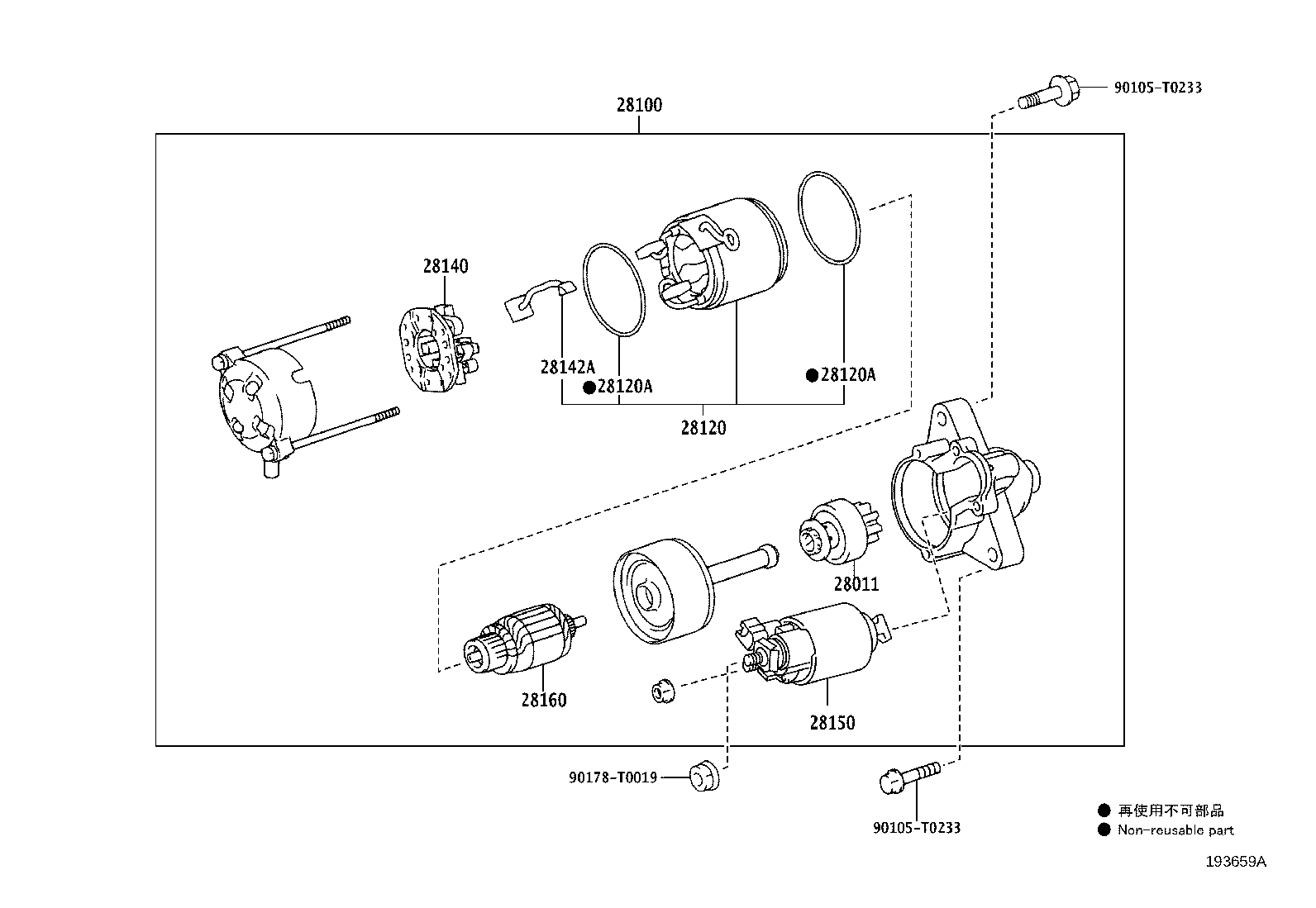

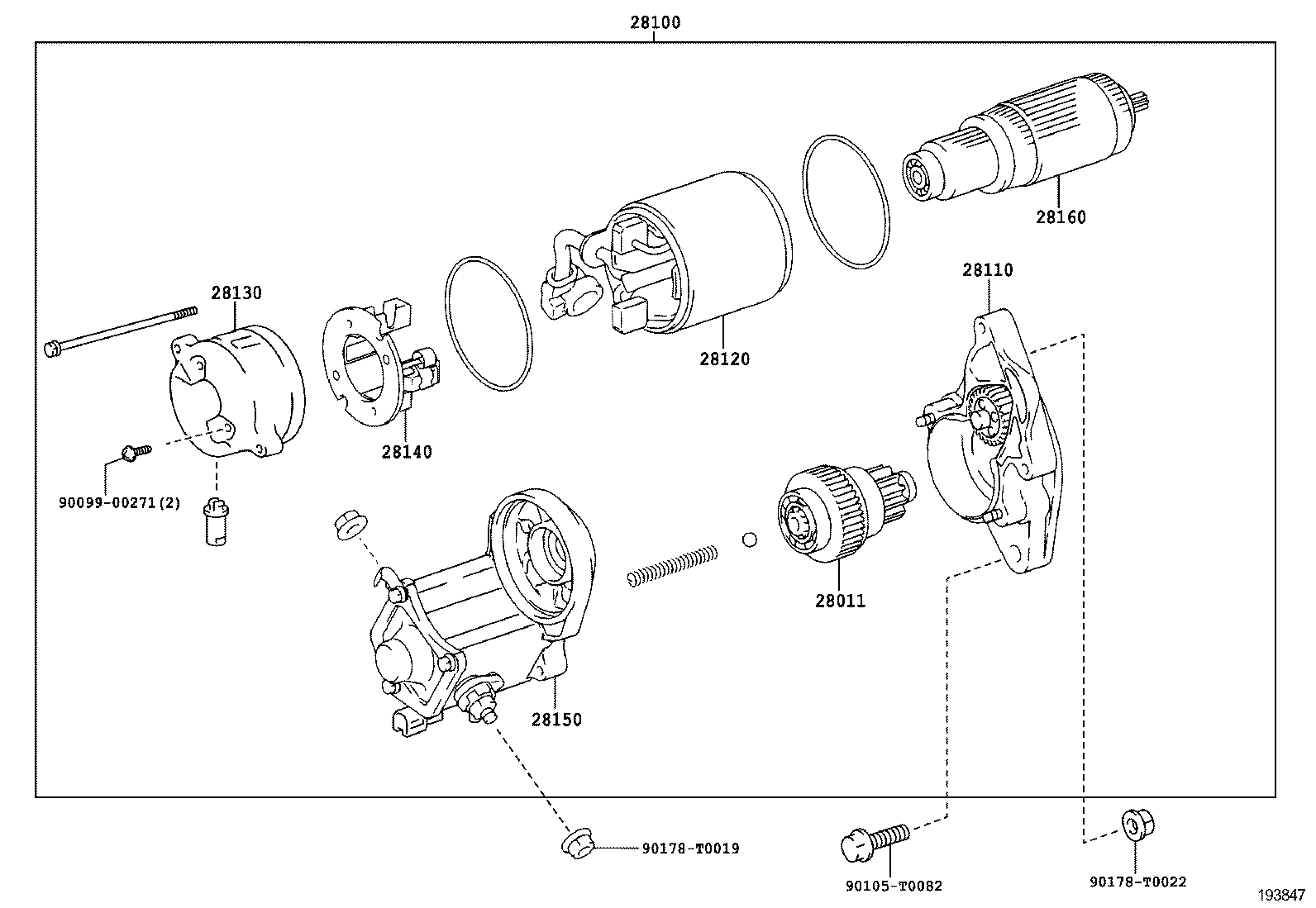

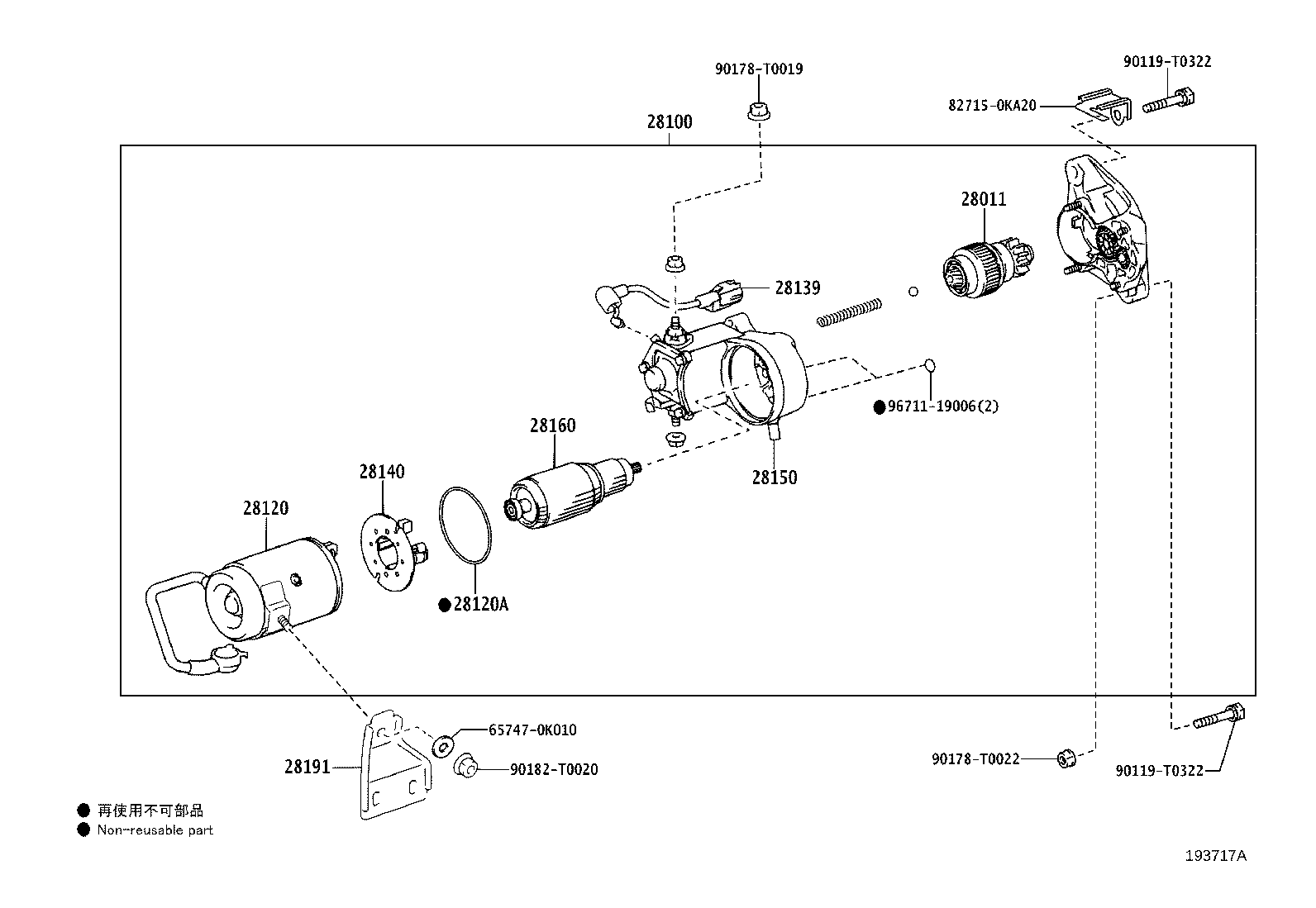

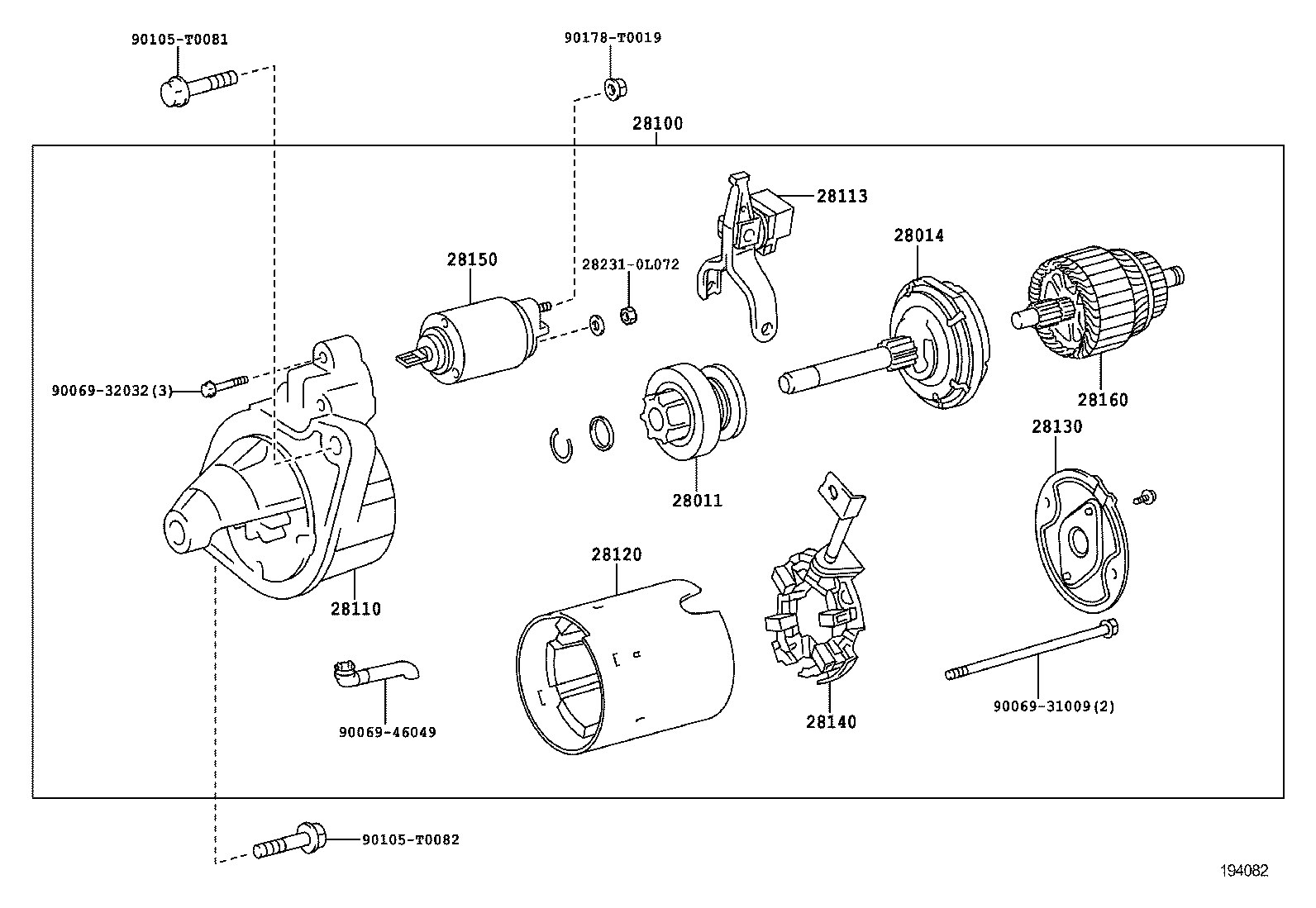

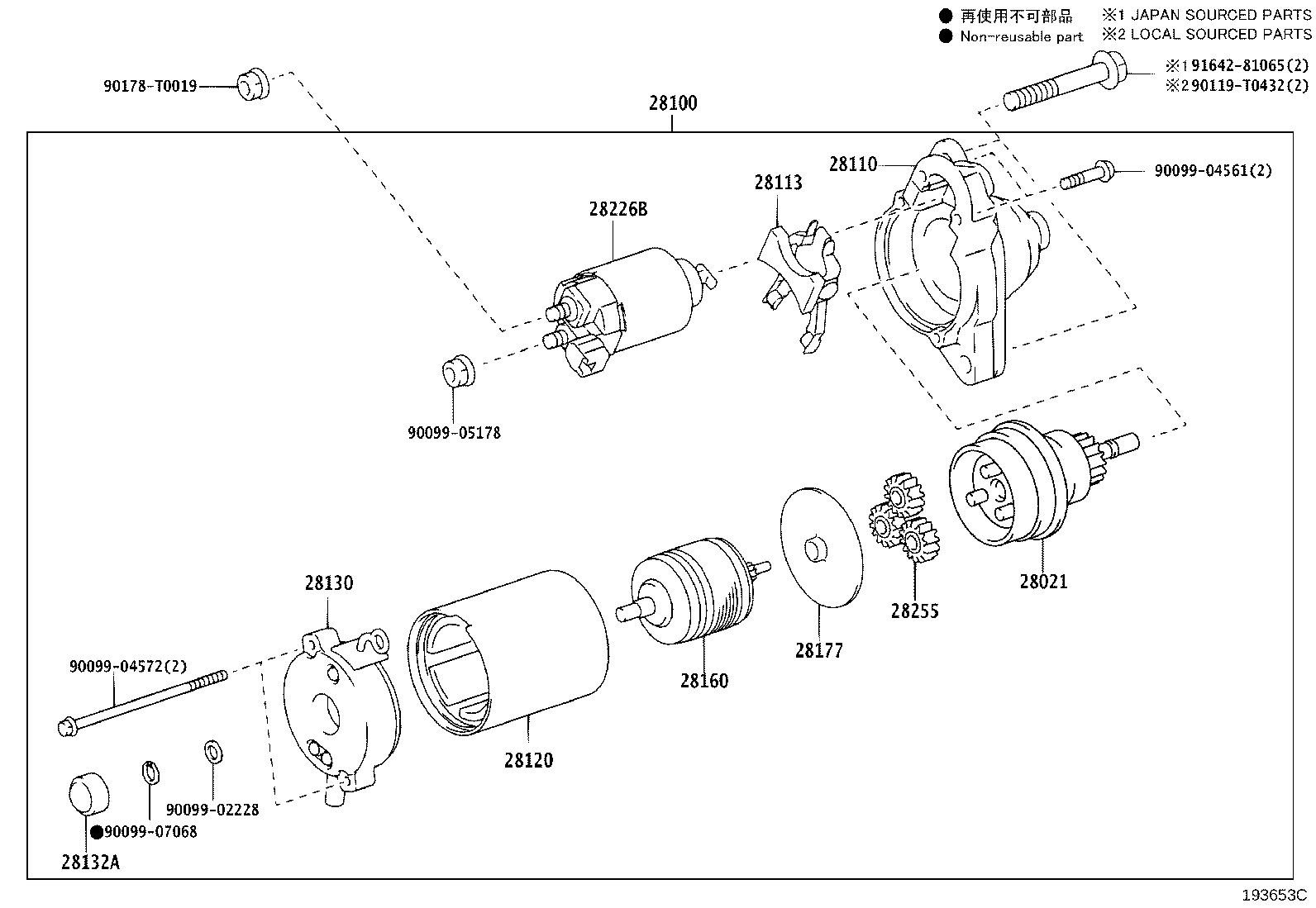

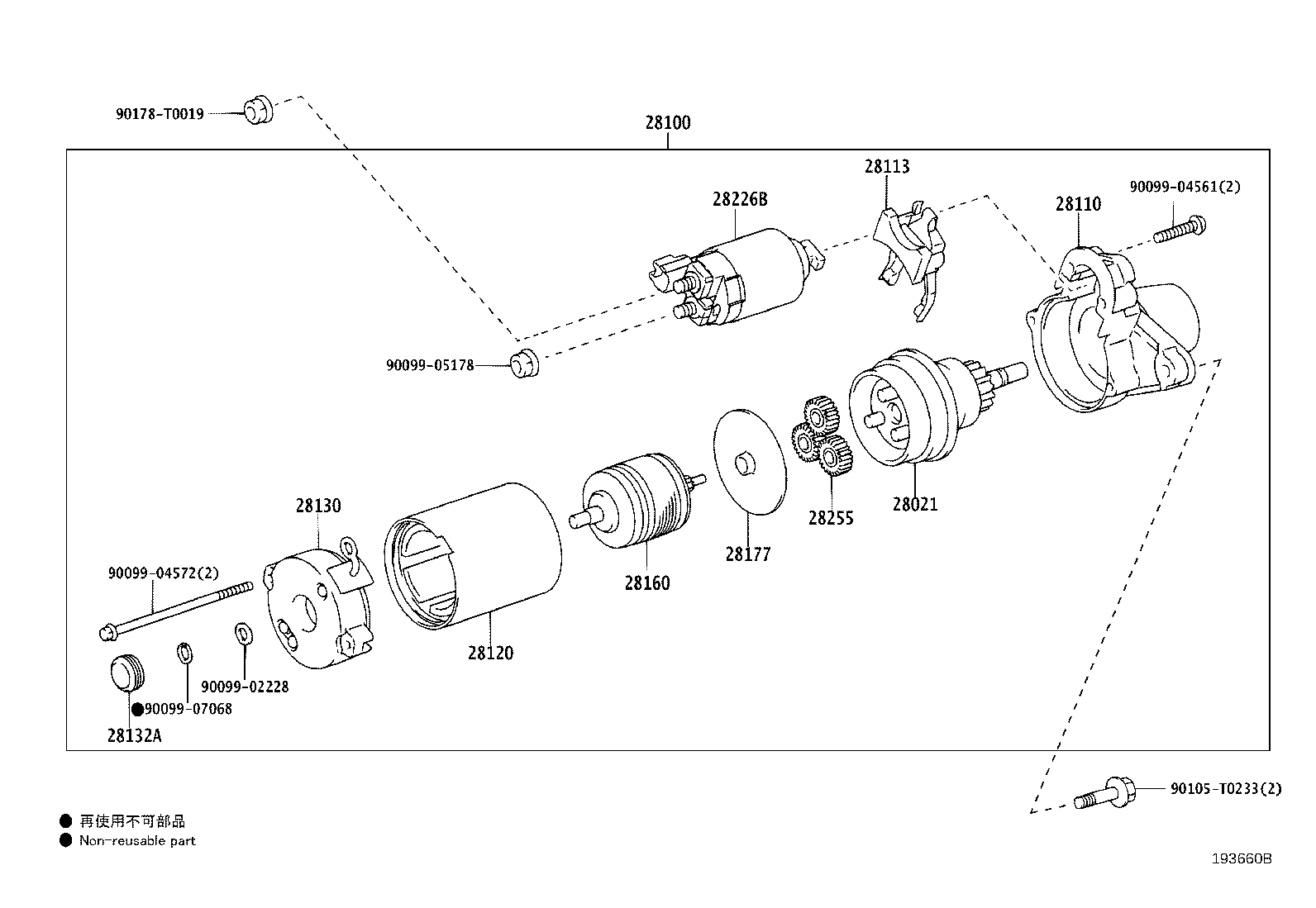

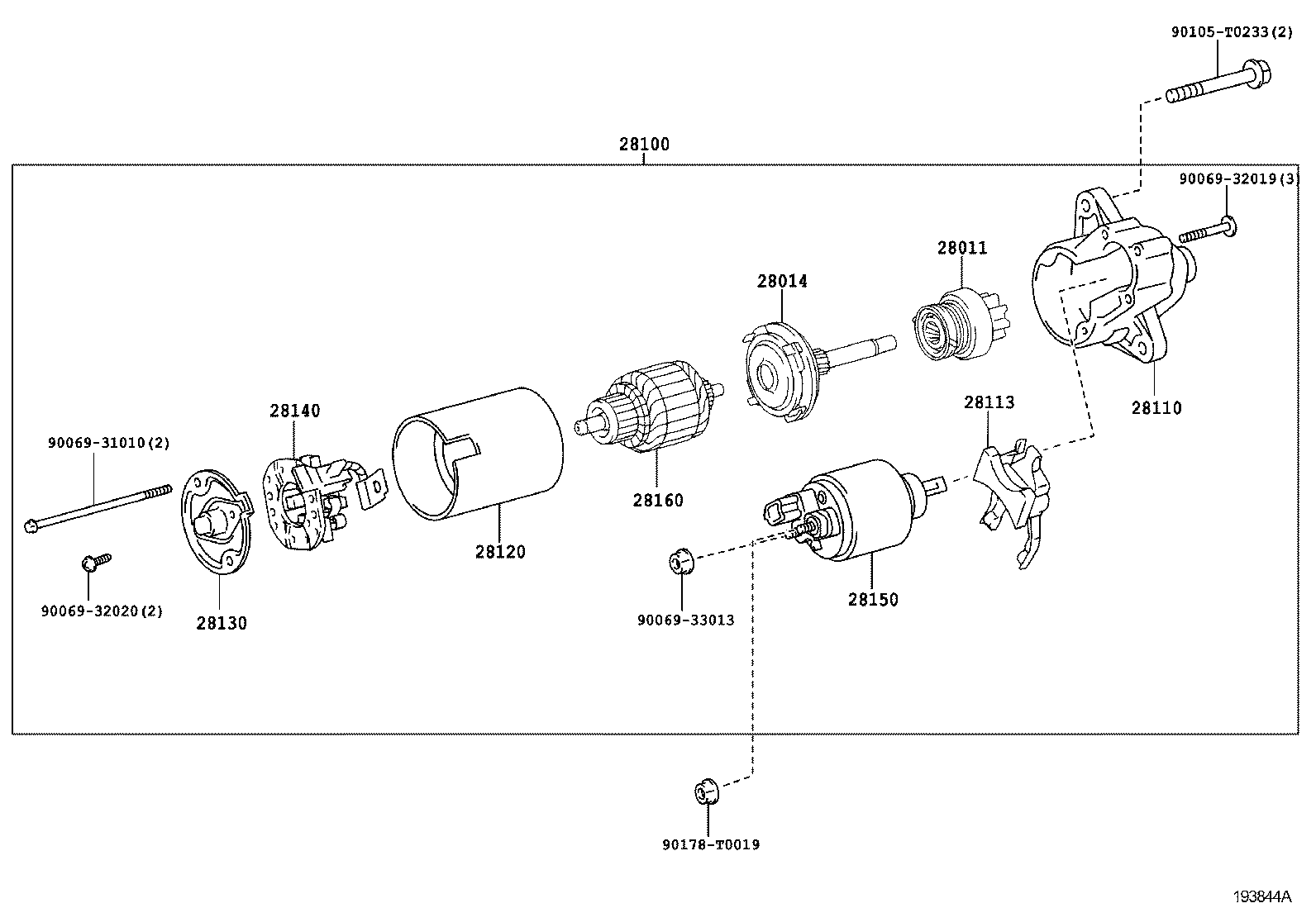

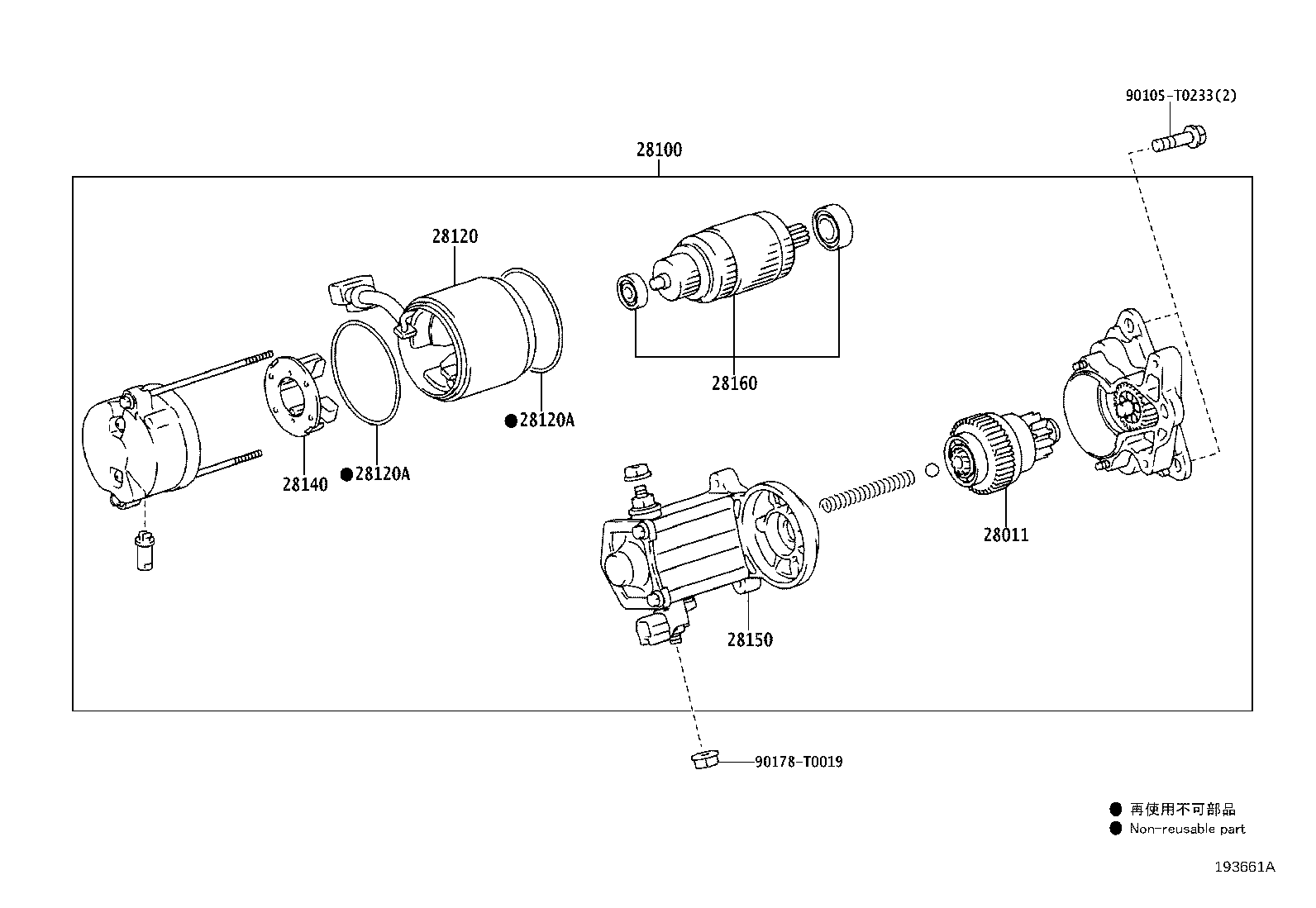

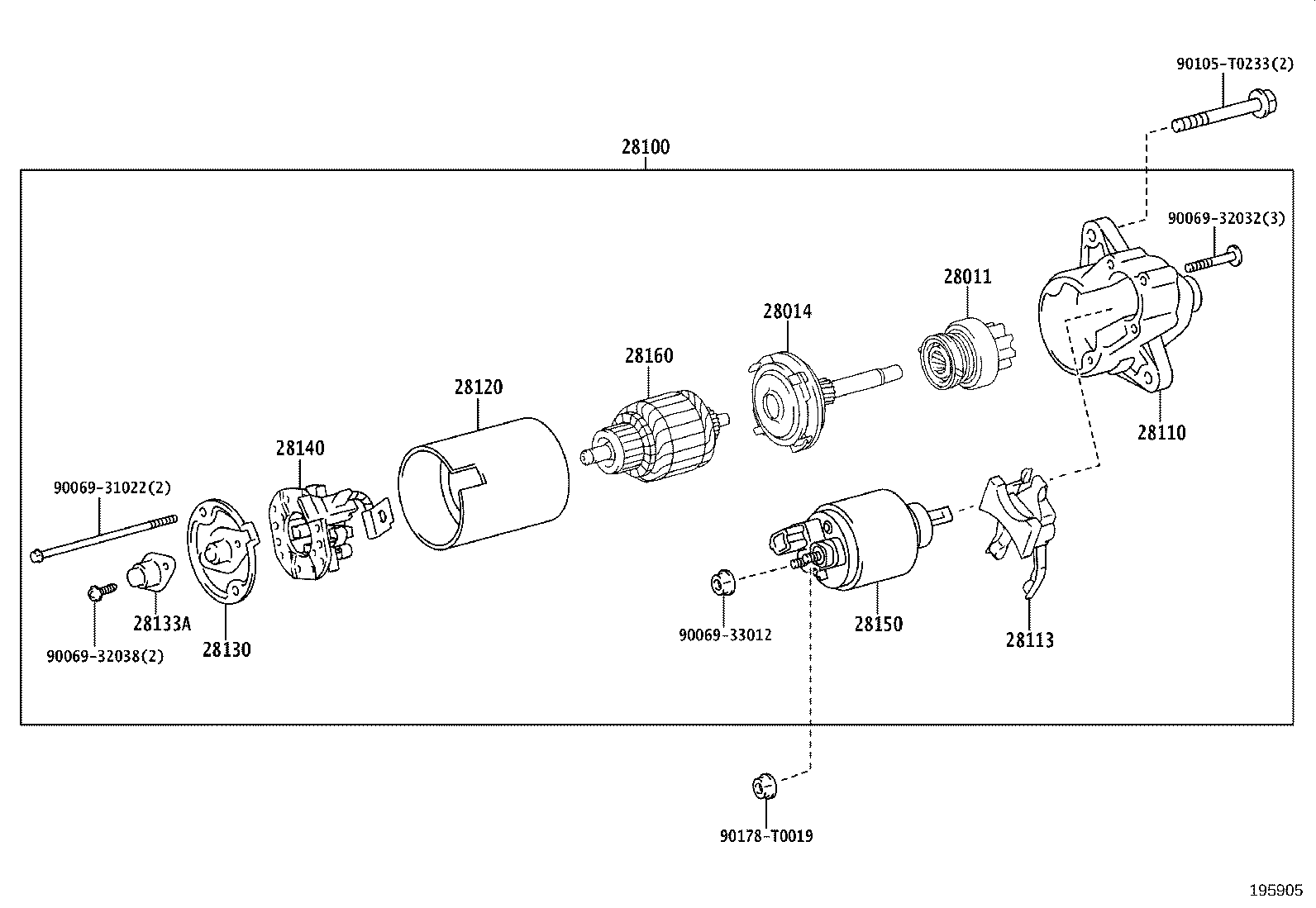

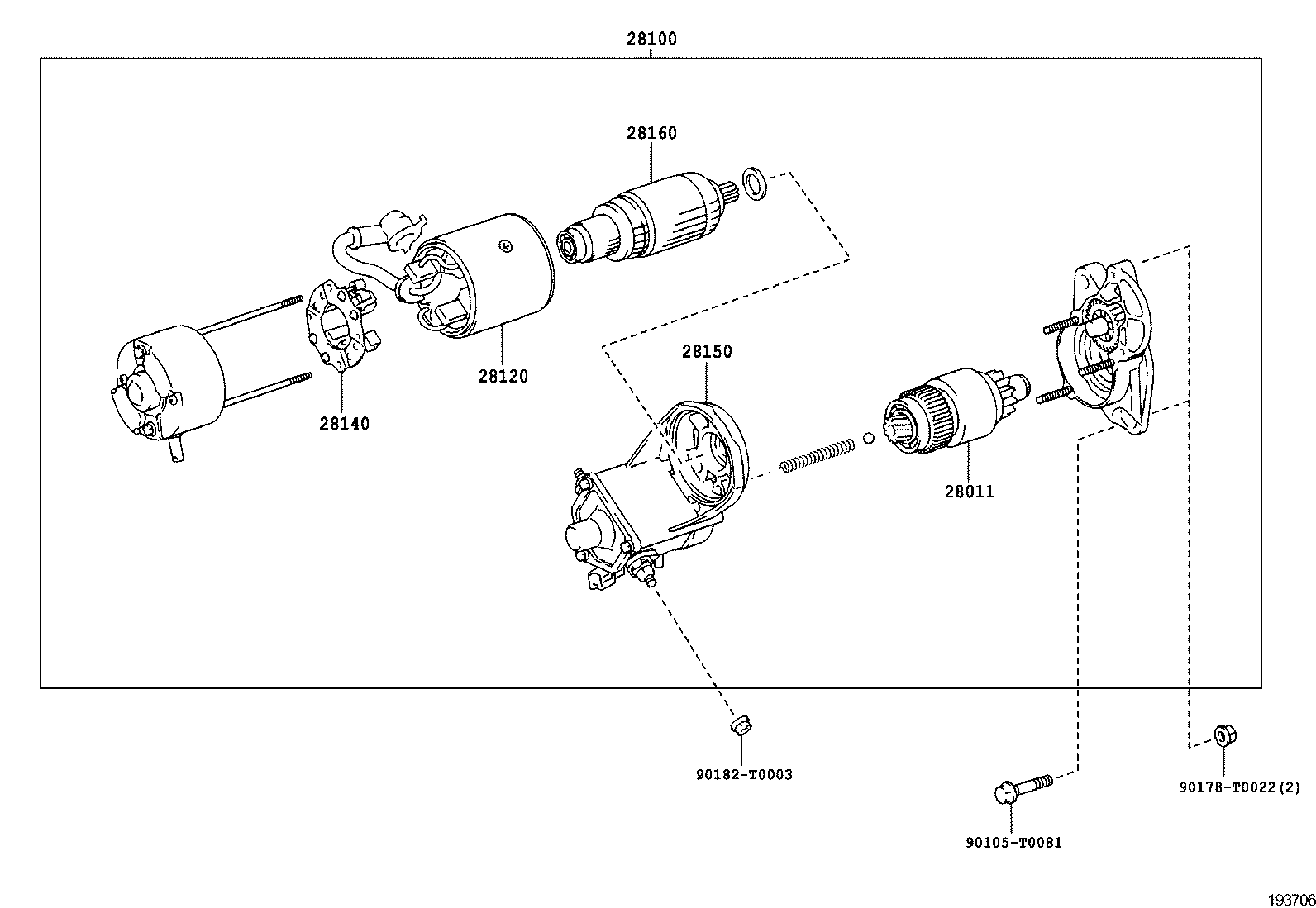

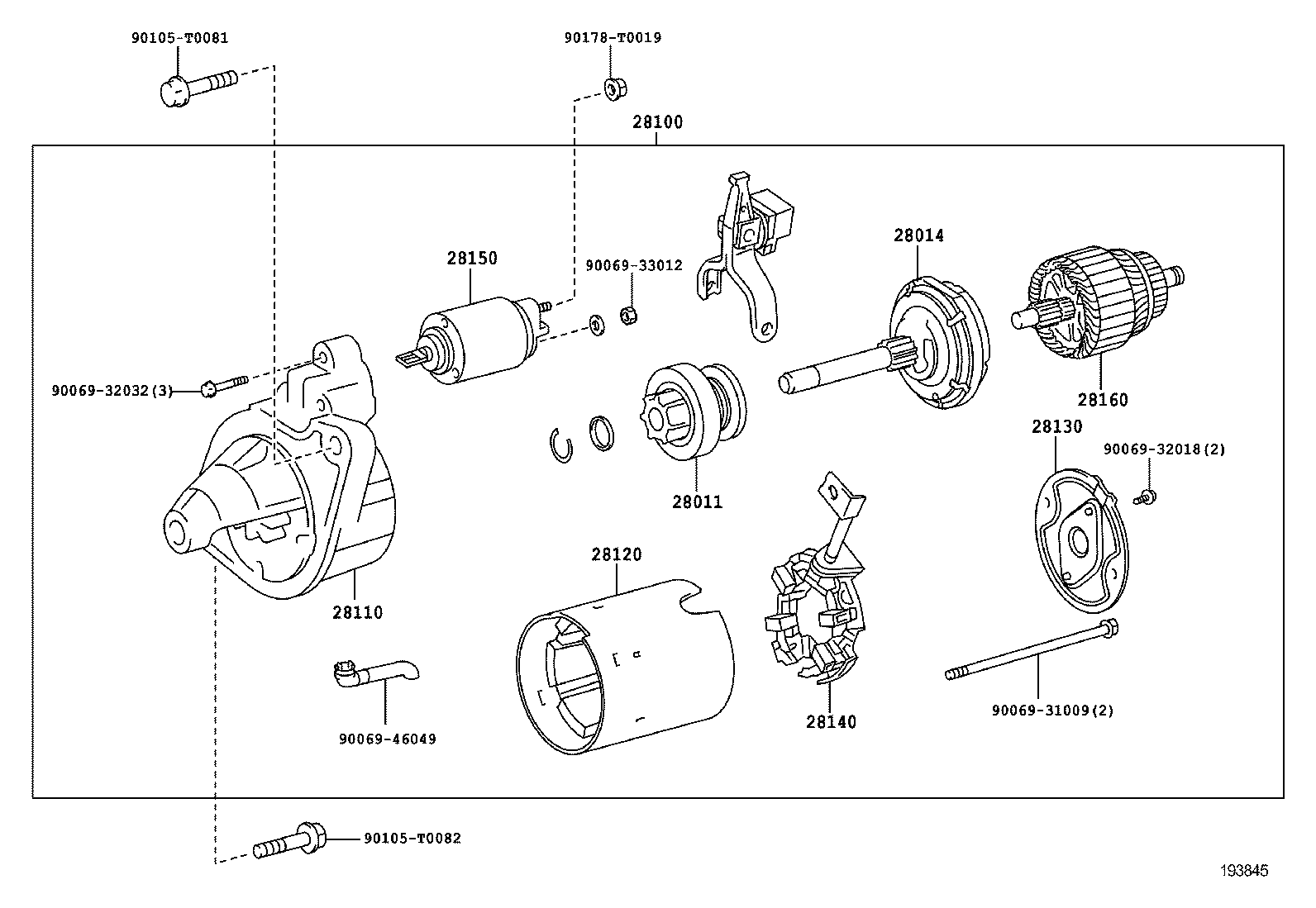

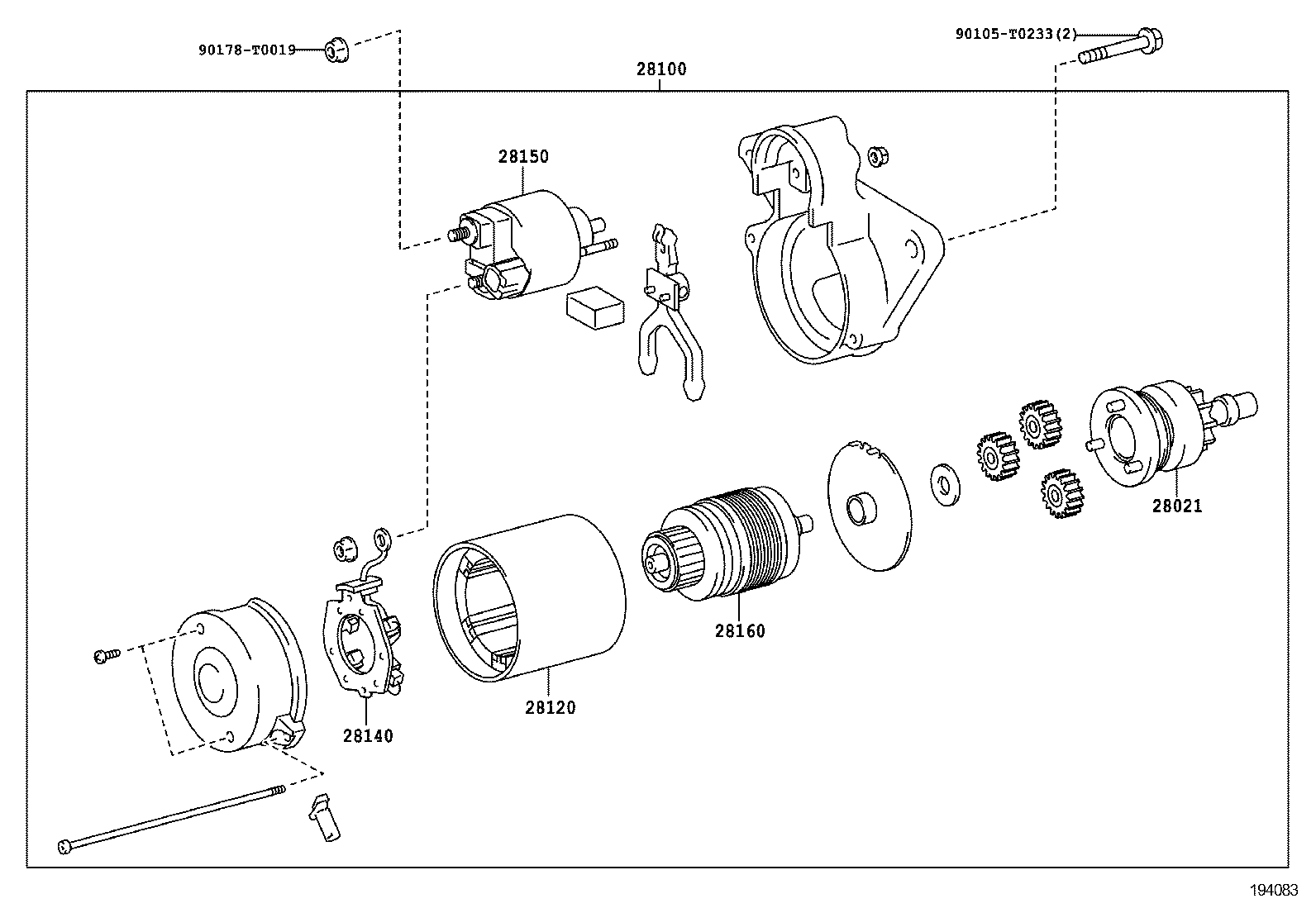

Figure 193654B 193654B 2011-07 → — Figure 193653C 193653C 2011-08 → — Figure 193847 193847 2011-07 → — Figure 193848A 193848A 2011-07 → — Figure 193659A 193659A 2011-07 → — Figure 193661A 193661A 2011-07 → — Figure 193661A 193661A 2014-03 → — Figure 195905 195905 2011-08 → — Figure 195905 195905 2020-08 → — Figure 193844A 193844A 2011-10 → — Figure 193844A 193844A 2012-04 → 2020-08 Figure 193660B 193660B 2011-07 → 2012-12 Figure 194083 194083 2012-12 → — Figure 193717A 193717A 2011-08 → — Figure 193706 193706 2011-09 → — Figure 193845 193845 2011-10 → 2012-02 Figure 194082 194082 2012-02 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28011B Ring, O(FOR STARTER CLUTCH)
28014 Shaft Sub-assy, Planet Carrier
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28113 Lever, Starter Pinion Drive
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28130 Frame Assy, Starter Commutator End
28132A Cover, Starter Commutator End Frame
28133A Frame, Commutator End
28139 Wire, Lead, NO.1(FOR STARTER)
28140 Holder Assy, Starter Brush
28142A Starter Kit
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28177 Plate(FOR STARTER ARMATURE)
28191 Stay, Starter
28226B Starter Kit, Repair Service
28255 Gear, Planet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
