Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Nozzle

34 part groups · 21 illustrations

Illustrations

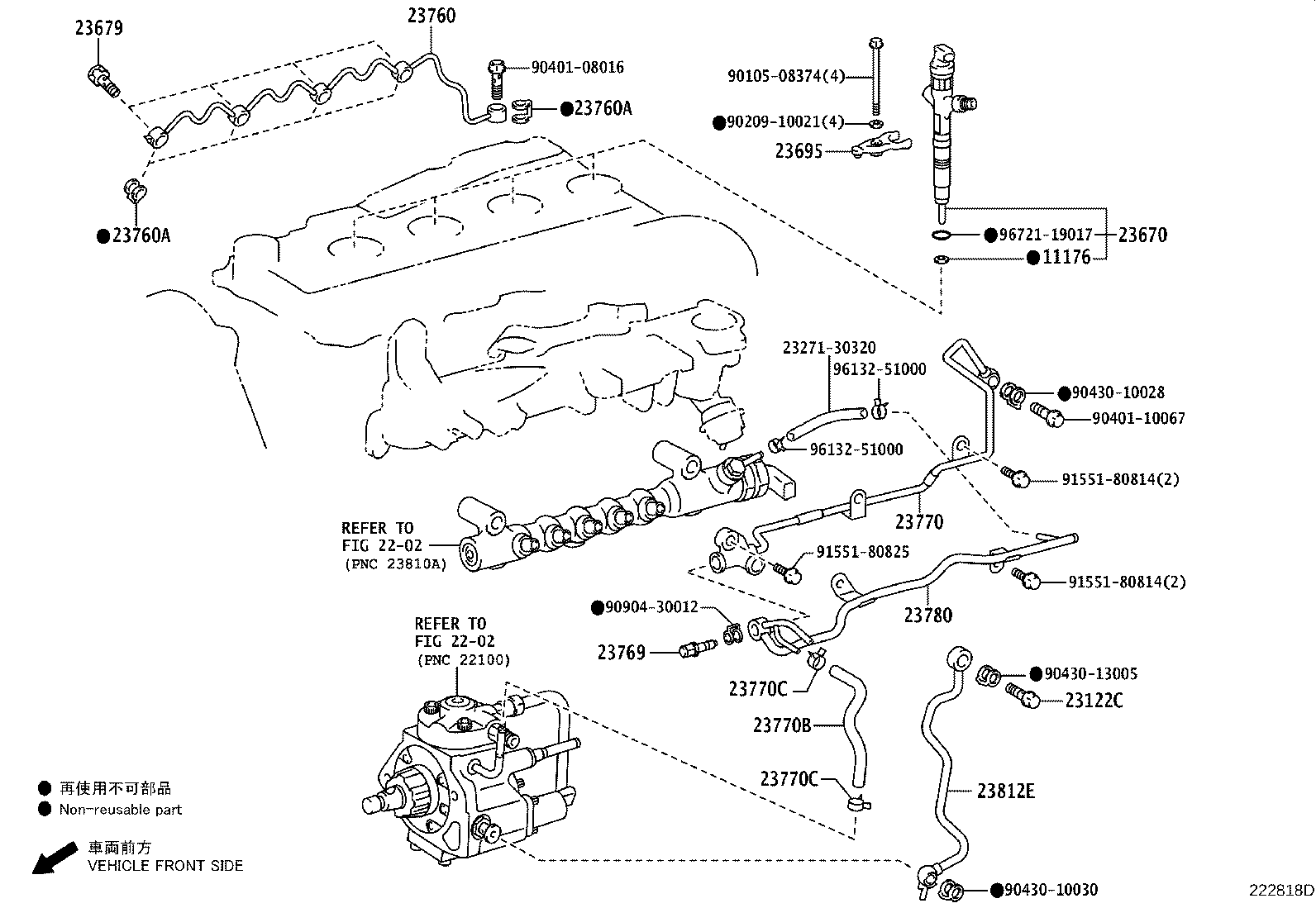

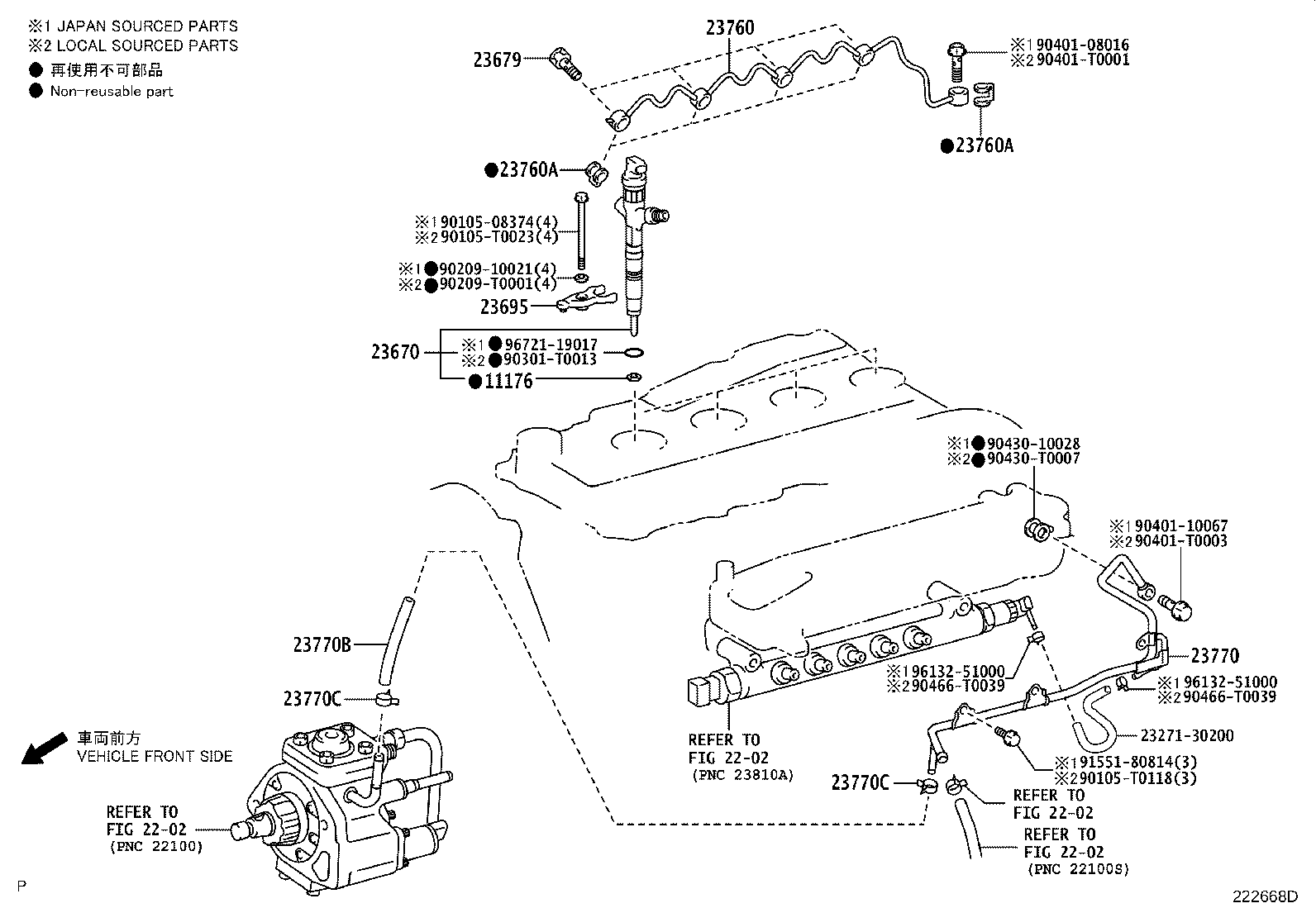

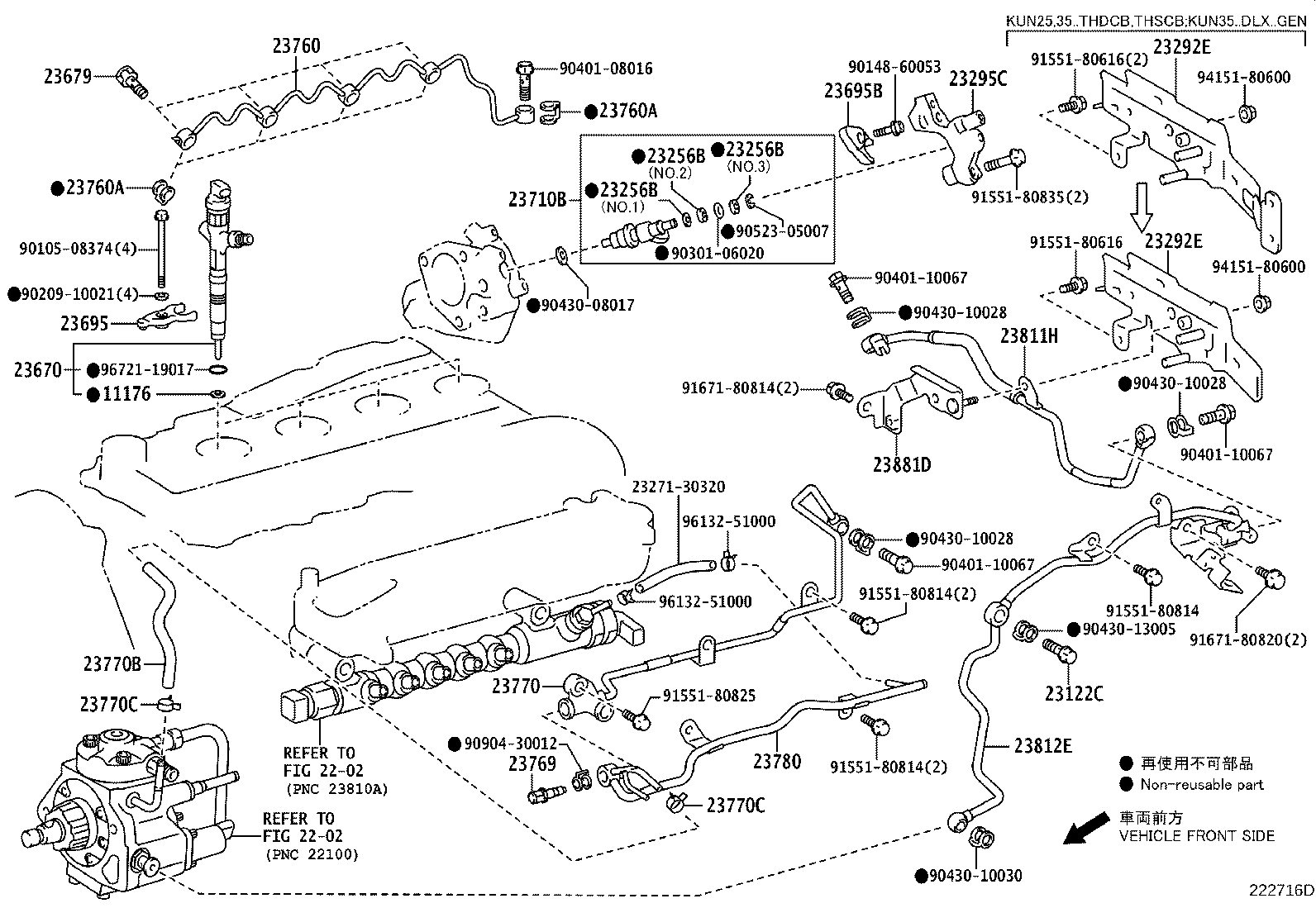

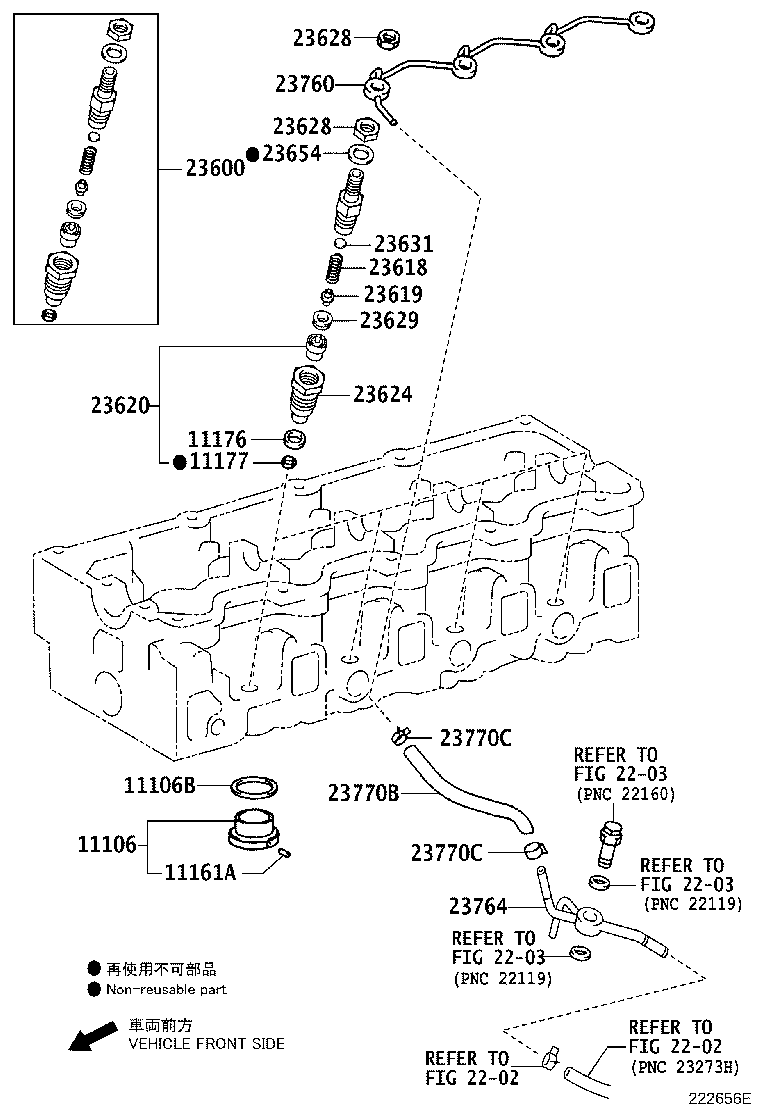

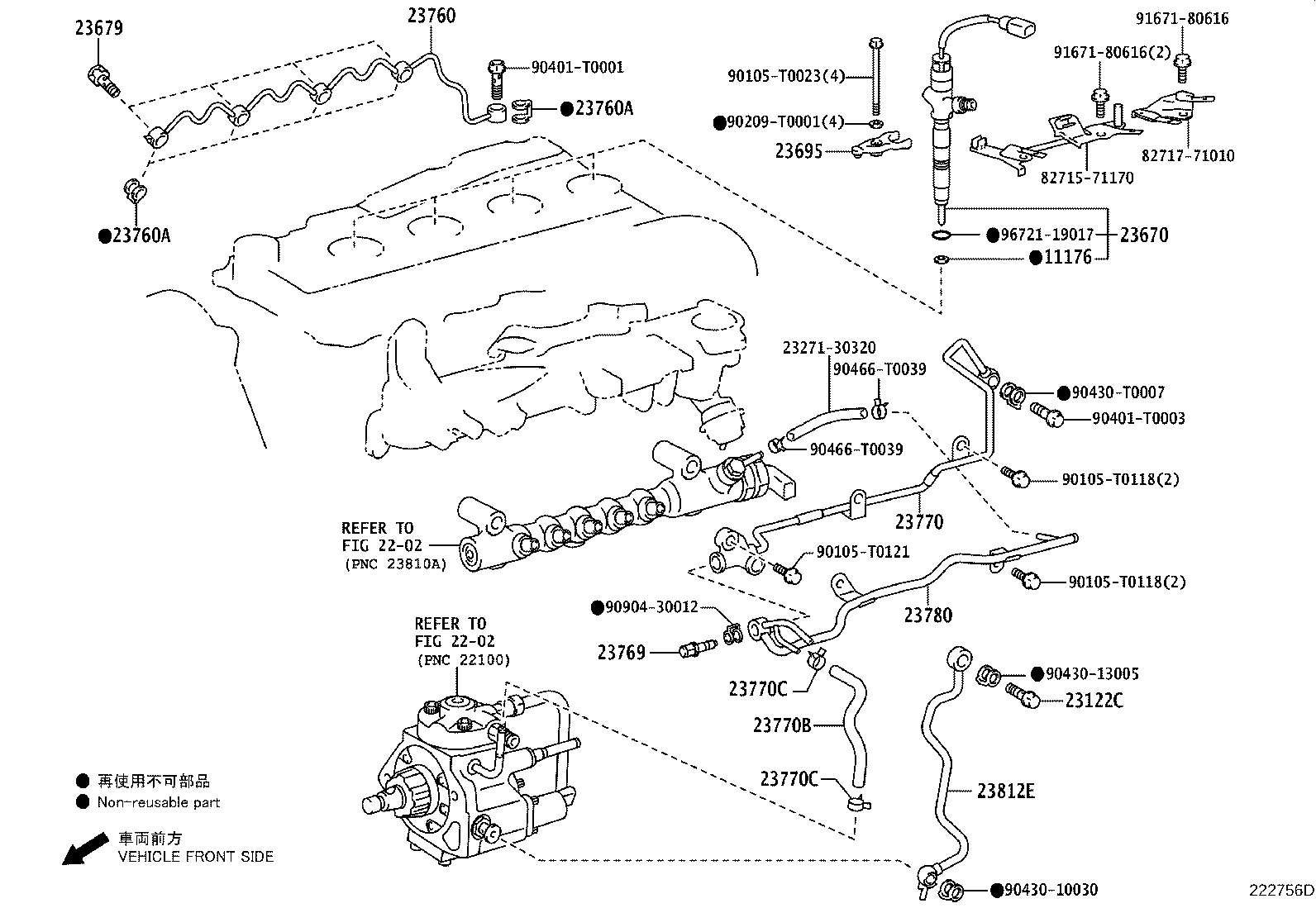

Figure 222666E 222666E 2011-07 → 2012-08 Figure 222666E 222666E 2011-07 → 2012-10 Figure 222666E 222666E 2011-07 → — Figure 222666E 222666E 2011-07 → — Figure 222666E 222666E 2011-07 → — Figure 222666E 222666E 2011-07 → — Figure 222668D 222668D 2011-07 → — Figure 222668D 222668D 2011-07 → — Figure 222668D 222668D 2011-10 → — Figure 222668D 222668D 2012-08 → 2012-10 Figure 222668D 222668D 2012-08 → — Figure 222668D 222668D 2012-08 → — Figure 222668D 222668D 2012-08 → — Figure 222668D 222668D 2012-10 → — Figure 222668D 222668D 2013-08 → — Figure 222668D 222668D 2014-10 → — Figure 222716D 222716D 2011-07 → — Figure 222716D 222716D 2013-08 → — Figure 222756D 222756D 2012-04 → — Figure 222818D 222818D 2012-08 → — Figure 222656E 222656E 2011-08 → —

Part groups

PNCDescription
11106 Chamber Sub-assy, Combustion
11106B Shim(FOR COMBUSTION CHAMBER)
11161A Pin, Straight(FOR COMBUSTION CHAMBER)
11176 Seat, Injection Nozzle
11177 Gasket, Injection Nozzle Seat
23122C Valve, Check
23256B Ring, Fuel Injector Back-up, NO.1
23292E Protector, Fuel Hose
23295C Holder, Injector
23600 Holder & Nozzle Set, Nozzle
23618 Spring, Nozzle Holder Pressure
23619 Pin, Nozzle Holder Pressure
23620 Nozzle Assy
23624 Nut, Nozzle Retaining
23628 Nut(FOR RING PACKING SETTING)
23629 Piece, Distance(FOR NOZZLE)
23631 Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
23654 Washer(FOR RING PACKING)
23670 Injector Assy
23679 Screw, Injector Follow
23695 Clamp, Nozzle Holder, NO.1
23695B Clamp, Nozzle Holder, NO.2
23710B Injector Assy, Exhaust Fuel Addition
23760 Pipe Assy, Nozzle Leakage
23760A Gasket
23764 Pipe, Nozzle Leakage, NO.4
23769 Valve, Fuel Check
23770 Pipe Assy, Nozzle Leakage, NO.2
23770B Hose, Fuel
23770C Clamp OR Clip(FOR FUEL HOSE SET)
23780 Pipe, Nozzle Leakage, NO.3
23811H Pipe, Fuel, NO.1
23812E Pipe, Fuel, NO.2
23881D Bracket, Fuel Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
