Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

14 part groups · 27 illustrations

Illustrations

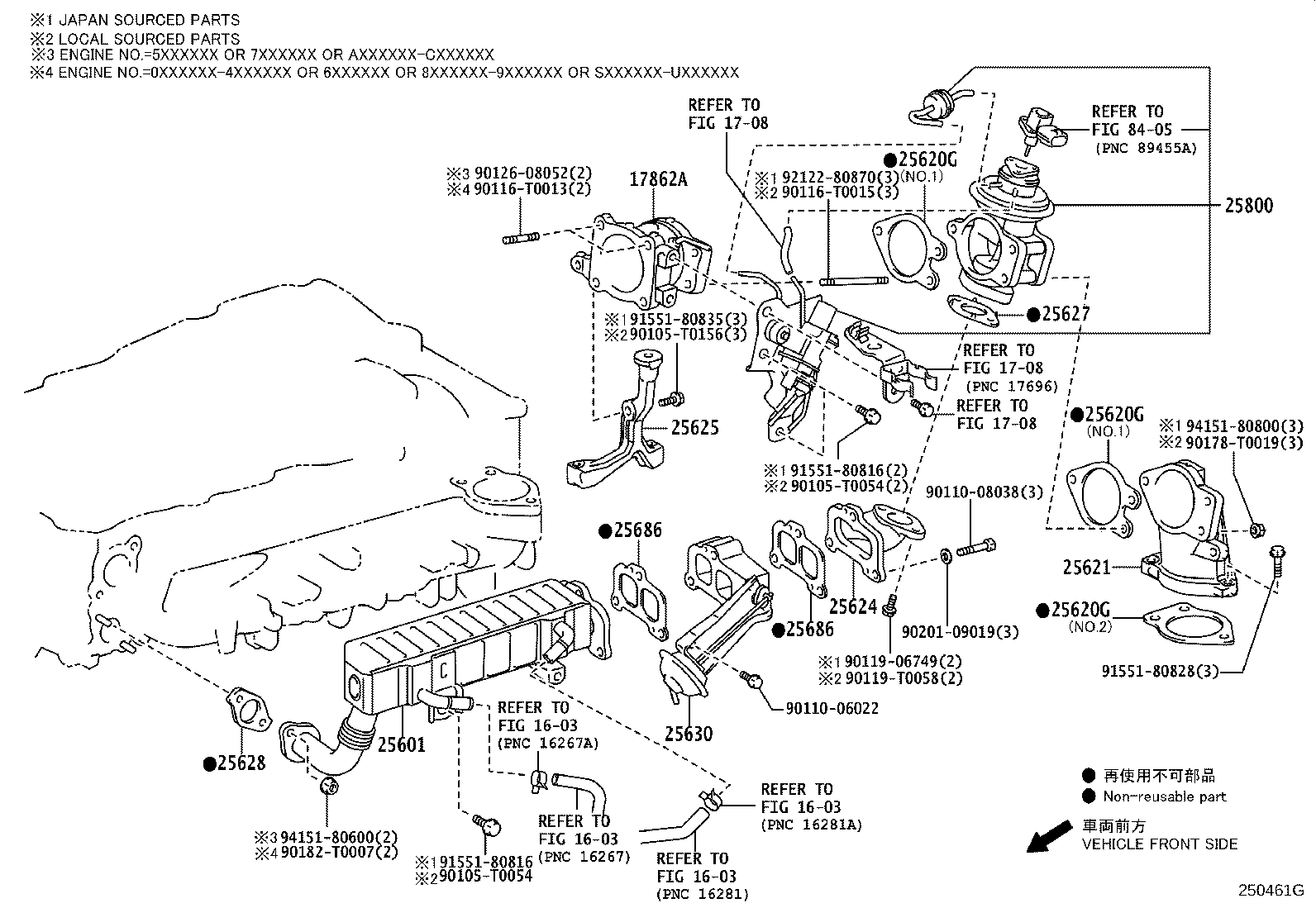

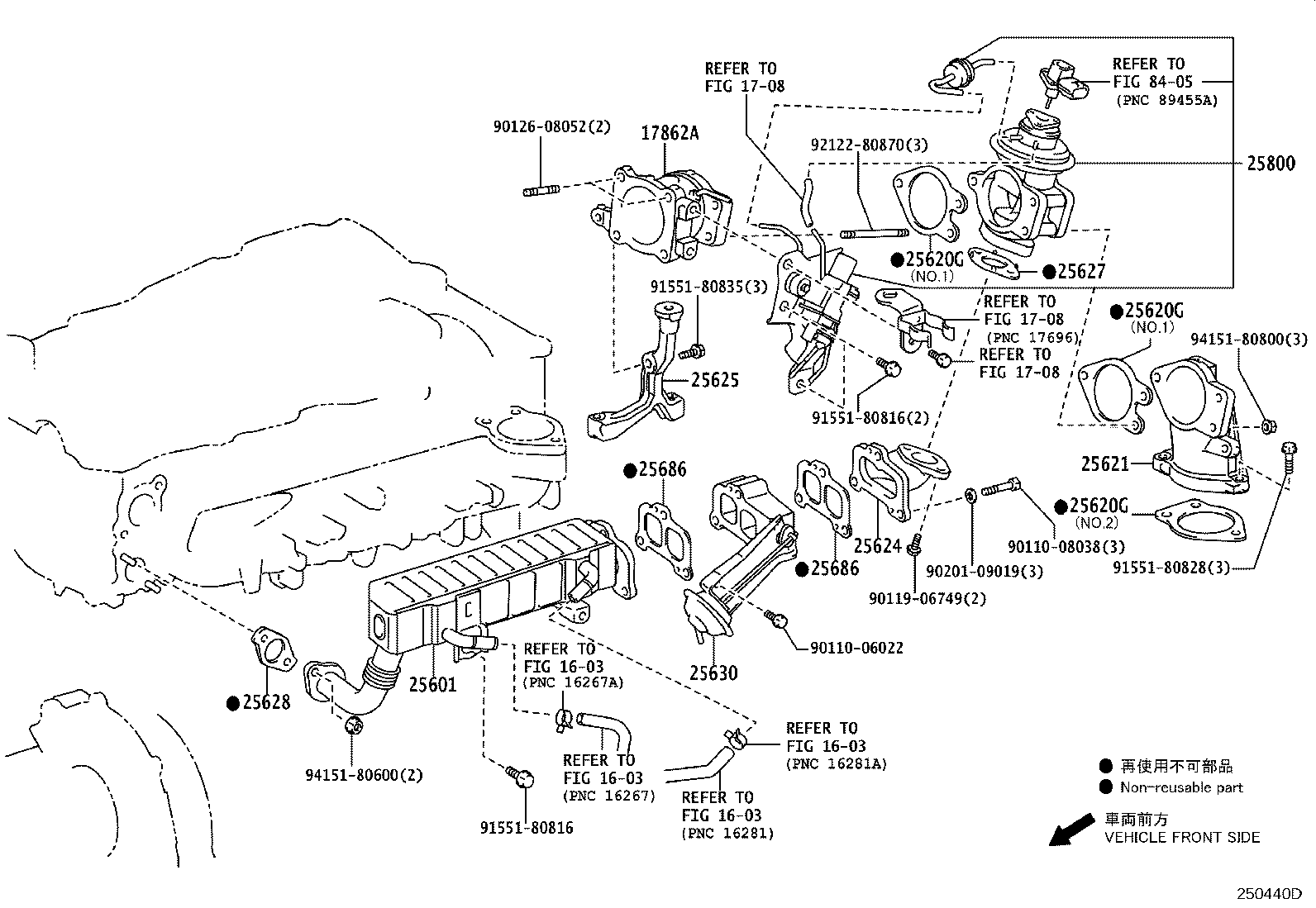

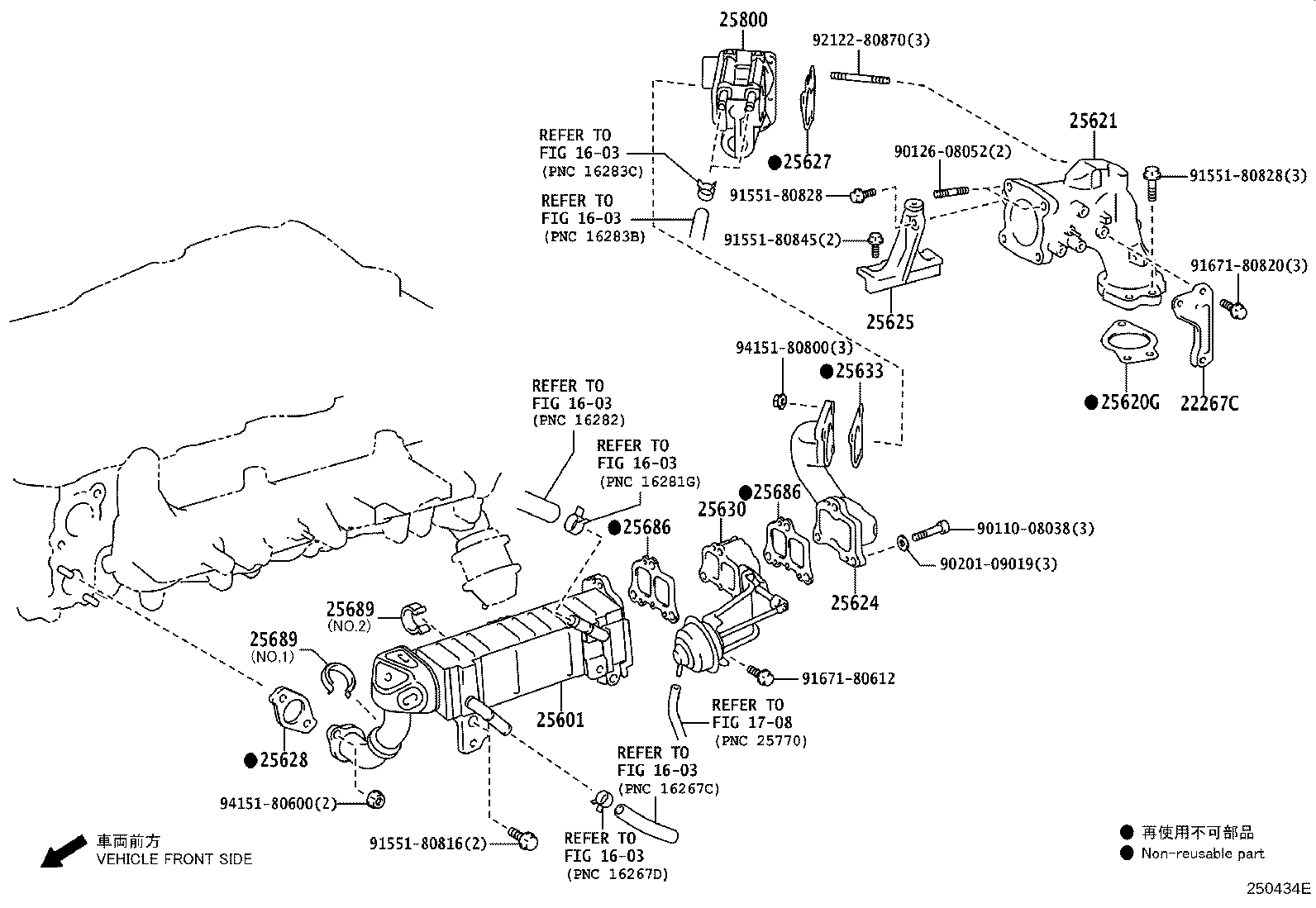

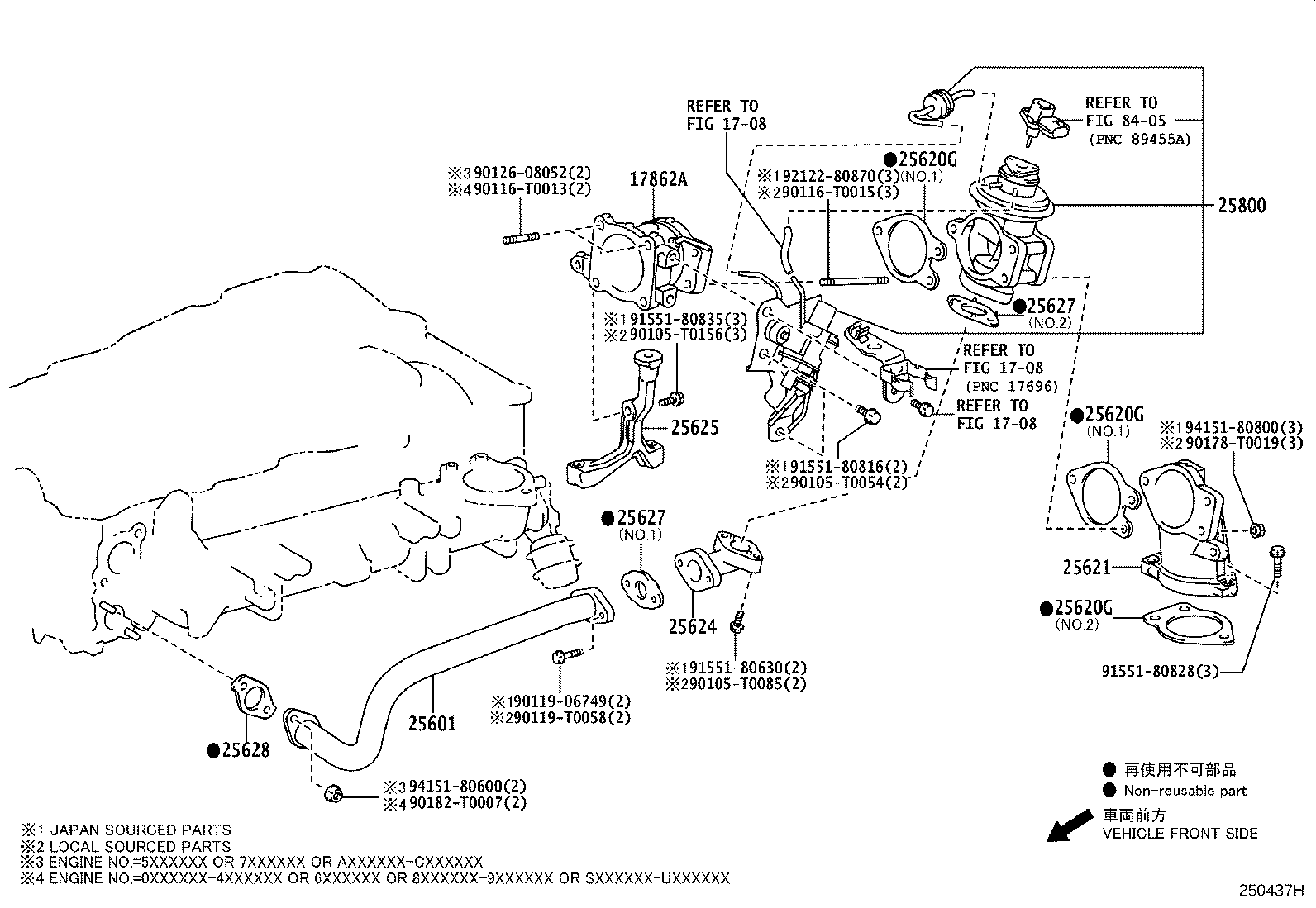

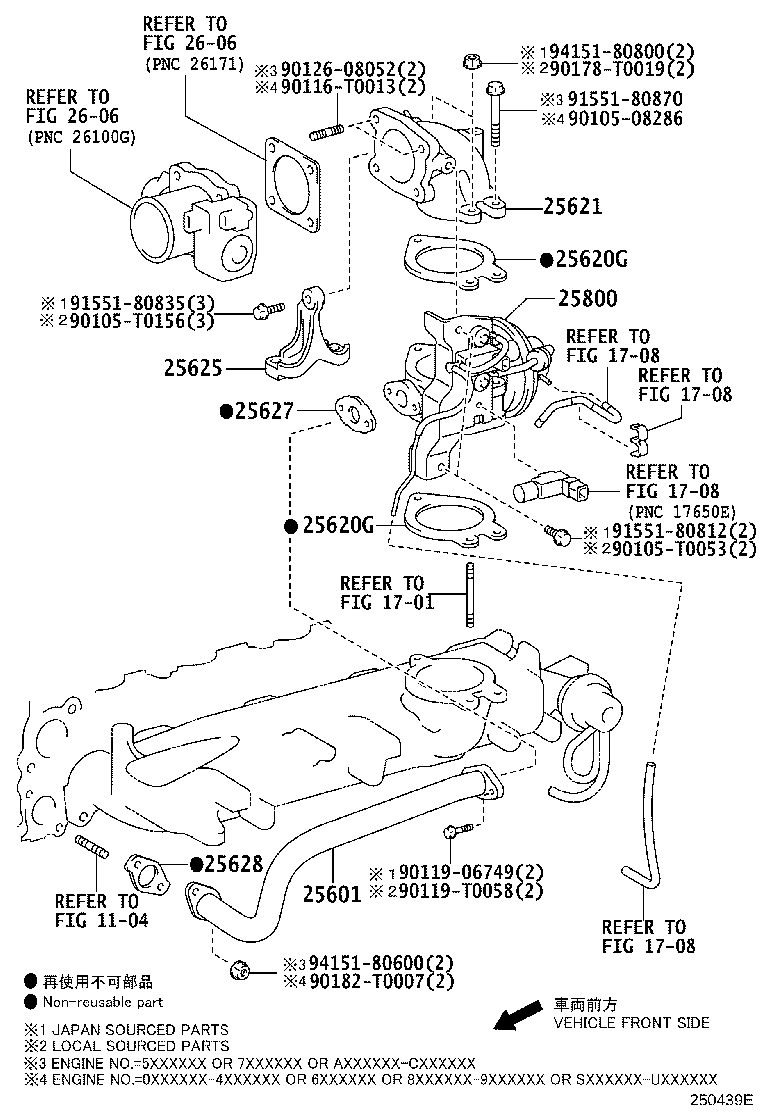

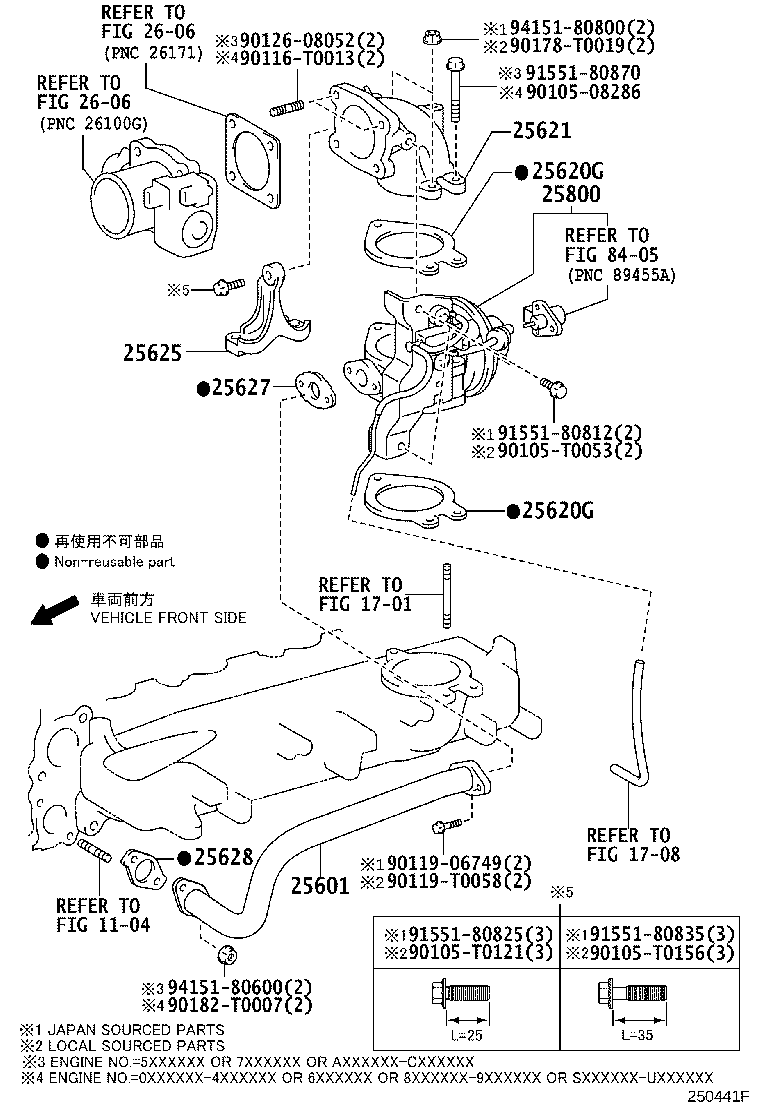

Figure 250438D 250438D 2011-07 → — Figure 250439E 250439E 2011-07 → — Figure 250439E 250439E 2011-07 → — Figure 250440D 250440D 2011-07 → — Figure 250434E 250434E 2011-07 → — Figure 250441F 250441F 2011-07 → 2012-08 Figure 250441F 250441F 2011-07 → — Figure 250441F 250441F 2011-07 → — Figure 250441F 250441F 2011-07 → — Figure 250441F 250441F 2011-07 → — Figure 250441F 250441F 2011-08 → — Figure 250441F 250441F 2011-09 → 2012-10 Figure 250441F 250441F 2011-09 → 2012-10 Figure 250441F 250441F 2013-08 → — Figure 250437H 250437H 2011-07 → — Figure 250437H 250437H 2012-08 → — Figure 250437H 250437H 2012-08 → — Figure 250437H 250437H 2012-10 → — Figure 250437H 250437H 2013-08 → — Figure 250461G 250461G 2011-10 → — Figure 250461G 250461G 2012-08 → — Figure 250461G 250461G 2013-11 → — Figure 250461G 250461G 2014-08 → — Figure 250461G 250461G 2014-10 → — Figure 250457I 250457I 2012-04 → — Figure 250457I 250457I 2012-08 → — Figure 250457I 250457I 2013-08 → —

Part groups

PNCDescription
17862A Connector, Intake Air, NO.2
22267C Bracket, Throttle Body
25601 Pipe Sub-assy, Egr, NO.1
25620G Gasket, Diesel Throttle
25621 Connector, Intake Air(FOR GASKET)
25624 Adapter, Egr Valve
25625 Bracket, Egr Valve
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25630 Valve Assy, Egr, NO.2
25633 Gasket, Egr Valve
25686 Gasket, Egr Cooler, NO.2
25689 Insulator, Egr Cooler
25800 Valve Assy, Electric Egr Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
