Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Housing & Transmission Case (MTM)

20 part groups · 7 illustrations

Illustrations

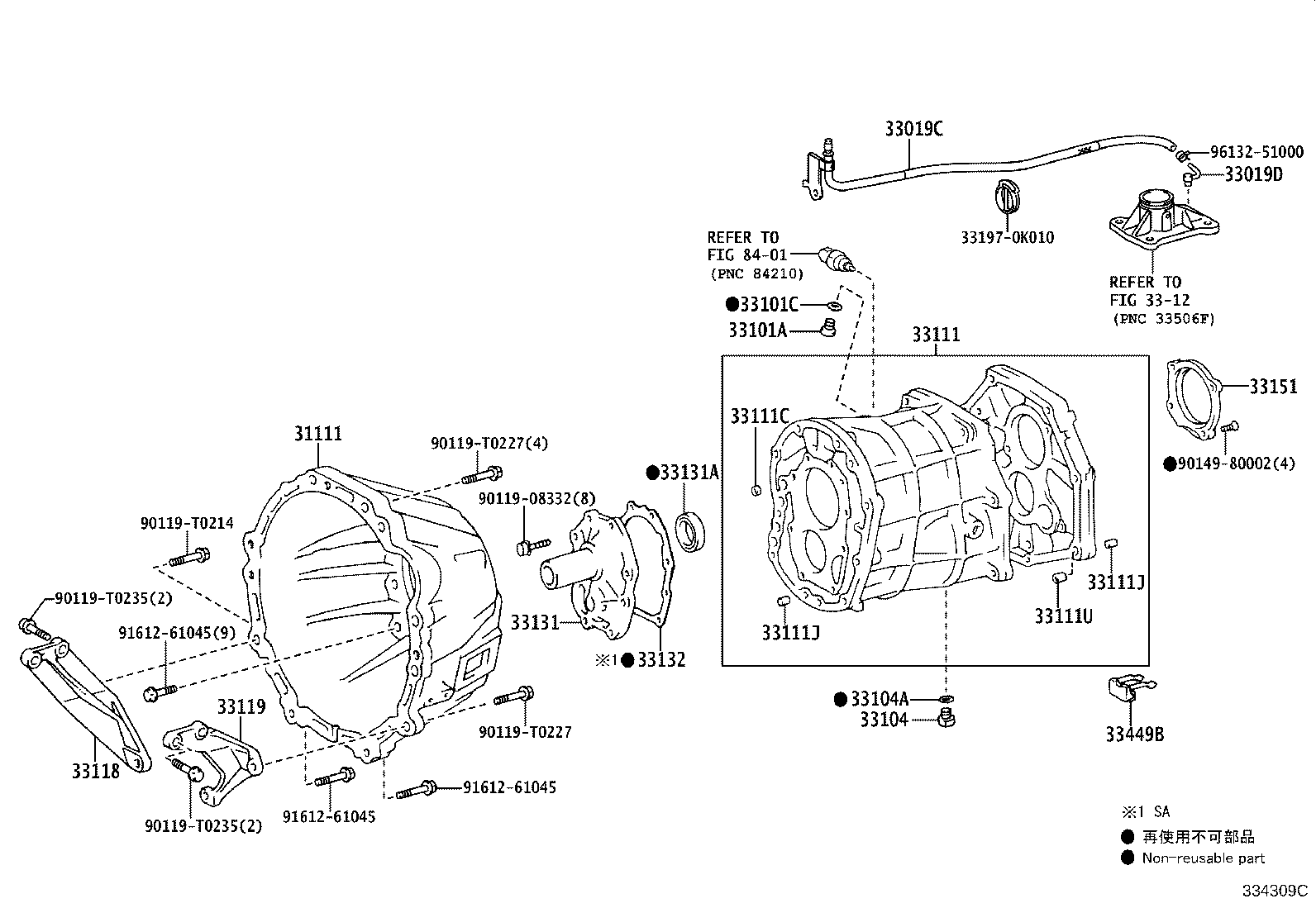

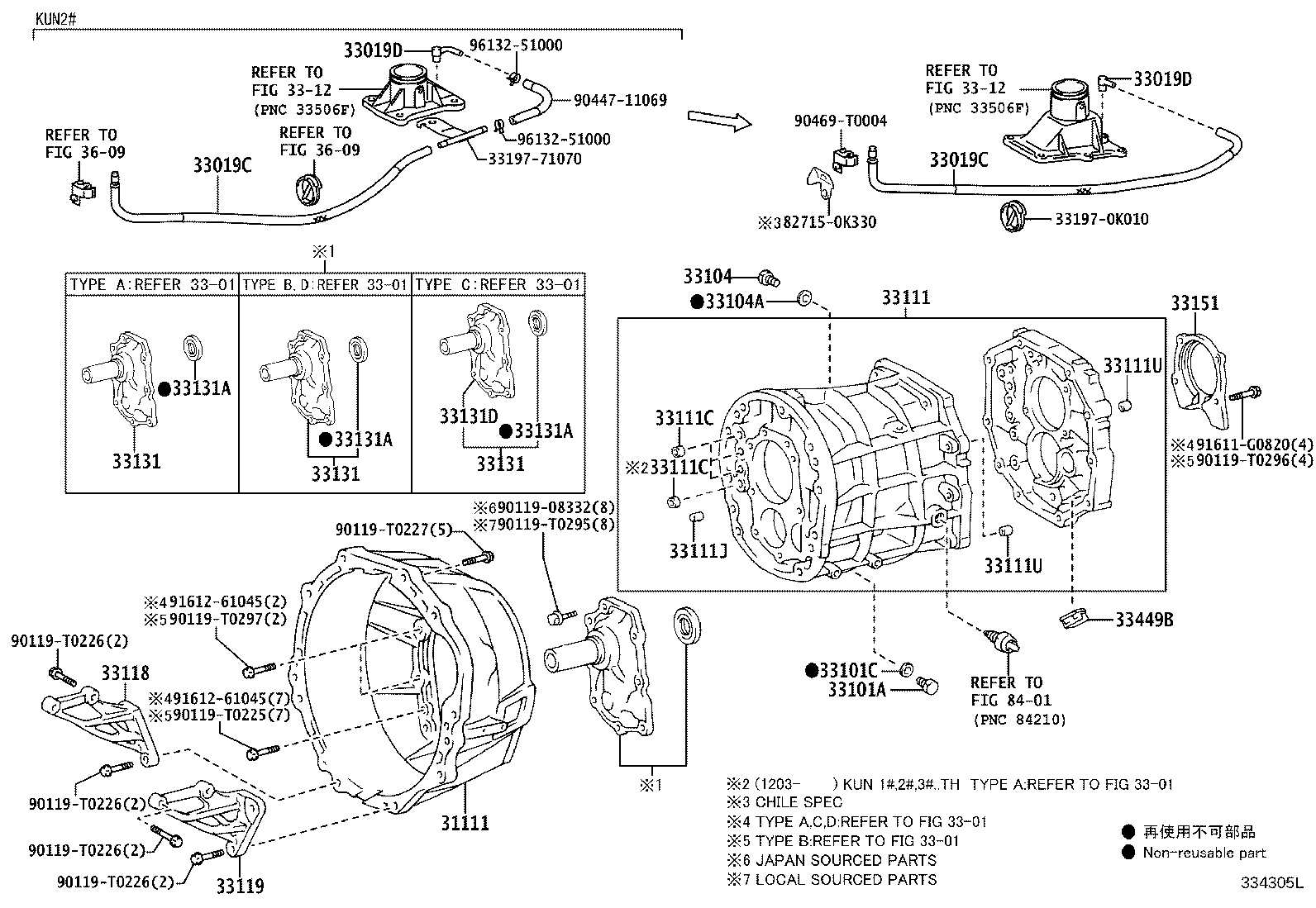

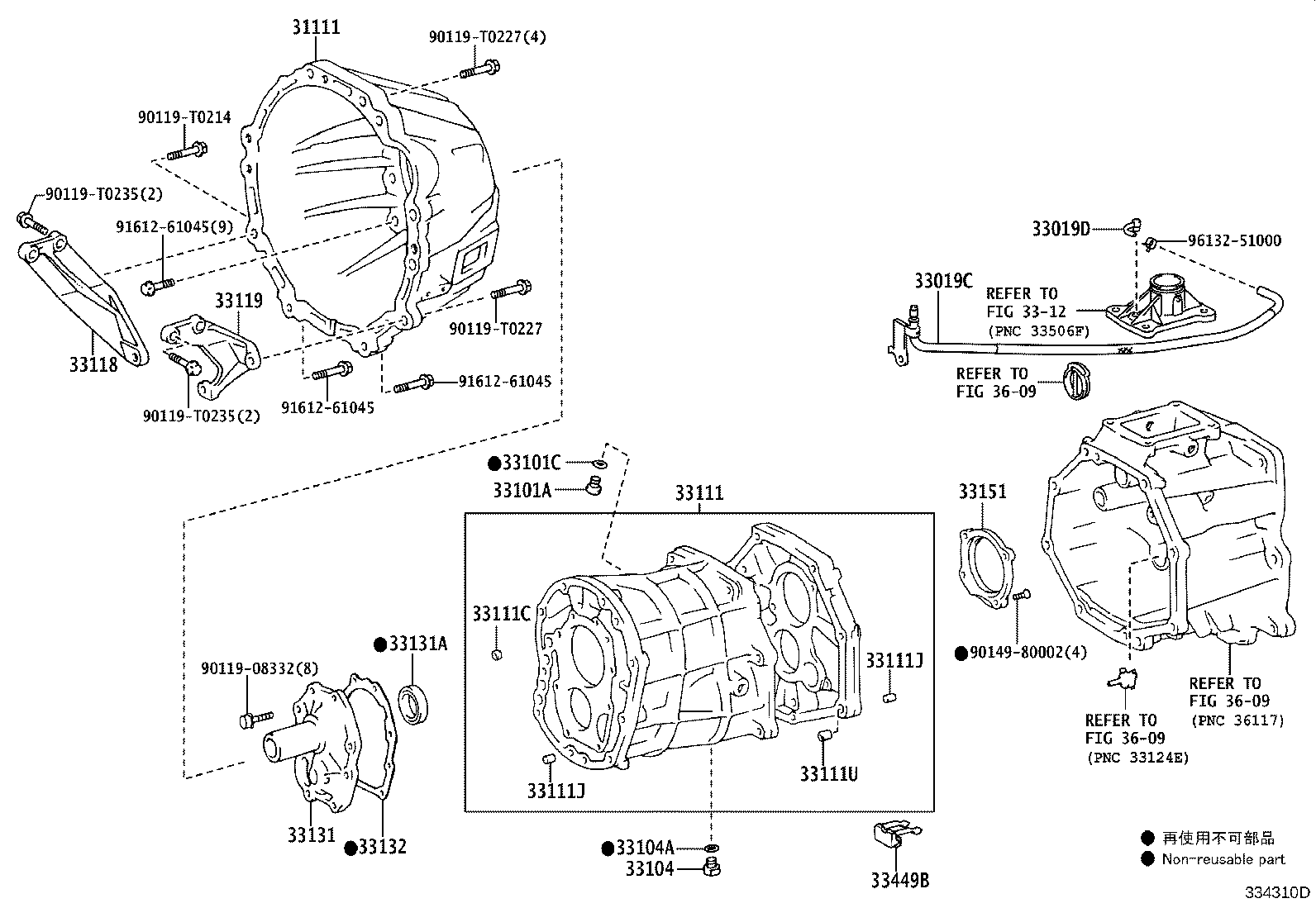

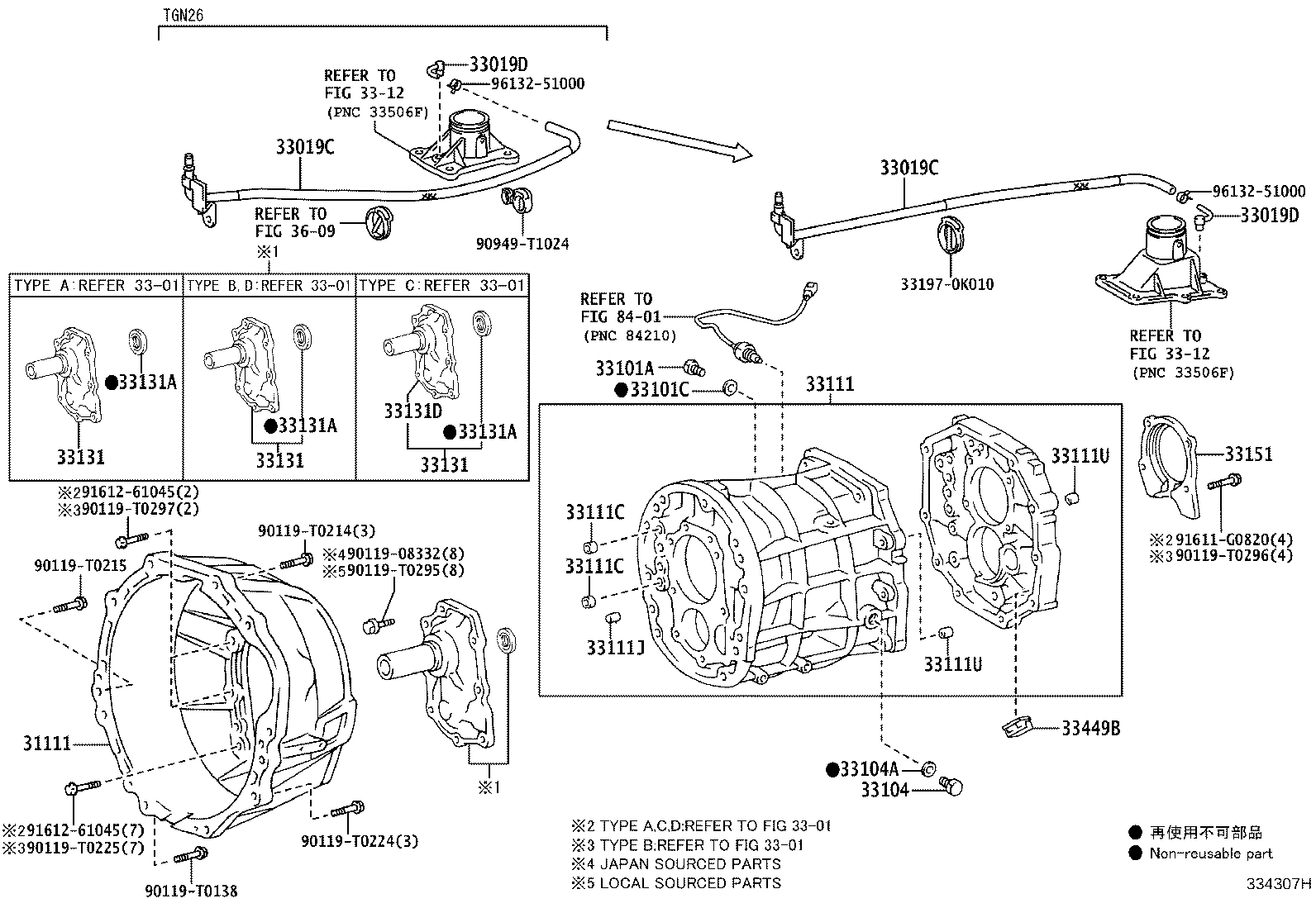

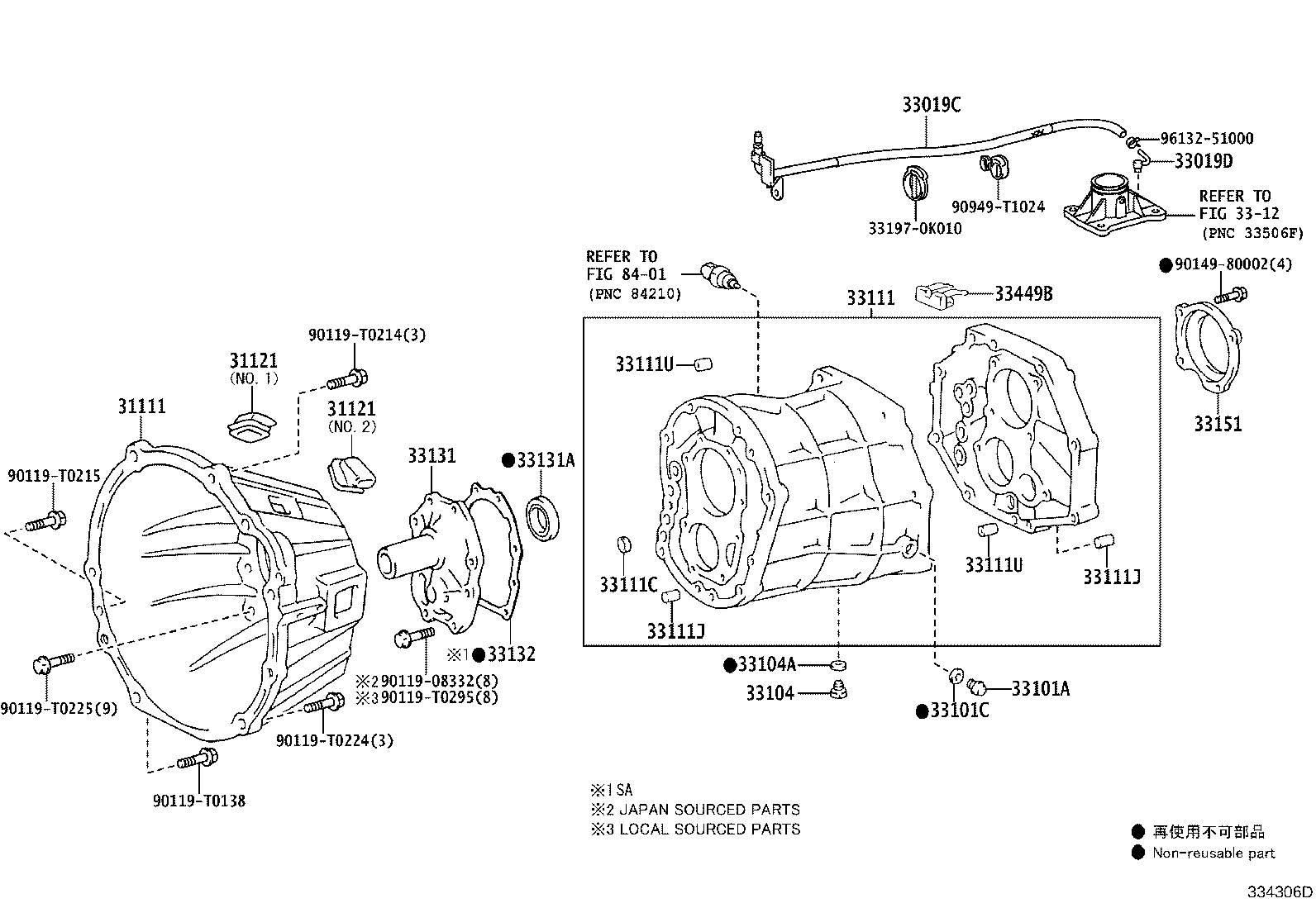

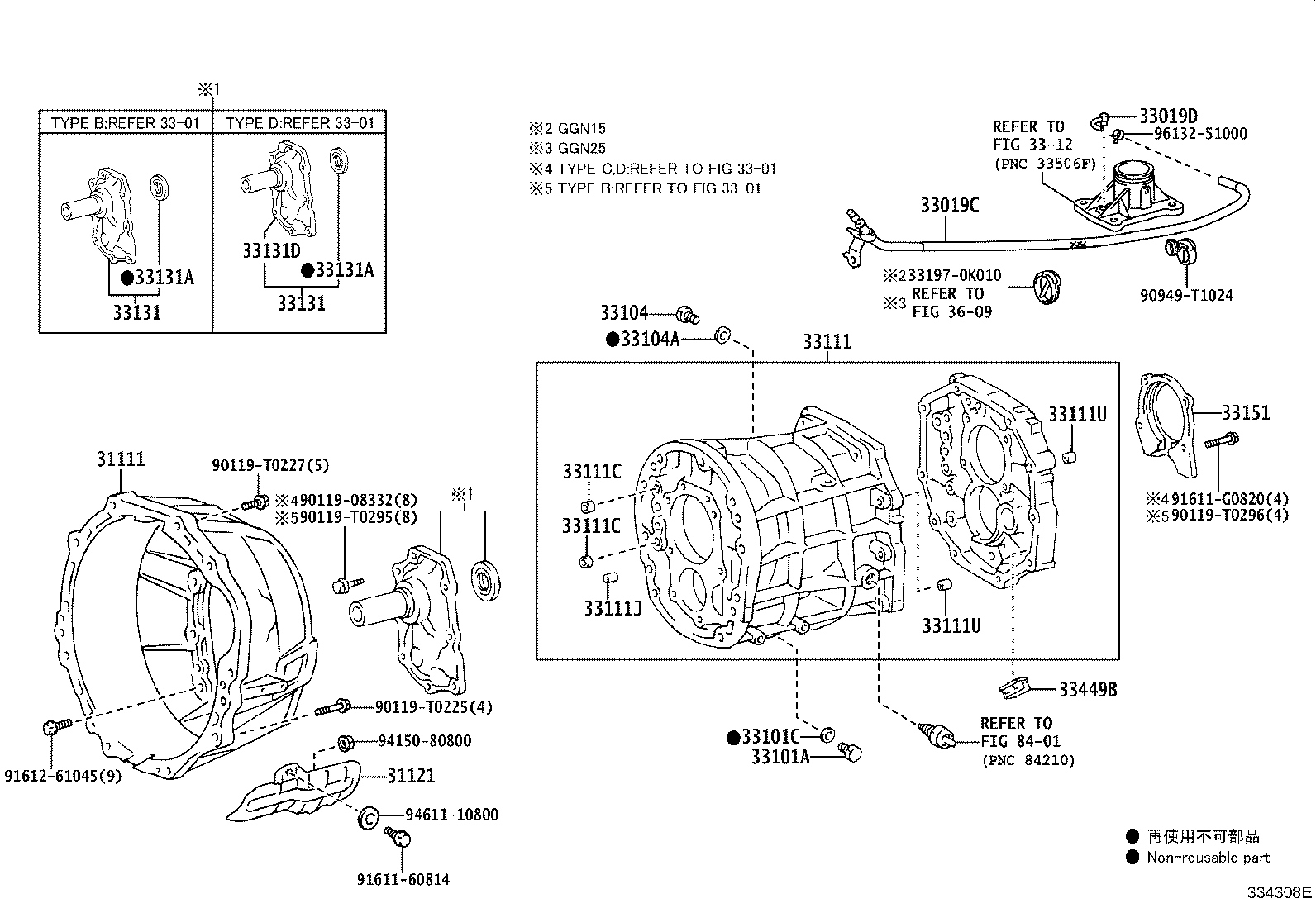

Figure 334304E 334304E 2011-07 → — Figure 334305L 334305L 2011-07 → — Figure 334306D 334306D 2011-07 → — Figure 334307H 334307H 2011-07 → — Figure 334308E 334308E 2011-07 → — Figure 334309C 334309C 2011-08 → — Figure 334310D 334310D 2011-08 → —

Part groups

PNCDescription
31111 Housing, Clutch
31121 Cover, Clutch Housing, NO.1
33019C Breather Sub-assy, Transmission
33019D 2 Way(FOR TRANSMISSION BREATHER HOSE)
33101A Plug(FOR MANUAL TRANSMISSION FILLER)
33101C Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
33104 Plug Sub-assy, Drain(MTM)
33104A Gasket, Drain Plug(MTM)
33111 Case, Manual Transmission
33111C Plug(FOR TRANSMISSION CASE)
33111J Pin, Straight(FOR MANUAL TRANSMISSION CASE)
33111U Pin, Ring(FOR MANUAL TRANSMISSION CASE)
33118 Plate, Stiffener, RH(MTM)
33119 Plate, Stiffener, LH(MTM)
33131 Retainer, Bearing, Front(MTM)
33131A Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER)
33131D Retainer, Bearing, Front
33132 Gasket, Front Bearing Retainer(MTM)
33151 Retainer, Output Shaft Rear Bearing(MTM)
33449B Magnet, Transmission
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
