Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

18 part groups · 5 illustrations

Illustrations

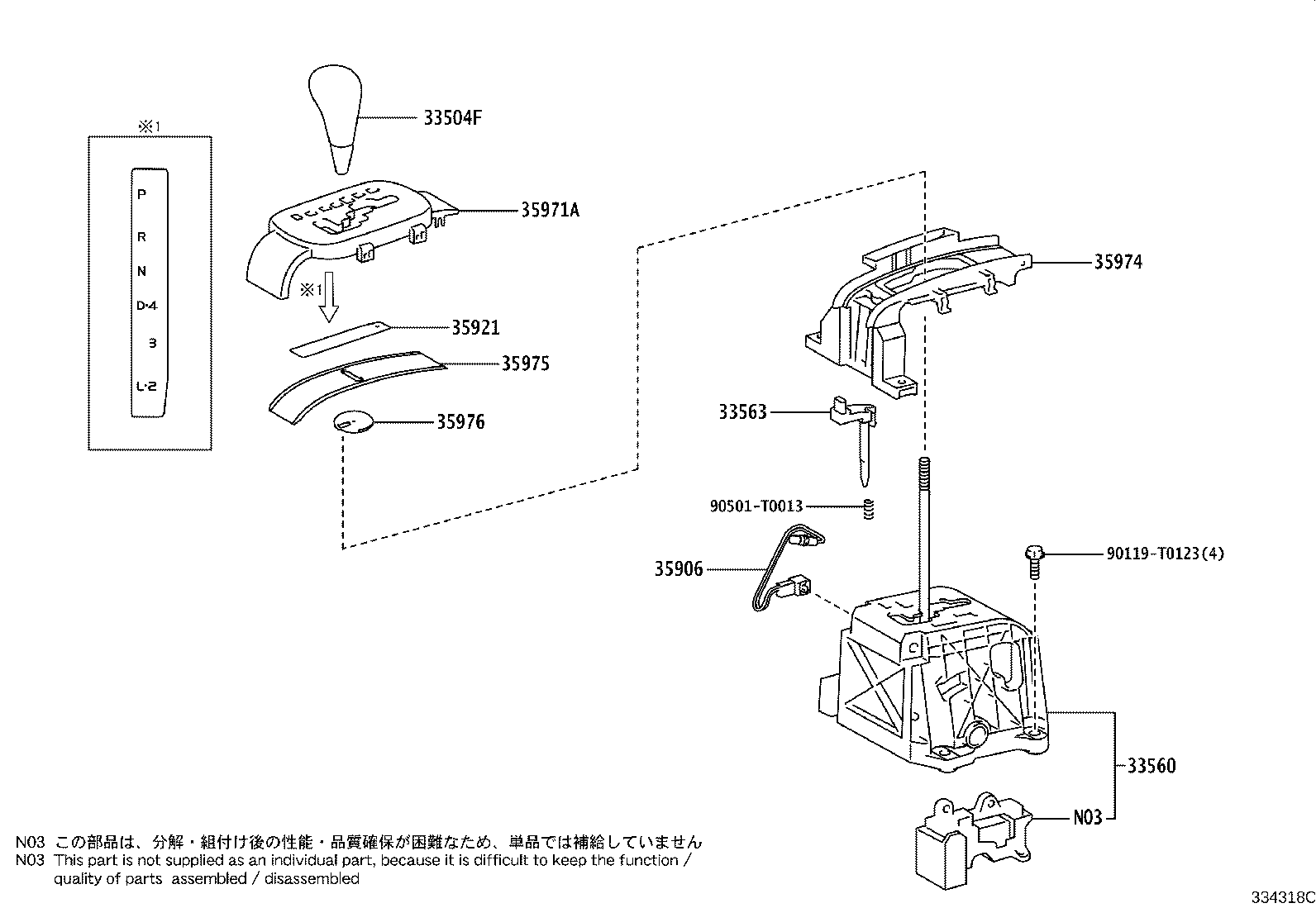

Figure 334316D 334316D 2011-07 → — Figure 334330C 334330C 2011-07 → — Figure 334315E 334315E 2011-07 → — Figure 334318C 334318C 2011-07 → — Figure 334317C 334317C 2011-07 → —

Part groups

PNCDescription
33105A Deflector Sub-assy, Extension Housing Oil(MTM)
33504F Knob Sub-assy, Shift Lever
33505B Seat Sub-assy, Shift Lever
33506F Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33548F Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
33560 Unit Assy, Shift Lock Control
33563 Button, Shift Lock Release
33584F Gasket, Control Shift Lever Retainer (FOR FLOOR SHIFT)
33820B Cable Assy, Transmission Control
33823 Bracket, Transmission Control Cable, NO.1
33826A Bracket, Transmission Control Cable, NO.2
35906 Wire Sub-assy, Indicator Lamp
35921 Plate, Control Position Indicator
35971A Housing, Position Indicator, Upper
35974 Housing, Position Indicator, Lower
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
